MLC608 electronic balance load cell

2021/11/26 MLC900 Micro Load Cell Weighing Load Cell 2092 0

kitchen scale weighing sensor,pet scale weighing sensor, rice cooker weighing sensor

Model: MLC608
Rated load:500g, 1kg, 3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 25kg
Dimension:70*22*15mm
Material: alloy aluminum
Safe overload:150%; Ultimate overload: 200%
Characteristic: electronic balance load cell,kitchen scale load cell,pricing scale load cell,platform scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Technical Documents

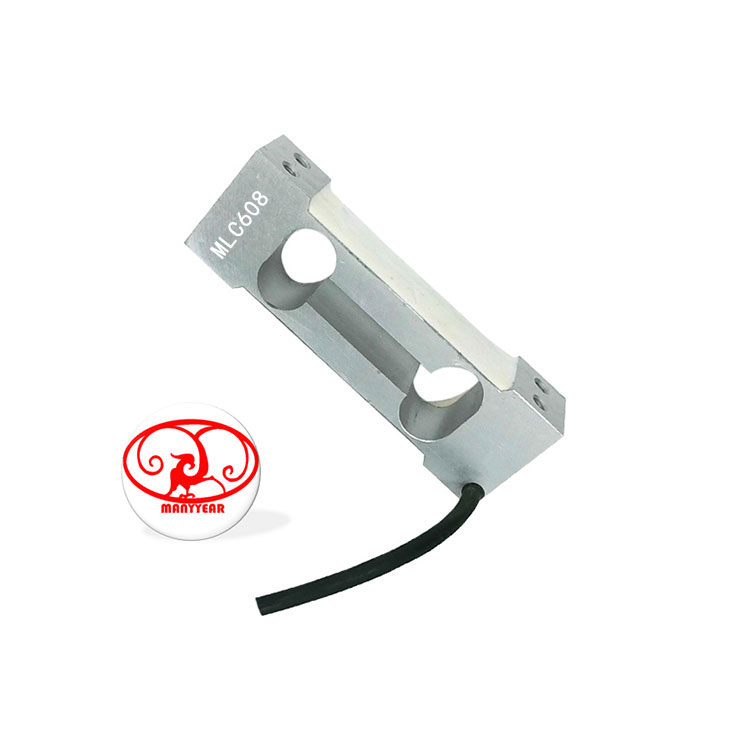

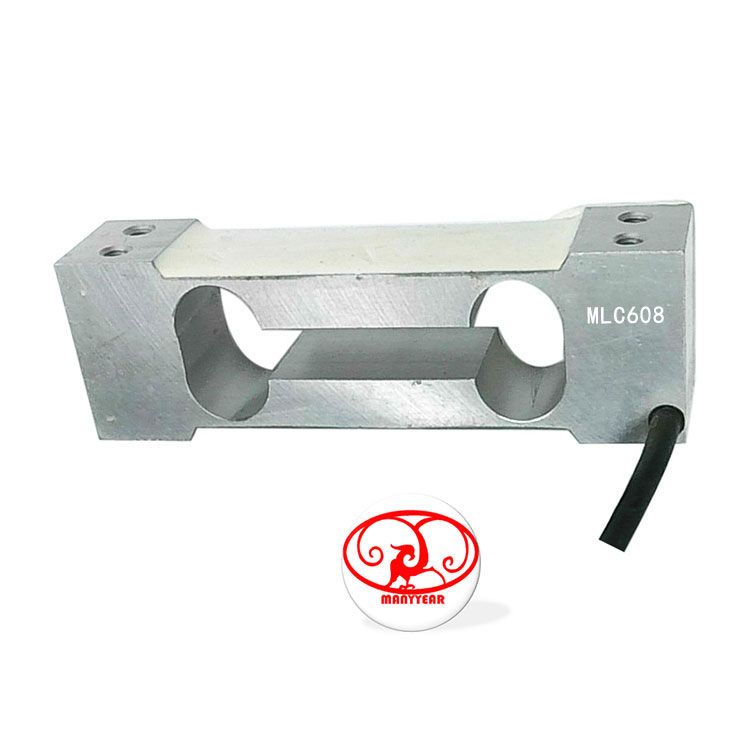

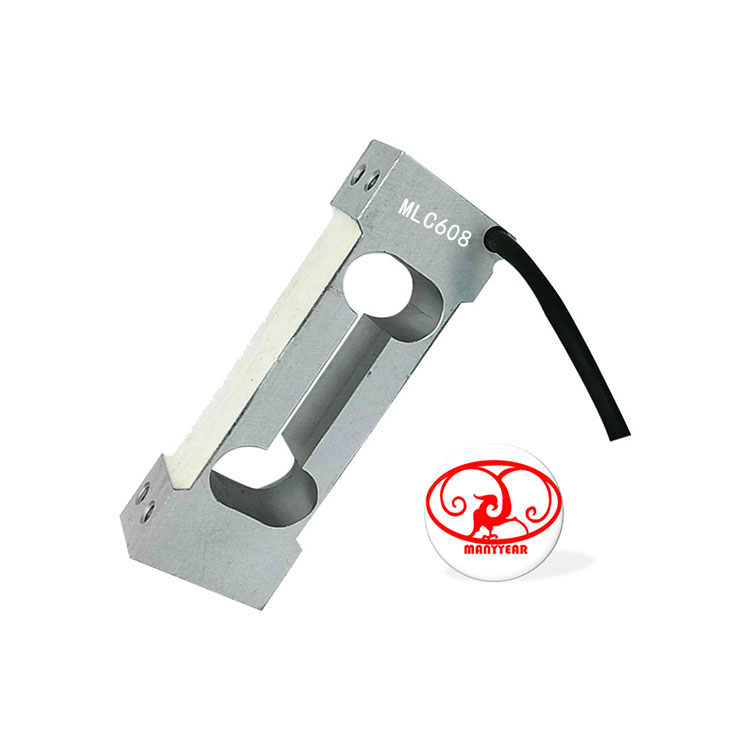

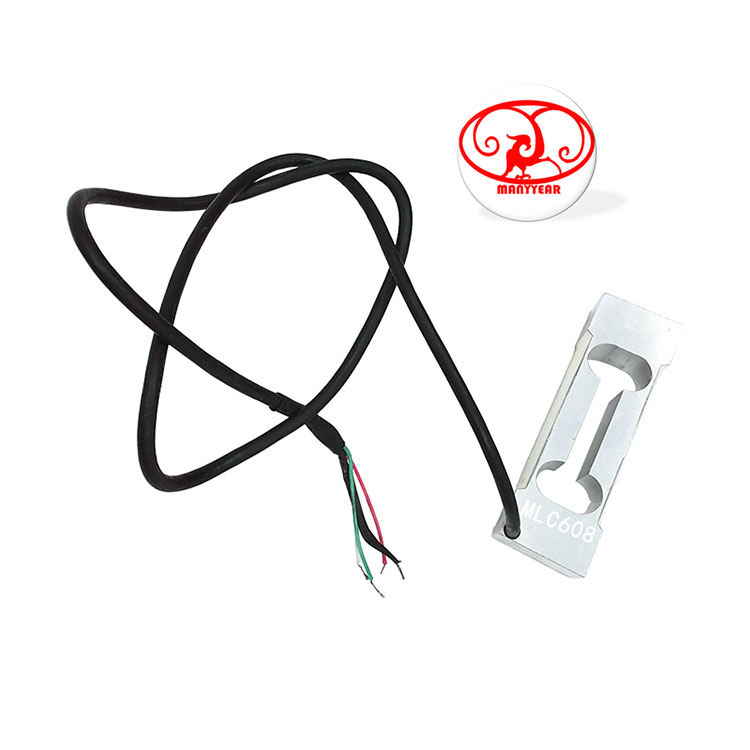

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC608 electronic balance load cell

Model: MLC608 Catalogue: Micro load cell Rated load: 0.5kg, 1kg, 3kg, 5kg, 6kg, 10kg, 15kg, 20kg, 25kg Dimension:702215mm Safe overload:120%; Ultimate overload: 150% Material: alloy aluminum Characteristic: electronic balance load cell,kitchen scale load cell,pricing scale load cell,platform scale load cell

Specification
Comprehensive error:	0.02%FS	Output resistance:	350±3Ω
Rated output:	1.0±0.1mV/V; 2.0±0.1mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.02%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.02%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.01%FS	Use temperature:	-20~+60ºC
Creep:	0.02%FS/10Min	Temp effect on zero:	0.03%FS/10ºC
Zero balance:	±1.5%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	405±10Ω	Defend grade:	IP65

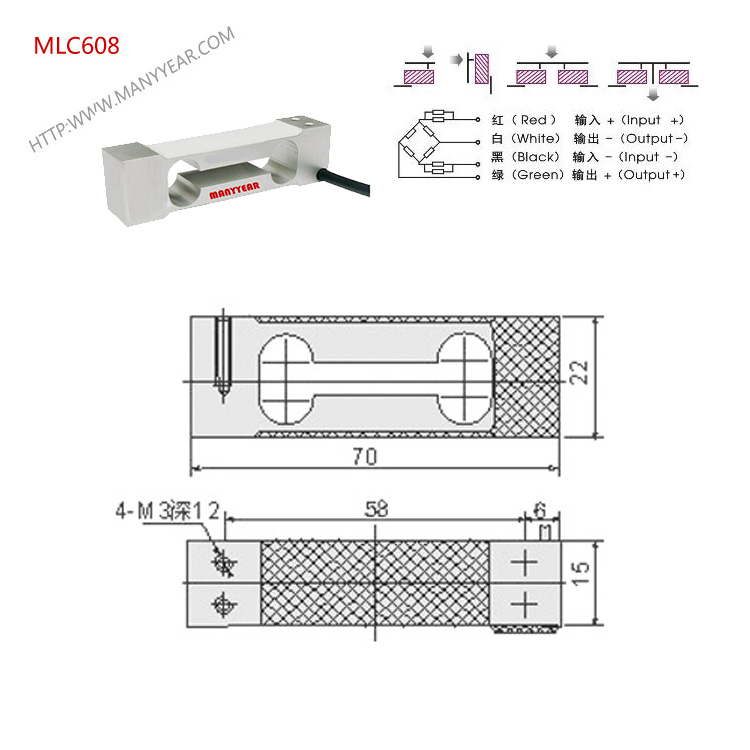

Product Dimension

MLC608 electronic balance load cell

Force Structure & Assembly Reference

Product Application

weighing solution-cinema seats management system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
wireless truck weighing system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
seat weighing system solution
Bus seat weighing solution is applicable to bus seat weighing and counting control.
platform scale weighing solution
weighing solution is applicable to price scale, kitchen scale, pet scale, truck scale, belt scale, packaging scale, batching scale, inspection scale, tank scale etc
