MLC600-100KG Weighing Load Cell 2997 0

parallel beam load cell,platform scale load cell,pricing scale load cell, single point load cell,electronic scale load cell

Model: MLC618
Category: Single point load cell
Range: 5kg,8kg,10kg,15kg,20kg,30kg,35kg,50kg,100kg
Dimension: 80*21*22mm
Material: alloy aluminum
Characteristic:parallel beam load cell,platform scale load cell, pricing scale load cell,electronic scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference



Product Picture Reference

MLC618 pricing scale load cell-MANYYEAR TECHNOLOGY

MLC618 pricing scale load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC618 pricing scale load cell

Model: MLC618

Category: Single point load cell

Range: 5kg,8kg,10kg,15kg,20kg,30kg,35kg,50kg,100kg

Dimension: 80*21*22mm

Material: alloy aluminum

Characteristic:parallel beam load cell,platform scale load cell, pricing scale load cell,electronic scale load cell

Specification
Comprehensive error:0.015%FSOutput resistance:1000±10Ω
Rated output:1.5±0.01mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.015%FSExcitation voltage:9~12VDC
Hysteresis:0.015%FSCompensated temp:-10~+40ºC
Repeatability:0.015%FS Use temperature:-20~+60ºC
Creep:0.015%FS/10MinTemp effect on zero:0.02%FS/10ºC
Zero balance:±0.1mVTemp effect on span:0.015%FS/10ºC
Input resistance:1090±10ΩDefend grade:IP67

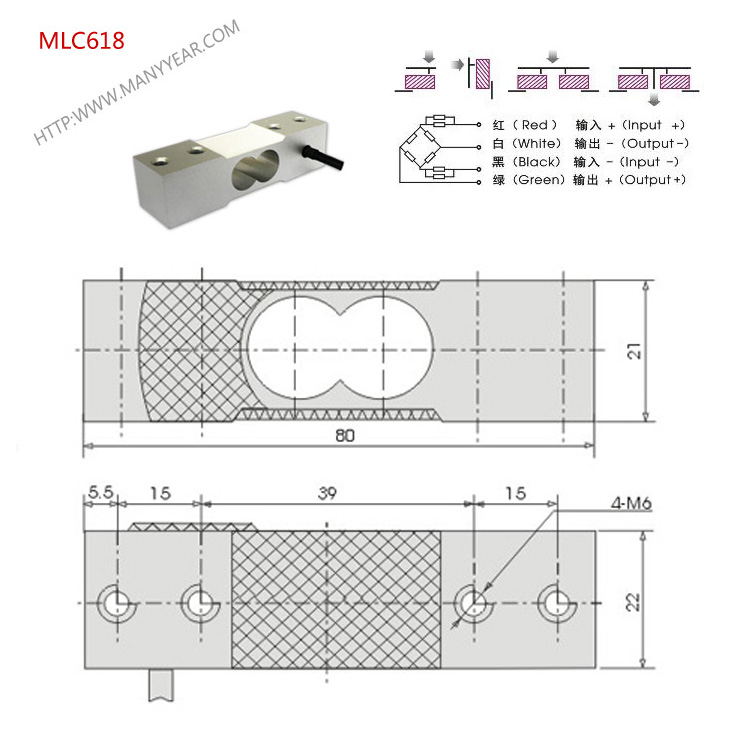

Product Dimension

MLC618 pricing scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC618 pricing scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC618 pricing scale load cell-MANYYEAR TECHNOLOGYMLC618 pricing scale load cell-MANYYEAR TECHNOLOGYMLC618 pricing scale load cell-MANYYEAR TECHNOLOGY
