MLC649D 500kg animal scale load cell

2021/11/15 MLC600 Parallel Beam Load Cell Weighing Load Cell 1873 0

platform scale load cell, animal scale load cell, live scale load cell, checkweigher load cell

Model: MLC649D
Category: Single point load cell
Range: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 350kg, 500kg
Dimension: 150*45*40mm
Material: alloy aluminum
Characteristic: platform scale load cell,animal scale load cell,live scale load cell,checkweigher load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Technical Documents

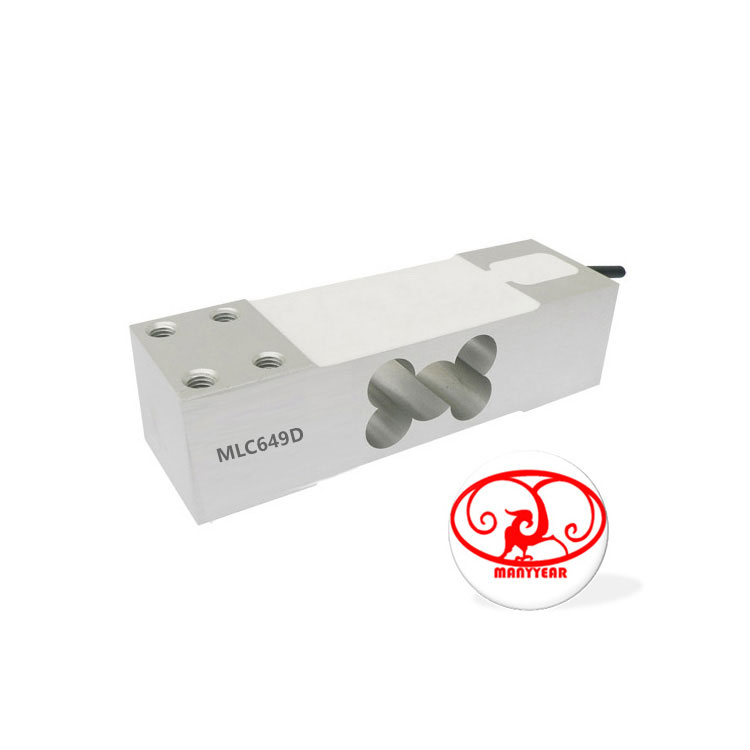

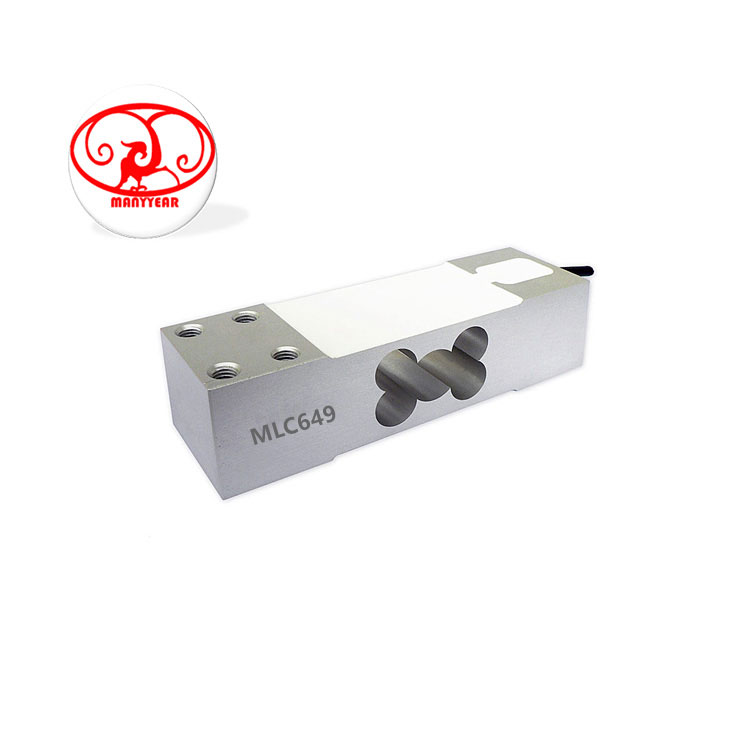

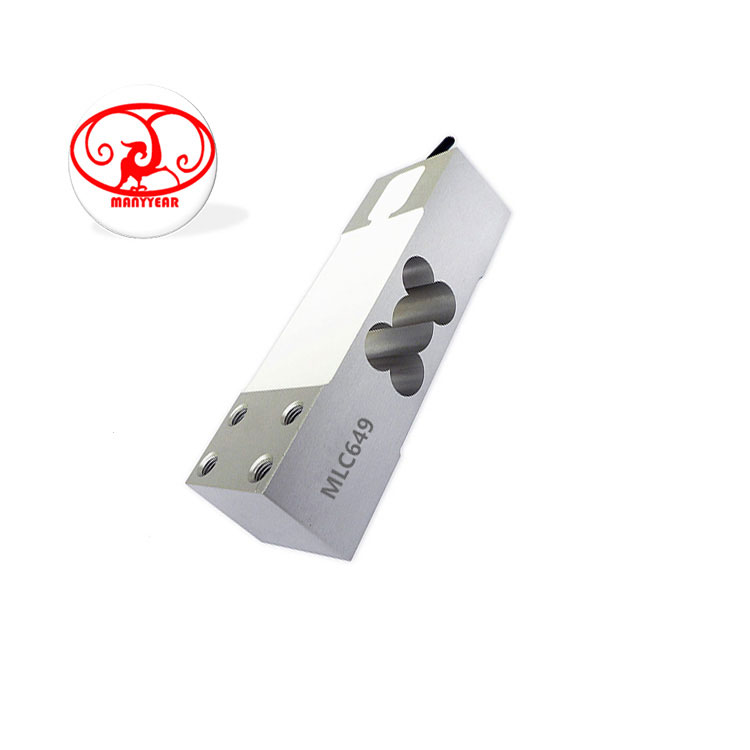

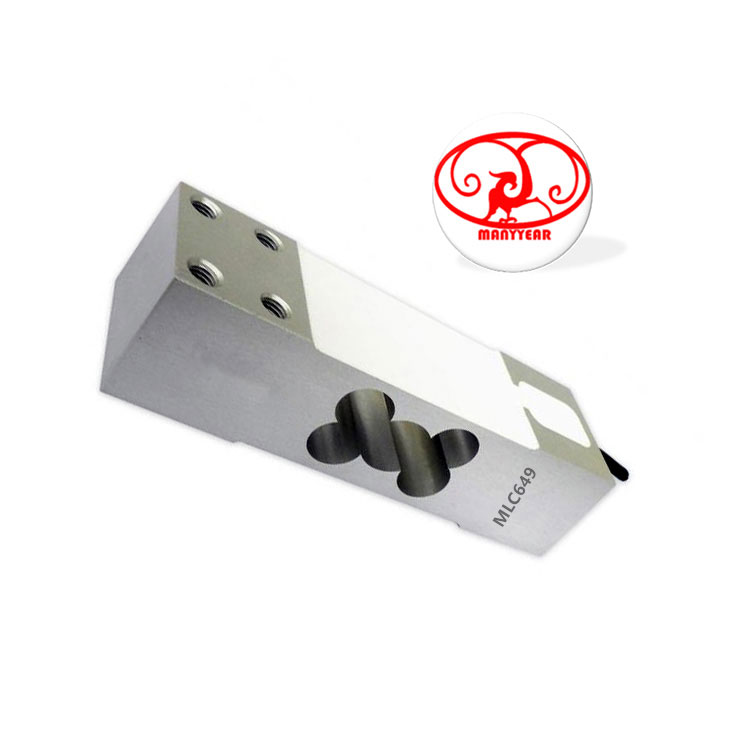

Product Picture Reference

MLC649D 500kg animal scale load cell

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC649D 500kg animal scale load cell

Model: MLC649D Category: Single point load cell Range: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 350kg, 500kg Dimension:1504540mm Material:alloy aluminum Characteristic: platform scale load cell,animal scale load cell,live scale load cell,checkweigher load cell

Specification
Comprehensive error:	0.017%FS	Output resistance:	350±3Ω
Rated output:	1±0.01mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.017%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.017%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.01%FS	Use temperature:	-20~+60ºC
Creep:	0.017%FS/10Min	Temp effect on zero:	0.017%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.014%FS/10ºC
Input resistance:	405±10Ω	Defend grade:	IP65

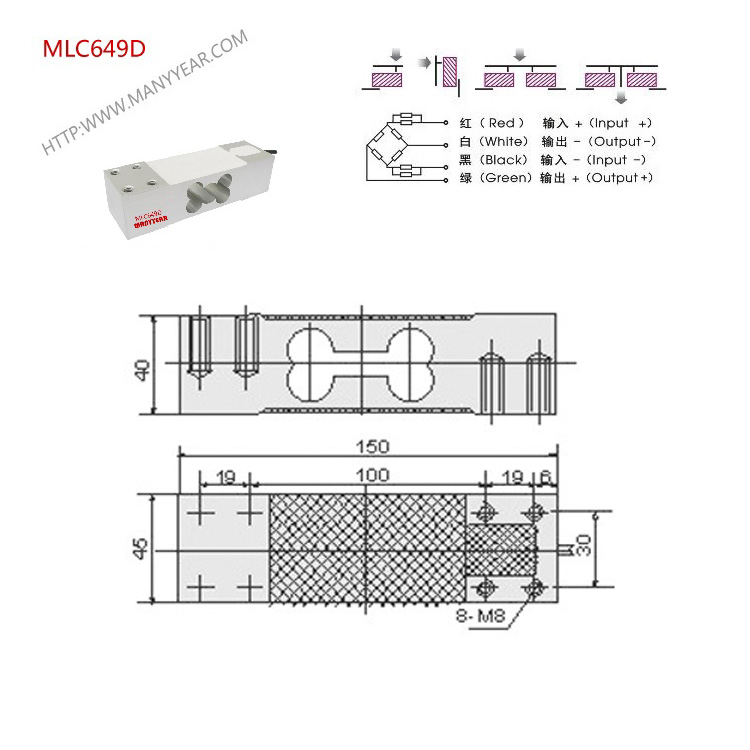

Product Dimension

Force Structure & Assembly Reference

Product Application

weighing solution-cinema seats management system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
wireless truck weighing system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
seat weighing system solution
Bus seat weighing solution is applicable to bus seat weighing and counting control.

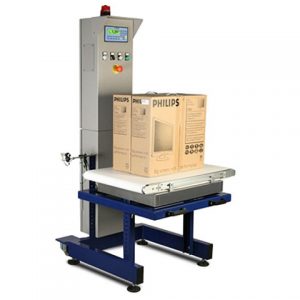

platform scale weighing solution
weighing solution is applicable to price scale, kitchen scale, pet scale, truck scale, belt scale, packaging scale, batching scale, inspection scale, tank scale etc
