MLC928WD platform scale weighing sensor MLC928WD platform scale weighing sensor
MLC928WD platform scale weighing sensor
MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY
MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY
MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY
MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY

MLC928WD platform scale weighing sensor

kitchen scale weighing sensor,pet scale weighing sensor, rice cooker weighing sensor, platform scale weighing sensor

Model: MLC928WD
Category: Micro load cell
Range: 5,7.5,10,15,20,30,50,75,100kg
Dimension: 37*47*T(T=3,4,5,6,7,8,9,10)mm
Material: alloy steel
Characteristic: kitchen scale weighing sensor,pet scale weighing sensor, rice cooker weighing sensor, platform scale weighing sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

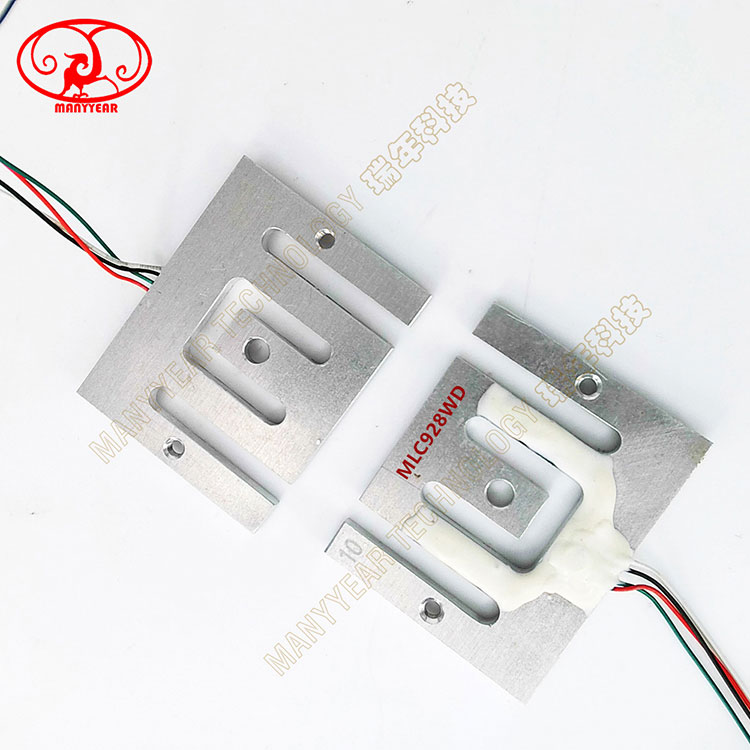

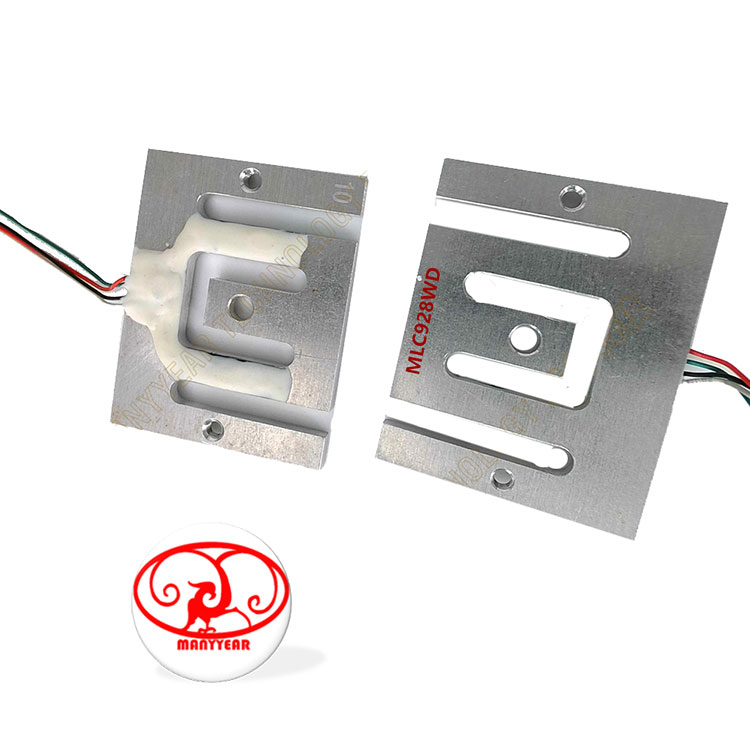

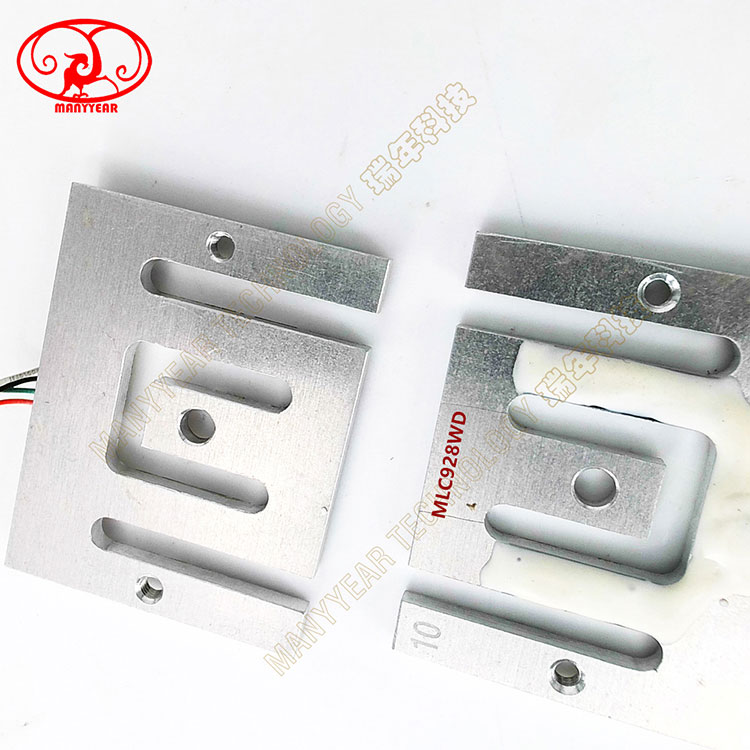

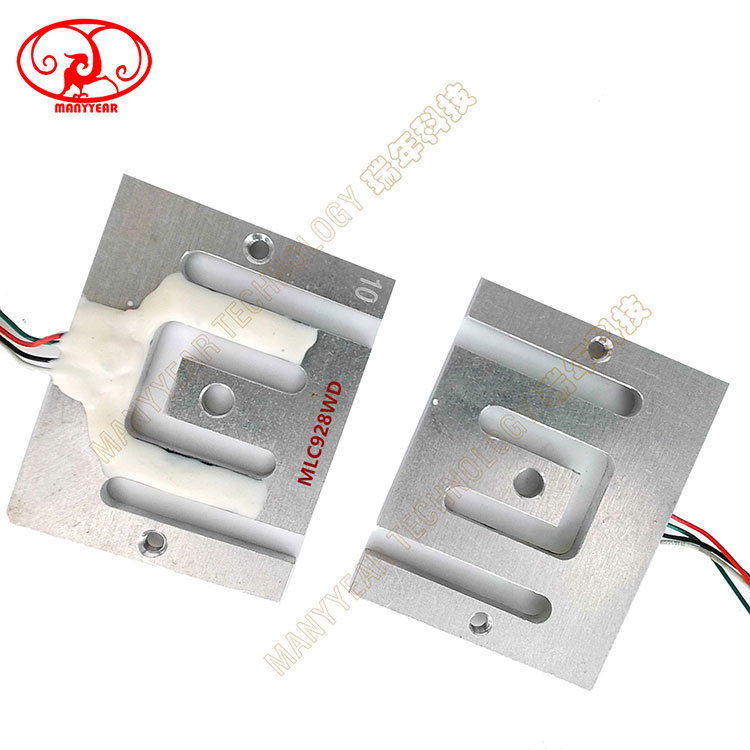

Product Picture Reference

MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC928WD platform scale weighing sensor

Model: MLC928WD

Category: Micro load cell

Range: 5,7.5,10,15,20,30,50,75,100kg

Dimension: 37*47*T(T=3,4,5,6,7,8,9,10)mm

Material: alloy steel

Characteristic: kitchen scale weighing sensor,pet scale weighing sensor, rice cooker weighing sensor, platform scale weighing sensor

Specification
Comprehensive error:0.05%FSOutput resistance:1000±20%
Rated output:1.0±0.2mV/VInput resistance:1000±20%
Safety overload150%.R.CInsulation resistance:≥2000MΩ
Non-linearity:±0.03%R.O.Excitation voltage:≤6VDC
Hysteresis:±0.03%R.O.Use temperature:0~+40ºC
Repeatability:±0.03%R.O.Temp effect on zero:±2%R.O./10℃
Creep:±0.03%R.O./2MinTemp effect on span:±0.1%R.O./10℃
Zero balance:±0.1mV/VDefend grade:IP66



Product Dimension

MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY

MLC928WD platform scale weighing sensor

Force Structure & Assembly Reference

MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY

Product Application

MLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGYMLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGYMLC928WD platform scale weighing sensor-MANYYEAR TECHNOLOGY
