MLC913AB body scale lower cost weighing sensor

body scale load cell, health scale load cell, bathroom scale load cell, pet scale load cell

Model: MLC913AB
Catalog: Micro load cell
Rated load: 50kg,75kg
Dimension:34*34*3.8mm
Material: Alloy steel
Safe overload:150%; Ultimate overload: 200%
Characteristic: body scale load cell, health scale load cell, bathroom scale load cell, pet scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

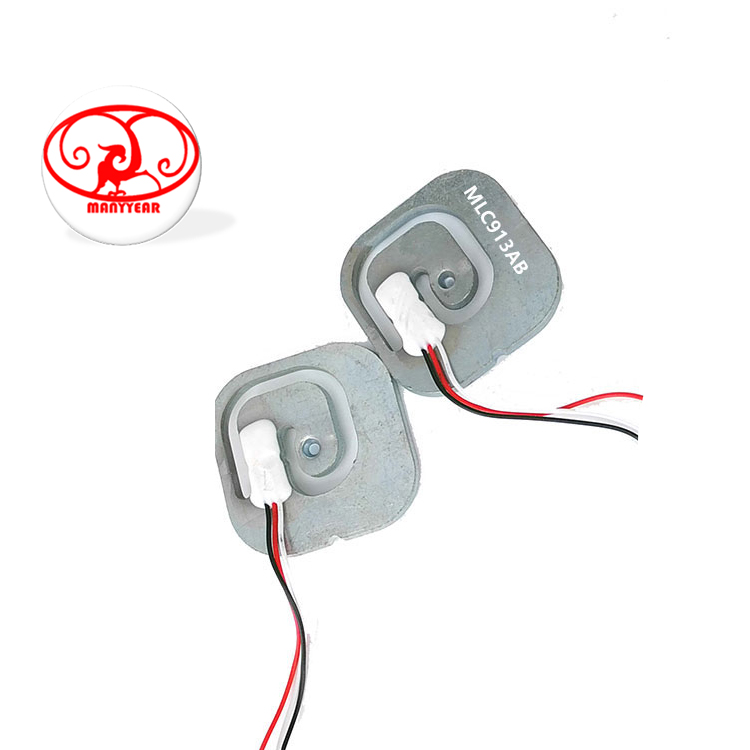

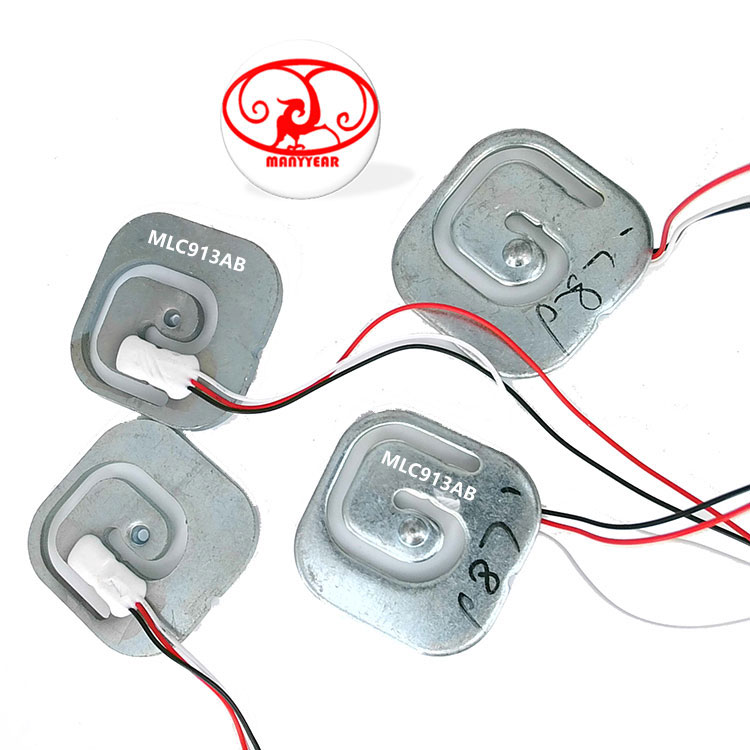

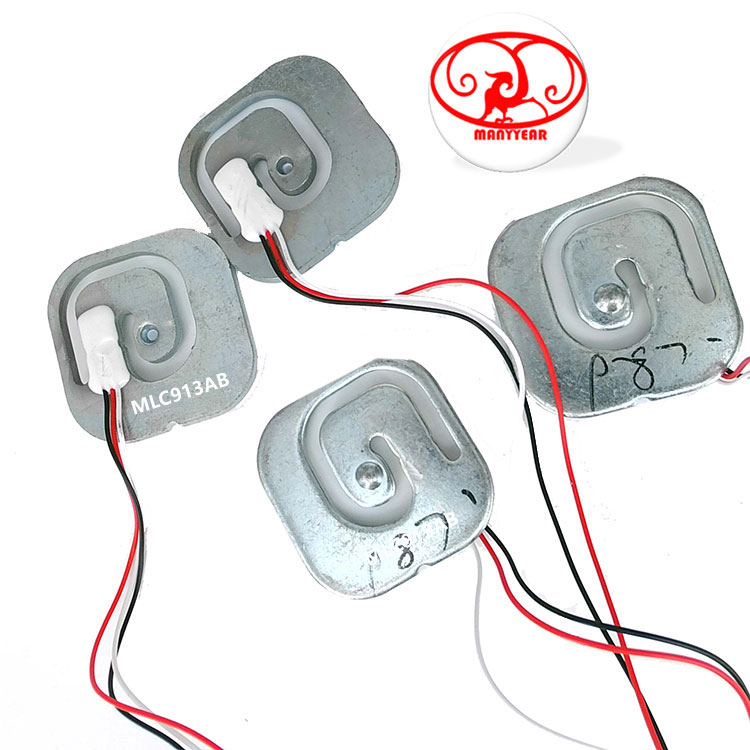

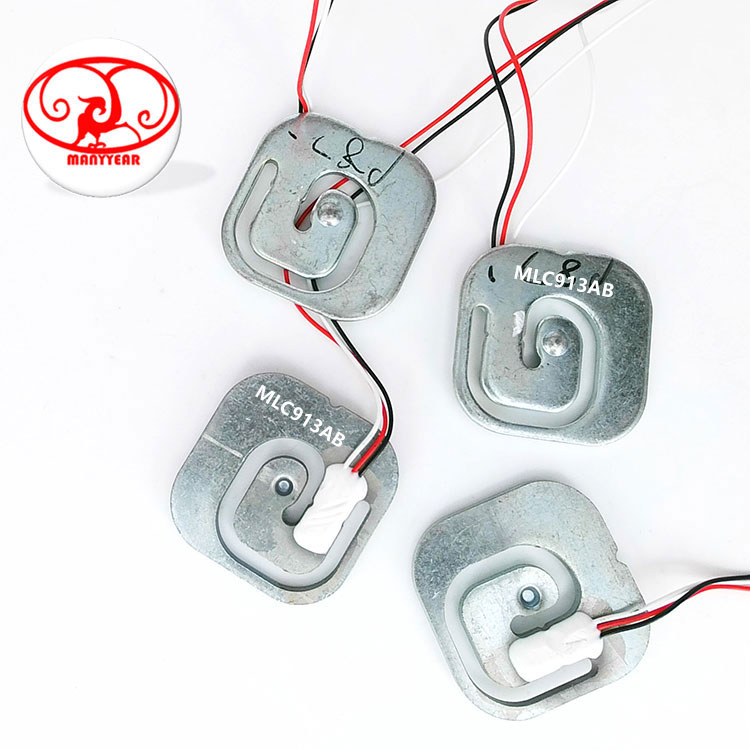

Product Picture Reference

MLC913AB body scale lower cost weighing sensor-MANYYEAR TECHNOLOGY

MLC913AB body scale lower cost weighing sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC913AB body scale lower cost weighing sensor

Model: MLC913AB

Catalog: Micro load cell

Rated load: 50kg,75kg

Dimension:34*34*3.8mm

Material: alloy steel

Safe overload:150%; Ultimate overload: 200%

Characteristic: body scale load cell, health scale load cell, bathroom scale load cell, pet scale load cell

   Specification
Comprehensive error:0.25%FSOutput resistance:1000±10Ω
Rated output:1.2±0.2mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:5~10VDC
Hysteresis:0.2%FSCompensated temp:-10~+40ºC
Repeatability:0.2%FSUse temperature:-20~+55ºC
Creep:0.2%FS/10MinTemp effect on zero:0.2%FS/10ºC
Zero balance:+-0.5mV/VTemp effect on span:0.2%FS/10ºC
Input resistance:1090±10ΩDefend grade:IP66

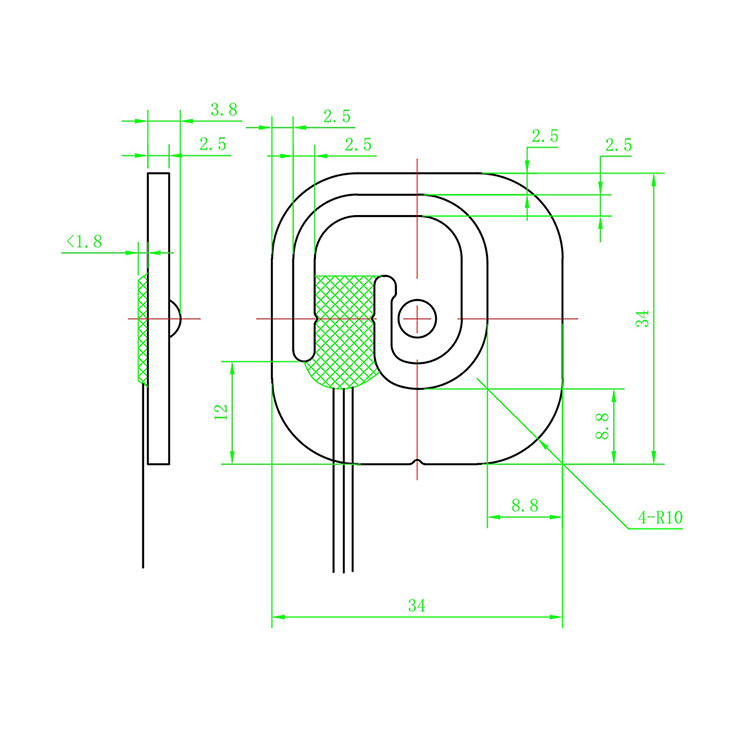

Product Dimension

MLC913AB body scale lower cost weighing sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC913AB body scale lower cost weighing sensor-MANYYEAR TECHNOLOGY

Product Application

MLC913AB body scale lower cost weighing sensor-MANYYEAR TECHNOLOGYMLC913AB body scale lower cost weighing sensor-MANYYEAR TECHNOLOGYMLC913AB body scale lower cost weighing sensor-MANYYEAR TECHNOLOGY
