MLC611N03B vending machine weight sensor MLC611N03B vending machine weight sensor
MLC611N03B vending machine weight sensor
MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY
MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY
MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY
MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY

MLC611N03B vending machine weight sensor

MLC600-20kg Weighing Load Cell 4125 0

high temperature weight sensor,low temperature weight sensor,kitchen scale weight sensor, platform scale weight sensor,vending machine weight sensor

Model: MLC611N03B
Category: Micro load cell
Rated load:2,3,5,7.5,10,15,20,25kg
Dimension: 80*68*15mm
Material: alloy aluminum+stainless steel
Characteristic:high temperature weight sensor,low temperature weight sensor,kitchen scale weight sensor,platform scale weight sensor,vending machine weight sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

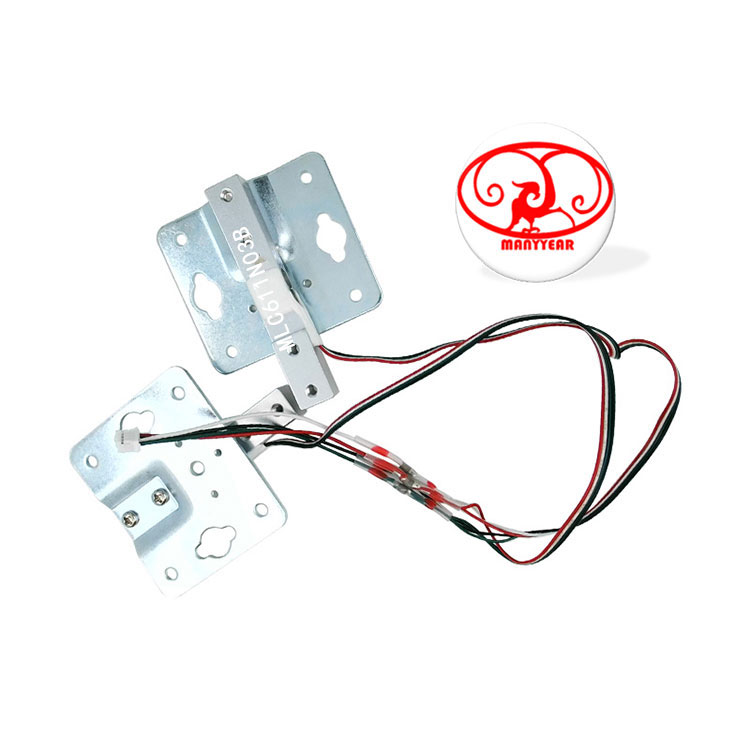

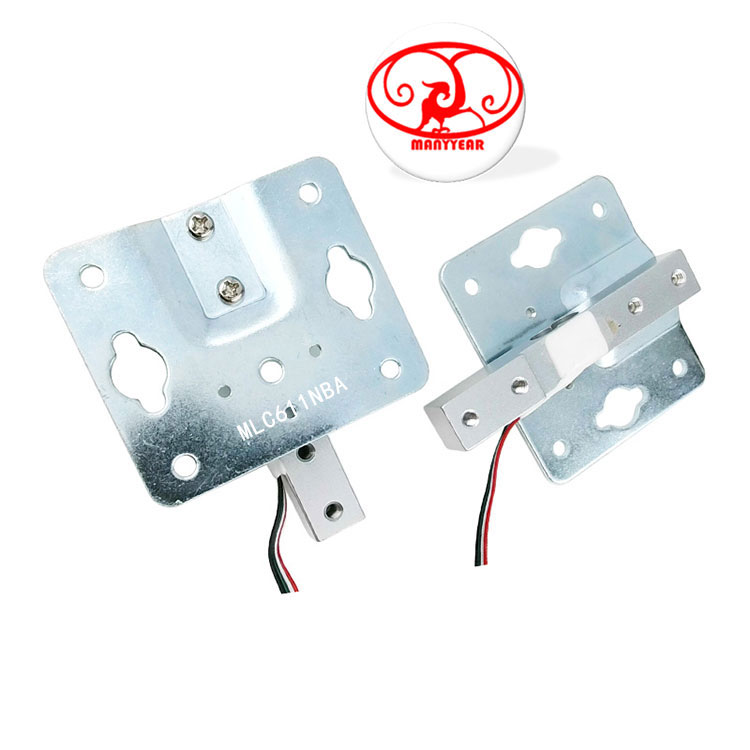

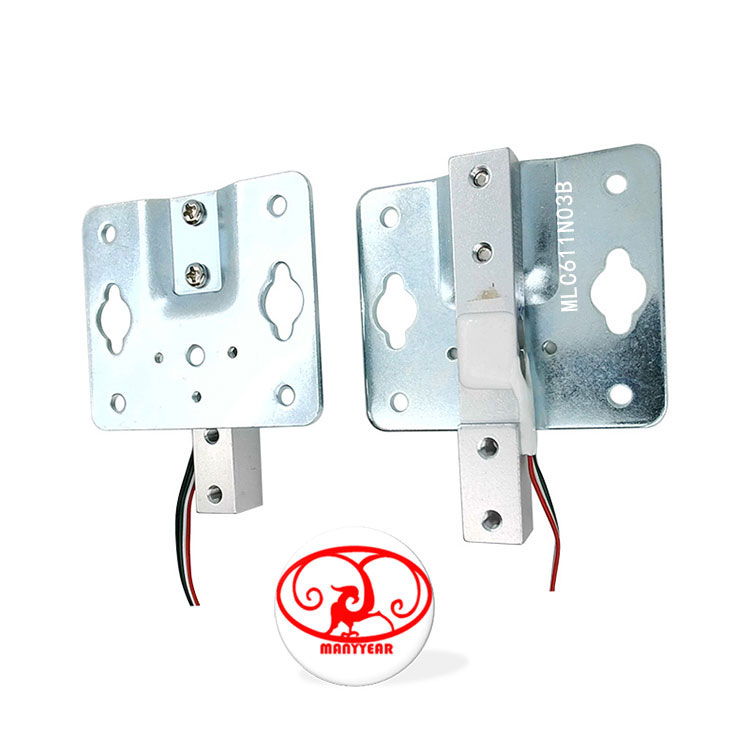

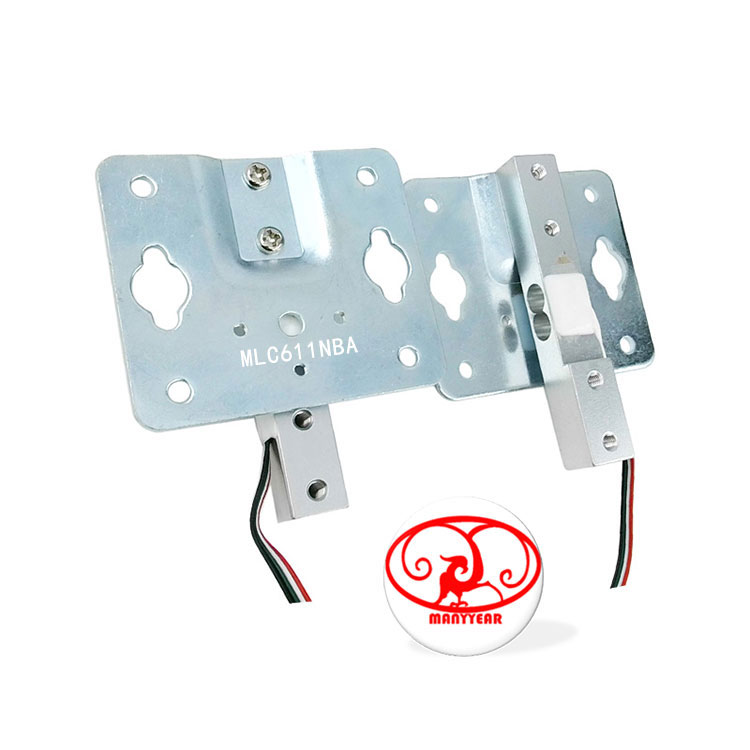

Product Picture Reference



MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC611N03B vending machine weight sensor

Model: MLC611N03B

Category: Micro load cell

Rated load:2,3,5,7.5,10,15,20,25kg

Dimension: 80*68*20mm

Material: alloy aluminum+stainless steel

Characteristic:high temperature weight sensor,low temperature weight sensor,kitchen scale weight sensor,platform scale weight sensor,vending machine weight sensor

Specification
Comprehensive error:0.05%FSOutput resistance:1000±10Ω
Rated output:1±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:5~10VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.05%FS/3MinTemp effect on zero:0.1%FS/10ºC
Zero balance:±0.1mV/VTemp effect on span:0.05%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

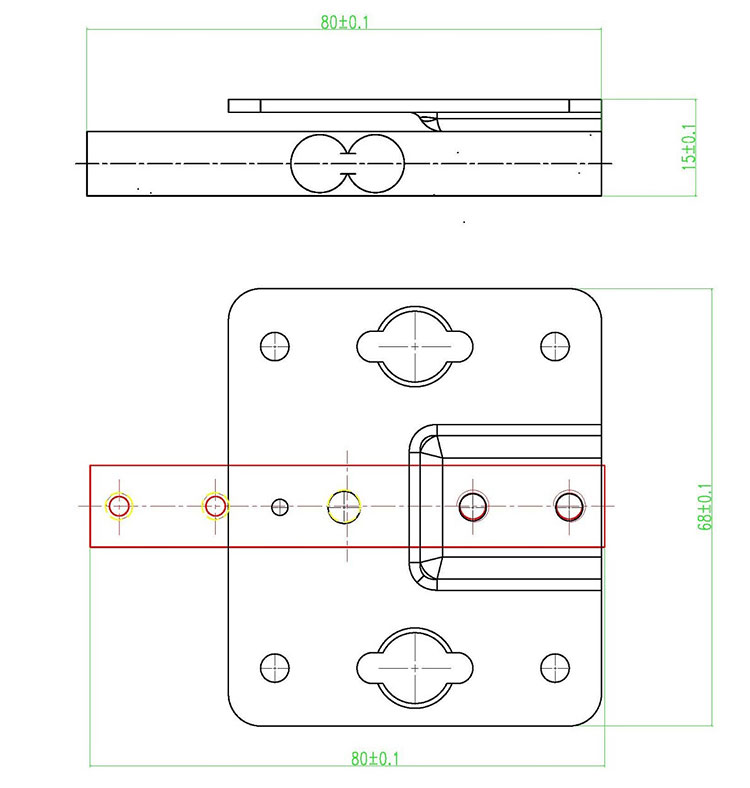

Product Dimension

MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY

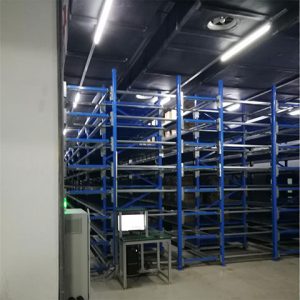

Product Application

MLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGYMLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGYMLC611N03B vending machine weight sensor-MANYYEAR TECHNOLOGY
