MLC639HB jewelry scale weight sensor

kitchen scale weight sensor, electronic balance weight sensor, jewelry scale weight sensor, micro weight sensor

Model: MLC639HB
Catalog: Micro load cell
Rated load: 30g,50g,100g,500g,750g
Dimension: 47×12×6mm
Material: Alloy aluminum
Safe overload:150%; Ultimate overload: 200%
Characteristic: kitchen scale weight sensor,electronic balance weight sensor, jewelry scale weight sensor,micro weight sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

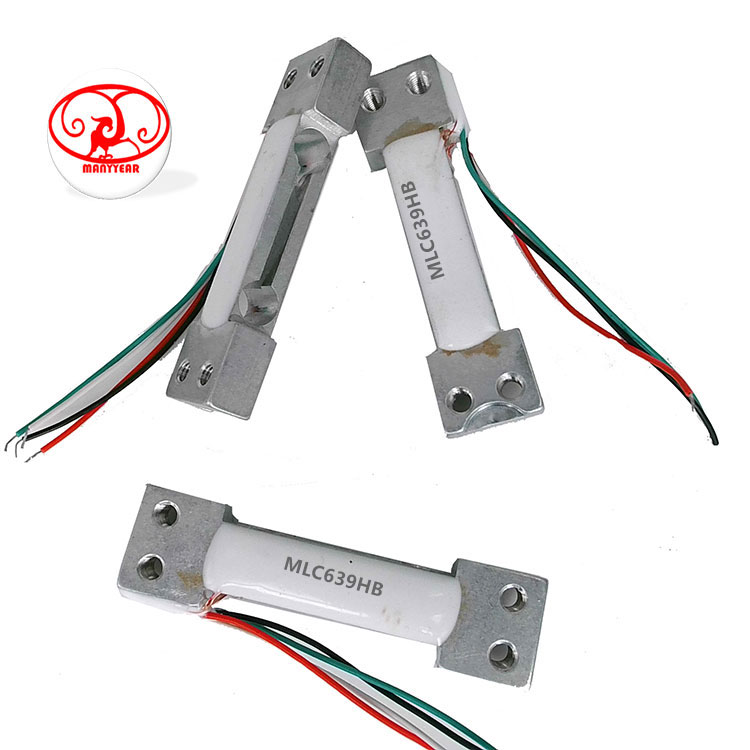

Product Picture Reference



MLC639HB jewelry scale weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC639HB jewelry scale weight sensor

Model: MLC639HB

Catalog: Micro load cell

Rated load: 30g,50g,100g,500g,750g

Dimension: 47×12×6mm

Material: alloy aluminum

Safe overload:150%; Ultimate overload: 200%

Characteristic: kitchen scale weight sensor,electronic balance weight sensor, jewelry scale weight sensor,micro weight sensor

 Specification
Comprehensive error:0.05FSOutput resistance:1000±10Ω
Rated output:0.7±0.03mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:5~10VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.05%FS/10MinTemp effect on zero:0.05%FS/10ºC
Zero balance:±0.1%FSTemp effect on span:0.05%FS/10ºC
Input resistance:1090±10ΩDefend grade:IP66

Product Dimension

MLC639HB jewelry scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC639HB jewelry scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC639HB jewelry scale weight sensor-MANYYEAR TECHNOLOGYMLC639HB jewelry scale weight sensor-MANYYEAR TECHNOLOGYMLC639HB jewelry scale weight sensor-MANYYEAR TECHNOLOGY
