MLC608M jewelry scale weight sensor

MLC600-500G Weighing Load Cell 3114 0

kitchen scale weight sensor, jewelry scale weight sensor, micro weight sensor

Model: MLC608M
Catalogue: Micro load cell
Rated load: 20g,30g,50g,100g,200g
Dimension:70*9*5mm
Safe overload:150%; Ultimate overload: 200%
Characteristics: kitchen scale weight sensor, jewelry scale weight sensor, micro weight sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

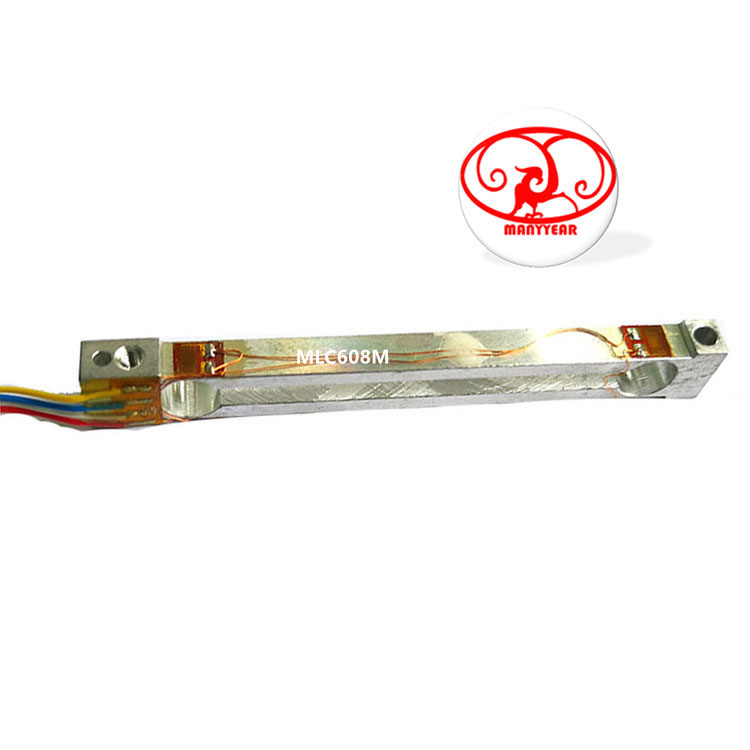

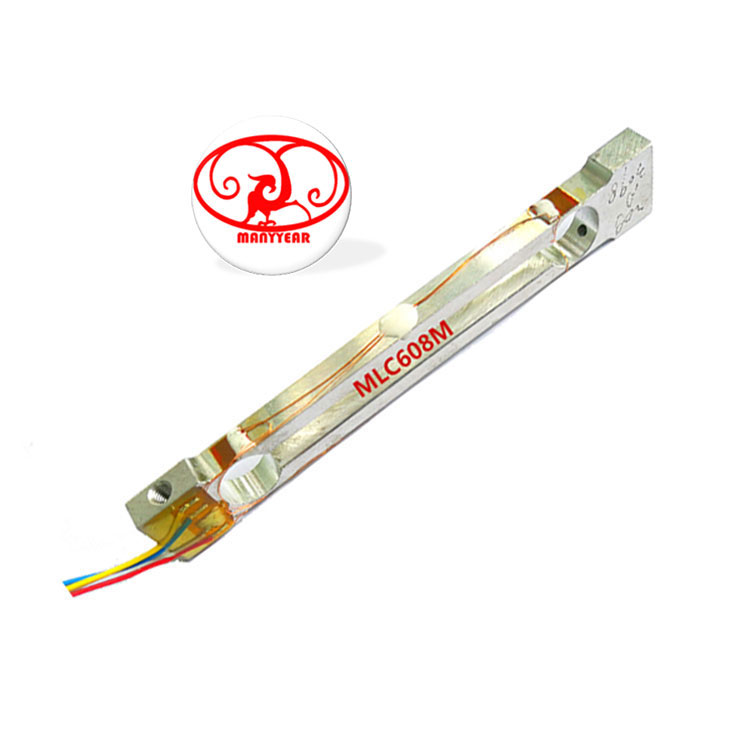

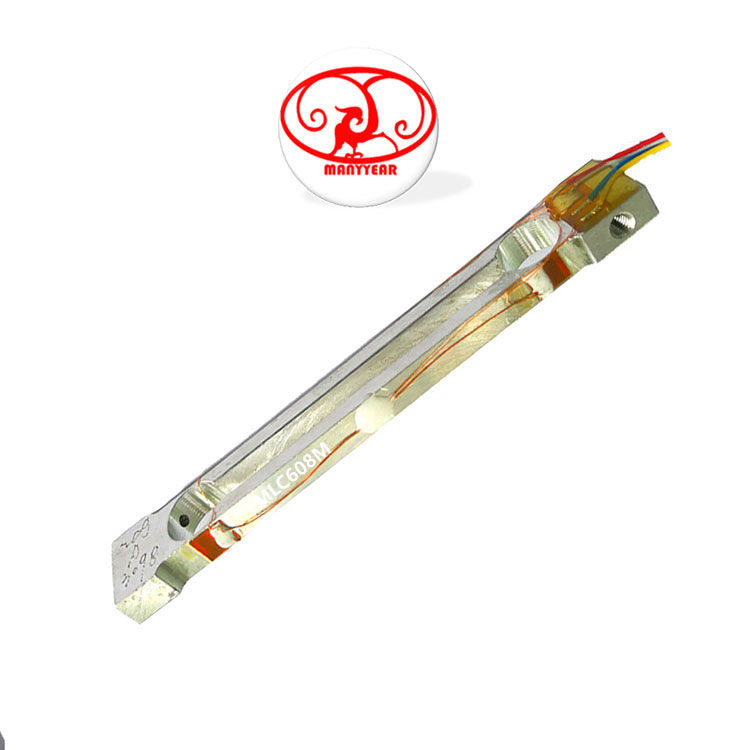

Product Picture Reference

MLC608M jewelry scale weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC608M jewelry scale weight sensor

Model: MLC608M

Catalog: Micro load cell

Rated load: 20g,30g,50g,100g,200g

Dimension:70*9*5mm

Safe overload:150%; Ultimate overload: 200%

Material: alloy aluminum

Characteristics: kitchen scale weight sensor, jewelry scale weight sensor, micro weight sensor

Specification
Comprehensive error:0.05%F.S.Output resistance:1000±10Ω
Rated output:0.5±0.15 mV/VInsulation resistance:≥2000 MΩ/50V
Non-linearity:±0.05%F.S.Excitation voltage:5~10VDC
Hysteresis:±0.05%F.S.Compensated temp:-10~+40ºC
Repeatability:±0.05%F.S.use temperature:-20~+55ºC
Creep:±0.05%F.S.5MinTemp effect on zero:±2.0%F.S./10ºC
Zero balance:±0.5 mV/VTemp effect on span:±0.05%F.S./10ºC
Input resistance:1055±10ΩDefend grade:IP66

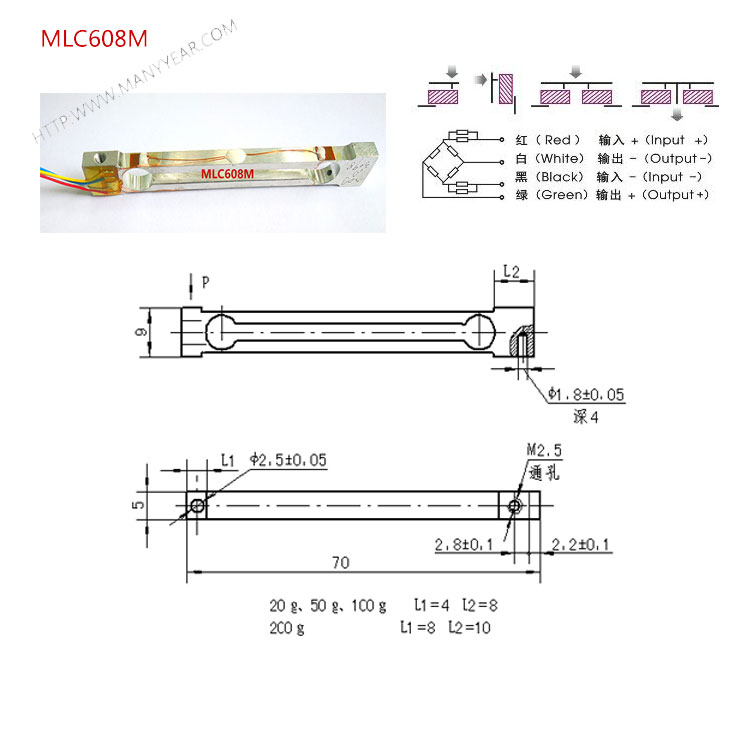

Product Dimension

MLC608M jewelry scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC608M jewelry scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC608M jewelry scale weight sensor-MANYYEAR TECHNOLOGYMLC608M jewelry scale weight sensor-MANYYEAR TECHNOLOGYMLC608M jewelry scale weight sensor-MANYYEAR TECHNOLOGY
