Model: MLC707C
Product Category: Micro Load Cell
Range: 10~40kg
Size: 50*20*2.5mm
Material: alloy steel
Application: Luggage scale, micro force measurement, robot force measurement, robot arm force measurement, force switch, automation equipment




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

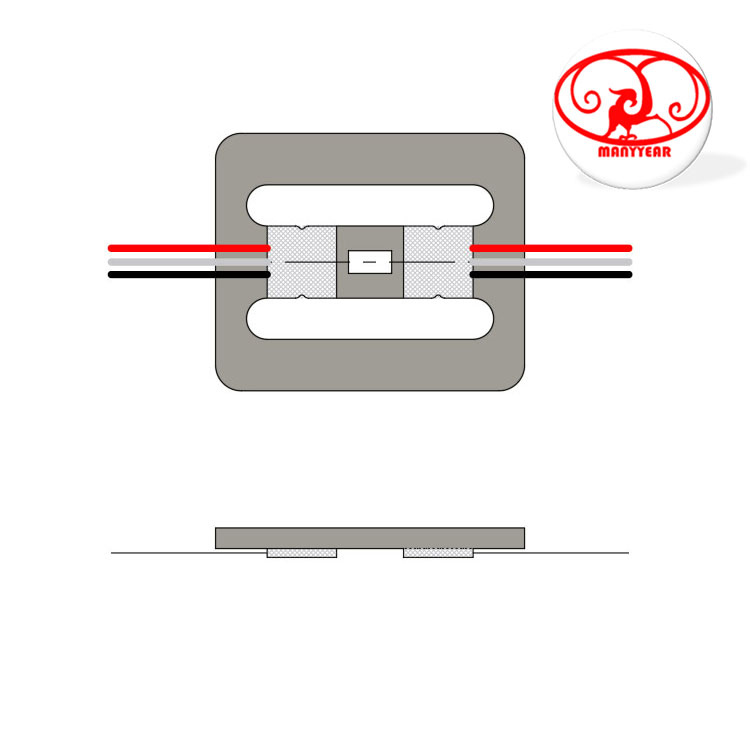

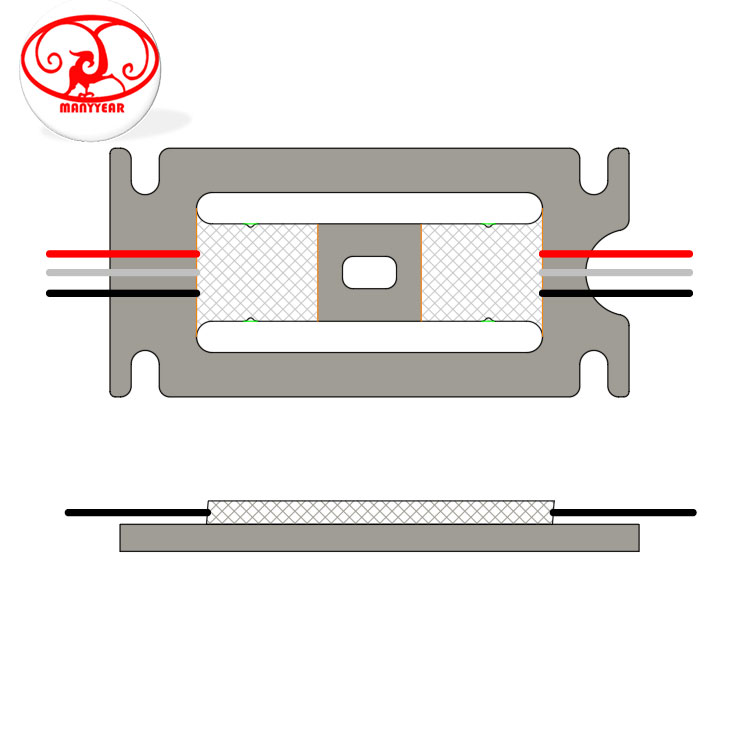

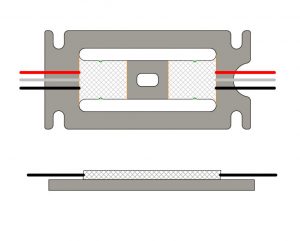

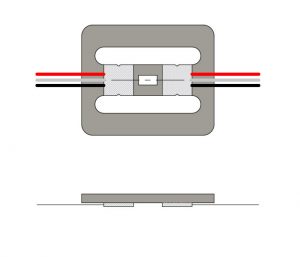

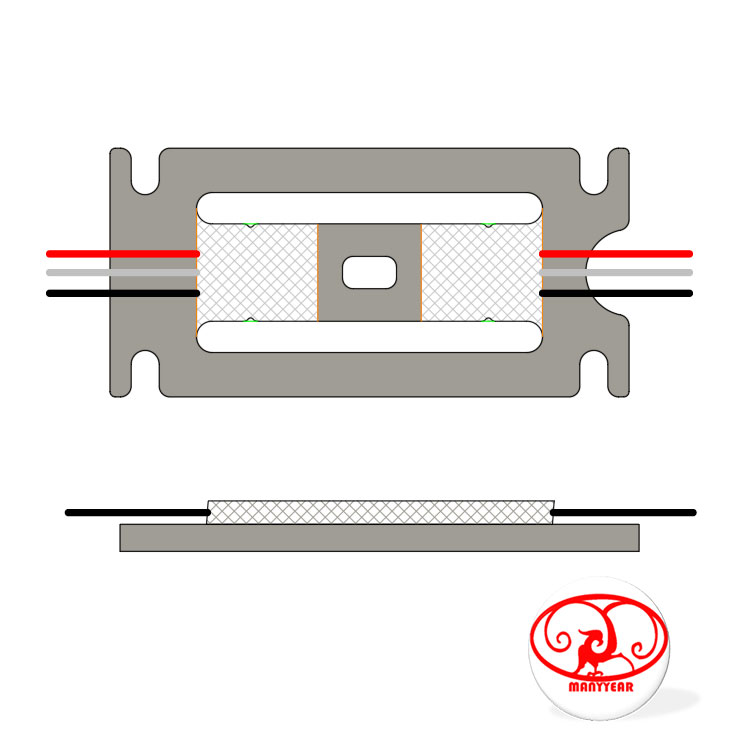

Product Picture Reference

MLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGY MLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC707B-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg

MLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg
Model: MLC707CA/CF
Product Category: Micro Load Cell
Range: 10~40kg
Size: 50*20*2.5mm
Material: alloy steel
Application: Luggage scale, micro force measurement, robot force measurement, robot arm force measurement, force switch, automation equipment

Specification
Comprehensive error:0.3%FSOutput resistance:1000±10Ω
Rated output:1.5±0.2mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:3~12VDC
Hysteresis:0.1%FSCompensated temp:-10~+60ºC
Repeatability:0.2%FSUse temperature:-0~+40ºC
Creep:0.1%FS/3MinTemp effect on zero:0.3%FS/10ºC
Zero balance:1±0.3%FSTemp effect on span:0.3%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

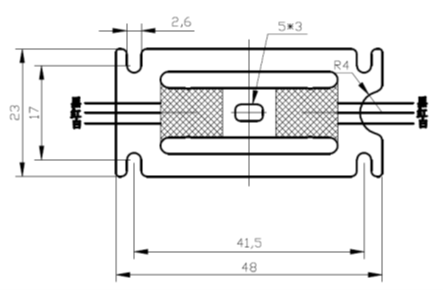

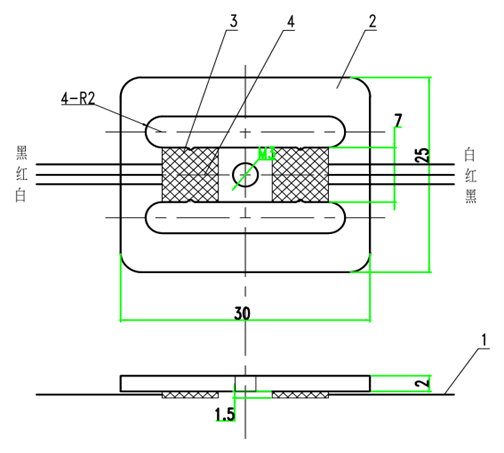

Product Dimension

MLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGY MLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGY

Product Application

MLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGYMLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGYMLC707C-Luggage Scale Portable Scale Express Scale Miniature Load Sensor 40kg-MANYYEAR TECHNOLOGY
