MLC928DA kitchen scale micro load cell

body scale load cell, baby scale load cell, pet scale load cell,kitchen scale load cell, smart water cup load cell, rice cooker load cell, vending machine load cell, force load cell

Model: MLC928DA
Category: Micro load cell
Load range: 5kg,10kg, 30kg,50kg,75kg
Dimension: 34*34*1.5/2.0/2.5mm
Material: alloy steel
Characteristic:body scale load cell, baby scale load cell, pet scale load cell,kitchen scale load cell, smart water cup load cell, rice cooker load cell, vending machine load cell, force load cell, micro load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

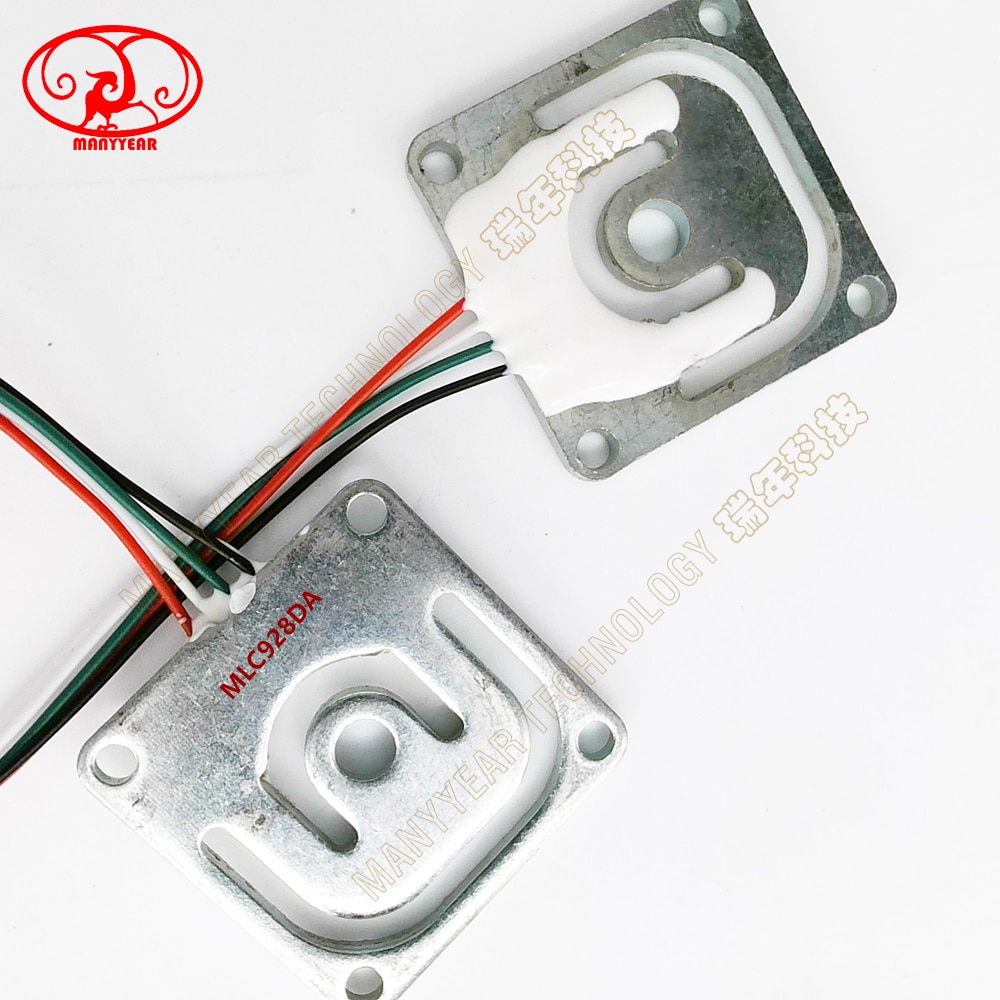

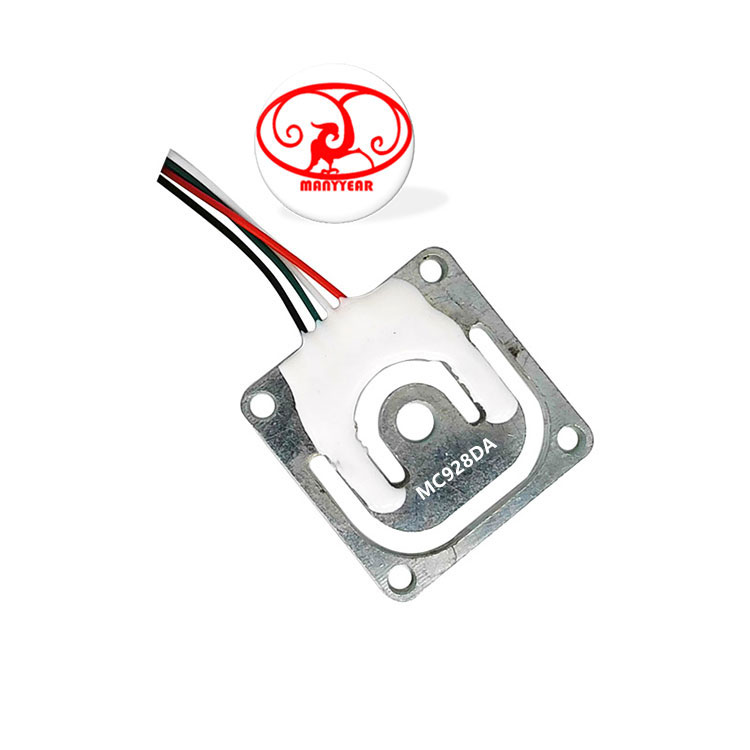

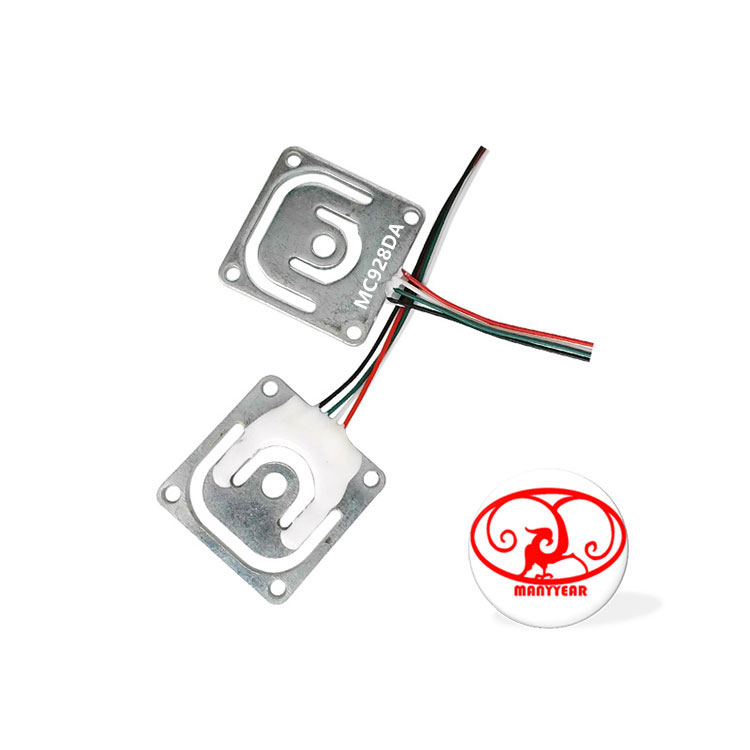

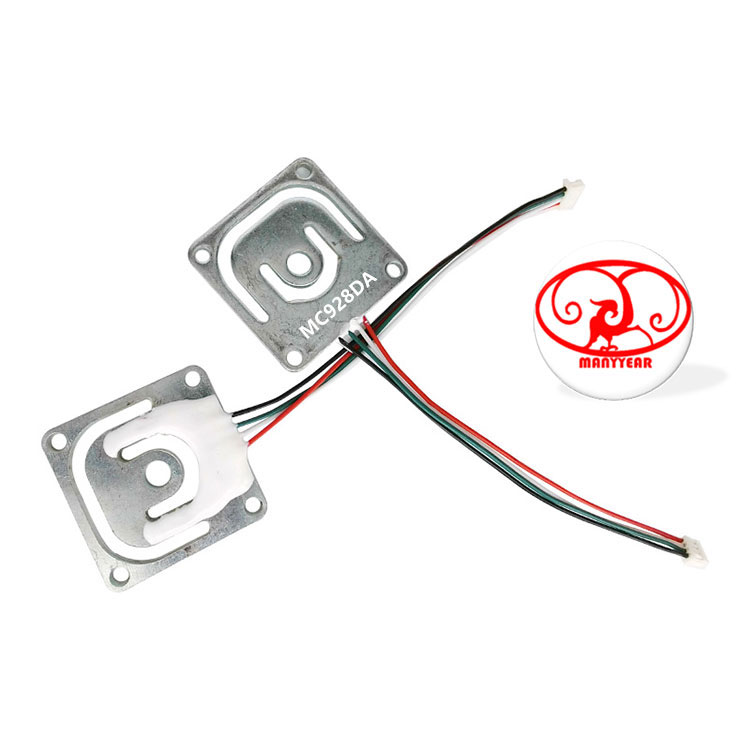

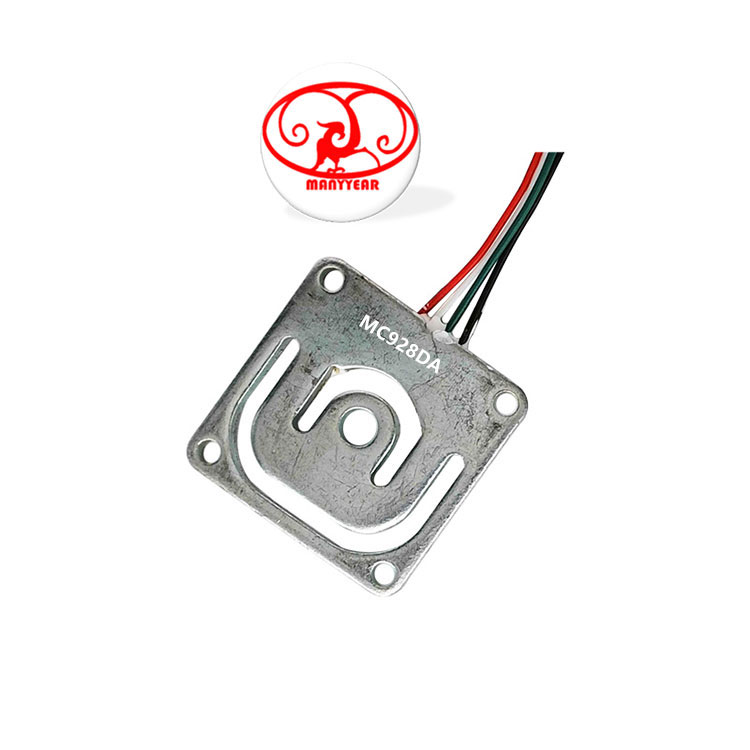

Product Picture Reference

MLC928DA kitchen scale micro load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC928DA kitchen scale micro load cell

Model: MLC928DA

Category: Micro load cell

Load range: 5kg,10kg, 30kg,50kg,75kg

Dimension: 34*34*1.5/2.0/2.5mm

Material: alloy steel

Characteristic:body scale load cell, baby scale load cell, pet scale load cell,kitchen scale load cell, smart water cup load cell, rice cooker load cell, vending machine load cell, force load cell, micro load cell

Output Specification
Load range (kg)Thickness (mm)Bridge typeOutput (mV/V)Overload (kg)
51.5Full1.0±0.15mV/V7.5
101.5Half0.6±0.15mV/V12
101.5Full1.0±0.15mV/V15
151.5Half0.8±0.15mV/V18
151.5Full1.6±0.15mV/V22.5
202.0Half1.1±0.15mV/V28
202.0Full2.0±0.15mV/V30
302.0Half0.8±0.15mV/V36
302.0Full1.6±0.15mV/V45
402.5Half1.0±0.15mV/V48
402.5Full2.2±0.15mV/V60
502.5Half0.8±0.15mV/V60
502.5Full1.6±0.15mV/V75
752.5Half1.3±0.15mV/V90
752.5Full2.5±0.15mV/V112.5
                               Specification
Comprehensive error:0.05%FSOutput resistance:1000±10Ω
Rated output-FULL BRIDGE:Refer to above sheetInput resistance:1000±10Ω
Rated output-HALF BRIDGE:Refer to above sheetInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:3~10VDC
Hysteresis:0.05%FSUse temperature:-20~+55ºC
Repeatability:0.05%FSTemp effect on zero:0.1%FS/10ºC
Creep:0.05%FS/10MinTemp effect on span:0.1%FS/10ºC
Zero balance:±0.3mV/VDefend grade:IP68

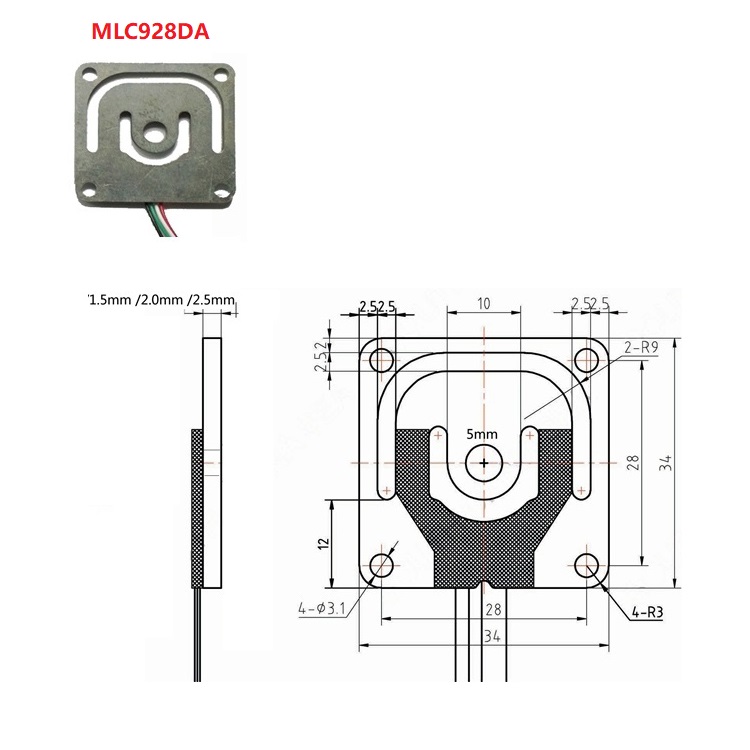

Product Dimension

MLC928DA kitchen scale micro load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC928DA kitchen scale micro load cell-MANYYEAR TECHNOLOGY

Product Application

MLC928DA kitchen scale micro load cell-MANYYEAR TECHNOLOGYMLC928DA kitchen scale micro load cell-MANYYEAR TECHNOLOGYMLC928DA kitchen scale micro load cell-MANYYEAR TECHNOLOGY
