MLC700D fishing scale miniature load cell MLC700D fishing scale miniature load cell
MLC700D fishing scale miniature load cell
MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY
MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY
MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY
MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY

MLC700D fishing scale miniature load cell

handle scale load cell, fishing scale load cell,postal scale load cell,micro force load cell

Model: MLC700D
Catalog: Micro load cell
Rated load: 5kg,10kg,20kg,30kg,40kg
Dimension:40*8*2mm
Material: alloy aluminum, alloy steel
Safe overload:120%; Ultimate overload: 150%
Characteristic: handle scale load cell, fishing scale load cell,postal scale load cell,micro force load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

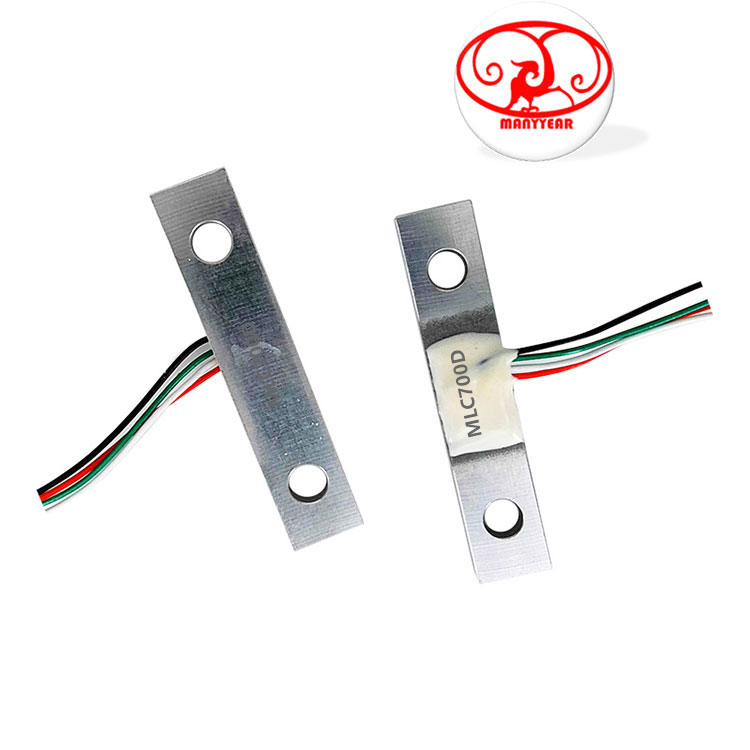

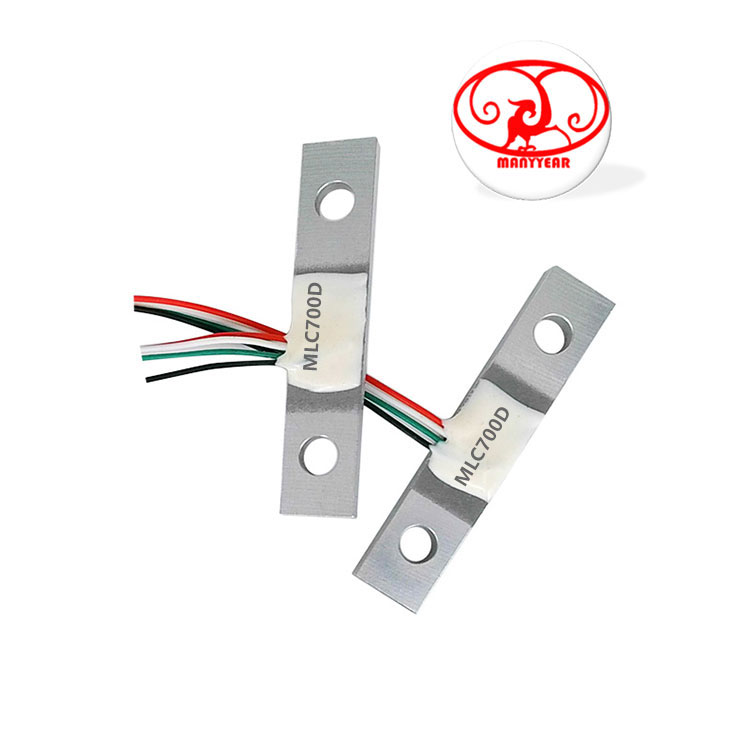

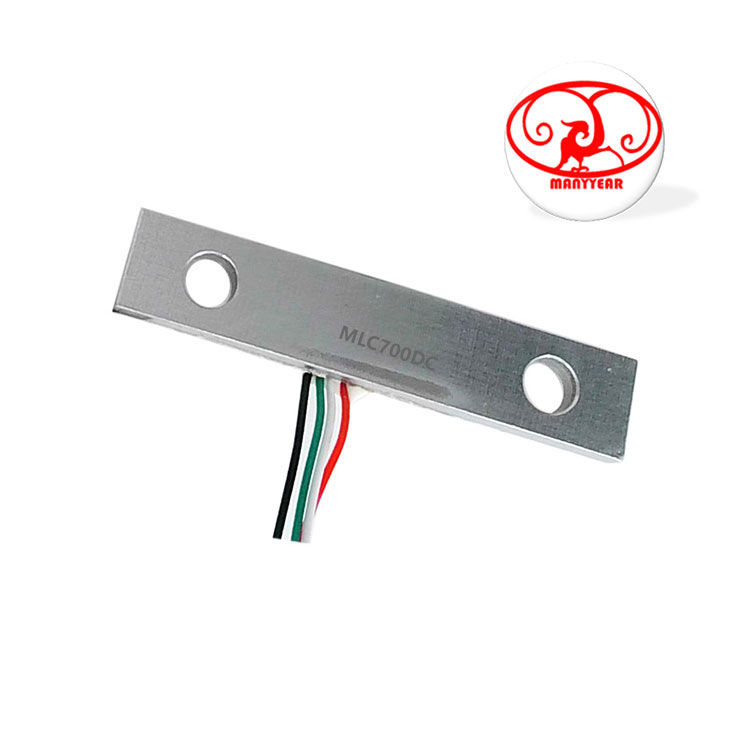

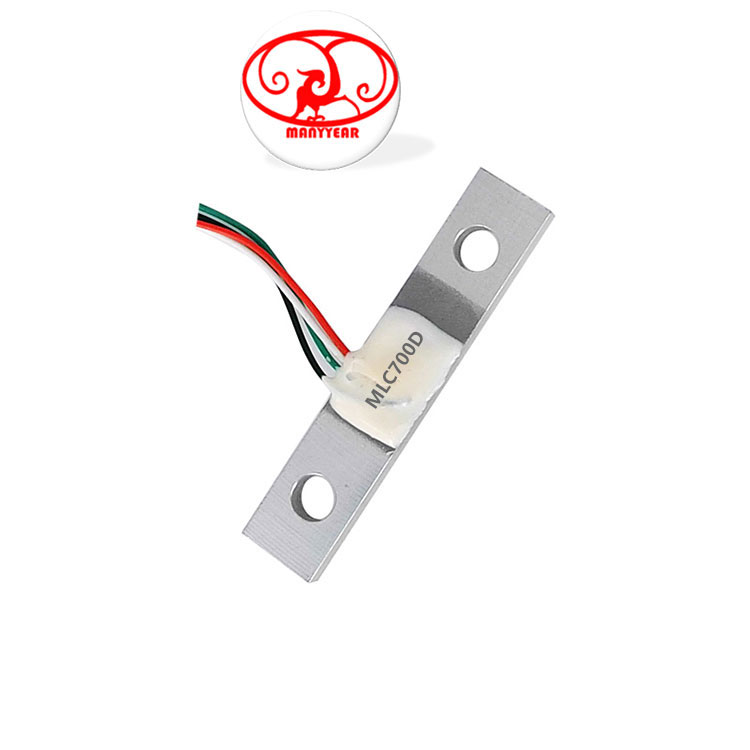

Product Picture Reference



MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC700D fishing scale miniature load cell

Model: MLC700D

Catalog: Micro load cell

Rated load: 5kg,10kg,20kg,30kg,40kg

Dimension:40*8*2mm

Safe overload:120%; Ultimate overload: 150%

Material: alloy aluminum, alloy steel

Characteristic: handle scale load cell, fishing scale load cell,postal scale load cell,micro force load cell

Specification
Comprehensive error:0.2FSOutput resistance:1000±10Ω
Rated output:1.1±0.03mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:5~10VDC
Hysteresis:0.2%FSCompensated temp:-10~+40ºC
Repeatability:0.2%FSUse temperature:-20~+55ºC
Creep:0.2%FS/10MinTemp effect on zero:0.2%FS/10ºC
Zero balance:1±0.1MV/VTemp effect on span:0.2%FS/10ºC
Input resistance:1090±10ΩDefend grade:IP66

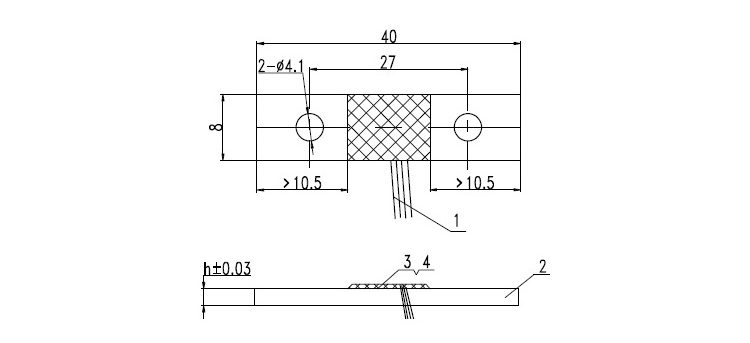

Product Dimension

MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY

Product Application

MLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGYMLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGYMLC700D fishing scale miniature load cell-MANYYEAR TECHNOLOGY
