MLC716A01 kitchen scale weighing sensor

kitchen scale weighing sensor, pet scale weighing sensor, rice cooker weighing sensor

Model: MLC716A01
Category: Micro load cell
Rated load: 1kg,2kg,3kg,4kg,5kg,10kg
Dimension:35.5*30.2*11.2mm
Material: alloy aluminum
Safe overload:150% Ultimate overload: 200%
Characteristic: kitchen scale weighing sensor, pet scale weighing sensor,rice cooker weighing sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

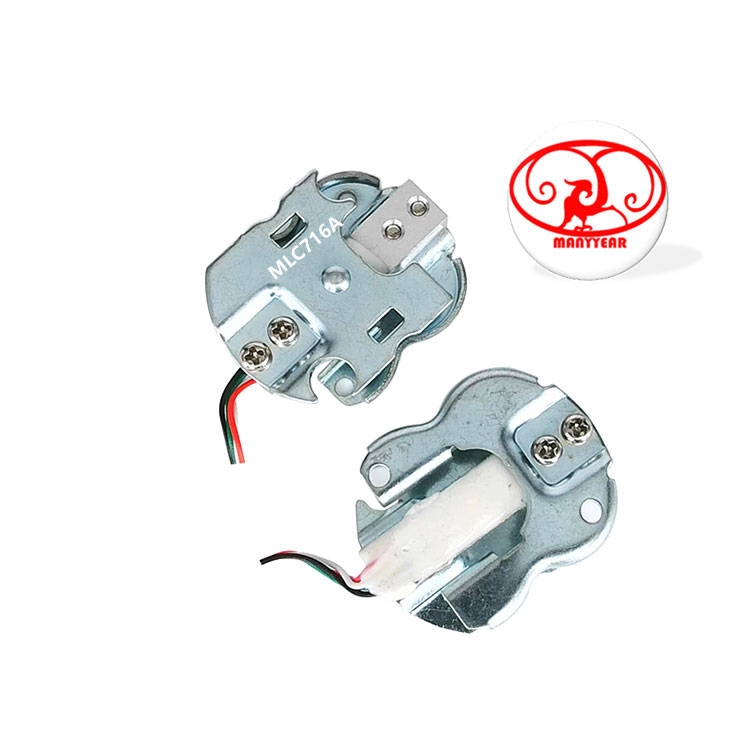

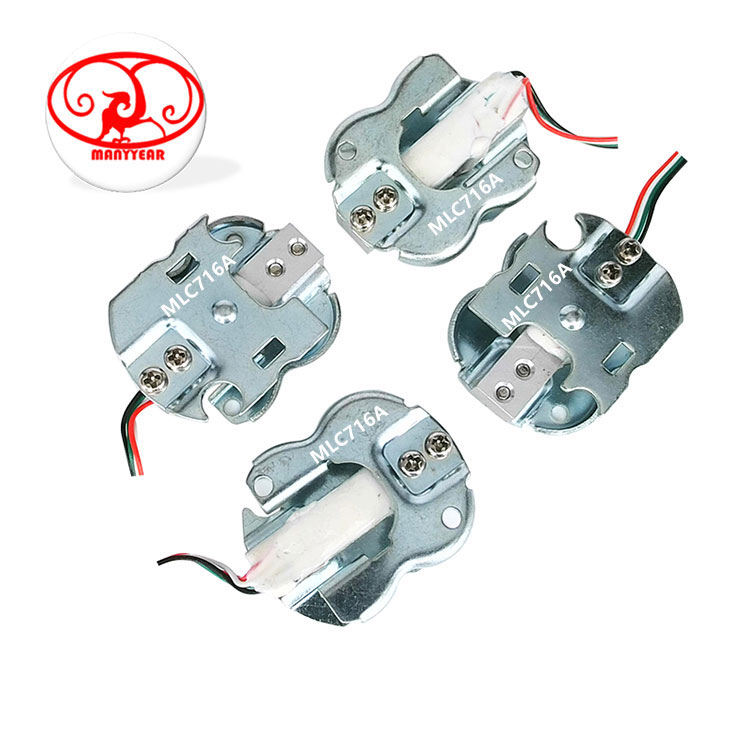

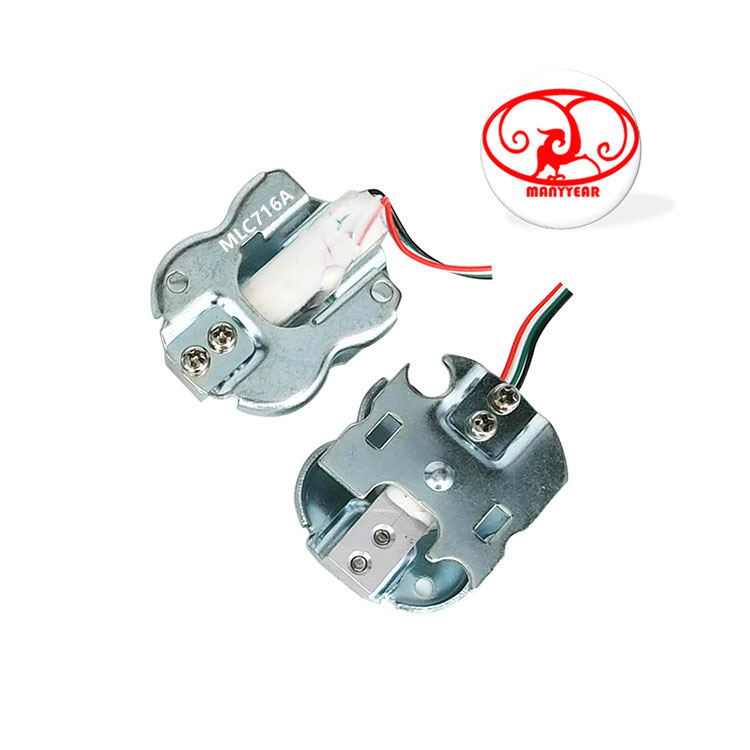

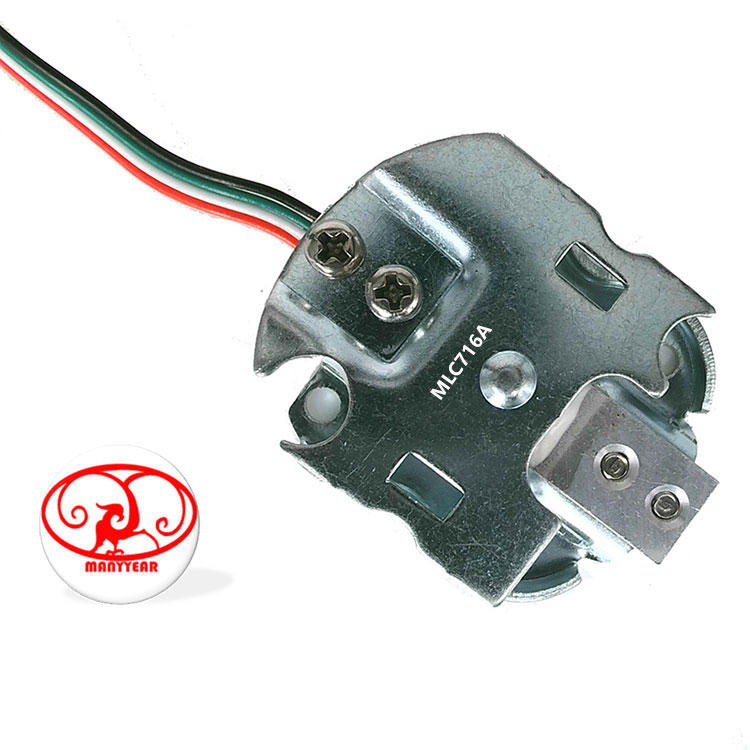

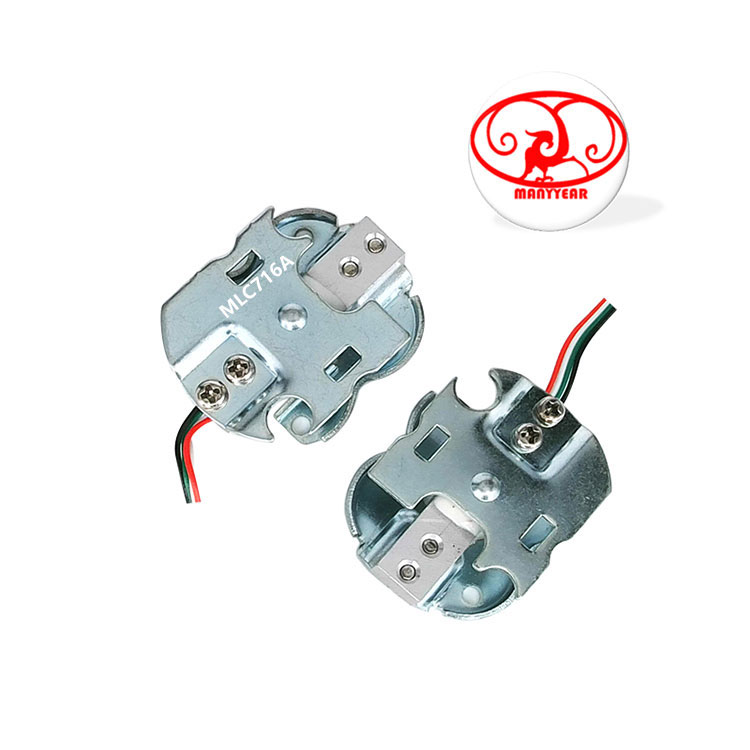

Product Picture Reference

MLC716A01 kitchen scale weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC716A01 kitchen scale weighing sensor

Model: MLC716A01

Category: Micro load cell

Rated load: 1kg,2kg,3kg,4kg,5kg,10kg

Dimension:35.5*30.2*11.2mm

Material: alloy aluminum

Safe overload:150%; Ultimate overload: 200%

Characteristic: kitchen scale weighing sensor, pet scale weighing sensor,rice cooker weighing sensor

Specification
Comprehensive error:0.05FSOutput resistance:1000±10Ω
Rated output (full bridge):2.0±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:3-5 VDC
Hysteresis:0.02%FSCompensated temp:-10~+60ºC
Repeatability:0.02%FSUse temperature:-20~+60ºC
Creep:0.05%FS/10MinTemp effect on zero:0.1%FS/10ºC
Zero balance:0.3mV±0.1%FSTemp effect on span:0.1%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

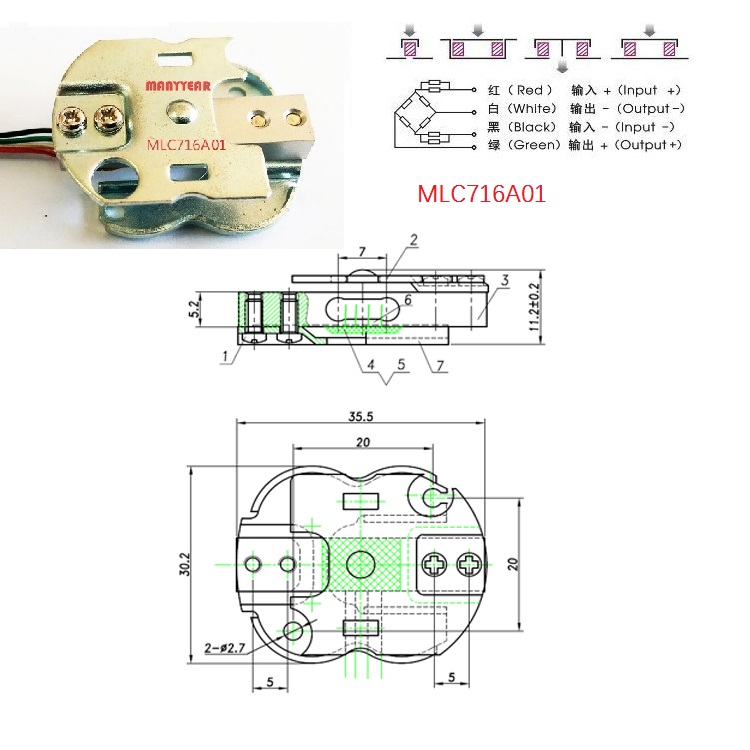

Product Dimension

MLC716A01 kitchen scale weighing sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC716A01 kitchen scale weighing sensor-MANYYEAR TECHNOLOGY

Product Application

MLC716A01 kitchen scale weighing sensor-MANYYEAR TECHNOLOGYMLC716A01 kitchen scale weighing sensor-MANYYEAR TECHNOLOGYMLC716A01 kitchen scale weighing sensor-MANYYEAR TECHNOLOGY
