MLC902B health scale weight sensor

2021/09/22 MLC900 Micro Load Cell Weighing Load Cell 1630 0

body scale weight sensor, health scale weight sensor, bathroom scale weight sensor, pet scale weight sensor

Model: MLC902B
Catalog: Micro load cell
Rated load: 10kg, 30kg, 50kg, 75kg
Safe overload:150%; Ultimate overload: 200%
Dimension:34*34*H(mm)
Material: alloy steel
Characteristic: body scale weight sensor, health scale weight sensor, bathroom scale weight sensor, pet scale weight sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

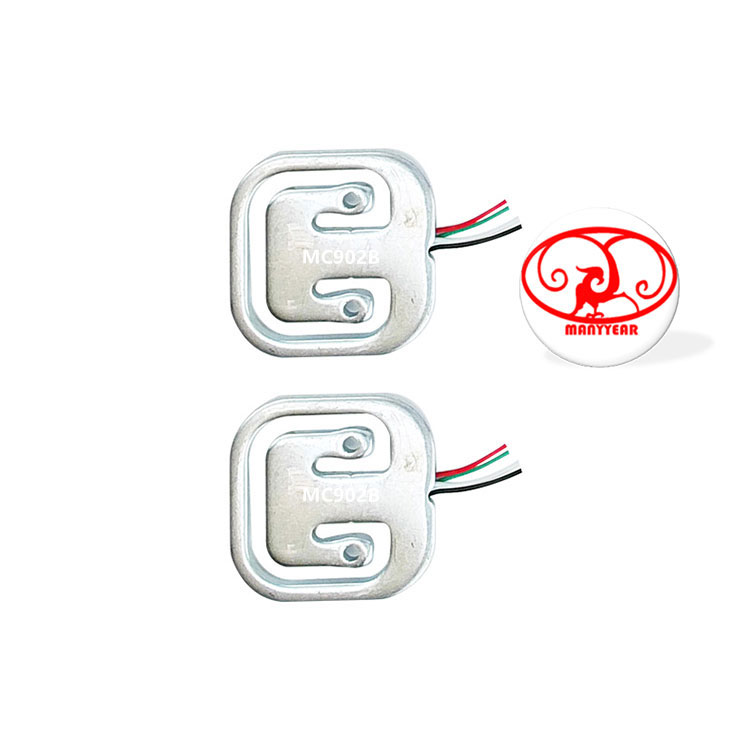

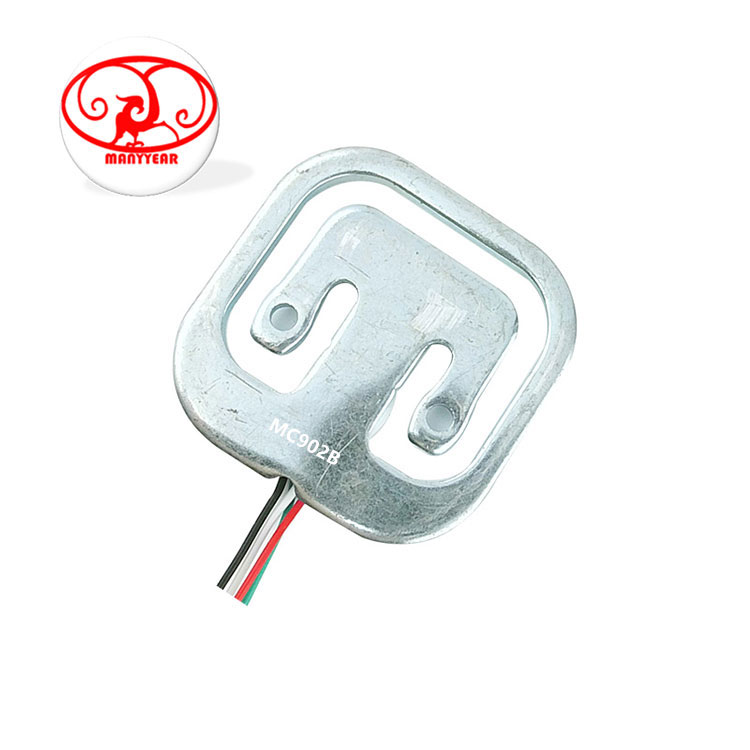

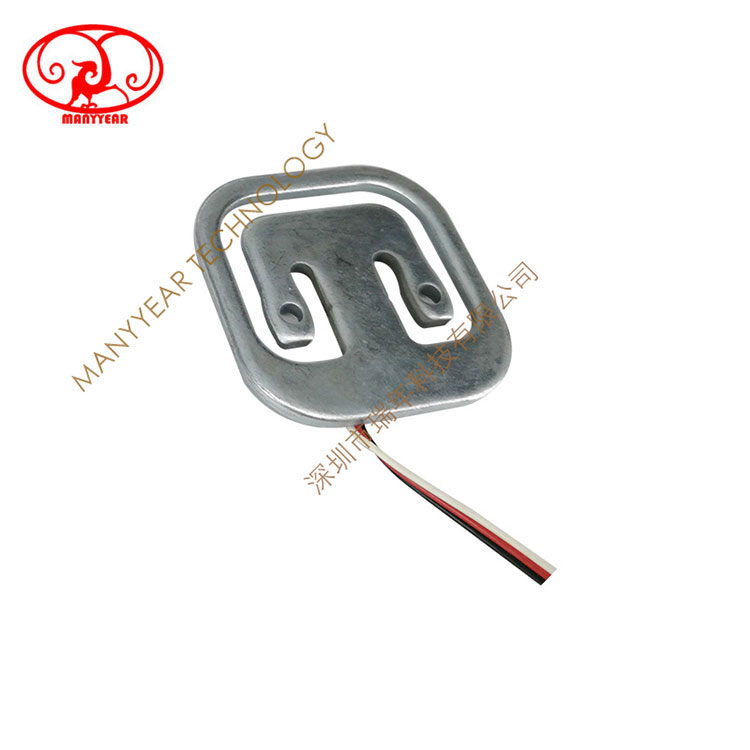

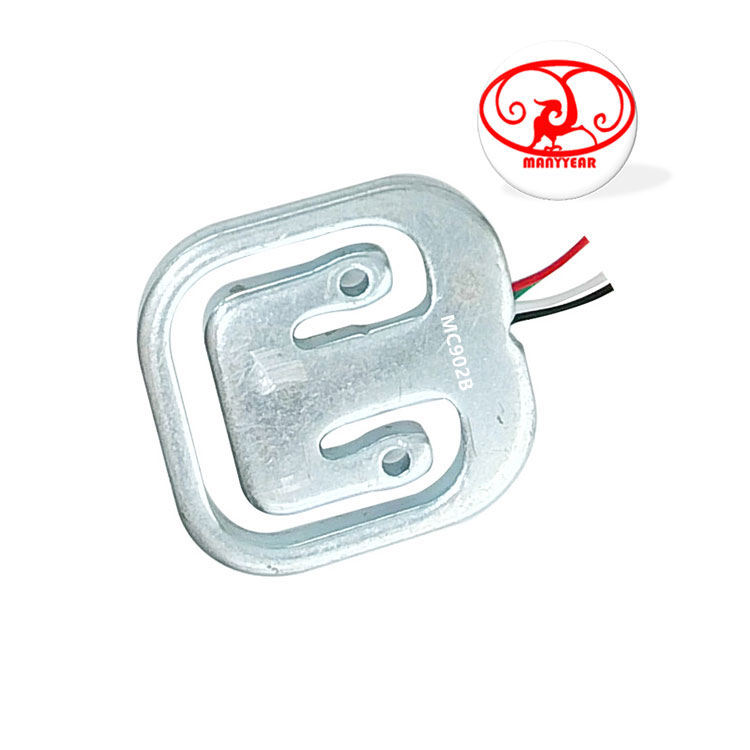

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC902B health scale weight sensor

Model: MLC902B Catalog: Micro load cell Rated load: 10kg, 30kg, 50kg, 75kg Safe overload:150%; Ultimate overload: 200% Dimension:3434H(mm) Material: alloy steel Characteristic:body scale weight sensor, health scale weight sensor, bathroom scale weight sensor, pet scale weight sensor
Rated Output (mm)
Load range	10kg		30kg		50kg		75kg
H1	1.5		2		2.5		3
H2	6.8		7.3		7.8		8.3
HB Rated output:	0.5±0.15mV/V		1.0±0.15mV/V		1.0±0.15mV/V		1.0±0.15mV/V
FB Rated output:	1.0±0.15mV/V		1.8±0.15mV/V		1.8±0.15mV/V		1.8±0.15mV/V
Specification
Comprehensive error:		0.2%FS		Output resistance:		1000±10Ω
Rated output:		Refer to above spec		Insulation resistance:		≥2000MΩ(100VDC)
Non-linearity:		0.2%FS		Excitation voltage:		3~10VDC
Hysteresis:		0.2%FS		Compensated temp:		-10~+40ºC
Repeatability:		0.15%FS		Use temperature:		-20~+55ºC
Creep:		0.15%FS/10Min		Temp effect on zero:		0.5%FS/10ºC
Zero balance:		±0.3mV/V		Temp effect on span:		0.2%FS/10ºC
Input resistance:		1000±5Ω		Defend grade:		IP66

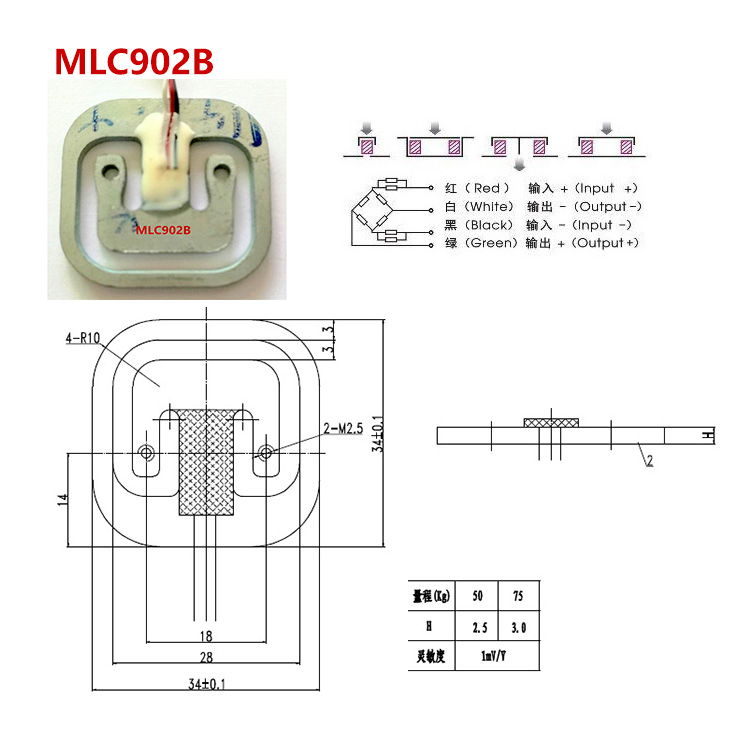

Product Dimension

Force Structure & Assembly Reference

Product Application
