MLC639HD electronic balance miniature weight sensor

2021/11/18 MLC900 Micro Load Cell Weighing Load Cell 2277 0

kitchen scale weight sensor, electronic balance weight sensor, jewelry scale weight sensor, micro weight sensor, miniature weight sensor

Model: MLC639HD
Category: Micro load cell
Range:100~750g
Dimension:35*10*4mm
Material: alloy aluminum
Characteristic: kitchen scale weight sensor,electronic balance weight sensor,jewelry scale weight sensor,micro weight sensor,miniature weight sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Technical Documents

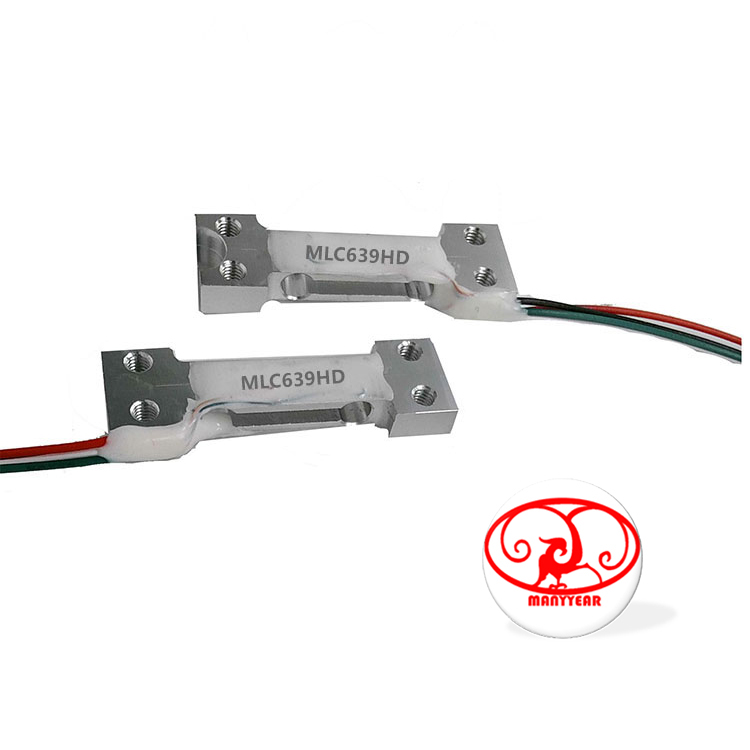

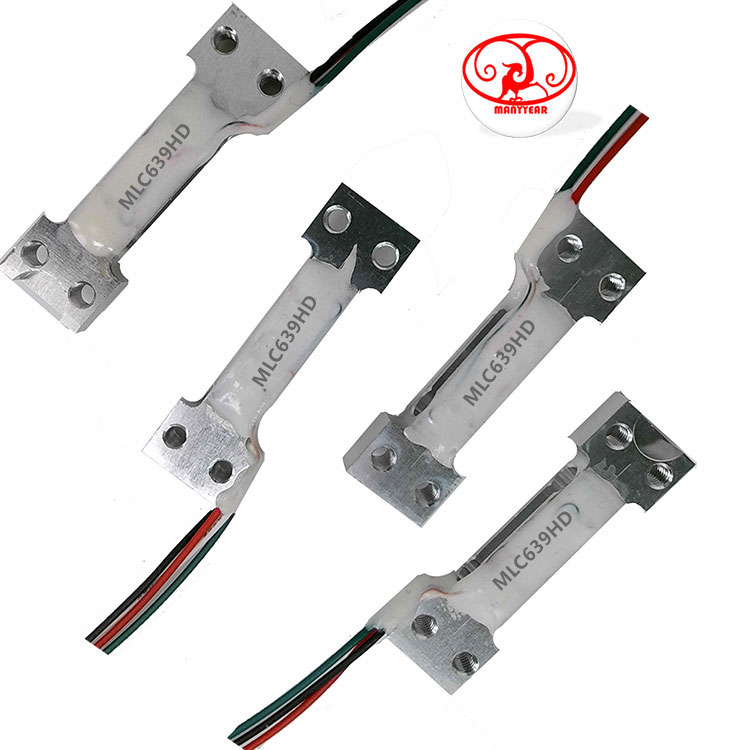

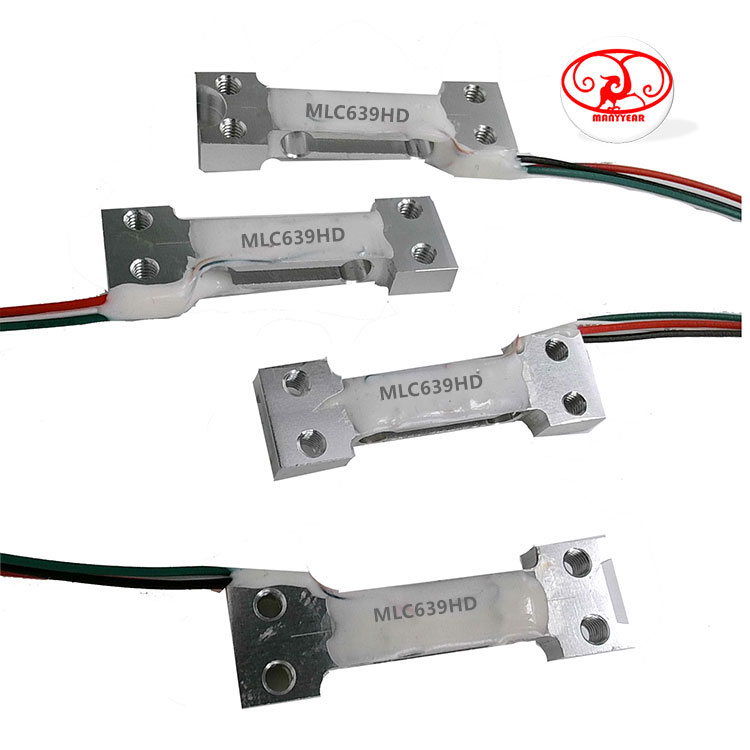

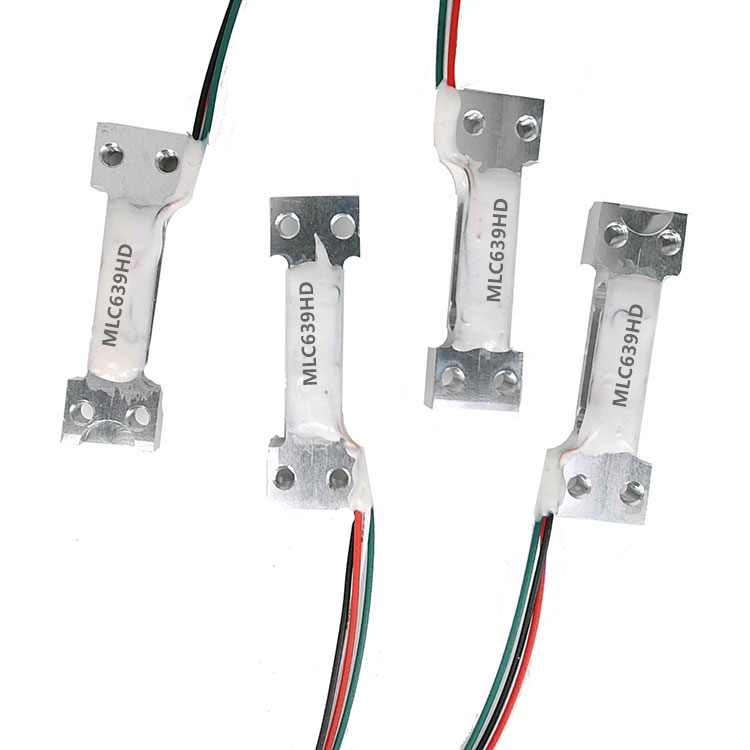

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC639HD electronic balance miniature weight sensor

Model: MLC639HD Category: Micro load cell Range:100~750g Dimension:35104mm Material: alloy aluminum Characteristic: kitchen scale weight sensor,electronic balance weight sensor,jewelry scale weight sensor,micro weight sensor,miniature weight sensor

Specification
Comprehensive error:	0.05FS	Output resistance:	1000±10Ω
Rated output:	0.6±0.15mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	5~10VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.05%FS	Use temperature:	-20~+55ºC
Creep:	0.05%FS/10Min	Temp effect on zero:	0.05%FS/10ºC
Zero balance:	±0.1%FS	Temp effect on span:	0.05%FS/10ºC
Input resistance:	1090±10Ω	Defend grade:	IP66

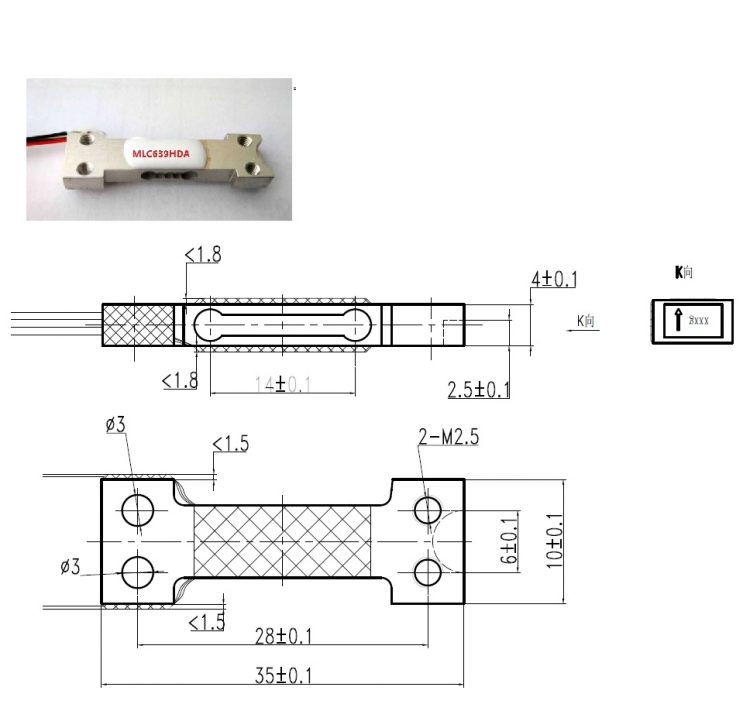

Product Dimension

MLC639HD electronic balance miniature weight sensor

Force Structure & Assembly Reference

Product Application

weighing solution-cinema seats management system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
wireless truck weighing system
Bus seat weighing solution is applicable to bus seat weighing and counting control.
seat weighing system solution
Bus seat weighing solution is applicable to bus seat weighing and counting control.
platform scale weighing solution
weighing solution is applicable to price scale, kitchen scale, pet scale, truck scale, belt scale, packaging scale, batching scale, inspection scale, tank scale etc
