MLC928E02 health scale load cell

2021/11/24 Weighing Load Cell MLC900 Micro Load Cell 1764 0

body scale load cell, health scale load cell, bathroom scale load cell, body fat scale load cell,pet scale load cell

Model: MLC928E02
Catalogue: Micro load cell
Rated load: 50kg
Dimension:28*24*2.0mm
Material: alloy steel
Safe overload:150%; Ultimate overload: 200%
Characteristic: body scale load cell,health scale load cell,bathroom scale load cell,body fat scale load cell,pet scale load cell

Product selection reference

Sales Online

Product Introduction Technical Documents

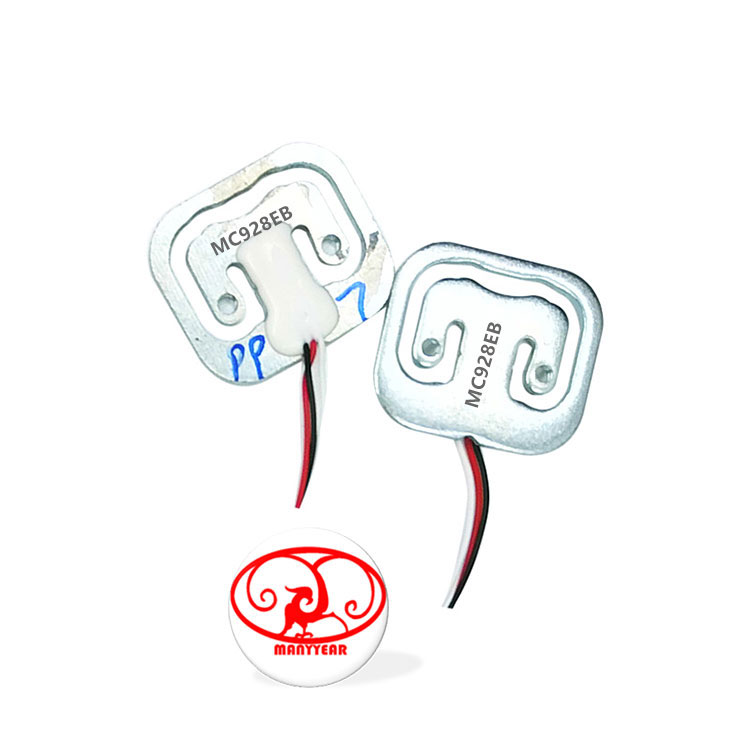

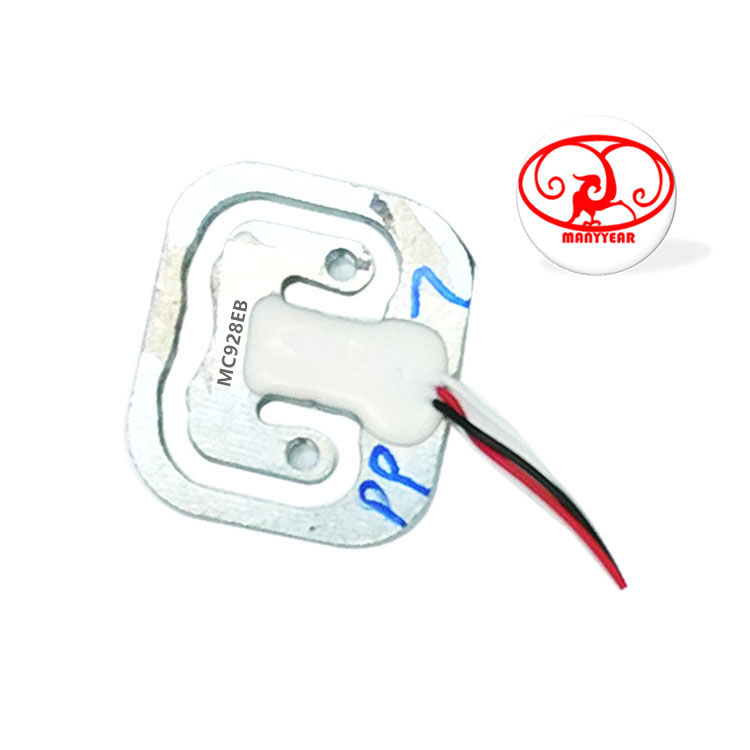

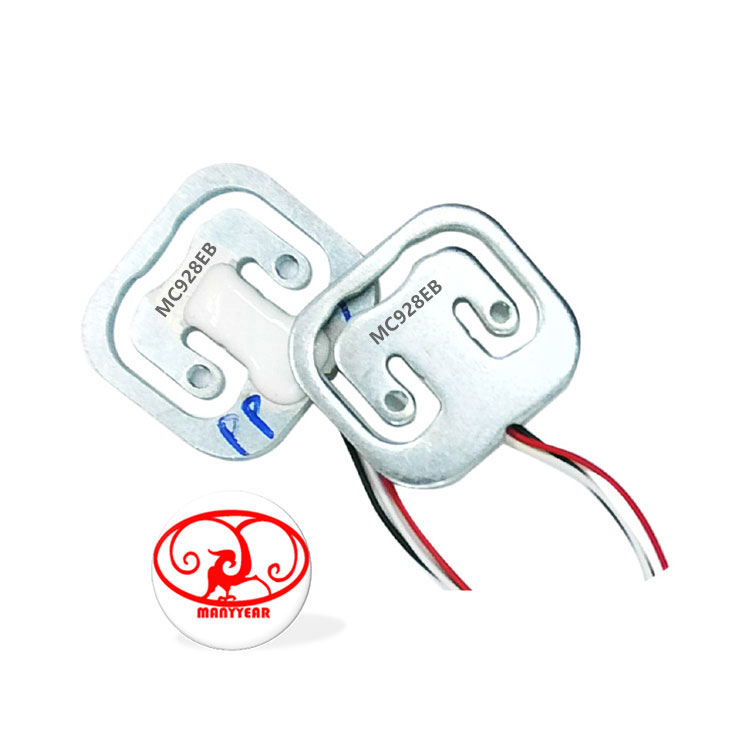

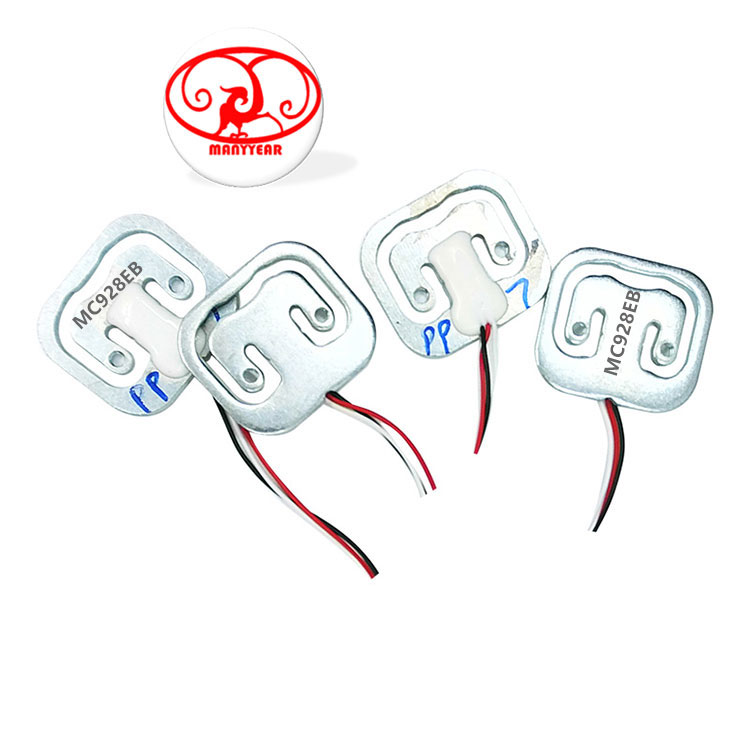

Product Picture Reference

MLC928E02 health scale load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC928E02 health scale load cell

Model: MLC928E02 Catalog: Micro load cell Rated load: 50kg Dimension:28242.0mm Material: alloy steel Safe overload:150%; Ultimate overload: 200% Characteristic: body scale load cell,health scale load cell,bathroom scale load cell,body fat scale load cell,pet scale load cell

Specification
Comprehensive error:	0.3%FS	Output resistance:	1000±10Ω
Rated output:	1.0±0.15mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.2%FS	Excitation voltage:	5~10VDC
Hysteresis:	0.2%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.1%FS	Use temperature:	-20~+55ºC
Creep:	0.1%FS/10Min	Temp effect on zero:	0.3%FS/10ºC
Zero balance:	1±0.1%FS	Temp effect on span:	0.3%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP66

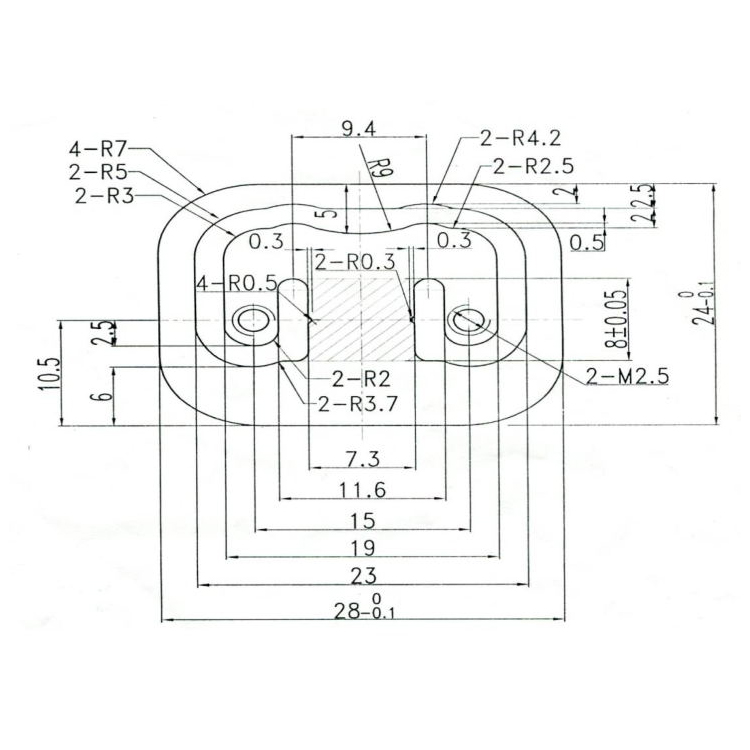

Product Dimension

MLC928E02 health scale load cell

Force Structure & Assembly Reference
