MLC931 platform scale load cell

2021/11/26 MLC900 Micro Load Cell Weighing Load Cell 2878 0

kitchen scale load cell,pet scale load cell, rice cooker load cell, platform scale load cell

Model: MLC931
Catalogue: Micro load cell
Rated load: 15,30,75,150,300kg
Safe overload: 150%R.C.
Material: alloy aluminum
Characteristic: kitchen scale load cell,pet scale load cell, rice cooker load cell, platform scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Technical Documents

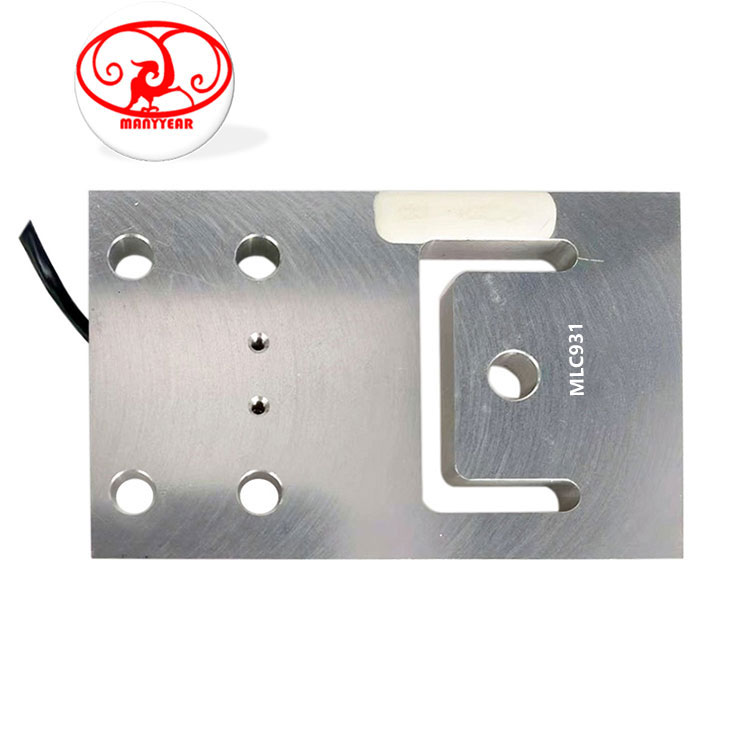

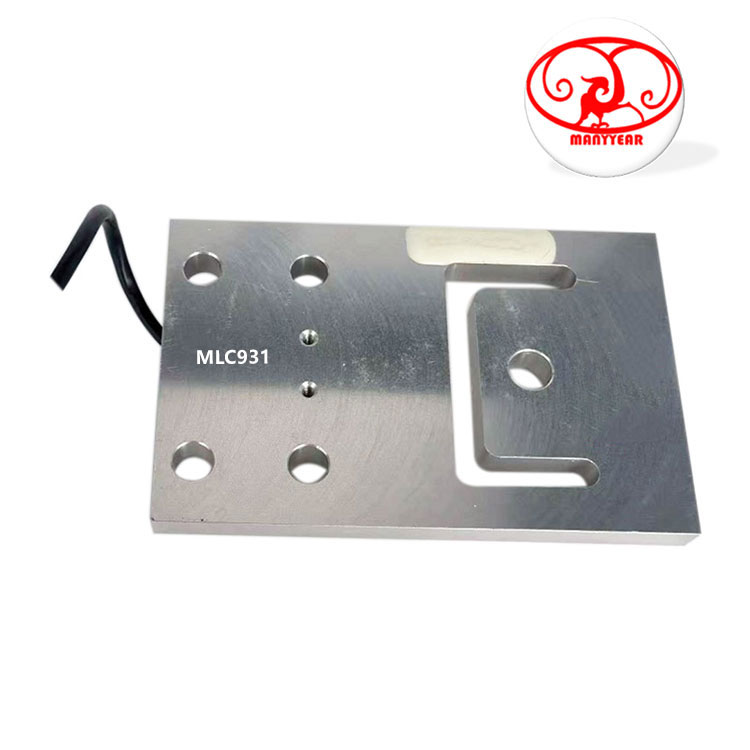

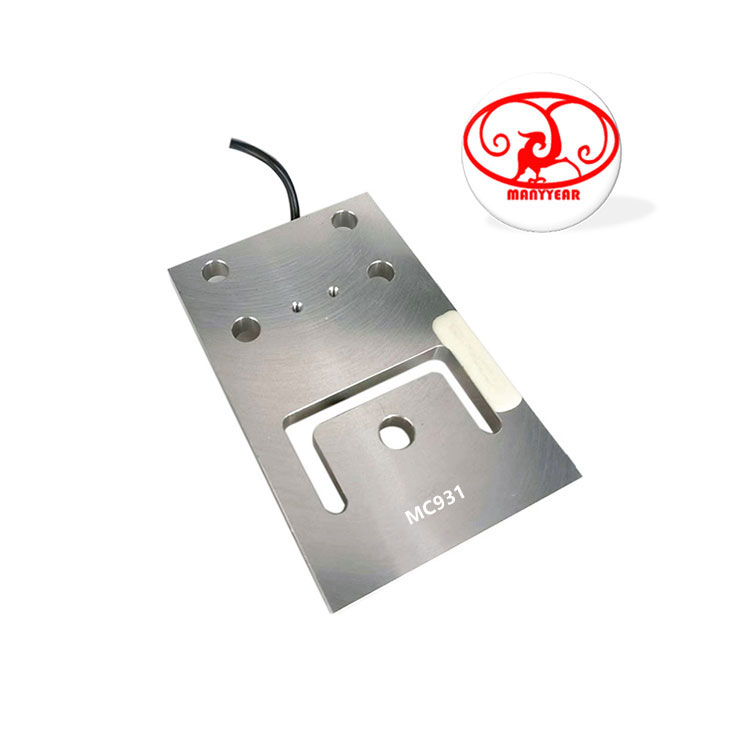

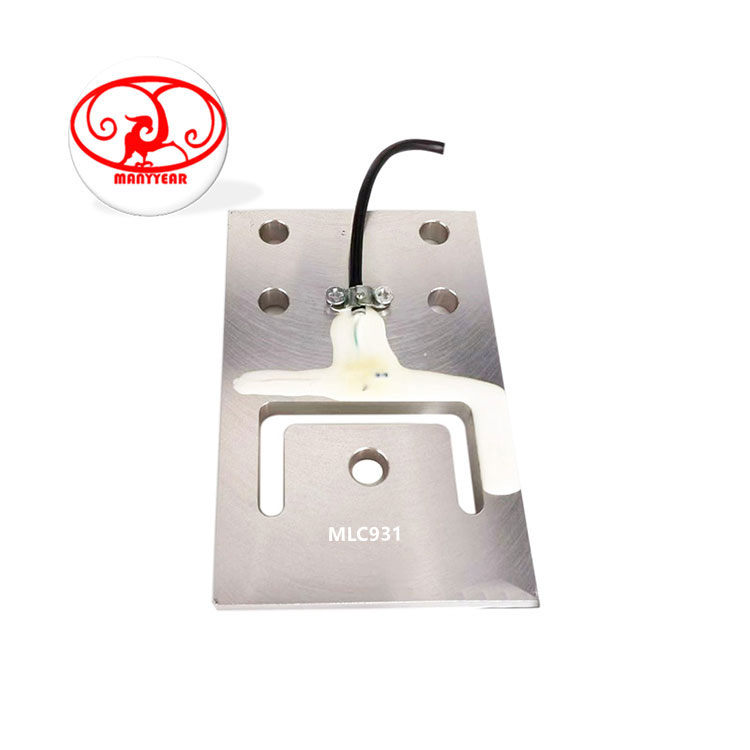

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC931 platform scale weighing load cell

Model: MLC931 Catalog: Micro load cell Rated load: 15,30,75,150,300kg Safe overload: 150%R.C. Material: alloy aluminum Characteristic: kitchen scale load cell,pet scale load cell, rice cooker load cell, platform scale load cell

Specification
Comprehensive error:	0.05%FS	Output resistance:	1000±10Ω
Rated output:	(1.0-2.0)±0.1 mV/V	Insulation resistance:	≥2000MΩ(50VDC)
Non-linearity:	±0.05%R.O.	Excitation voltage:	5~10VDC
Hysteresis:	±0.05%R.O.	Compensated temp:	-10~+40ºC
Repeatability:	±0.05%R.O.	Use temperature:	-20~+55ºC
Creep:	±0.05%R.O. /2Min	Temp effect on zero:	±0.2%R.O. /10ºC
Zero output:	±0.1mV/V	Temp effect on Output:	±0.2%R.O. /10ºC
Input resistance:	1130±20Ω	Defend grade:	IP66

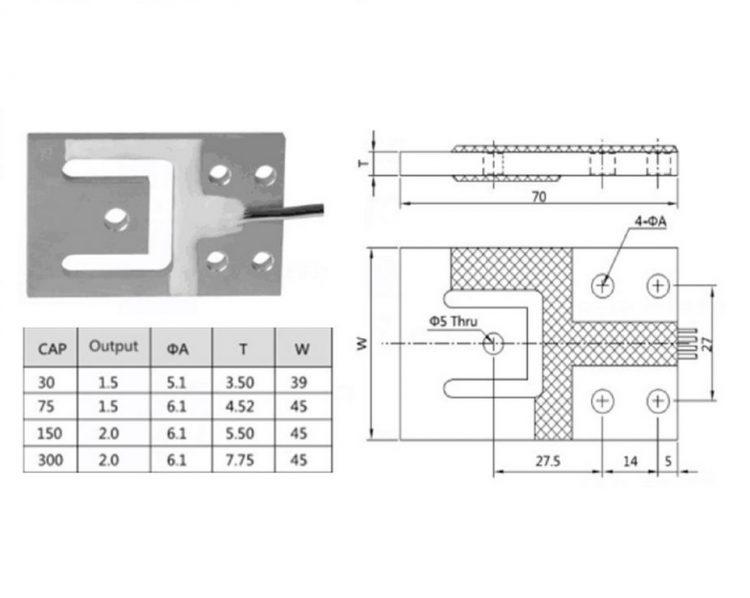

Product Dimension

Force Structure & Assembly Reference

Product Application
