MLC611NB high temperature weight sensor MLC611NB high temperature weight sensor
MLC611NB high temperature weight sensor
MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY
MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY
MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY
MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY

MLC611NB high temperature weight sensor

MLC600-20kg Weighing Load Cell 3611 0

high temperature weight, low temperature weight sensor, kitchen scale load cell, micro load cell,Vending machine load cell

Model: MLC611NB
Category: Micro load cell
Range: 1~30kg
Dimension: 80*12.7*12.7mm
Material: alloy aluminum
Application:high temperature weight sensor, low temperature load cell, handle scale load cell, kitchen scale load cell, micro load cell,Vending machine load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

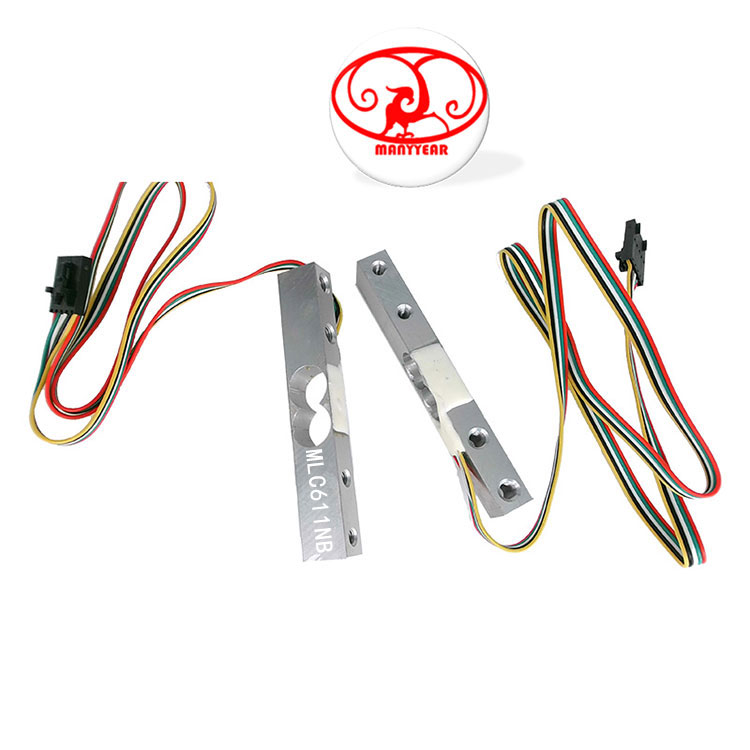

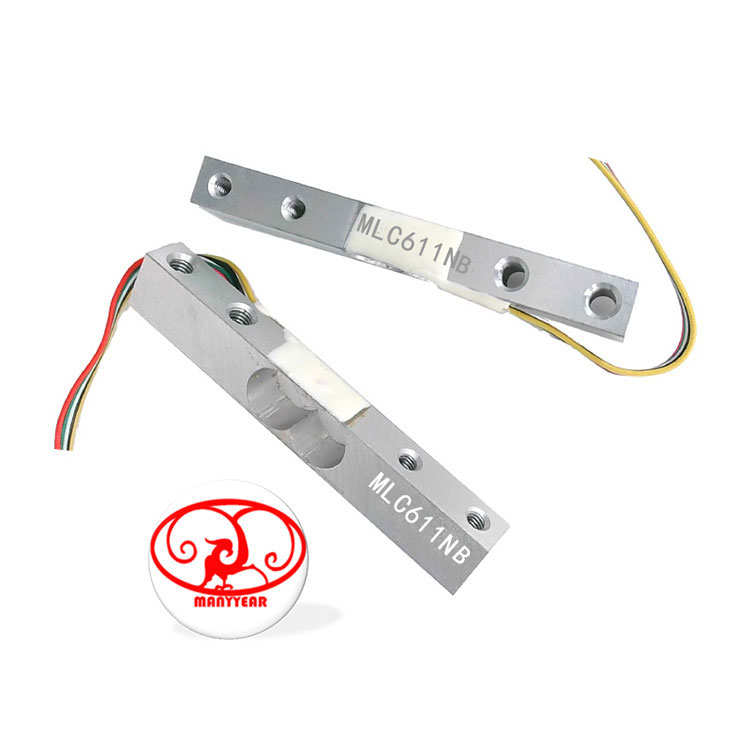

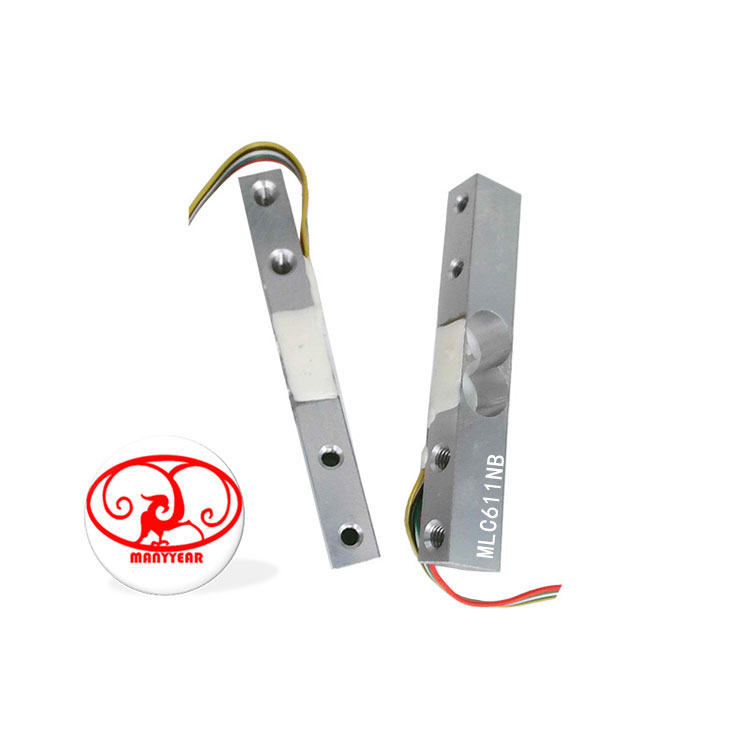

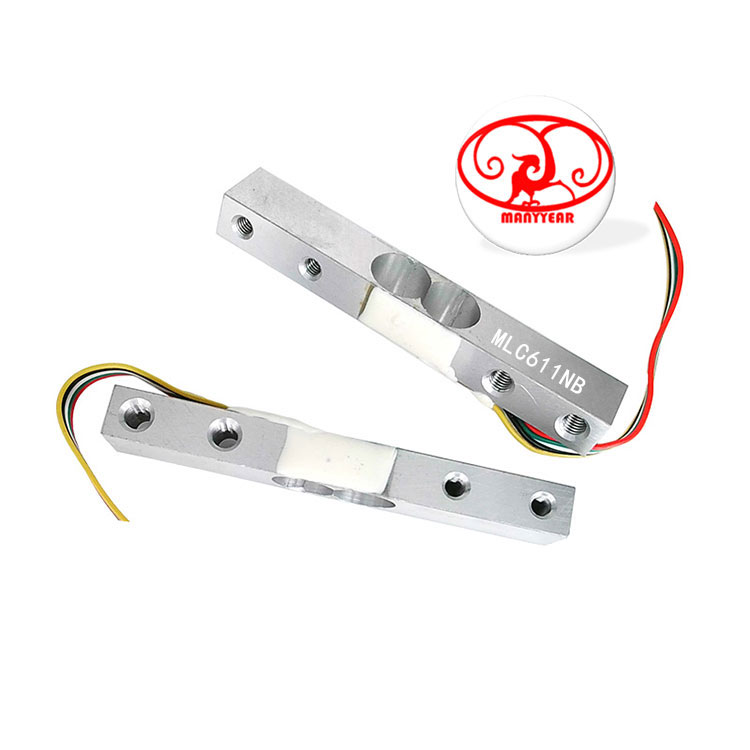

Product Picture Reference

MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

       kitchen scale load cell,portable scale load cell,postal scale load cell,Vending machine weighing load cell

Model: MLC611NB
Category: Micro load cell
Range: 1~30kg
Dimension: 80*12.7*12.7mm
Material: alloy aluminum
Application: kitchen scale load cell,portable scale load cell,postal scale load cell,Vending machine weighing load cell
Specification
Comprehensive error:0.05%FSOutput resistance:1000±10Ω
Rated output:1±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:3~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.05%FS/10MinTemp effect on zero:0.5%FS/10ºC
Zero balance:±0.1mv/vTemp effect on span:0.05%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

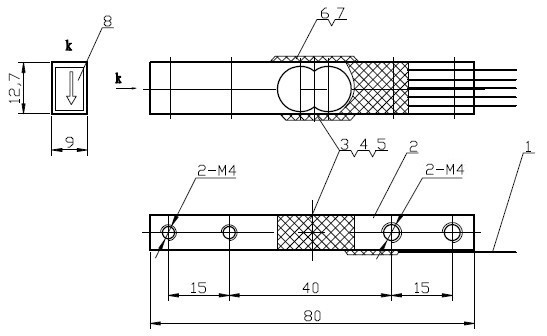

Product Dimension

MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY

MLC600 parallel beam load cell force structure

Product Application

MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY

apw-portable-scale-1

MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY

apw-kitchen-scale

MLC611NB high temperature weight sensor-MANYYEAR TECHNOLOGY

apw-vending-machine
