MLC928DAD kitchen scale miniature load cell

2021/11/23 MLC900 Micro Load Cell Weighing Load Cell 1705 0

body scale load cell, baby scale load cell, pet scale load cell, kitchen scale load cell, smart water cup load cell, rice cooker load cell, vending machine load cell, force load cell, miniature load cell

Model: MLC928DAD
Category: Micro load cell
Load range: 10,15,120,30,40,50kg,75kg
Dimension: 34*34*3.5/4.0/4.5mm
Material: alloy steel
Characteristic: body scale load cell, baby scale load cell, pet scale load cell, kitchen scale load cell, smart water cup load cell, rice cooker load cell, vending machine load cell, force load cell, miniature load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Technical Documents

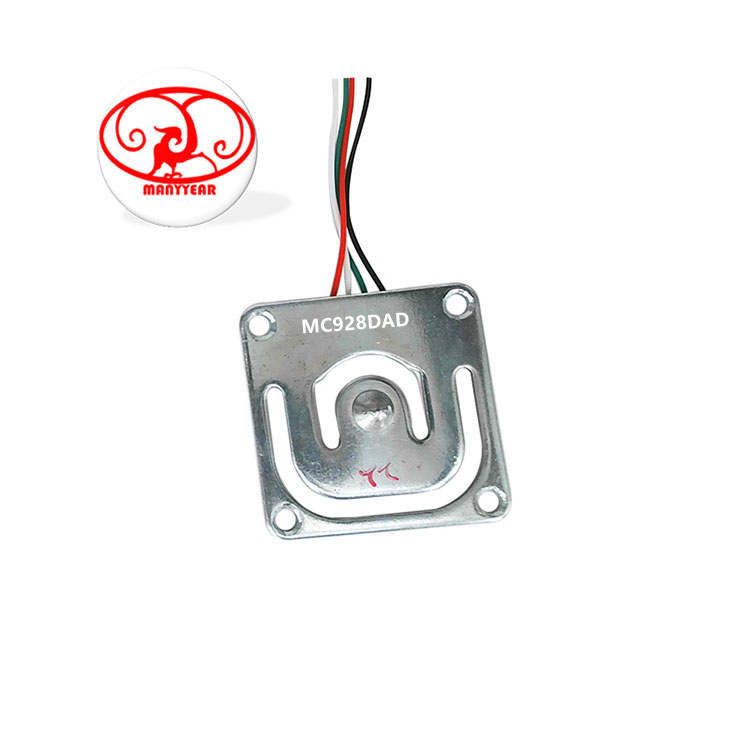

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC928DAD kitchen scale miniature load cell

Model: MLC928DAD Category: Micro load cell Load range: 10,15,120,30,40,50kg,75kg Dimension: 34343.5/4.0/4.5mm Material: alloy steel Characteristic: body scale load cell, baby scale load cell, pet scale load cell, kitchen scale load cell, smart water cup load cell, rice cooker load cell, vending machine load cell, force load cell, miniature load cell
Output Specification
Load range (kg)	Thickness (mm)		Bridge type		Output (mV/V)		Overload (kg)
5kg	3.5mm		Full		0.5mv±0.15mV/V		7.5kg
10kg	3.5mm		Half		0.6±0.15mV/V		12kg
10kg	3.5mm		Full		1.0±0.15mV/V		15kg
15kg	3.5mm		Half		0.8±0.15mV/V		18kg
15kg	3.5mm		Full		1.6±0.15mV/V		22.5kg
20kg	4.0mm		Half		1.1±0.15mV/V		28kg
20kg	4.0mm		Full		2.0±0.15mV/V		30kg
30kg	4.0mm		Half		0.8±0.15mV/V		36kg
30kg	4.0mm		Full		1.6±0.15mV/V		45kg
40kg	4.5mm		Half		1.0±0.15mV/V		48kg
40kg	4.5mm		Full		2.2±0.15mV/V		60kg
50kg	4.5mm		Half		0.8±0.15mV/V		60kg
50kg	4.5mm		Full		1.6±0.15mV/V		75kg
75kg	4.5mm		Half		1.3±0.15mV/V		90kg
75kg	4.5mm		Full		2.5±0.15mV/V		112.5kg
Specification
Comprehensive error:		0.05%FS		Output resistance:		1000±10Ω
Rated output-full bridge:		Refer to above sheet		Input resistance:		1000±10Ω
Rated output-half bridge:		Refer to above sheet		Insulation resistance:		≥2000MΩ(100VDC)
Non-linearity:		0.05%FS		Excitation voltage:		3~10VDC
Hysteresis:		0.05%FS		Use temperature:		-10~+40ºC
Repeatability:		0.05%FS		Temp effect on zero:		0.1%FS/10ºC
Creep:		0.05%FS/10Min		Temp effect on span:		0.1%FS/10ºC
Zero balance:		1±0.3%FS		Defend grade:		IP66

Product Dimension

MLC928DAD kitchen scale miniature load cell

Force Structure & Assembly Reference
