MLC929B body scale load cell

health scale load cell, bathroom scale load cell,body fat scale load cell, baby scale load cell, pet scale load cell

Model: MLC929B
Category: Micro load cell
Range:50kg,75kg
Dimension:35.2*29*2.5mm
Material: alloy steel
Characteristic: health scale load cell, bathroom scale load cell, body fat scale load cell, baby scale load cell, pet scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

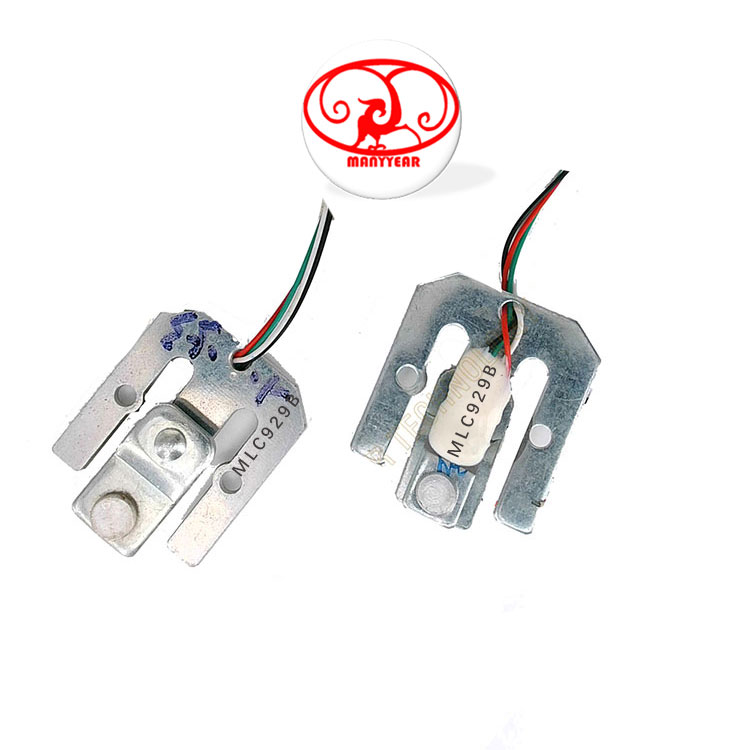

Product Picture Reference

MLC929B body scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC929B body scale load cell

Model: MLC929B

Category: Micro load cell

Range:50kg,75kg

Dimension:35.2*29*2.5mm

Material: alloy steel

Characteristic: health scale load cell, bathroom scale load cell, body fat scale load cell, baby scale load cell, pet scale load cell

Specification
Comprehensive error:0.2%FSOutput resistance:1000±10Ω
Rated output:1.5±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.15%FSExcitation voltage:5~10VDC
Hysteresis:0.15%FSCompensated temp:-10~+40ºC
Repeatability:0.1%FSUse temperature:-20~+55ºC
Creep:0.1%FS/10MinTemp effect on zero:0.2%FS/10ºC
Zero output:±0.3mVTemp effect on span:0.2%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

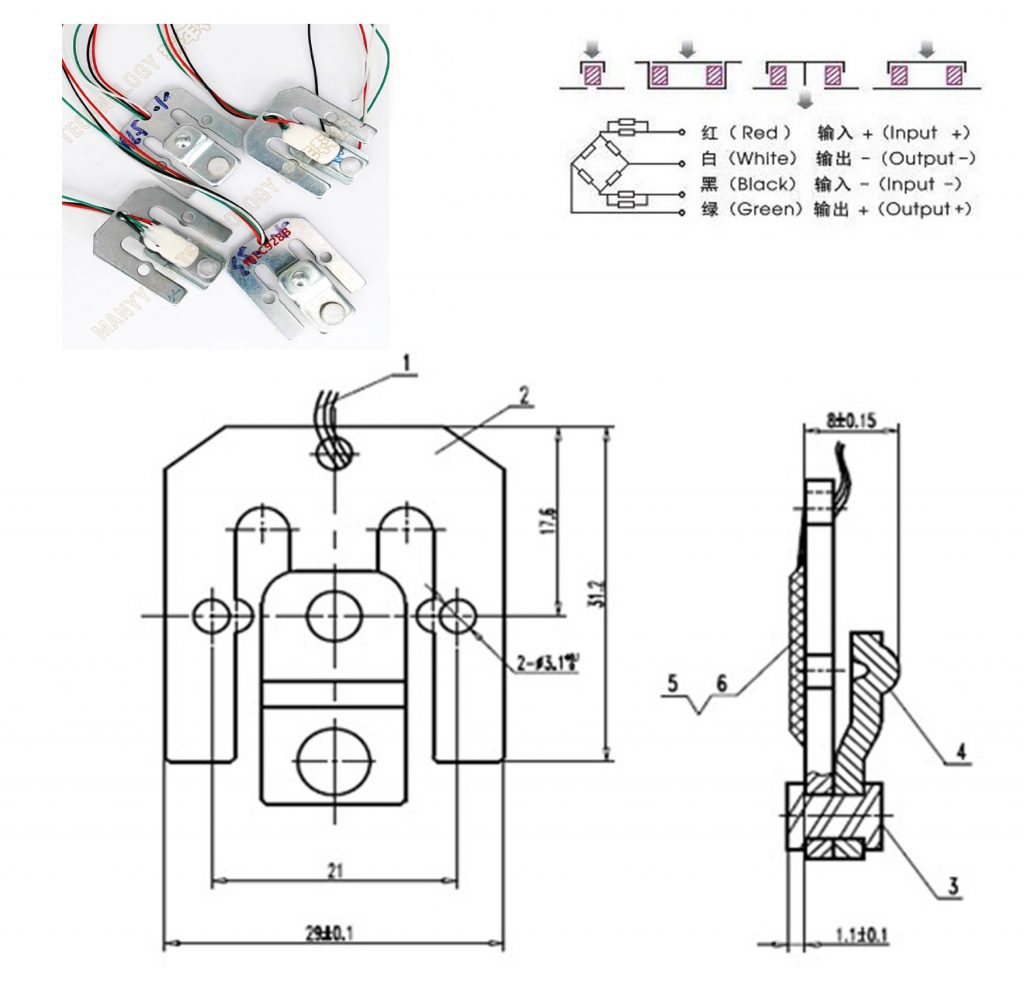

Product Dimension

MLC929B body scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC929B body scale load cell-MANYYEAR TECHNOLOGY

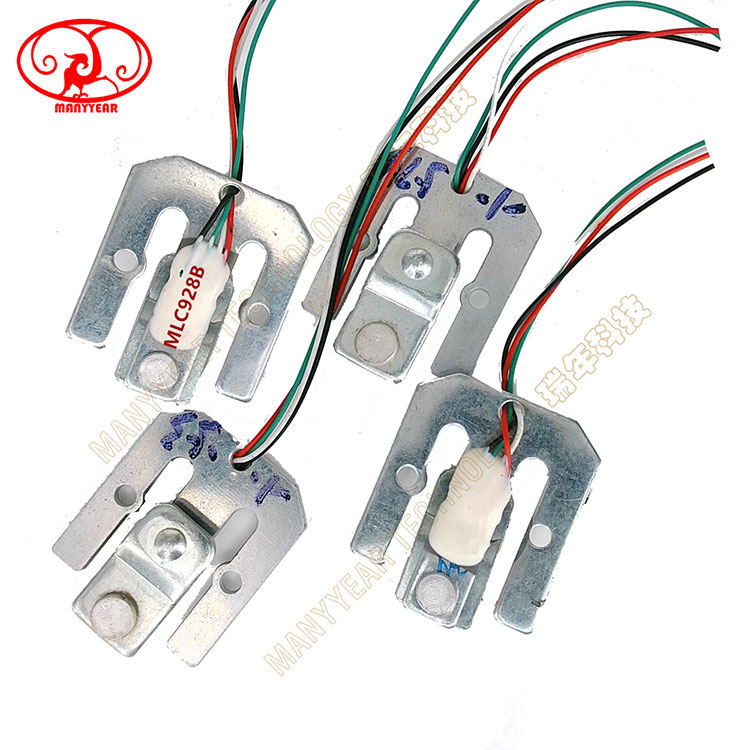

Product Application

MLC929B body scale load cell-MANYYEAR TECHNOLOGYMLC929B body scale load cell-MANYYEAR TECHNOLOGYMLC929B body scale load cell-MANYYEAR TECHNOLOGY
