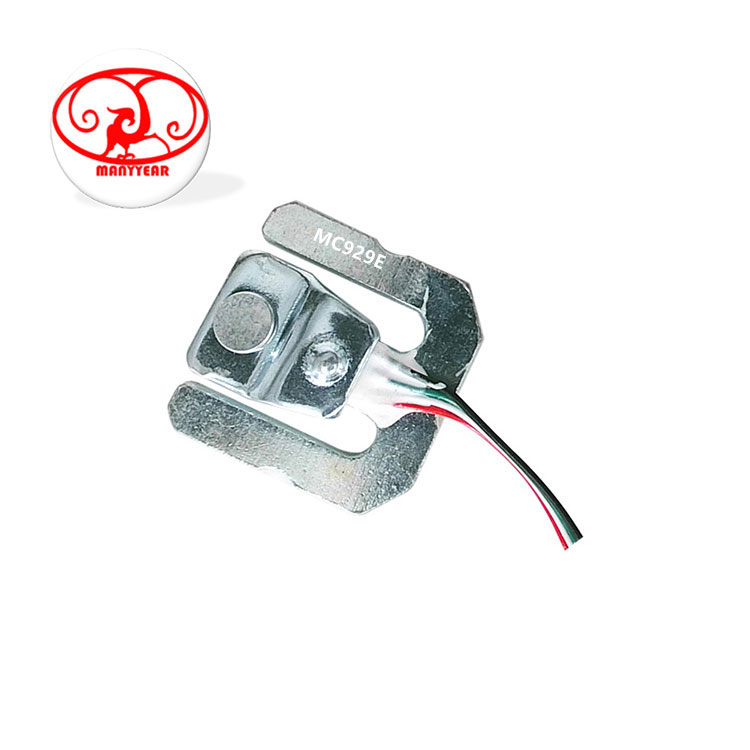

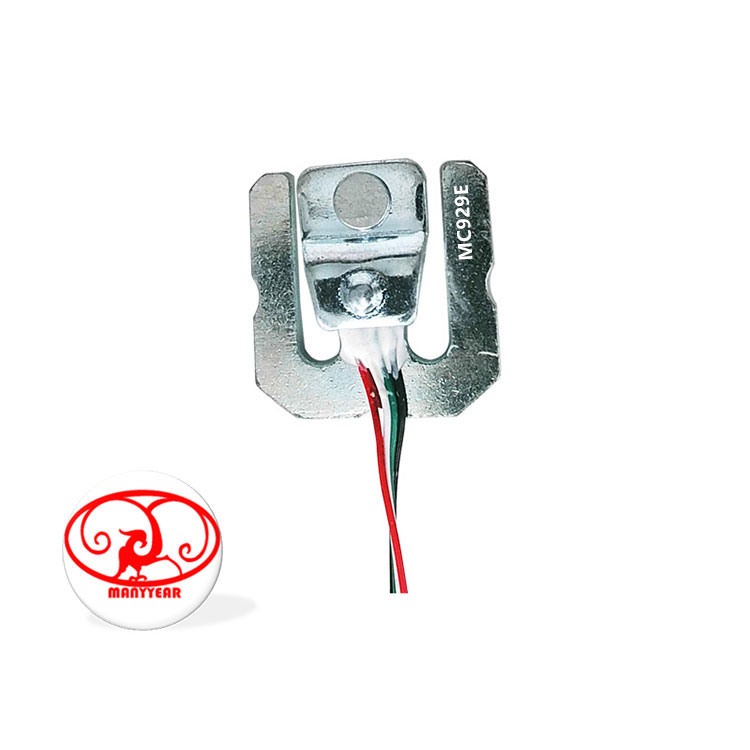

MLC929E bathroom scale weight sensor

2021/11/26 MLC900 Micro Load Cell Weighing Load Cell 2029 0

body scale weight sensor, health scale weight sensor, bathroom scale weight sensor, baby scale weight sensor

Model: MLC929E
Category: Micro load cell
Load range:50kg,75kg
Dimension:28*28*h (mm)
Material: alloy steel
Characteristic: body scale weight sensor, health scale weight sensor, bathroom scale weight sensor,baby scale weight sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Technical Documents

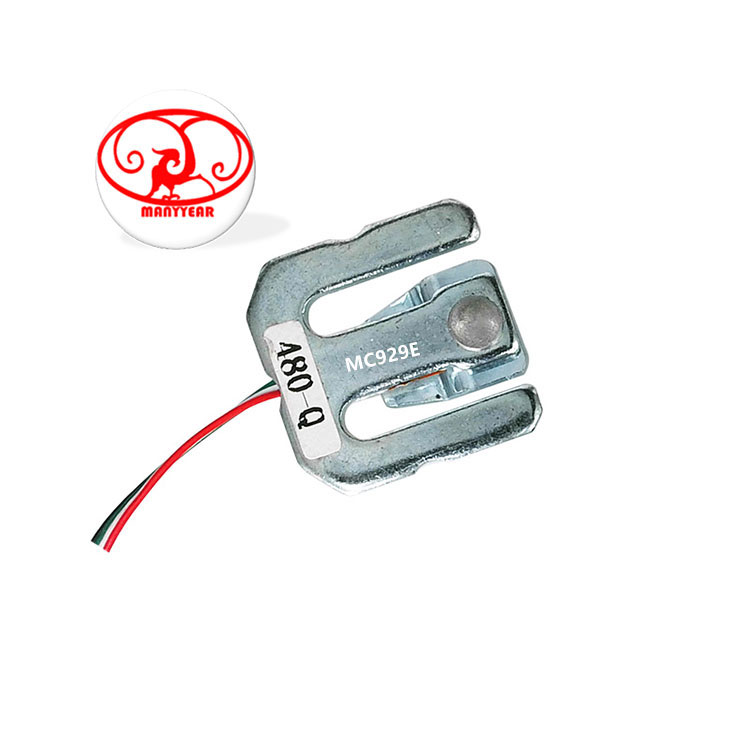

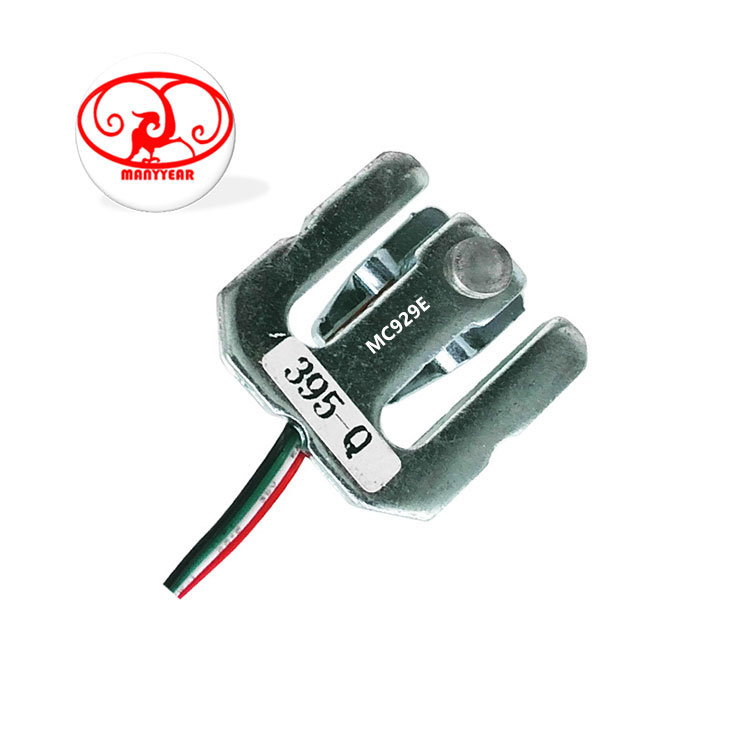

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC929E bathroom scale weight sensor

Model: MLC929E Category: Micro load cell Load range:50kg,75kg Dimension:2828h (mm) Material: alloy steel Characteristic: body scale weight sensor, health scale weight sensor, bathroom scale weight sensor,baby scale weight sensor

Specification
Comprehensive error:	0.2%FS	Output resistance:	1000±10Ω
Rated output:	1.1±0.15mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.3%FS	Excitation voltage:	5~10VDC
Hysteresis:	0.2%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.1%FS	Use temperature:	-20~+55ºC
Creep:	0.1%FS/10Min	Temp effect on zero:	0.3%FS/10ºC
Zero balance:	1±0.3%FS	Temp effect on span:	0.3%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP66

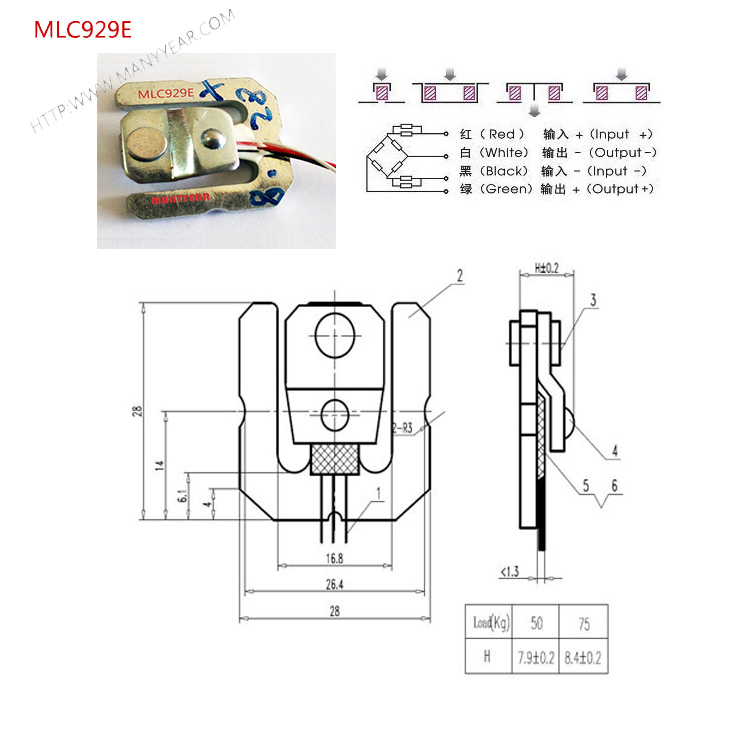

Product Dimension

MLC929E bathroom scale weight sensor

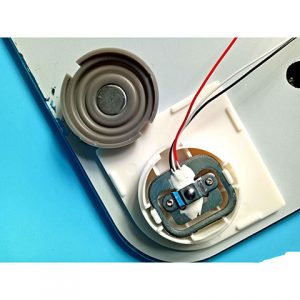

Force Structure & Assembly Reference
