MLC613TB miniature load cell

MLC600-20kg Weighing Load Cell 3318 0

miniature load cell, micro load cell, micro force sensor

Model: MLC613TB
Catalog: Micro load cell
Rated load: 0.5kg,1kg,1.5kg,2kg,3kg,5kg
Dimension:30*8*6mm
Material: alloy aluminum
Safe overload:120%; Ultimate overload: 150%
Characteristics: miniature load cell,micro load cell,micro force sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

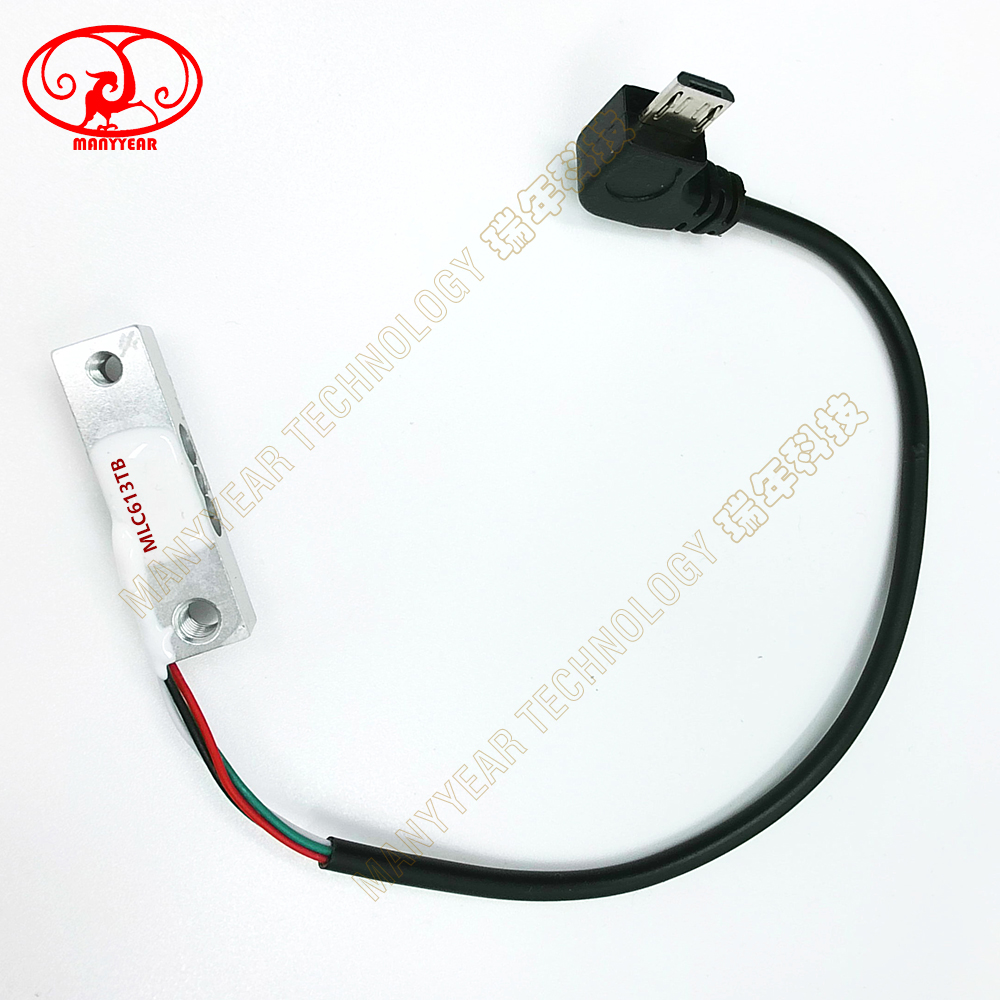

Product Picture Reference



MLC613TB miniature load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC613TB miniature load cell

Model: MLC613TB

Catalog: Micro load cell

Rated load: 0.5kg,1kg,1.5kg,2kg,3kg,5kg

Dimension:30*8*6mm

Connector: XH1.5-4Y

Material: alloy aluminum

Safe overload:120%; Ultimate overload: 150%

Characteristics: miniature load cell,micro load cell,micro force sensor

Specification
Comprehensive error:0.05FSOutput resistance:1000±10Ω
Rated output:1.0±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:3-5 VDC
Hysteresis:0.05%FSCompensated temp:-10~+60ºC
Repeatability:0.02%FSUse temperature:-20~+60ºC
Creep:0.05%FS/10MinTemp effect on zero:0.2%FS/10ºC
Zero balance:±0.15mVTemp effect on span:0.1%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP65

Product Dimension

MLC613TB miniature load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC613TB miniature load cell-MANYYEAR TECHNOLOGY

Product Application

MLC613TB miniature load cell-MANYYEAR TECHNOLOGYMLC613TB miniature load cell-MANYYEAR TECHNOLOGYMLC613TB miniature load cell-MANYYEAR TECHNOLOGY
