MLC608J electronic balance weighing sensor

2021/11/26 MLC900 Micro Load Cell Weighing Load Cell 1597 0

kitchen scale weighing sensor,pet scale weighing sensor, rice cooker weighing sensor

Model: MLC608J
Category: Micro point load cell
Range: 300g,500g, 1kg, 3kg, 5kg, 6kg
Dimension: 105*18*10mm
Material: alloy aluminum
Characteristics: kitchen scale weighing sensor, jewelry scale weighing sensor, micro weighing sensor, electronic balance weighing sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Technical Documents

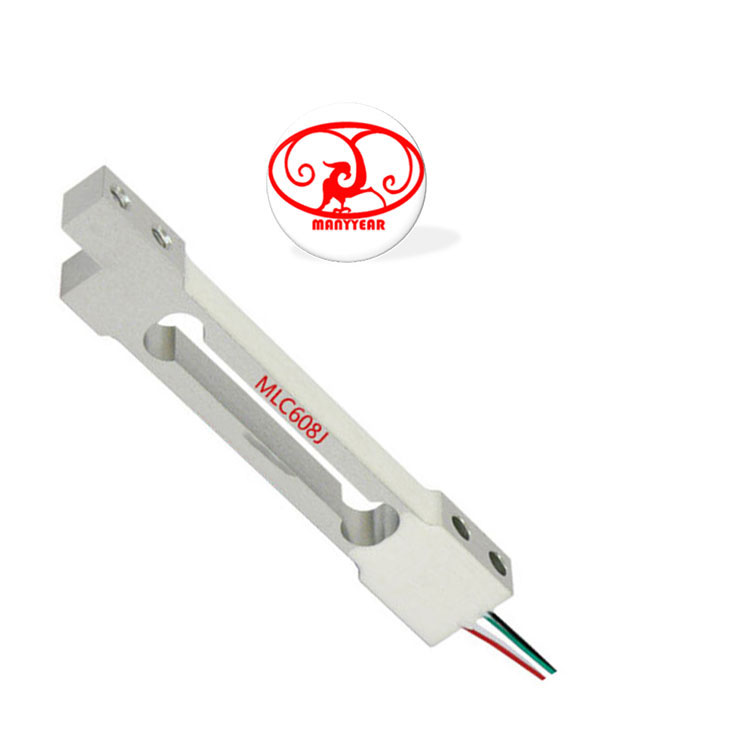

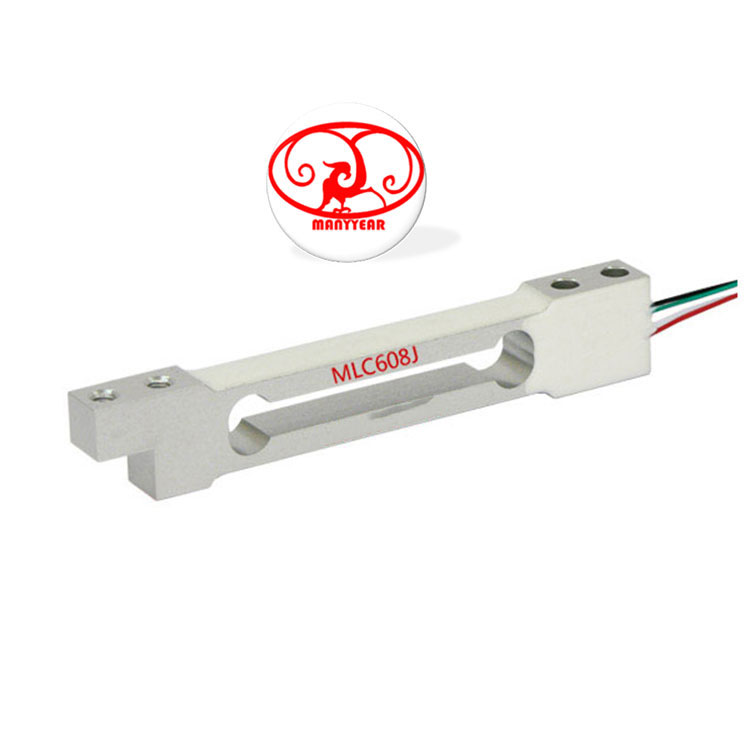

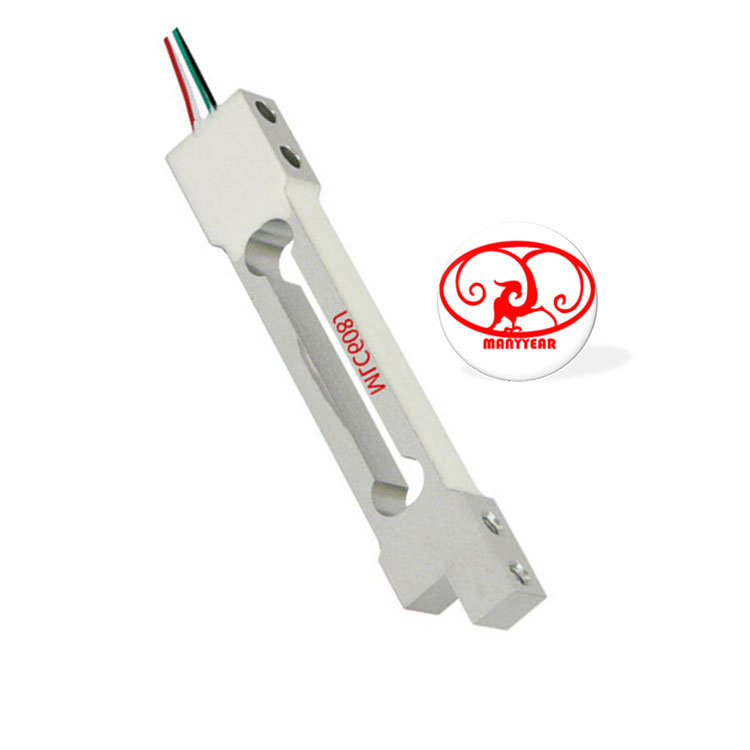

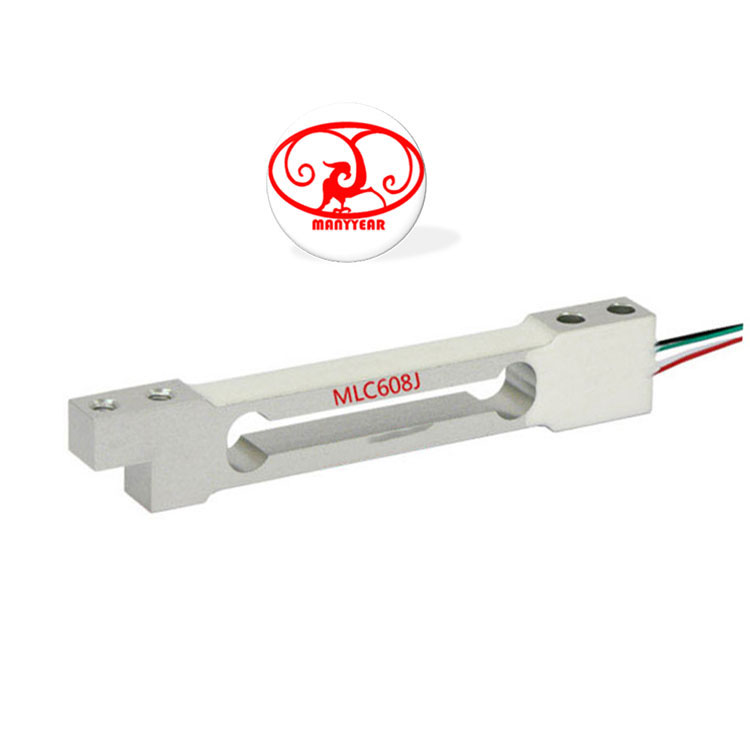

Product Picture Reference

MLC608J electronic balance weighing sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC608J electronic balance weighing sensor

Model: MLC608J Category: Micro point load cell Range: 300g,500g, 1kg, 3kg, 5kg, 6kg Dimension: 1051810mm Material: alloy aluminum Characteristics: kitchen scale weighing sensor, jewelry scale weighing sensor, micro weighing sensor, electronic balance weighing sensor

Specification
Comprehensive error:	0.03%FS	Output resistance:	350±5Ω
Rated output:	2±0.01mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.02%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.02%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.02%FS	Use temperature:	-20~+60ºC
Creep:	0.02%FS/30Min	Temp effect on zero:	0.03%FS/10ºC
Zero balance:	±1.5%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	405±10Ω	Defend grade:	IP65

Product Dimension

MLC608J electronic balance weighing sensor

Force Structure & Assembly Reference
