MLC204FB miniature compression and tension load cell

compression and tension load cell,miniature compression force load cell, miniature tension force sensor

Model: MLC204FB
Category: Button type weighing sensor
Load range: 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 300kg, 500kg
Size: ± 37 * 25.4mm
Material: stainless steel
Wire: Φ 3 * 2m
Safety overload: 150%; Extreme overload: 200%
Application: Small compression and tensile tests, small crane scales


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

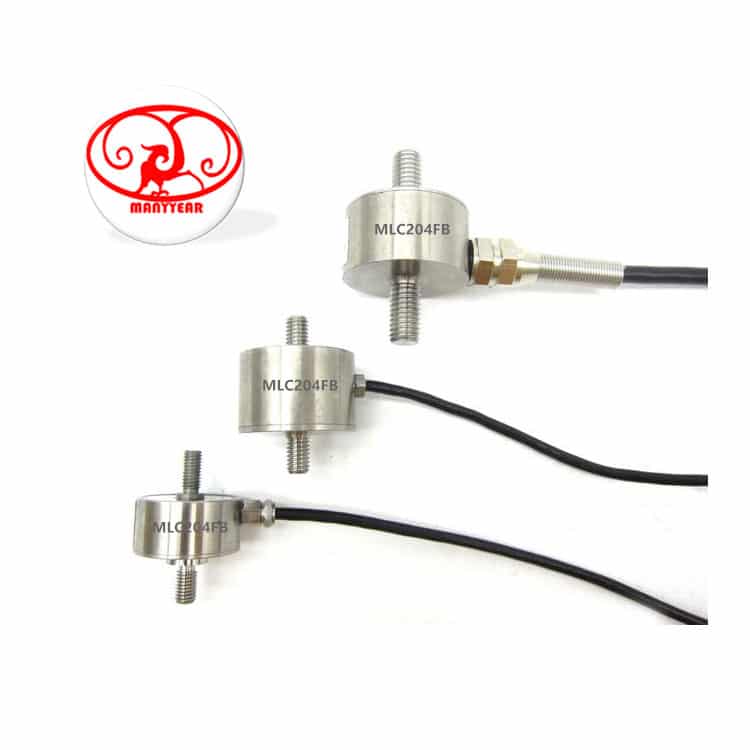

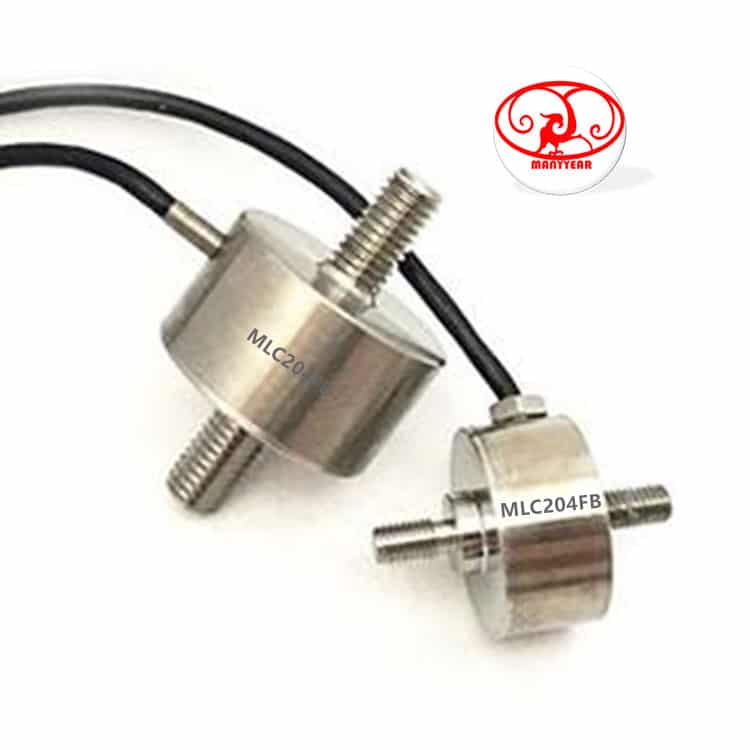

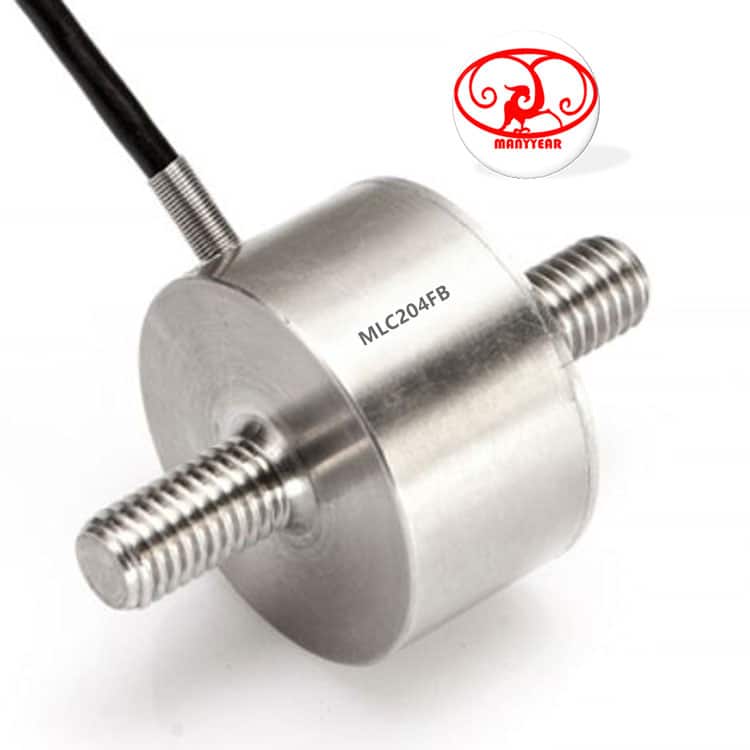

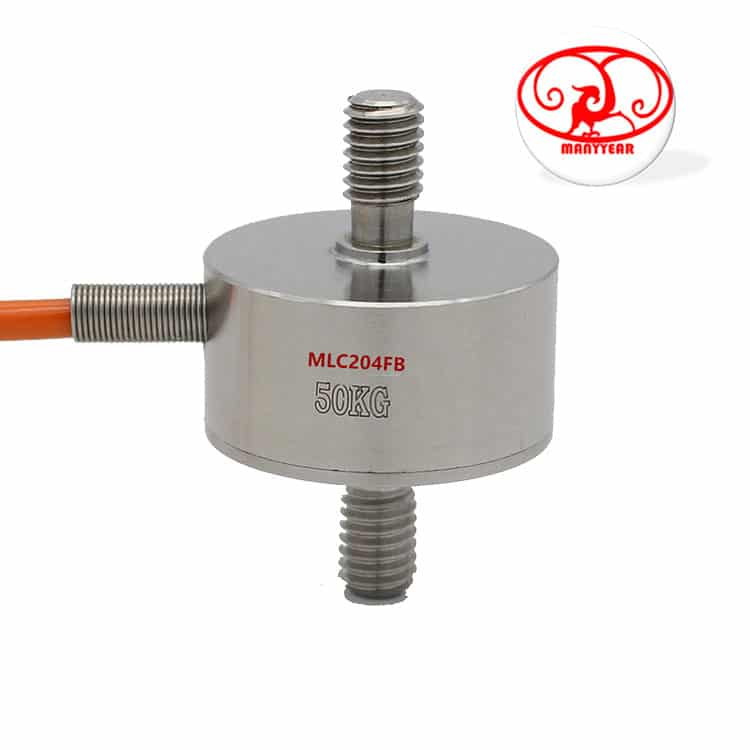

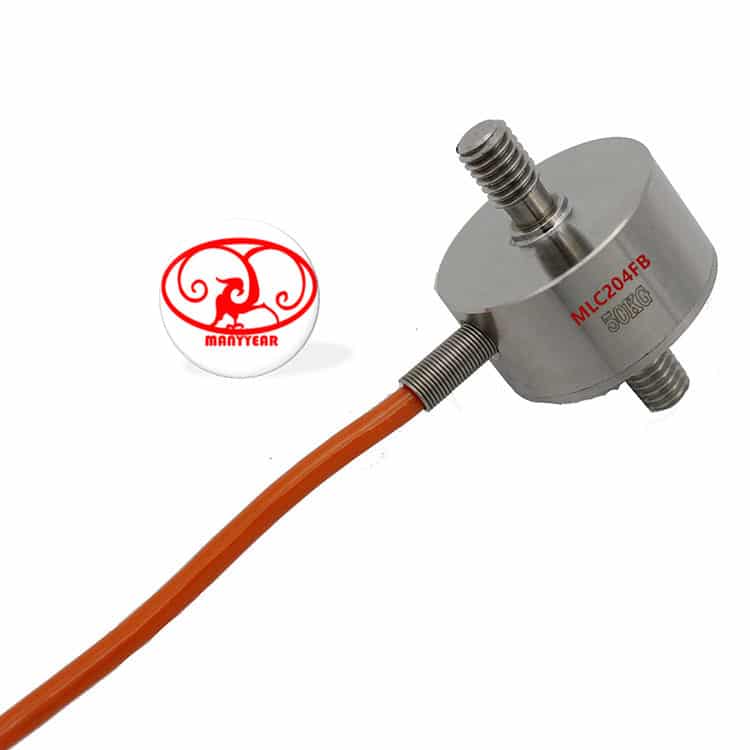

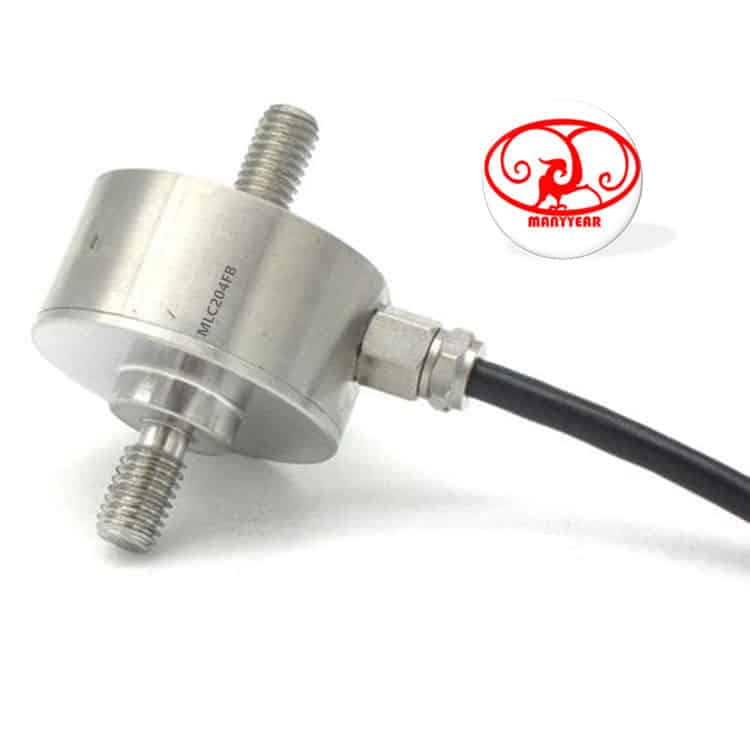

Product Picture Reference

MLC204FB  miniature compression and tension load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

                  MLC205 miniature compression and tension load cell

Model: MLC204F
Category: Button load cell
Range: 1kg,2kg,3kg,5kg,10kg,20kg,50kg,100kg,200kg
Dimension: 29*38mm;33*46mm
Material: alloy steel,stainless steel
Characteristic: compression and tension load cell,miniature compression force load cell, miniature tension force sensor

Other Dimension (mm)
    Specification
Comprehensive error:0.2%FSOutput resistance:350±10Ω, 700±5Ω
Rated output:1±0.15mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:9~12VDC
Hysteresis:0.2%FSCompensated temp:-10~+40ºC
Repeatability:0.1%FSUse temperature:-20~+55ºC
Creep:0.03%FS/10minTemp effect on zero:0.05%FS/10ºC
Zero balance:±5%FSTemp effect on span:0.05%FS/10ºC
Input resistance:350±10Ω, 700±5ΩDefend grade:IP66

Product Dimension

MLC204FB  miniature compression and tension load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC204FB  miniature compression and tension load cell-MANYYEAR TECHNOLOGY

Product Application

MLC204FB  miniature compression and tension load cell-MANYYEAR TECHNOLOGYMLC204FB  miniature compression and tension load cell-MANYYEAR TECHNOLOGYMLC204FB  miniature compression and tension load cell-MANYYEAR TECHNOLOGY
