MLC600-20kg Weighing Load Cell 3299 0

electronic balance load cell, kitchen scale load cell, pricing scale load cell, platform scale load cell, vending machine load cell

Model: MLC608A
Catalog:Micro load cell
Rated load:0.5, 1, 3, 5, 6, 10, 15, 20, 25kg
Dimension:93*27.6mm
Safe overload:150%; Ultimate overload: 200%
Characteristics: electronic balance load cell, kitchen scale load cell, pricing scale load cell, platform scale load cell, vending machine load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

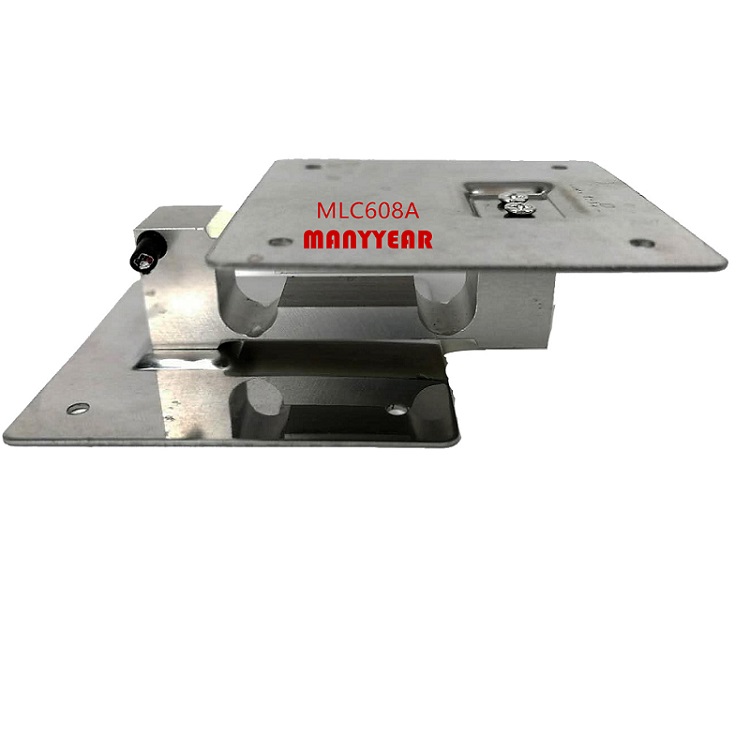

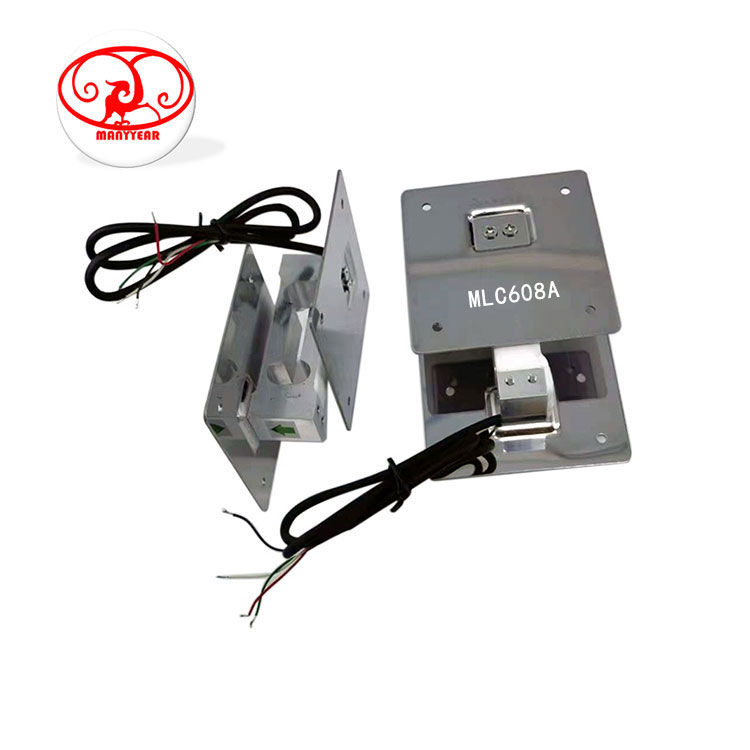

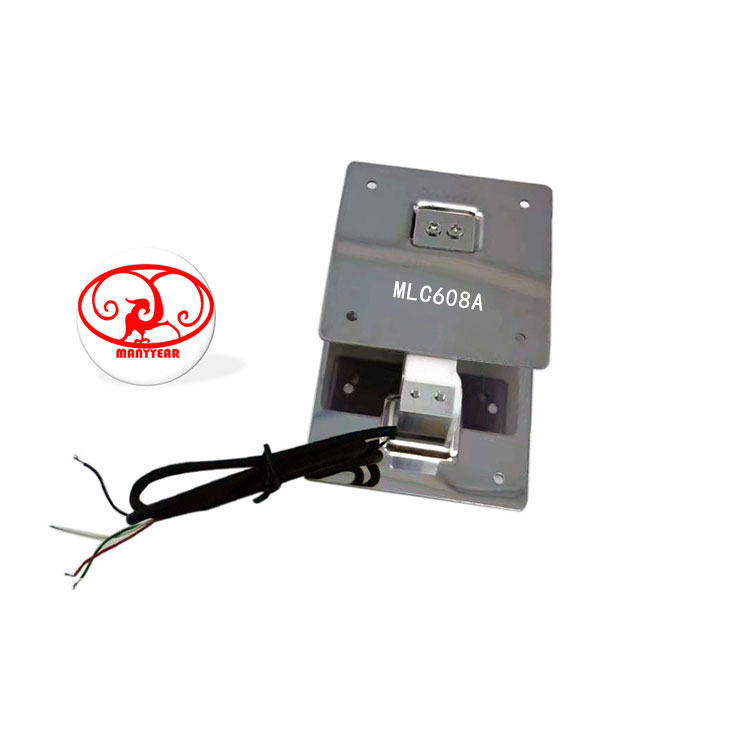

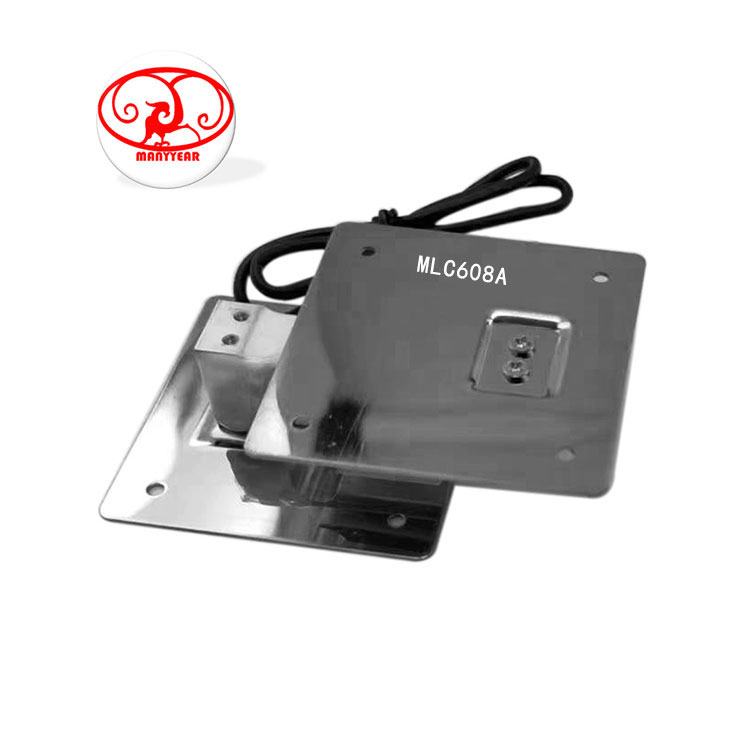

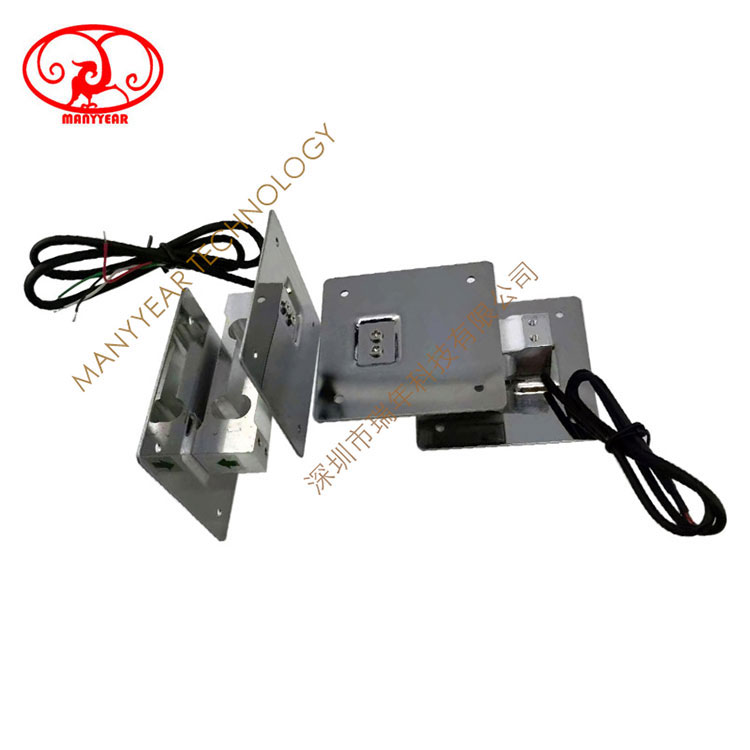

Product Picture Reference



MLC608A vending machine load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC608A vending machine load cell

Model: MLC608A

Rated load:0.5, 1, 3, 5, 6, 10kg

Dimension:93*27.6mm

Material: alloy aluminum

Safe overload:150%; Ultimate overload: 200%

Characteristics: electronic balance load cell, kitchen scale load cell, pricing scale load cell, platform scale load cell, vending machine load cell

Specification
Comprehensive error:0.02%FSOutput resistance:350±3Ω
Rated output:1±0.1mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+60ºC
Creep:0.02%FS/10MinTemp effect on zero: 0.05%FS/10ºC
Zero balance:±0.1mV/VTemp effect on span:0.03%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

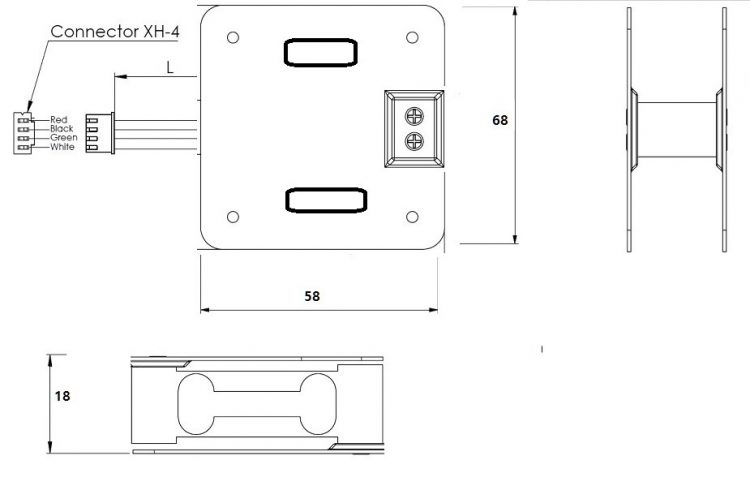

Product Dimension

MLC608A vending machine load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC608A vending machine load cell-MANYYEAR TECHNOLOGY

Product Application

MLC608A vending machine load cell-MANYYEAR TECHNOLOGYMLC608A vending machine load cell-MANYYEAR TECHNOLOGYMLC608A vending machine load cell-MANYYEAR TECHNOLOGY
