MLC807 platform scale weighing sensor

platform weighing sensor, feeding scale weighing sensor, batching scale weighing sensor, packing scale weighing sensor

Model: MLC807
Category: Shear beam load cell
Rated load: 500,1000,1500,2000, 2500, 3000, 5000kg
Safe overload:120% Ultimate overload: 150%
Material: alloy steel,stainless steel
Characteristic: platform weighing sensor, feeding scale weighing sensor, batching scale weighing sensor, packing scale weighing sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

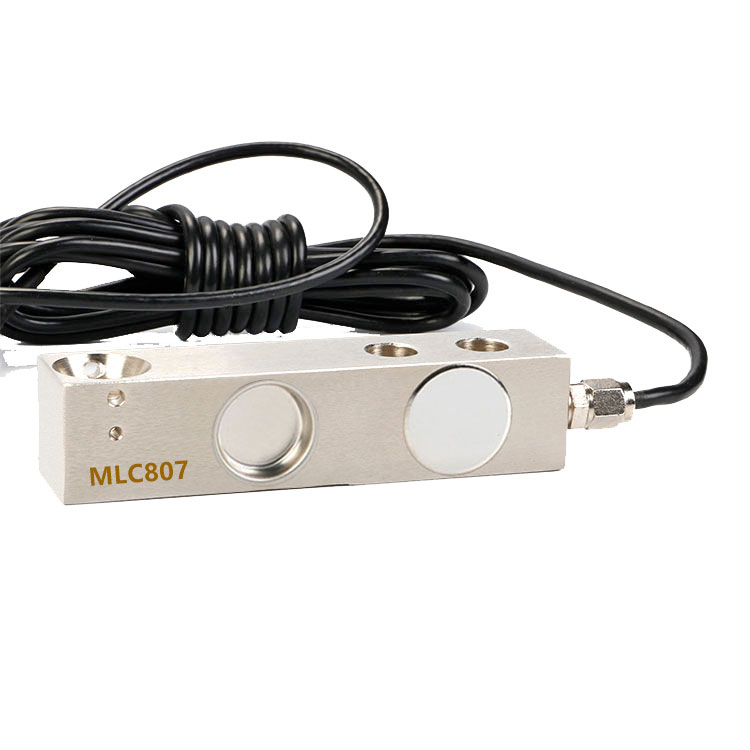

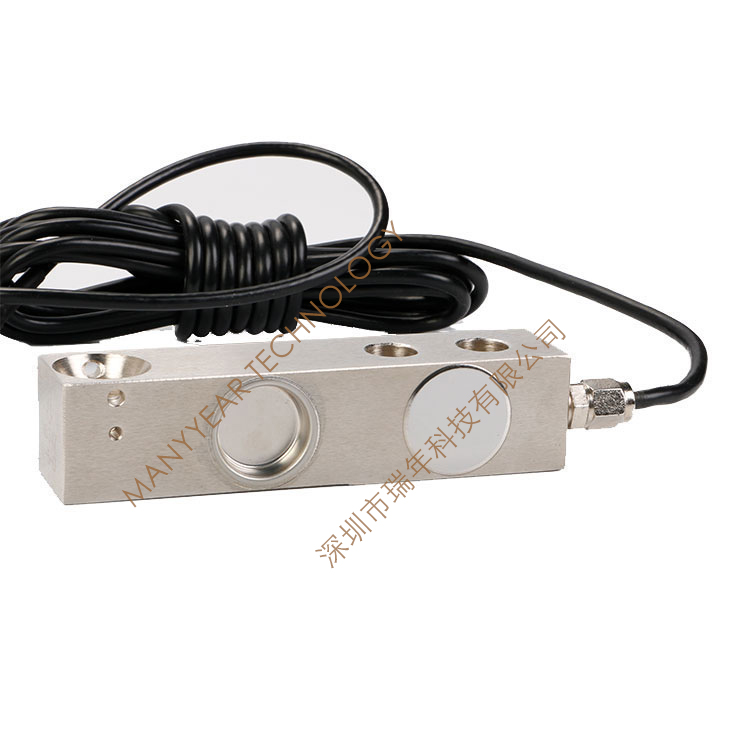

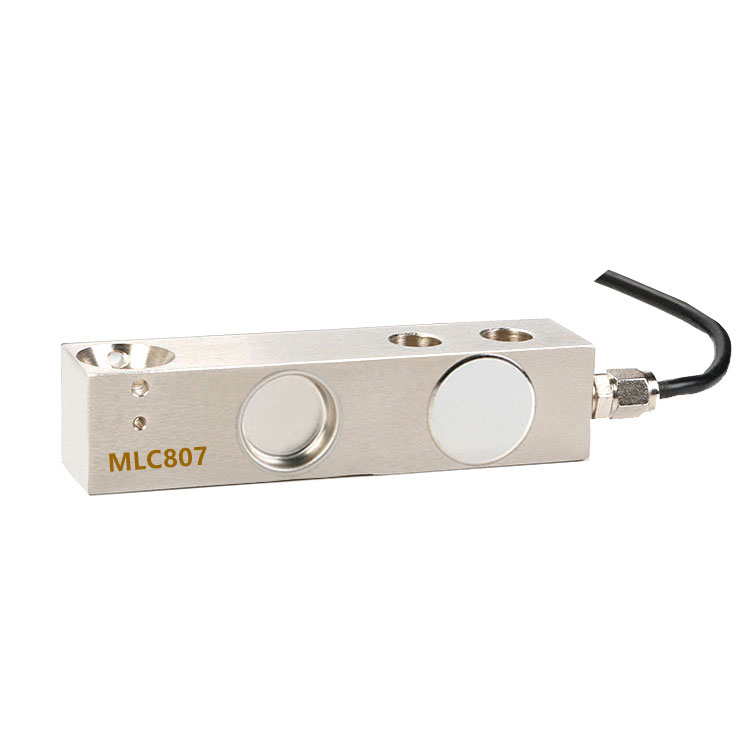

Product Picture Reference

MLC807 platform scale weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
                                                                      MLC807 platform scale weighing sensor

Model: MLC807

Category: Shear beam load cell

Rated load: 500,1000,1500,2000, 2500, 3000, 5000kg

Safe overload:120%;   Ultimate overload: 150%

Material: alloy steel, stainless steel

Characteristic: platform weighing sensor, feeding scale weighing sensor, batching scale weighing sensor, packing scale weighing sensor

 Other Dimension
Load(kg)LL1L2L3L4LBDd
500~200013054.215.825.476.21531.81813.5
2500~5000171.577.219.138.195.320.538.12519.8
 Specification
Comprehensive error:0.03%FSOutput resistance:350±3Ω
Rated output:2±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

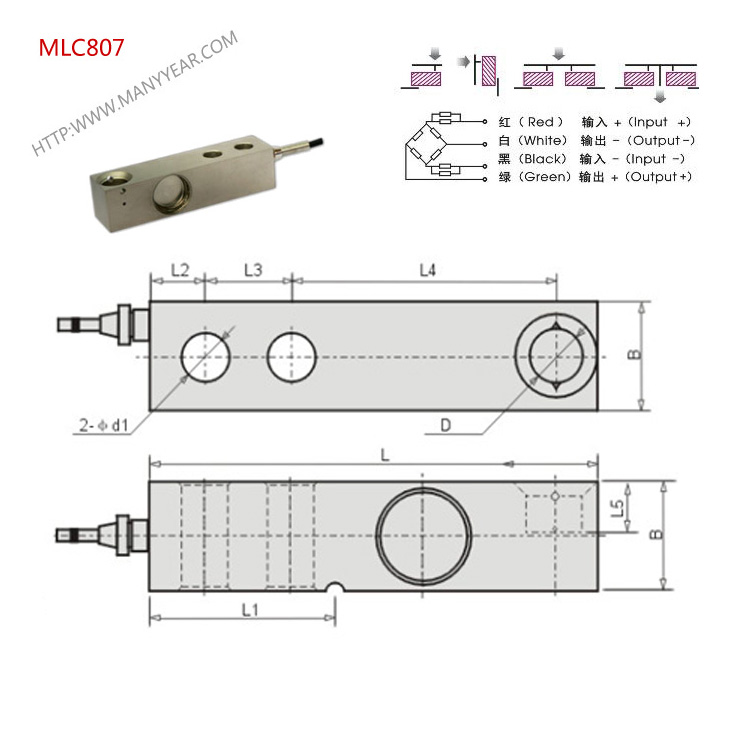

Product Dimension

MLC807 platform scale weighing sensor-MANYYEAR TECHNOLOGY

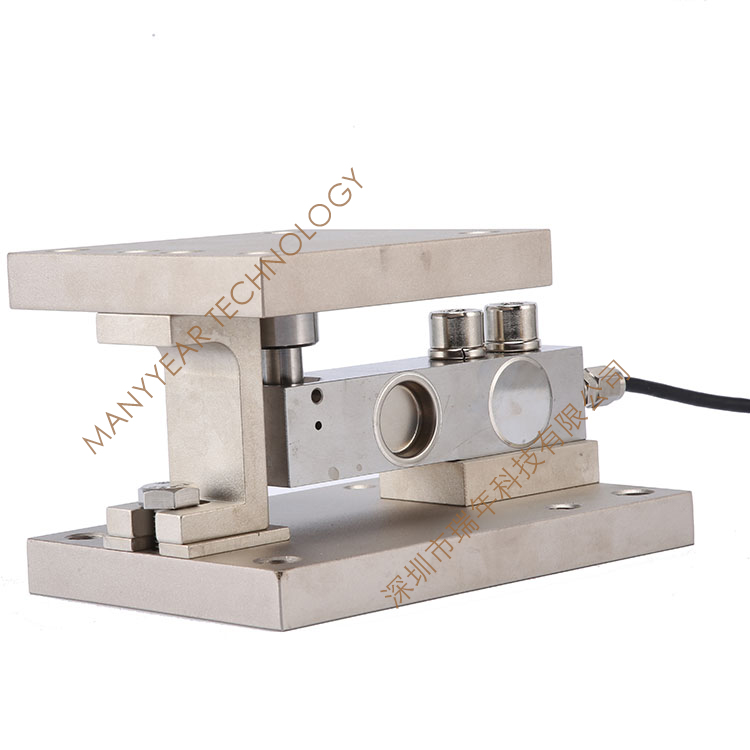

Force Structure & Assembly Reference

MLC807 platform scale weighing sensor-MANYYEAR TECHNOLOGY

Product Application

MLC807 platform scale weighing sensor-MANYYEAR TECHNOLOGYMLC807 platform scale weighing sensor-MANYYEAR TECHNOLOGYMLC807 platform scale weighing sensor-MANYYEAR TECHNOLOGY
