MLC806 batching scale weight sensor MLC806 batching scale weight sensor
MLC806 batching scale weight sensor
MLC806 batching scale weight sensor-MANYYEAR TECHNOLOGY
MLC806 batching scale weight sensor-MANYYEAR TECHNOLOGY

MLC806 batching scale weight sensor

platform weight sensor,feeding scale weight sensor,batching scale weight sensor,packing scale weight sensor

Model: MLC806
Category: Shear beam load cell
Rated load:100,250,850kg
Safe overload:120%; Ultimate overload:150%
Material: alloy steel, stainless steel
Characteristic:platform weight sensor,feeding scale weight sensor,batching scale weight sensor,packing scale weight sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

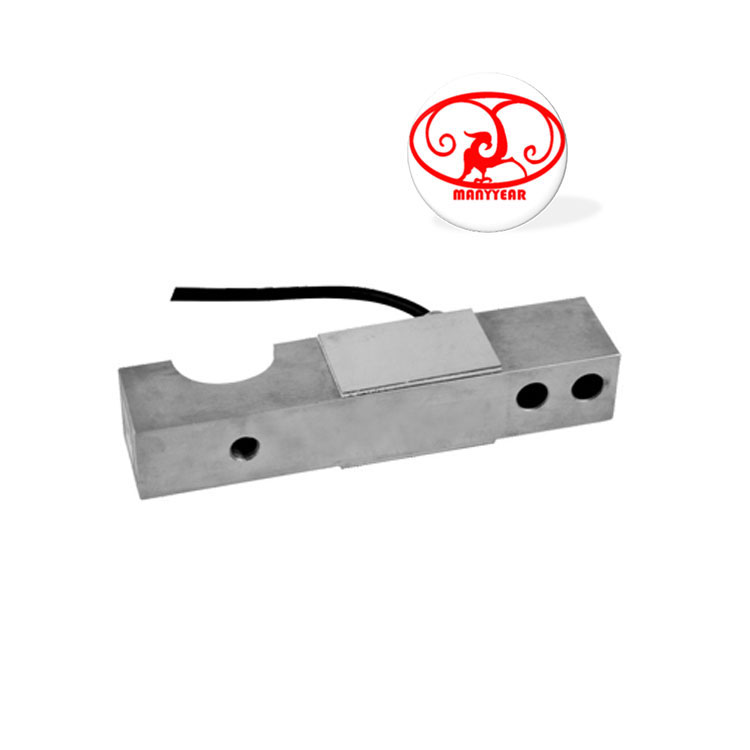

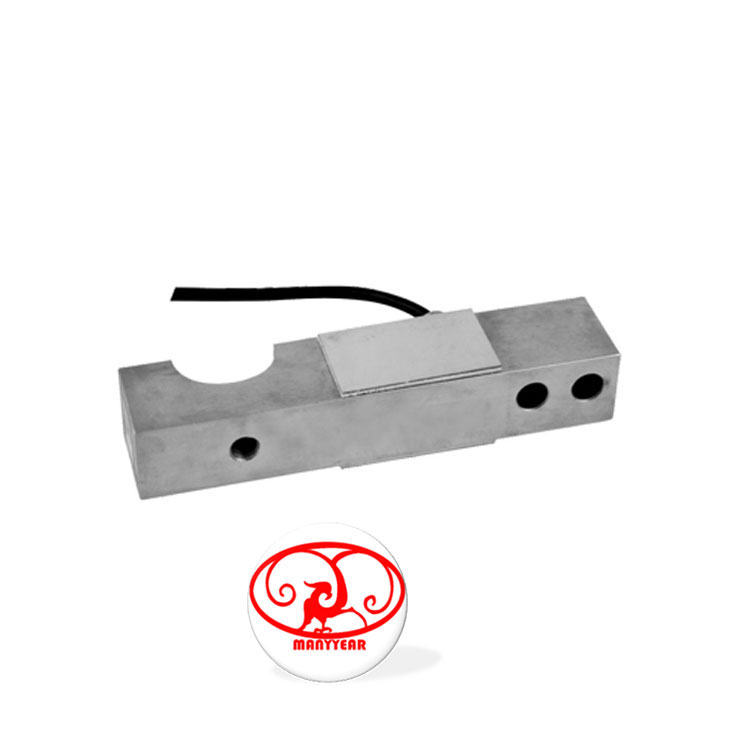

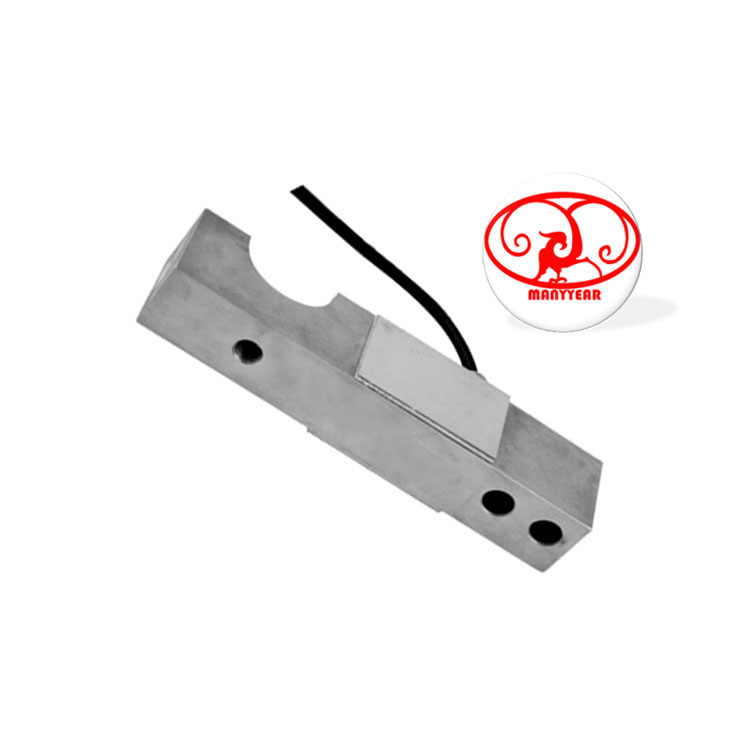

Product Picture Reference

MLC806 batching scale weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
                                                                                      MLC806 batching scale weight sensor

Model: MLC806

Category: Shear beam load cell

Rated load: 100,250,850kg

Safe overload:120%;  Ultimate overload: 150%

Material: alloy steel, stainless steel

Characteristic:platform weight sensor,feeding scale weight sensor,batching scale weight sensor,packing scale weight sensor

 Specification
Comprehensive error:0.03%FSOutput resistance:350±3Ω
Rated output:2±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

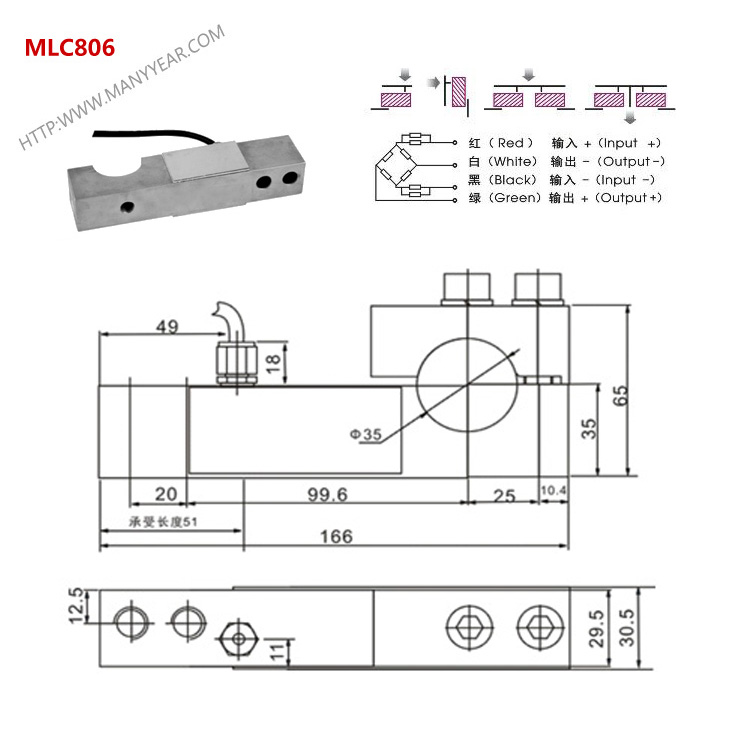

Product Dimension

MLC806 batching scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC806 batching scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC806 batching scale weight sensor-MANYYEAR TECHNOLOGYMLC806 batching scale weight sensor-MANYYEAR TECHNOLOGYMLC806 batching scale weight sensor-MANYYEAR TECHNOLOGY
