MLC619 platform scale weight sensor MLC619 platform scale weight sensor
MLC619 platform scale weight sensor

MLC619 platform scale weight sensor

platform scale weight sensor,pricing scale weight sensor,electronic scale weight sensor,postal scale weight sensor

Model: MLC619
Category: Single point load cell
Range: 20kg,30kg,50kg,60kg,100kg,150kg,200kg,250kg,300kg
Dimension: 125*40*24mm
Material: alloy aluminum
Characteristic: platform scale weight sensor,pricing scale weight sensor,electronic scale weight sensor,postal scale weight sensor



Product selection reference

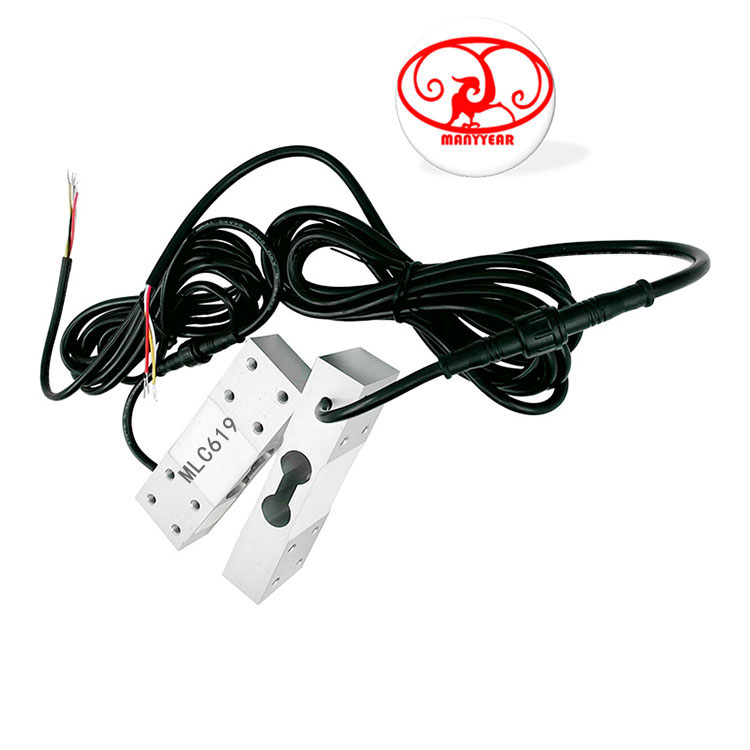

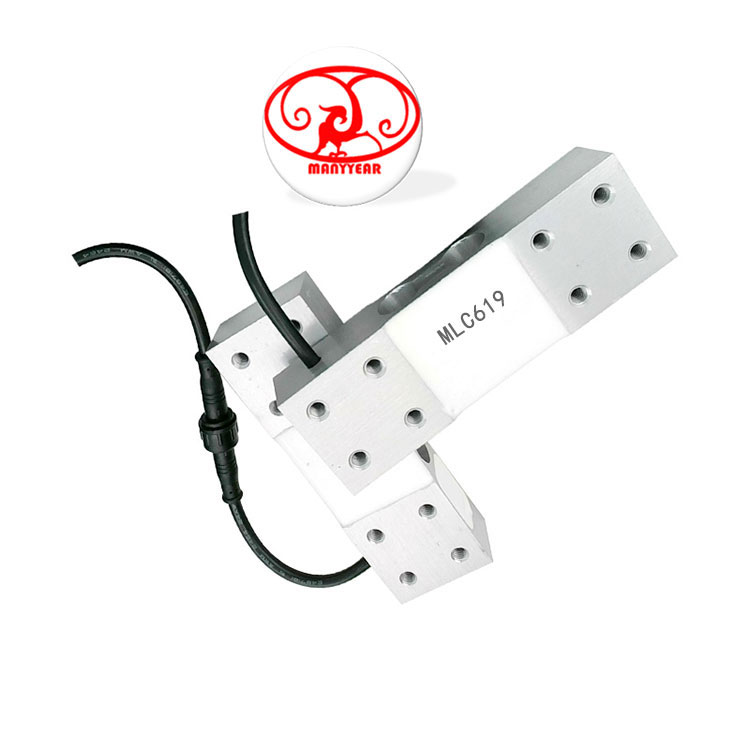

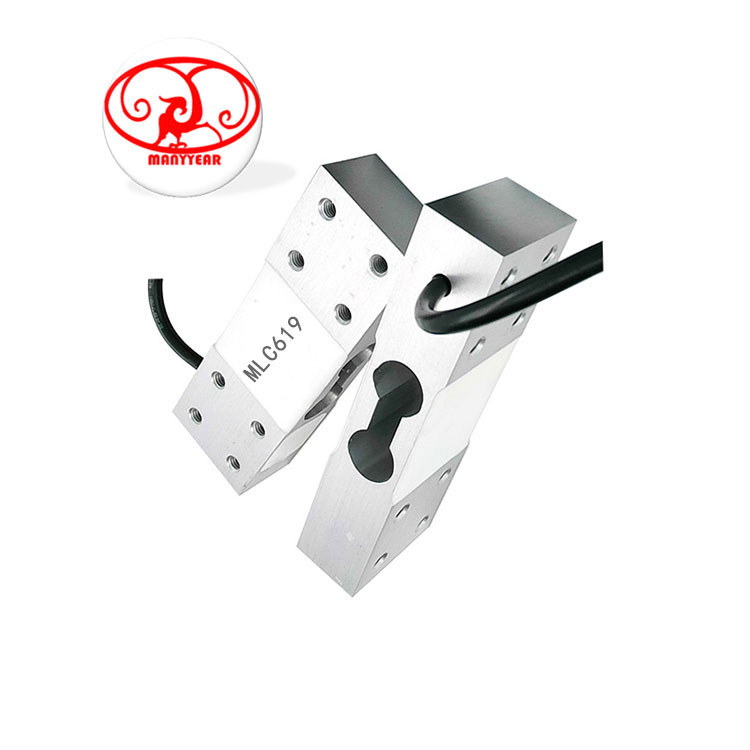

Product Picture Reference

MLC619 platform scale weight sensor-MANYYEAR TECHNOLOGY

MLC619 platform scale weight sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC619 platform scale weight sensor

Model: MLC619

Category: Single point load cell

Range: 20kg,30kg,50kg,60kg,100kg,150kg,200kg,250kg,300kg

Dimension: 125*40*24mm

Material: alloy aluminum

Characteristic: platform scale weight sensor,pricing scale weight sensor,electronic scale weight sensor,postal scale weight sensor

 Specification
Comprehensive error:0.02%FSOutput resistance:350±3Ω
Rated output:2±0.01mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+60ºC
Creep:0.02%FS/10MinTemp effect on zero: 0.02%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65



Product Dimension

MLC619 platform scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC619 platform scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC619 platform scale weight sensor-MANYYEAR TECHNOLOGYMLC619 platform scale weight sensor-MANYYEAR TECHNOLOGYMLC619 platform scale weight sensor-MANYYEAR TECHNOLOGY
