MLC600-20kg Weighing Load Cell 2971 0

electronic scale, platform scale, pricing scale,electronic balance load cell,kitchen scale load cell

Model: MLC605D
Rated load:0.3kg, 1kg, 2kg,3kg,5kg,6kg
Dimension:110*33*10mm
Safe overload:150%; Ultimate overload: 200%
Material: alloy aluminum
Characteristic: electronic scale,platform scale, pricing scale,electronic balance load cell,kitchen scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

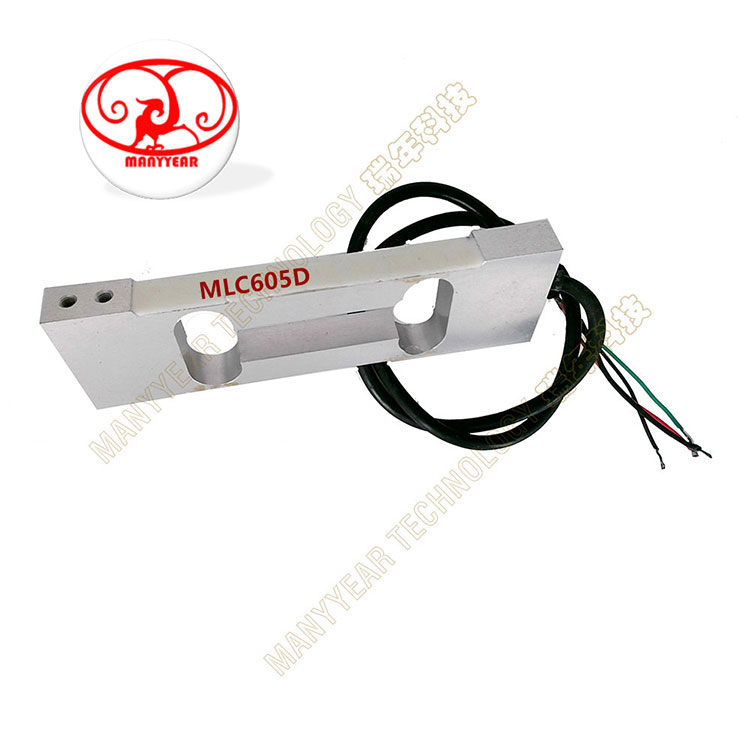

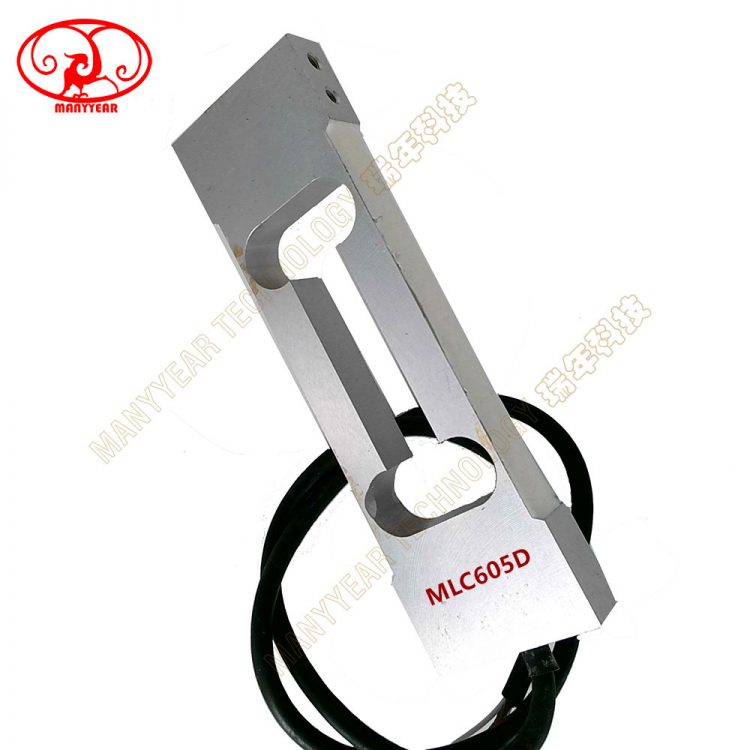

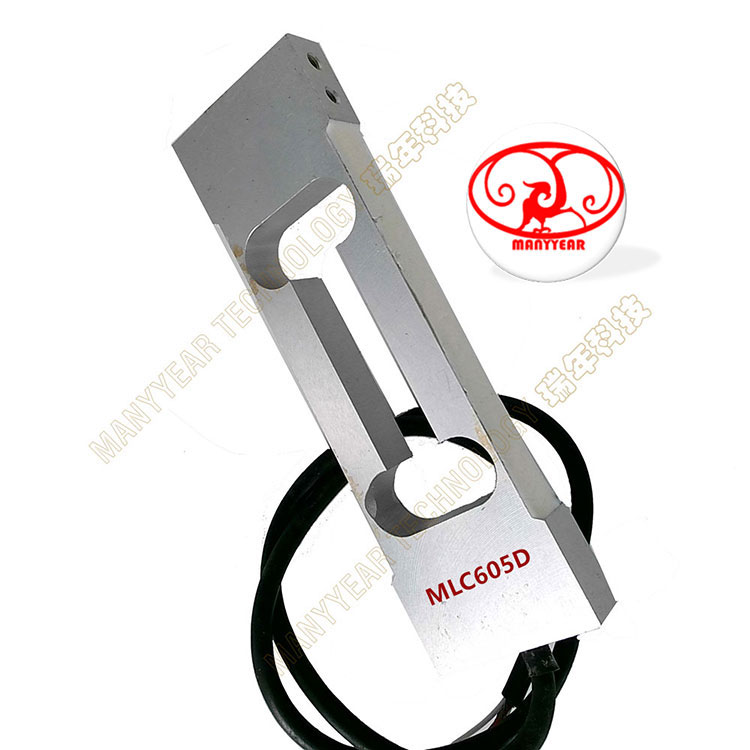

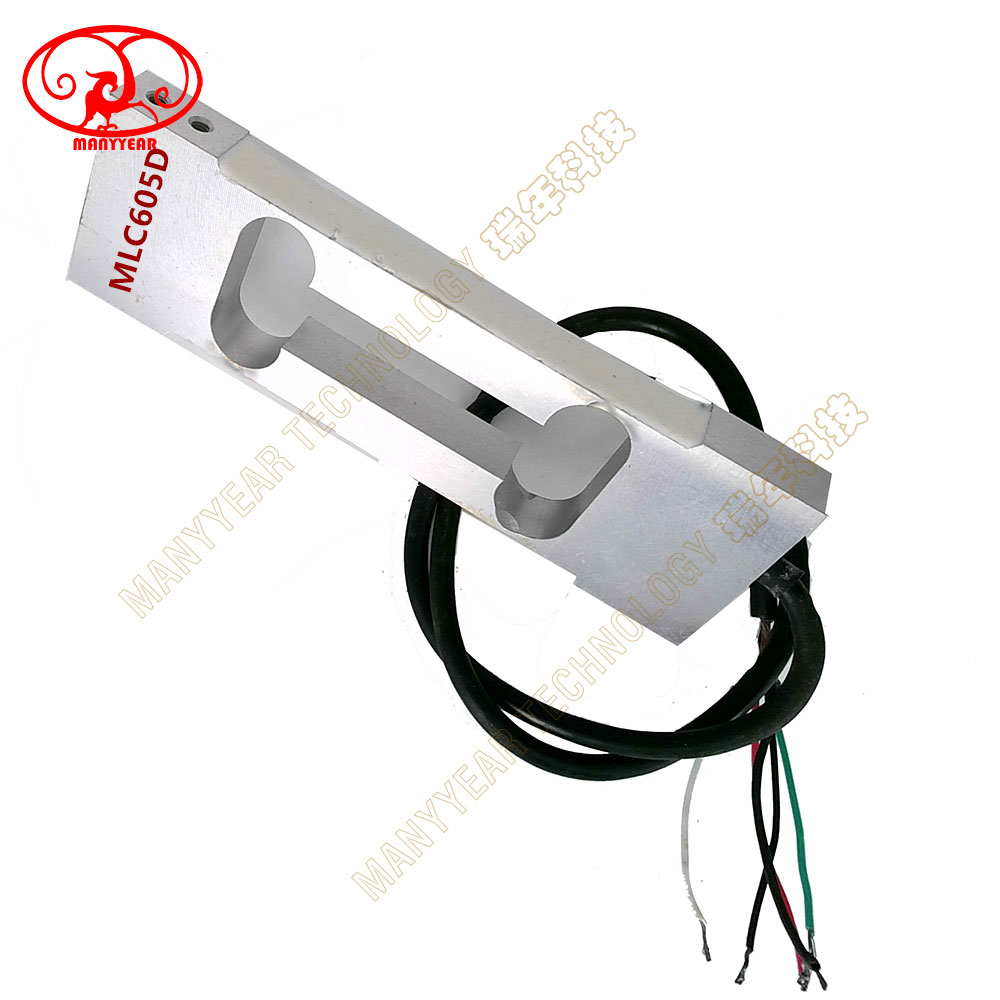

Product Picture Reference

MLC605D electronic balance load cell-MANYYEAR TECHNOLOGY

MLC605D electronic balance load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC605D electronic balance load cell

Model: MLC605D

Rated load:0.3~6kg

Dimension:110*33*10mm

Safe overload:150%; Ultimate overload: 200%

Material: alloy aluminum

Characteristic: electronic scale, platform scale, pricing scale,electronic balance load cell,kitchen scale load cell

Specification
Comprehensive error:0.02%FSOutput resistance:350±3Ω
Rated output:1.9±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.01%FSUse temperature:-20~+60ºC
Creep:0.02%FS/30MinTemp effect on zero: 0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

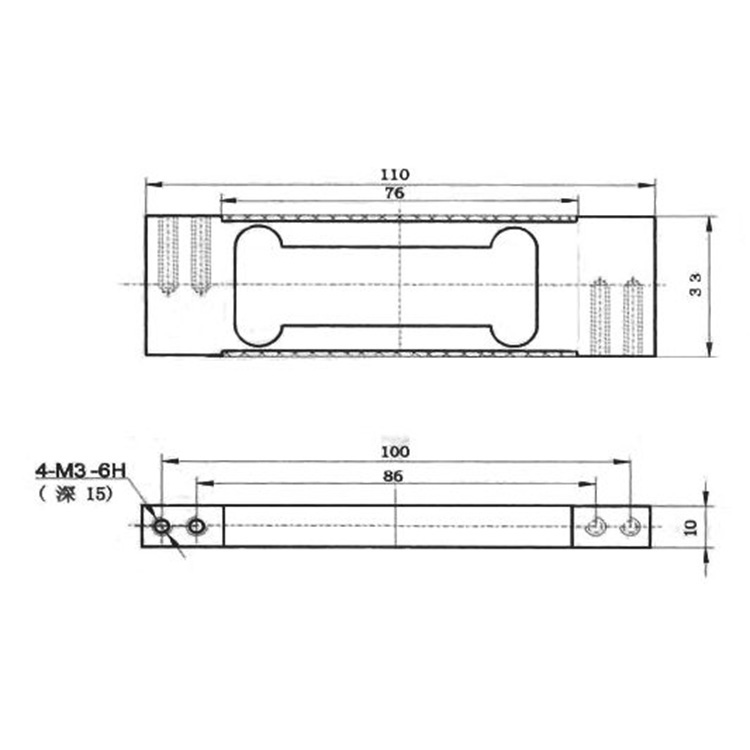

Product Dimension

MLC605D electronic balance load cell-MANYYEAR TECHNOLOGY

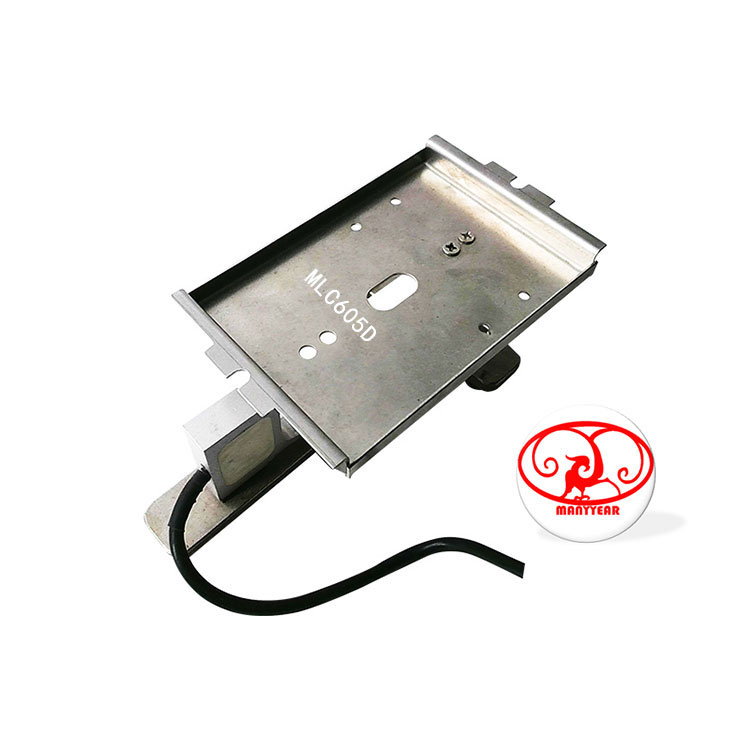

Force Structure & Assembly Reference

MLC605D electronic balance load cell-MANYYEAR TECHNOLOGY

Product Application

MLC605D electronic balance load cell-MANYYEAR TECHNOLOGYMLC605D electronic balance load cell-MANYYEAR TECHNOLOGYMLC605D electronic balance load cell-MANYYEAR TECHNOLOGY
