MLC628 platform scale weighing load cell MLC628 platform scale weighing load cell
MLC628 platform scale weighing load cell

MLC628 platform scale weighing load cell

platform scale weighing load cell,packing scale weighing load cell,batching scale weighing load cell.

Model: MLC628
Category: Single point load cell
Range:50kg,60kg,75kg,100kg,150kg,200kg,250kg,300kg,500kg,600kg,750kg
Dimension: 186*60*30mm
Material: alloy aluminum
Characteristic:platform scale weighing load cell,packing scale weighing load cell,batching scale weighing load cell



Product selection reference

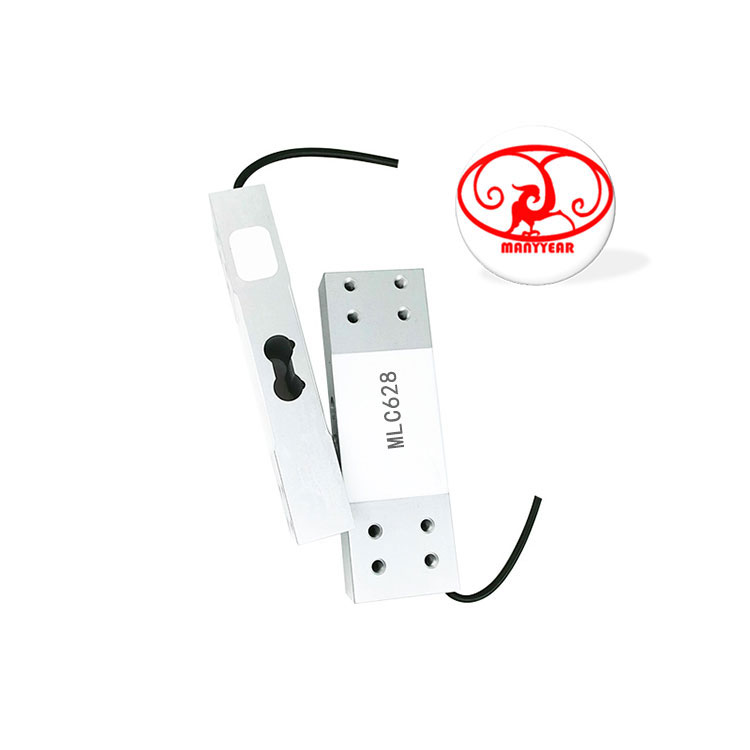

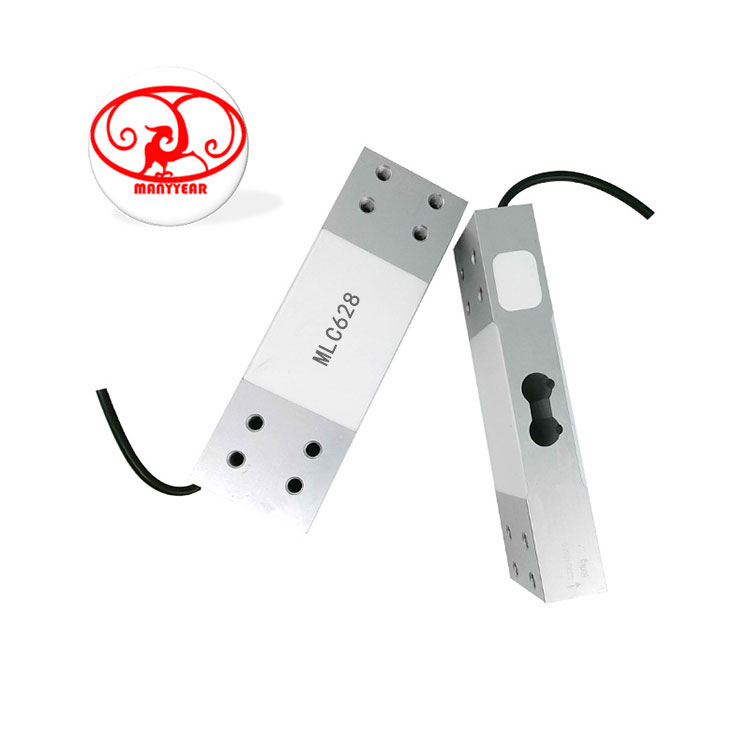

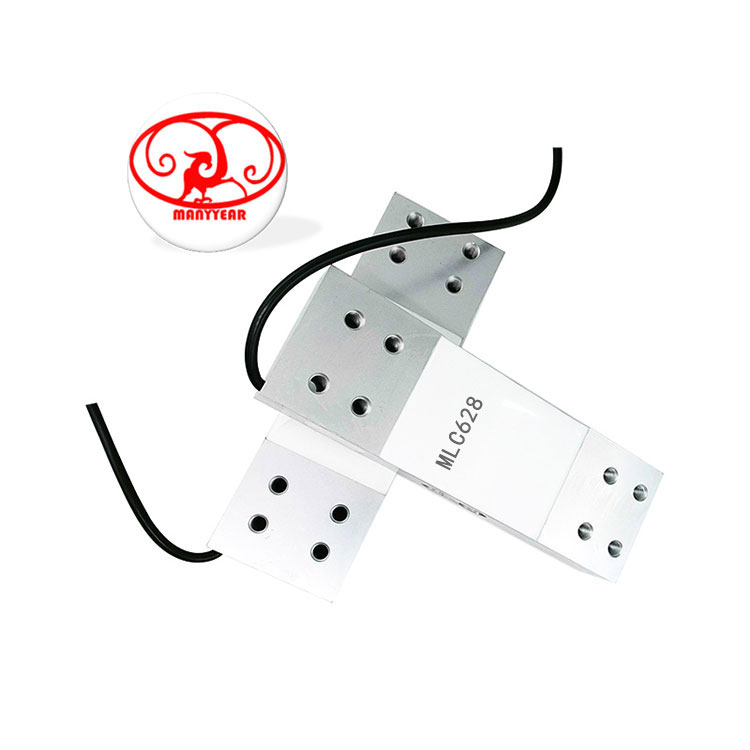

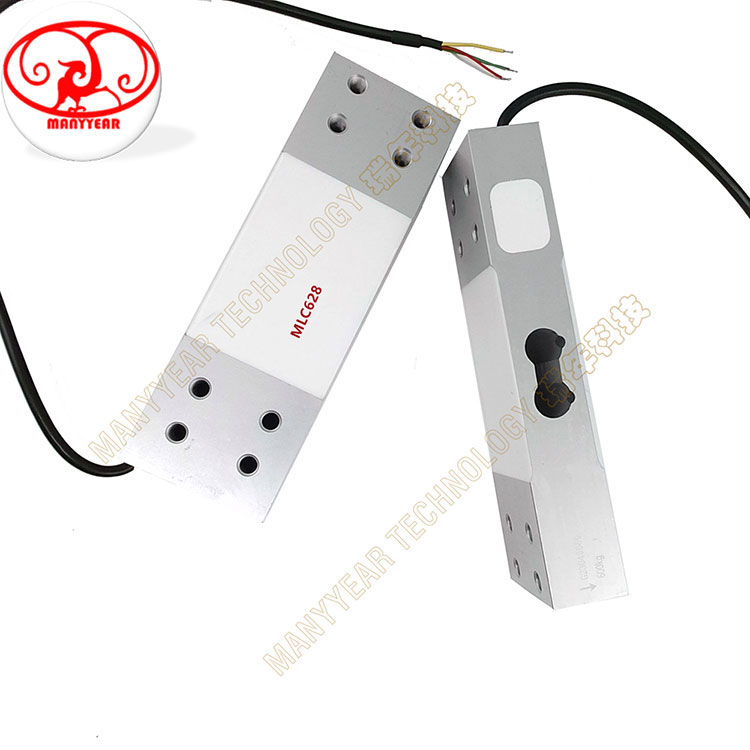

Product Picture Reference

MLC628 platform scale weighing load cell-MANYYEAR TECHNOLOGY

MLC628 platform scale weighing load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC628 platform scale weighing load cell

Model: MLC628

Category: Single point load cell

Range:50kg,60kg,75kg,100kg,150kg,200kg,250kg,300kg,500kg,600kg,750kg

Dimension: 186*60*30mm

Material: alloy aluminum

Characteristic:platform scale weighing load cell,packing scale weighing load cell,batching scale weighing load cell

Specification
Comprehensive error:0.017%FSOutput resistance:350±3Ω
Rated output:2.0±0.1mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.017%FSExcitation voltage:9~12VDC
Hysteresis:0.017%FSCompensated temp:-10~+40ºC
Repeatability:0.01%FSUse temperature:-20~+60ºC
Creep:0.017%FS/10MinTemp effect on zero: 0.017%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.014%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

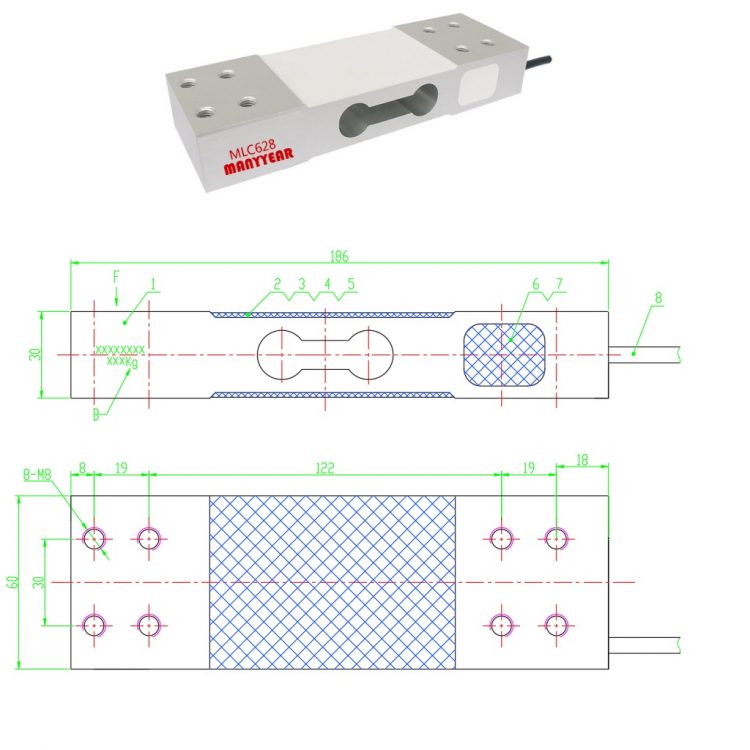

Product Dimension

MLC628 platform scale weighing load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC628 platform scale weighing load cell-MANYYEAR TECHNOLOGY

Product Application

MLC628 platform scale weighing load cell-MANYYEAR TECHNOLOGYMLC628 platform scale weighing load cell-MANYYEAR TECHNOLOGYMLC628 platform scale weighing load cell-MANYYEAR TECHNOLOGY
