Model: MLC630
Category: Single point load cell
Range: 100kg,150kg,200kg,300kg,350kg,500kg,750kg,1000kg
Dimension: 191*76*43mm
Material: alloy aluminum
Characteristic:platform scale load cell,packing scale load cell,batching scale load cell,checkweigher load cell.

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Technical Documents

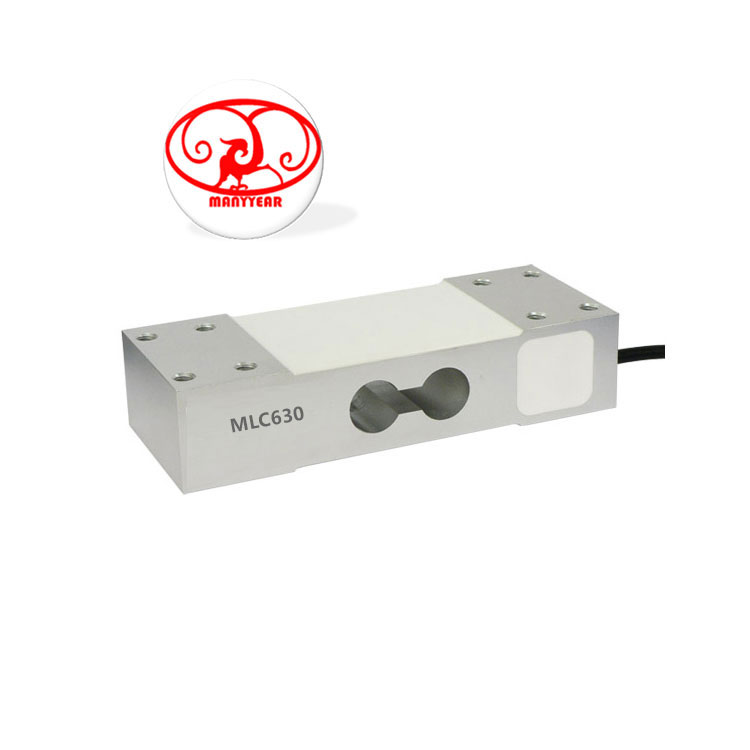

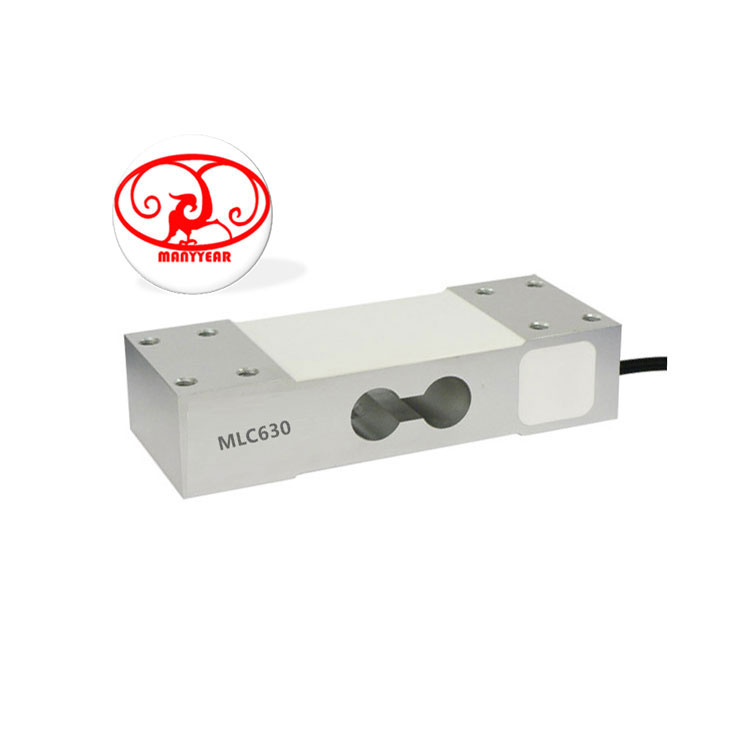

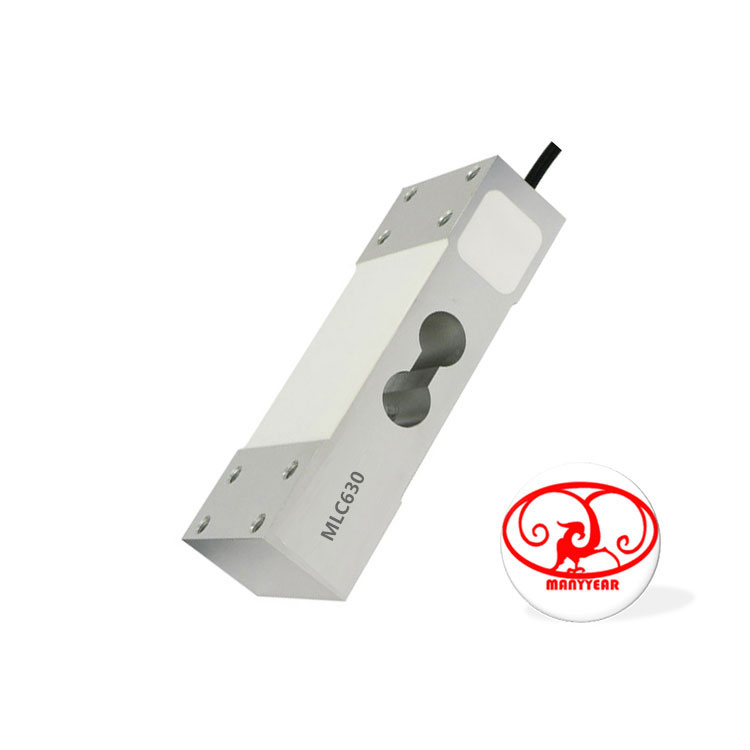

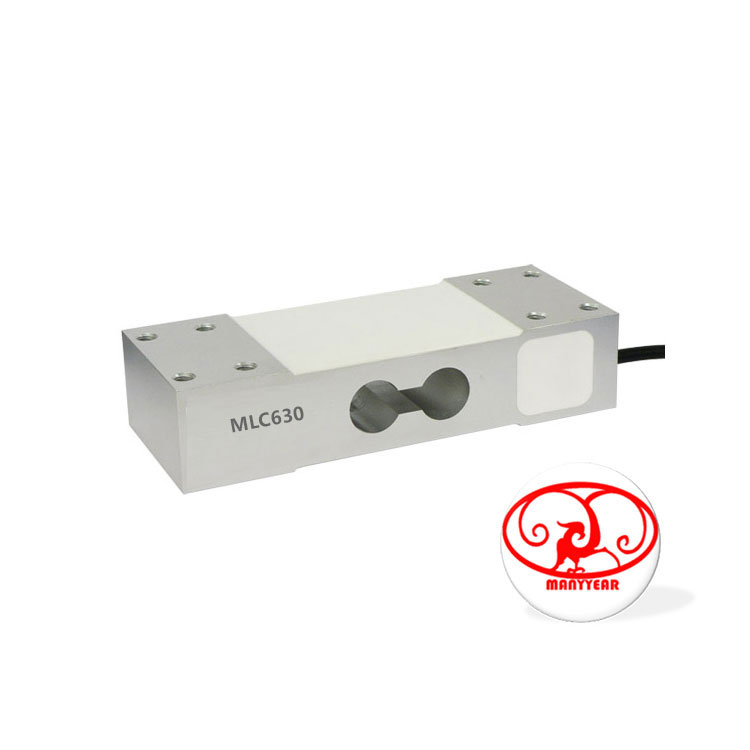

Product Picture Reference

MLC630 batching scale load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC630 batching scale load cell

Model: MLC630 Category: Single point load cell Range: 100kg,150kg,200kg,300kg,350kg,500kg,750kg,1000kg Dimension: 1917643mm Material: alloy aluminum Characteristic: platform scale load cell,packing scale load cell,batching scale load cell,checkweigher load cell.

Specification
Comprehensive error:	0.017%FS	Output resistance:	350±3Ω
Rated output:	1±0.01mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.017%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.017%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.01%FS	Use temperature:	-20~+60ºC
Creep:	0.017%FS/10Min	Temp effect on zero:	0.017%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.014%FS/10ºC
Input resistance:	405±10Ω	Defend grade:	IP65

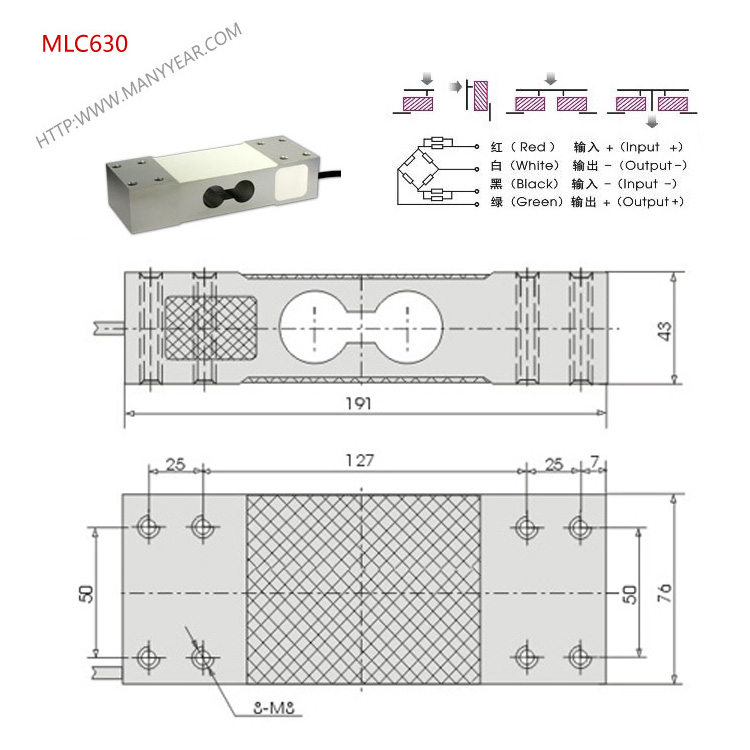

Product Dimension

Force Structure & Assembly Reference
