MLC629 packing scale load cell

platform scale load cell,packing scale load cell,batching scale load cell,checkweigher load cell

Model: MLC629
Category: Single point load cell
Range: 50kg,100kg,150kg,200kg,300kg,350kg,500kg,750kg,1000kg
Dimension: 174*64*60mm
Material: alloy aluminum
Characteristic: platform scale load cell,packing scale load cell,batching scale load cell,checkweigher load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

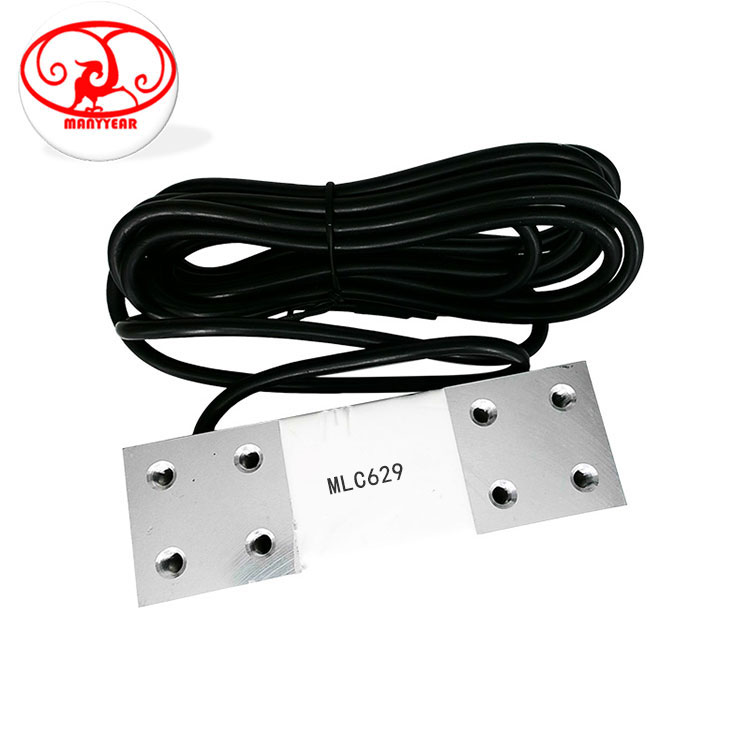

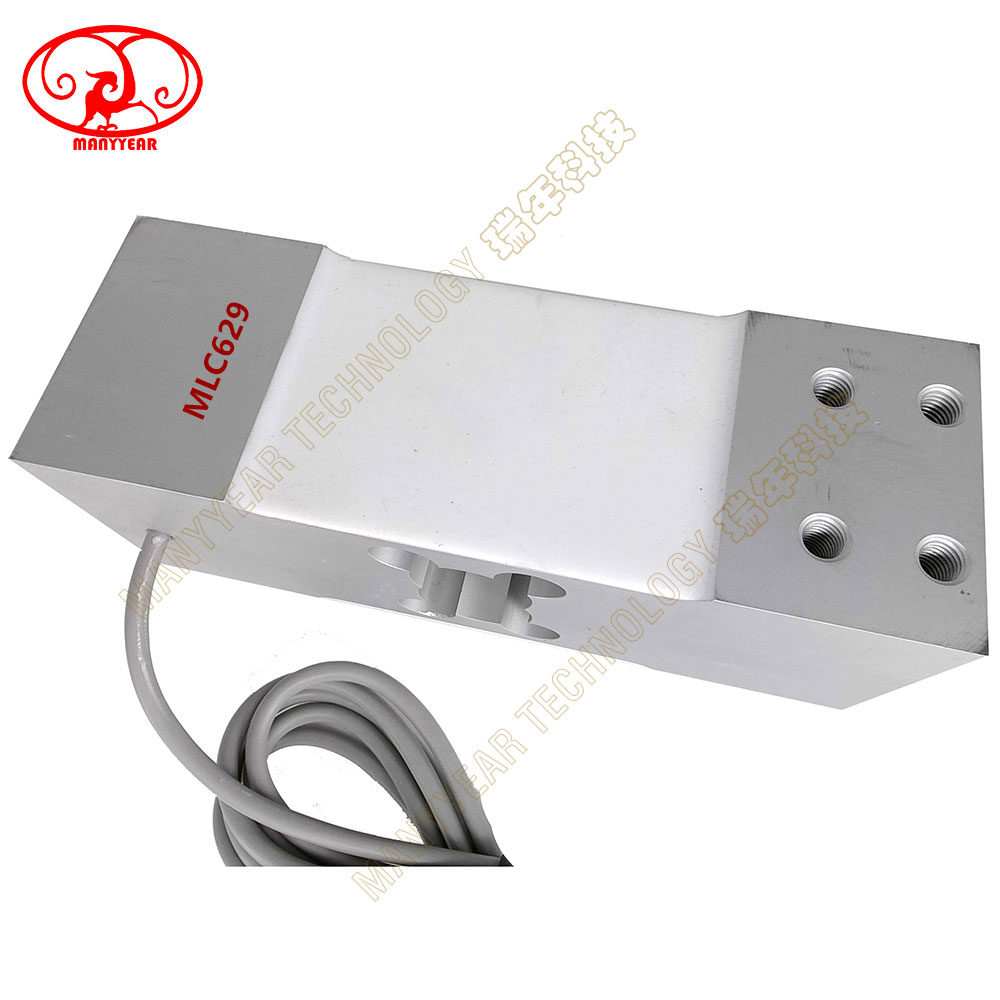

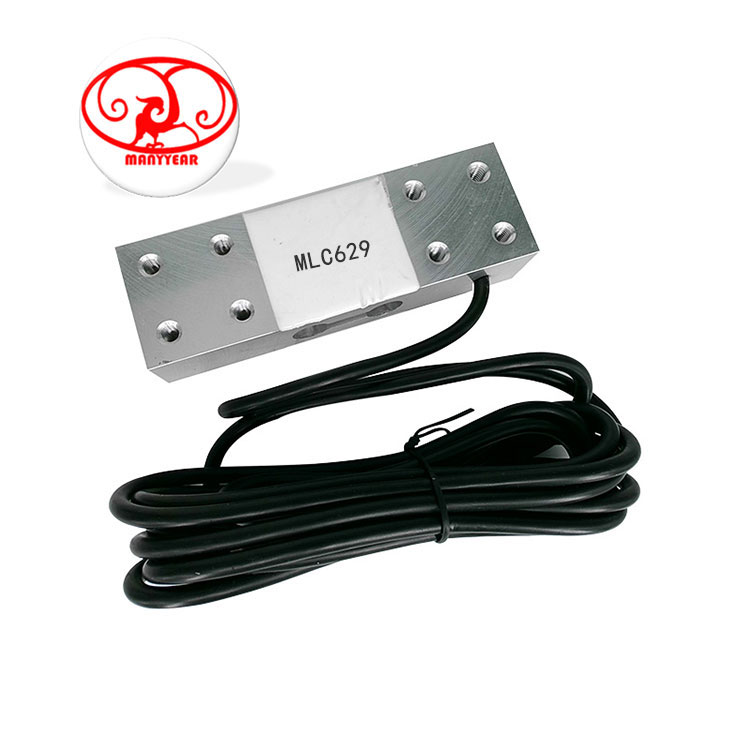

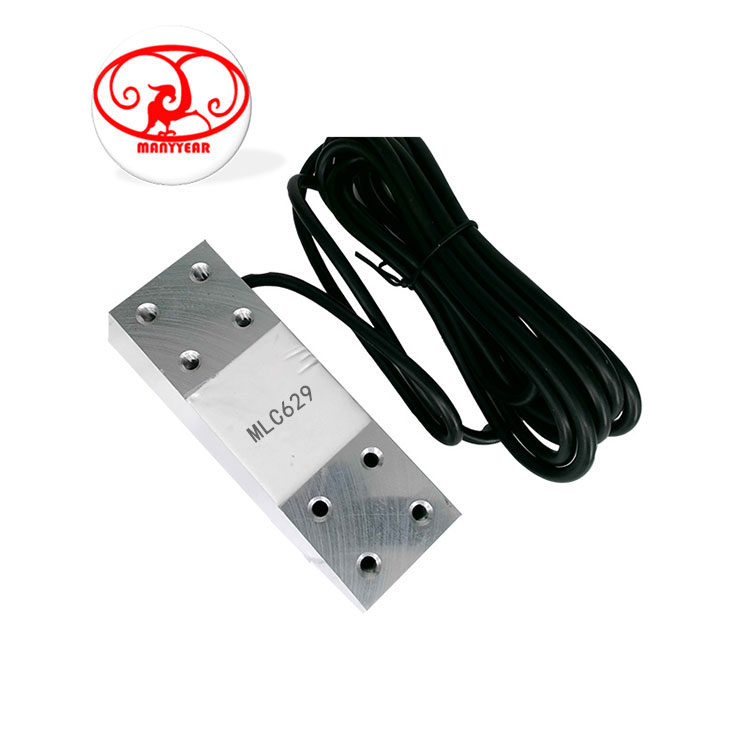

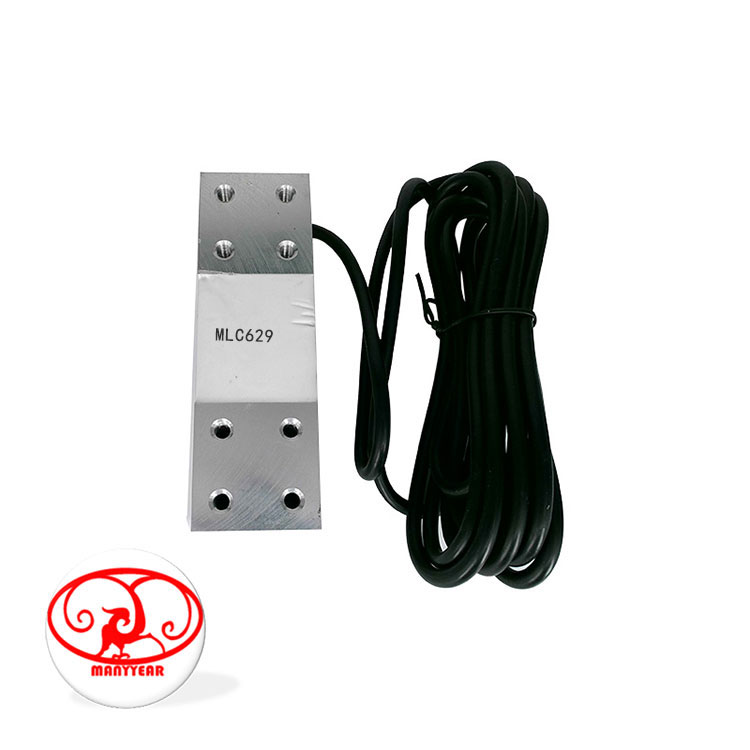

Product Picture Reference

MLC629 packing scale load cell

MLC629 packing scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC629 packing scale load cell

Model: MLC629
Category: Single point load cell
Range: 50kg,100kg,150kg,200kg,300kg,350kg,500kg,750kg,1000kg
Dimension: 174*64*60mm
Material: alloy aluminum
Characteristic: platform scale load cell,packing scale load cell,batching scale load cell,checkweigher load cell
 Specification
Comprehensive error:0.017%FSOutput resistance:350±3Ω
Rated output:1±0.01mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.017%FSExcitation voltage:9~12VDC
Hysteresis:0.017%FSCompensated temp:-10~+40ºC
Repeatability:0.01%FSUse temperature:-20~+60ºC
Creep:0.017%FS/10MinTemp effect on zero: 0.017%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.014%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

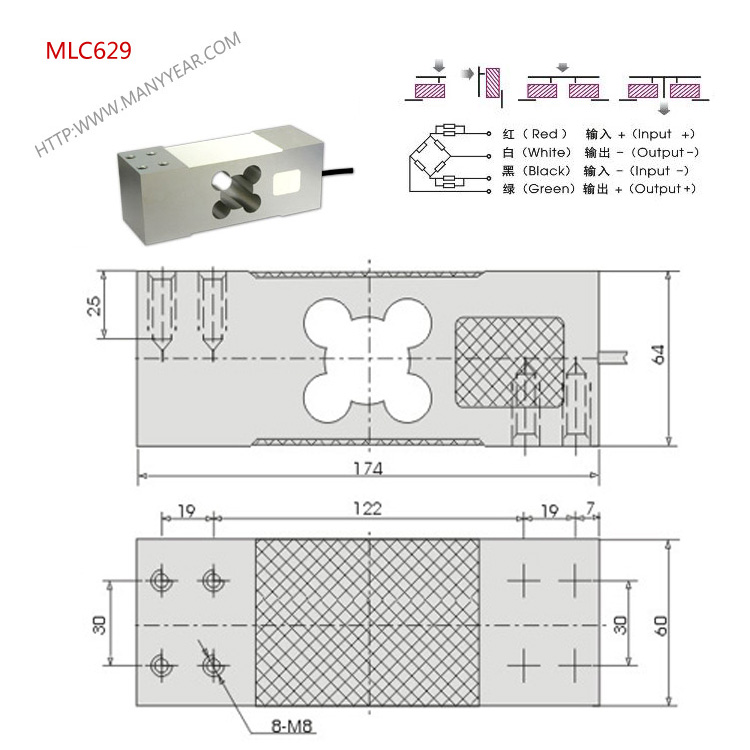

Product Dimension

MLC629 packing scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC629 packing scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC629 packing scale load cell-MANYYEAR TECHNOLOGYMLC629 packing scale load cell-MANYYEAR TECHNOLOGYMLC629 packing scale load cell-MANYYEAR TECHNOLOGY
