MLC632 batching scale weight sensor MLC632 batching scale weight sensor
MLC632 batching scale weight sensor
MLC632 batching scale weight sensor-MANYYEAR TECHNOLOGY
MLC632 batching scale weight sensor-MANYYEAR TECHNOLOGY

MLC632 batching scale weight sensor

platform scale weight sensor,packing scale weight sensor,batching scale weight sensor,checkweigher weight sensor.

Model: MLC632
Catalog: Single point load cell
Rated load:50,100,150,200,300,350,500,750,1000,2000,3000kg
Material: alloy aluminum
Safe overload:150%; Ultimate overload: 200%
Characteristic: platform scale weight sensor,packing scale weight sensor, batching scale weight sensor,checkweigher weight sensor.


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

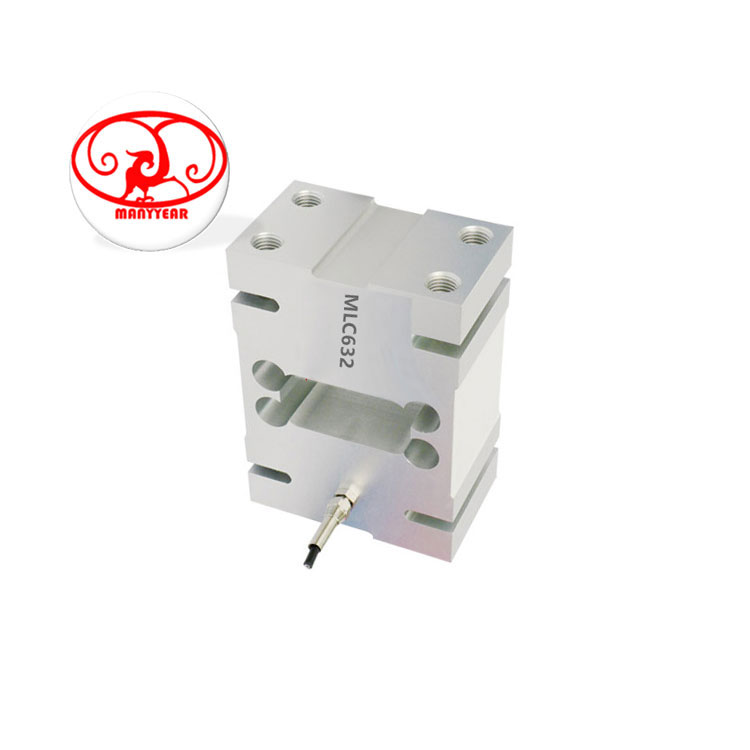

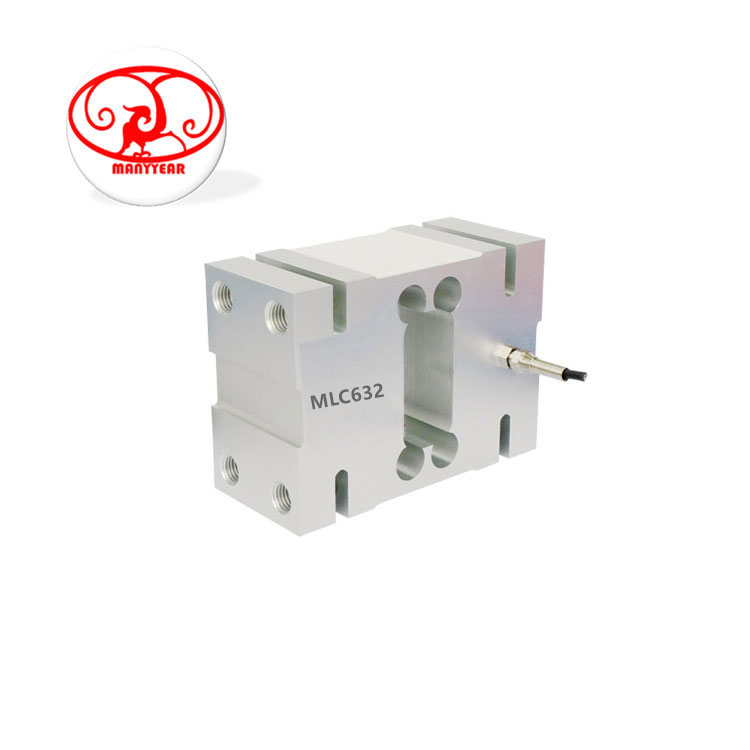

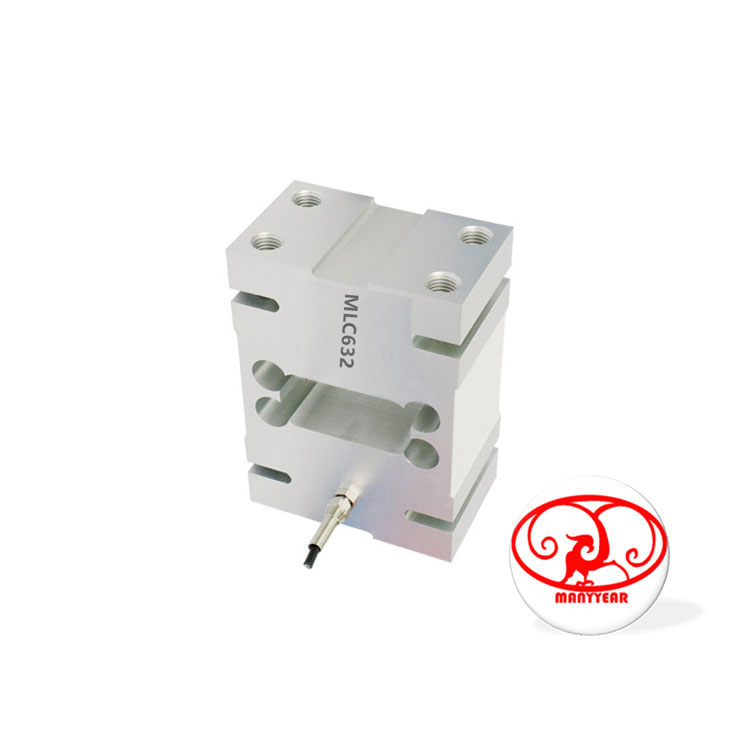

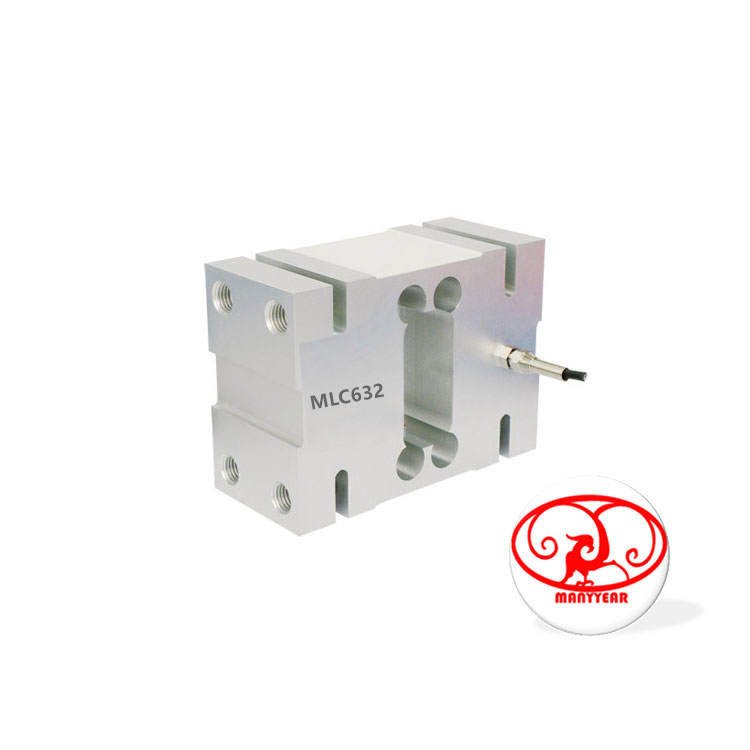

Product Picture Reference

MLC632 batching scale weight sensor-MANYYEAR TECHNOLOGY

MLC632 batching scale weight sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
               MLC632 batching scale weight sensor

Model: MLC632
Catalog: Single point load cell
Rated load:50,100,150,200,300,350,500,750,1000,2000,3000kg
Material: alloy aluminum
Safe overload:150%; Ultimate overload: 200%
Characteristic: platform scale weight sensor, packing scale weight sensor,batching scale weight sensor,checkweigher weight sensor.

                     Specification
Comprehensive error:0.02%FSOutput resistance:350±3Ω
Rated output:2±0.01mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+60ºC
Creep:0.027%FS/10MinTemp effect on zero: 0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

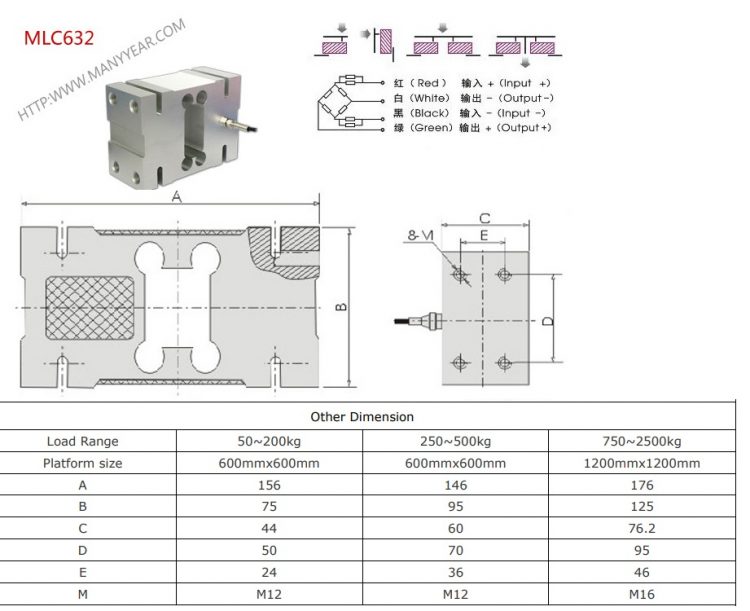

Product Dimension

MLC632 batching scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC632 batching scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC632 batching scale weight sensor-MANYYEAR TECHNOLOGYMLC632 batching scale weight sensor-MANYYEAR TECHNOLOGYMLC632 batching scale weight sensor-MANYYEAR TECHNOLOGY
