MLC601AC platform scale load cell MLC601AC platform scale load cell
MLC601AC platform scale load cell

MLC601AC platform scale load cell

platform scale load cell, pricing scale load cell, electronic scale load cell, vending scale load cell, check scale load cell

Model: MLC601AC
Category: Single point load cell
Range:10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg,120kg,150kg
Dimension: 130*40*22mm
Material: alloy aluminum
Characteristic:platform scale load cell,pricing scale load cell,electronic scale load cell,vending scale load cell,check scale load cell



Product selection reference

Sales Online

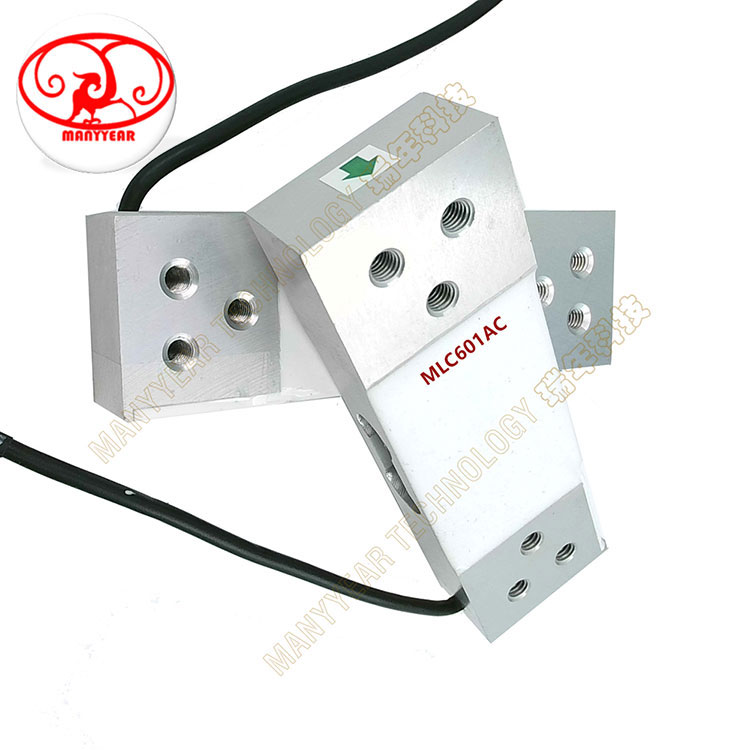

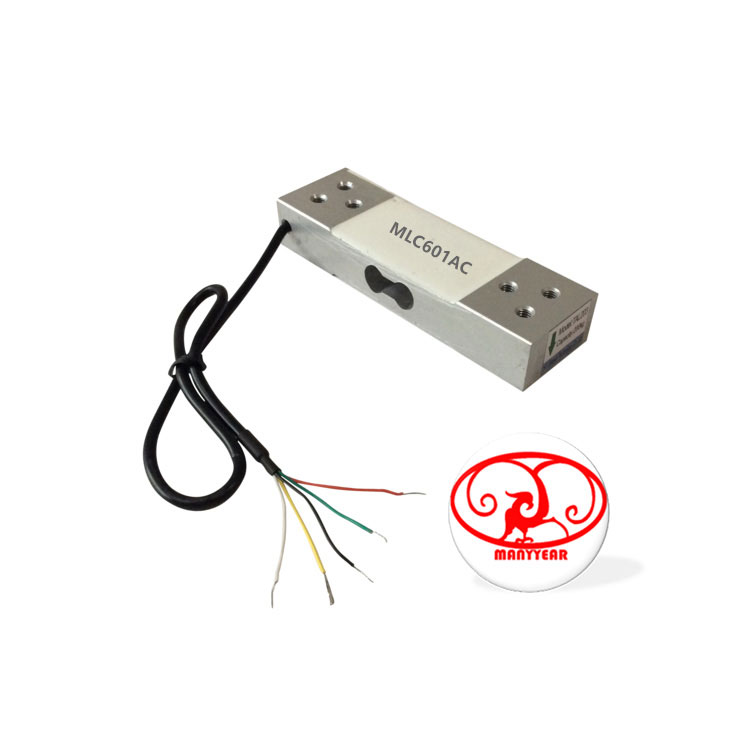

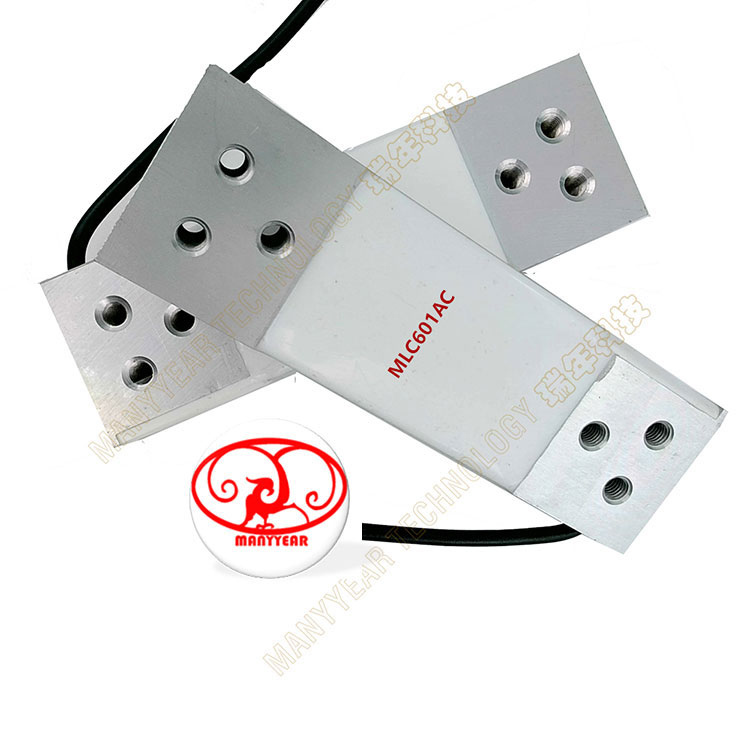

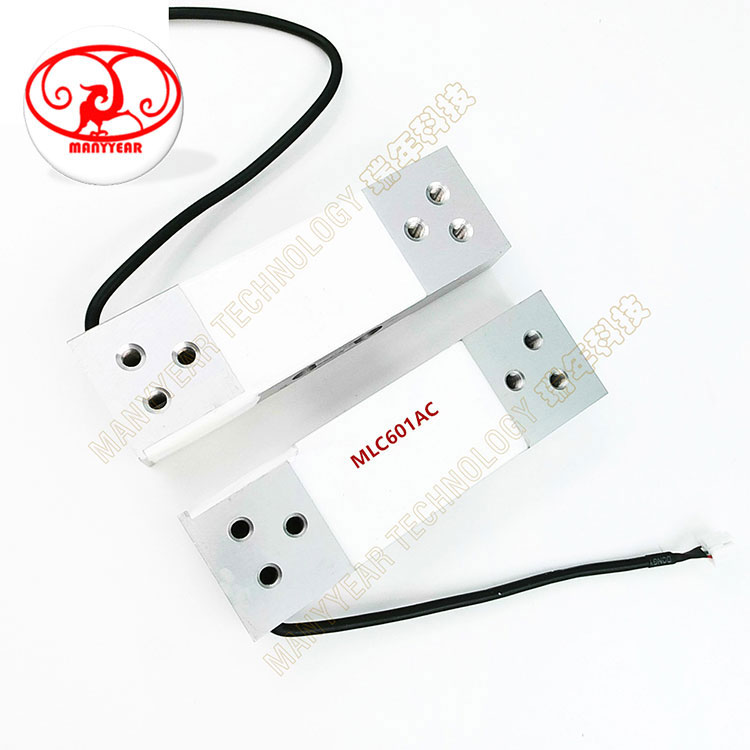

Product Picture Reference

MLC601AC platform scale load cell-MANYYEAR TECHNOLOGY

MLC601AC platform scale load cell

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC601AC platform scale load cell

Model: MLC601AC

Category: Single point load cell

Range:10kg,15kg,20kg,30kg,40kg,50kg,60kg,100kg,120kg,150kg

Dimension: 130*40*22mm

Material: alloy aluminum

Safety overload:120%FS; Ultimate Overload:150%FS

Characteristic:platform scale load cell,pricing scale load cell,electronic scale load cell,vending scale load cell,check scale load cell

Specification
Comprehensive error:0.03%FSOutput resistance:350±10Ω
Rated output:2±0.1mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+60ºC
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1.5%FSTemp effect on span:0.02%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

Product Dimension

MLC601AC platform scale load cell-MANYYEAR TECHNOLOGY

MLC601AC platform scale load cell

Force Structure & Assembly Reference

MLC601AC platform scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC601AC platform scale load cell-MANYYEAR TECHNOLOGYMLC601AC platform scale load cell-MANYYEAR TECHNOLOGYMLC601AC platform scale load cell-MANYYEAR TECHNOLOGY
