MLC605 pricing scale weight sensor MLC605 pricing scale weight sensor
MLC605 pricing scale weight sensor

MLC605 pricing scale weight sensor

electronic scale weight sensor,pricing scale weight sensor,kitchen scale weight sensor

Model: MLC605
Category: Micro load cell
Range: 0.3kg,1.5kg,3kg,12kg
Dimension: 98.3*37*18mm
Material: alloy aluminum
Characteristic: electronic scale weight sensor,pricing scale weight sensor,kitchen scale weight sensor



we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

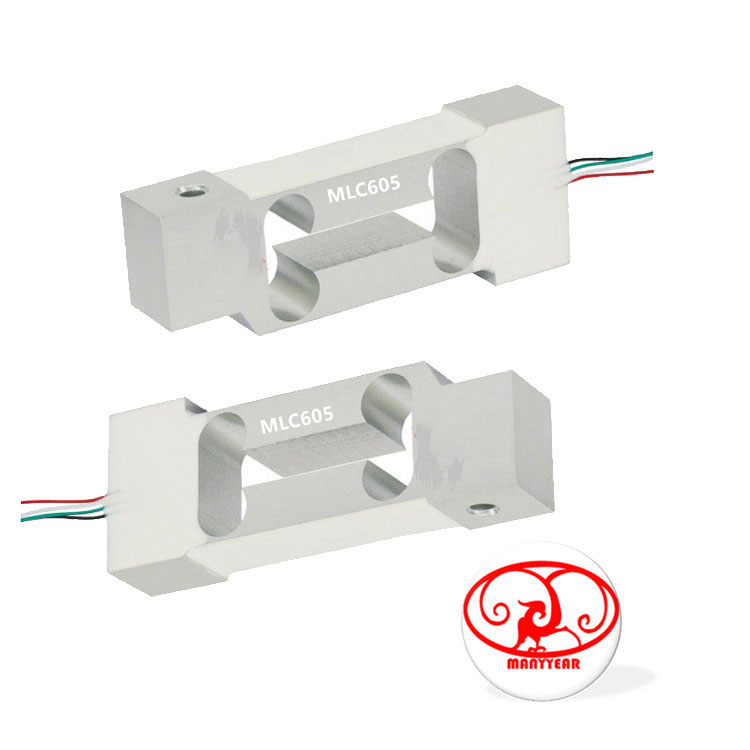

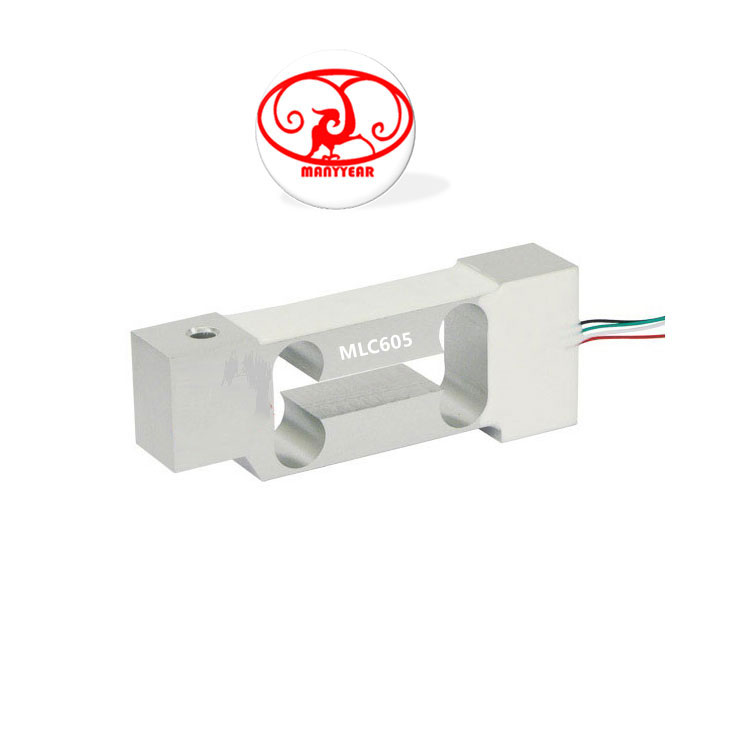

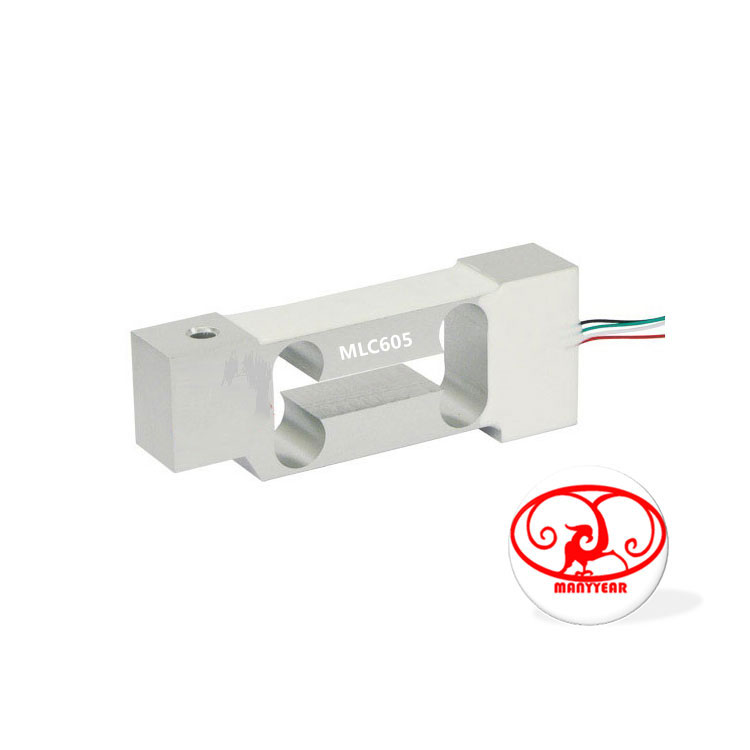

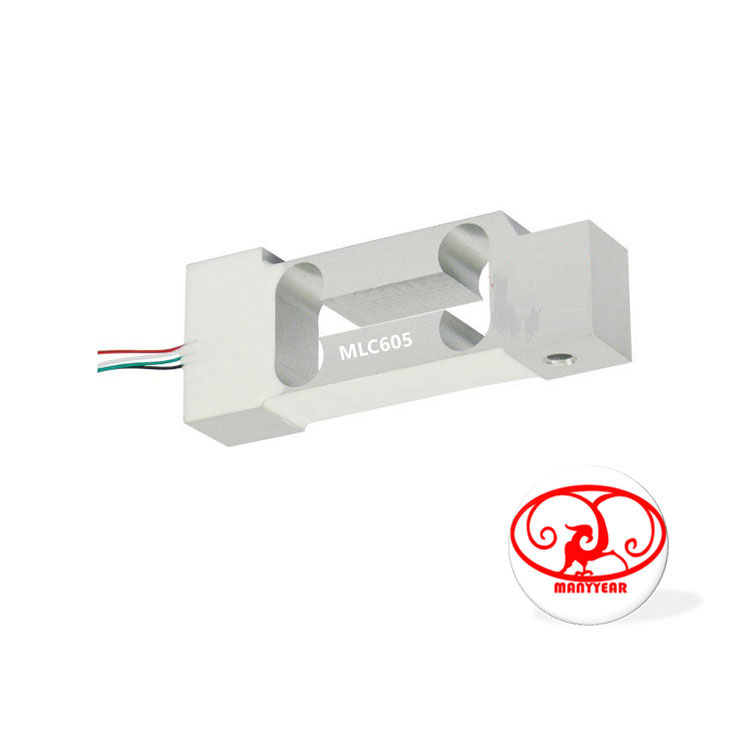

Product Picture Reference

MLC605 pricing scale weight sensor-MANYYEAR TECHNOLOGY

MLC605 pricing scale weight sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC605 pricing scale weight sensor

Model: MLC605

Category: Micro load cell

Range: 0.3kg,1.5kg,3kg,12kg

Dimension: 98.3*37*18mm

Material: alloy aluminum

Characteristic: electronic scale weight sensor,pricing scale weight sensor,kitchen scale weight sensor

 Specification
Comprehensive error:0.02%FSOutput resistance:350±3Ω
Rated output:1.9±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.01%FSUse temperature:-20~+60ºC
Creep:0.02%FS/30MinTemp effect on zero: 0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:405±10ΩDefend grade:IP65

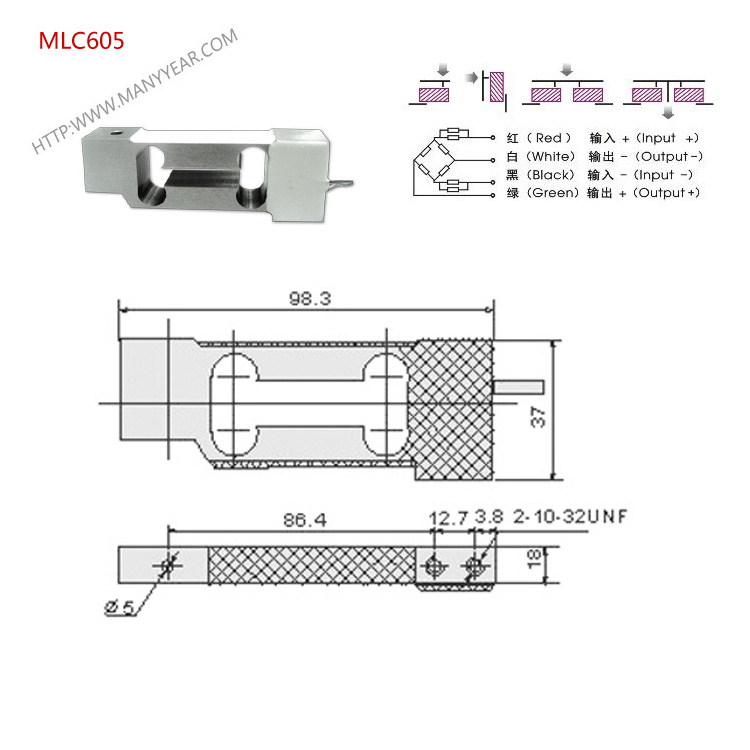

Product Dimension

MLC605 pricing scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC605 pricing scale weight sensor-MANYYEAR TECHNOLOGY

Product Application

MLC605 pricing scale weight sensor-MANYYEAR TECHNOLOGYMLC605 pricing scale weight sensor-MANYYEAR TECHNOLOGYMLC605 pricing scale weight sensor-MANYYEAR TECHNOLOGY
