MLC614H kitchen scale weighing sensor

kitchen scale weighing sensor, portable scale weighing sensor,postal scale weighing sensor,vending machine weighing sensor

Model: MLC614H
Category: Micro load cell
Range: 3~10kg
Dimension: 75*9*16mm
Material: alloy aluminum
Characteristic: kitchen scale weighing sensor, portable scale weighing sensor,postal scale weighing sensor,vending machine weighing sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

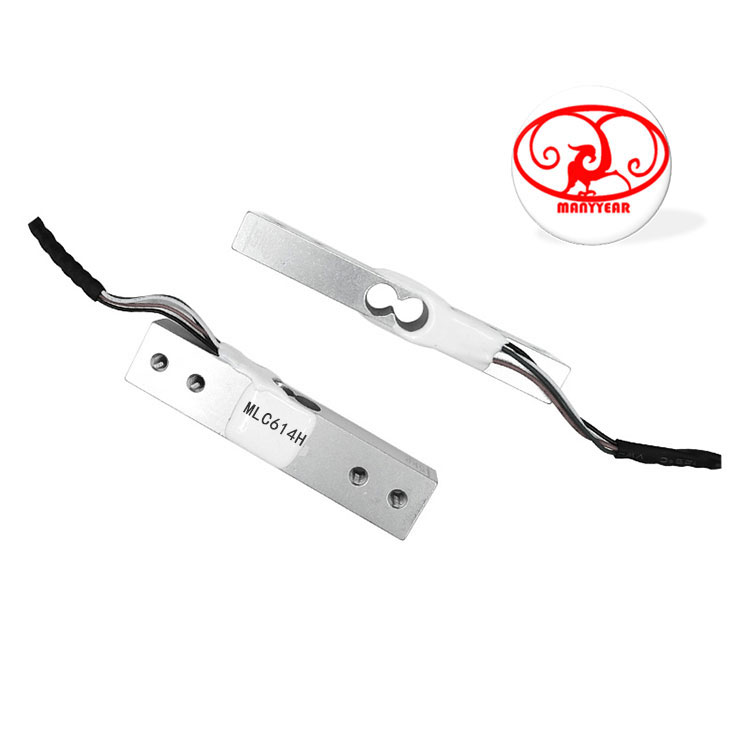

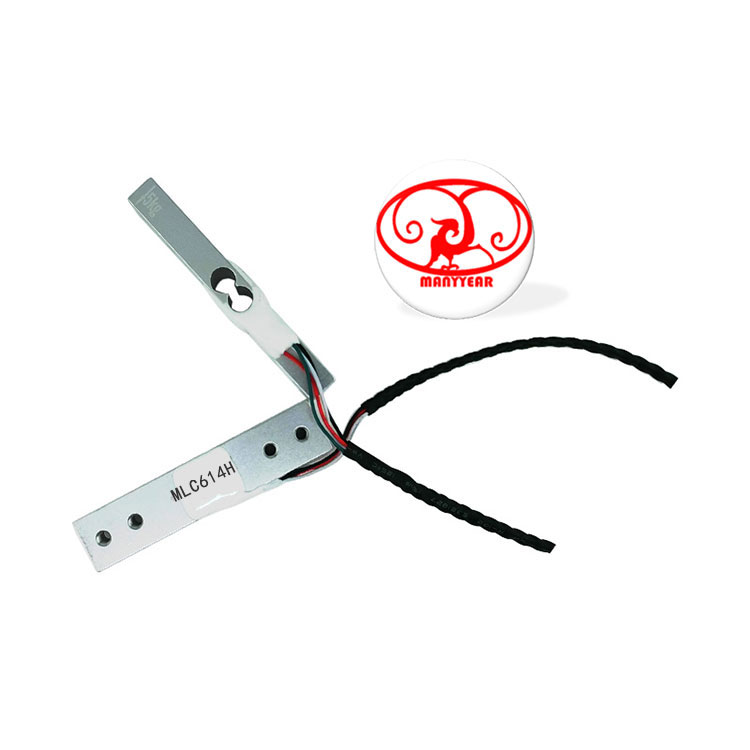

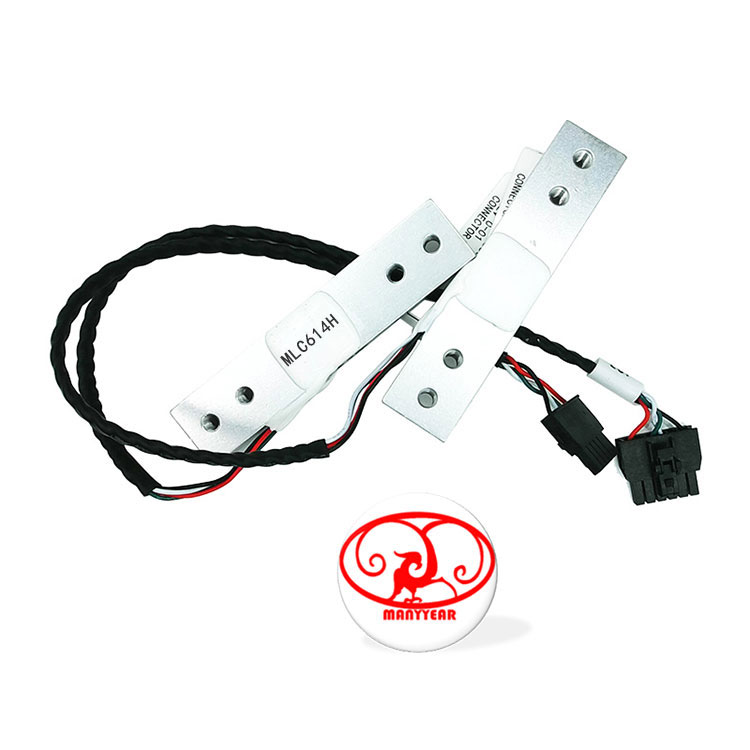

Product Picture Reference

 MLC614H kitchen scale weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
  MLC614H kitchen scale weighing sensor

Model: MLC614H

Category: Micro load cell

Range: 3~10kg

Dimension: 75*9*16mm

Material: alloy aluminum

Characteristic: kitchen scale weighing sensor, portable scale weighing sensor,postal scale weighing sensor,vending machine weighing sensor

Specification
Comprehensive error:0.05FSOutput resistance:1000±10Ω
Rated output:1±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:5~10VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.05%FS/10MinTemp effect on zero:0.05%FS/10ºC
Zero balance:±0.1%FSTemp effect on span:0.05%FS/10ºC
Input resistance:1090±10ΩDefend grade:IP66

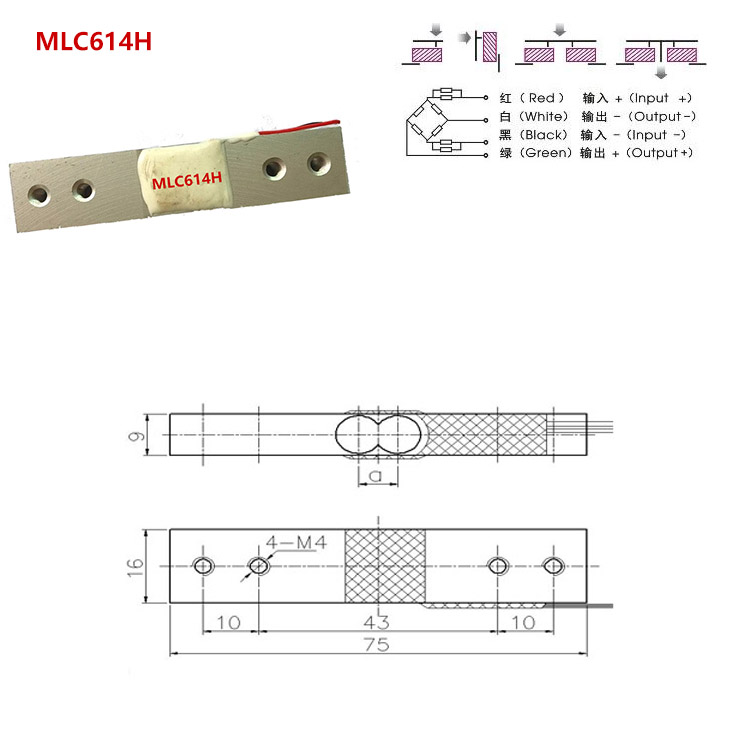

Product Dimension

MLC614H kitchen scale weighing sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC614H kitchen scale weighing sensor-MANYYEAR TECHNOLOGY

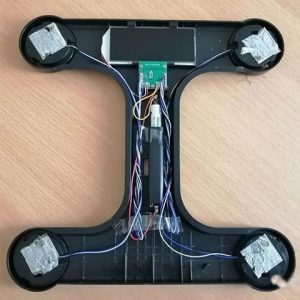

Product Application

MLC614H kitchen scale weighing sensor-MANYYEAR TECHNOLOGYMLC614H kitchen scale weighing sensor-MANYYEAR TECHNOLOGYMLC614H kitchen scale weighing sensor-MANYYEAR TECHNOLOGY
