MLC616C smart kitchen scale load cell

kitchen scale load cell,micro load cell,smart coffee machine load cell,smart rice cooker load cell

Model: MLC616C
Catalog: Micro load cell
Rated load:300g,500g,1kg,2kg,3kg,5kg
Dimension:45*10*6mm
Material: alloy aluminum
Characteristic: kitchen scale load cell,micro load cell,smart coffee machine load cell,smart rice cooker load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

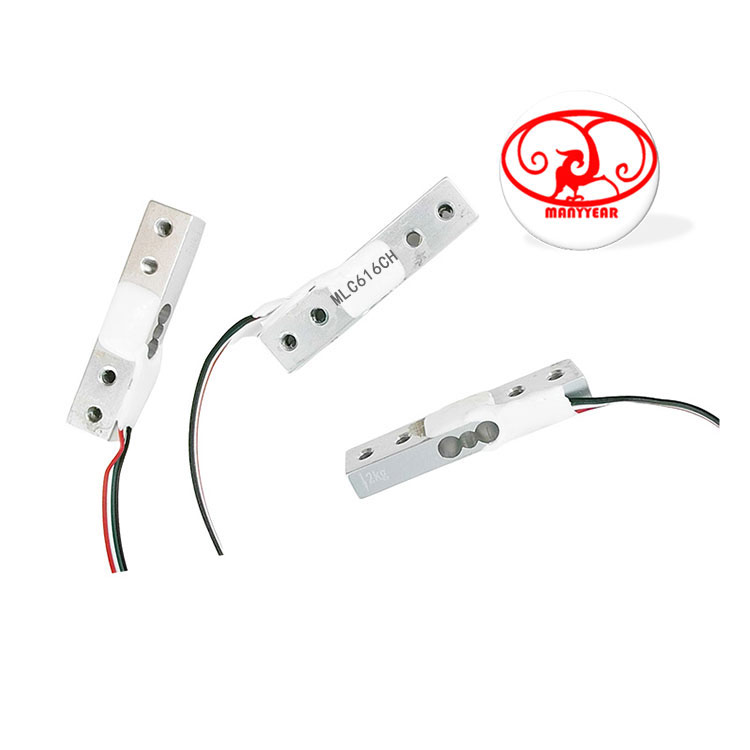

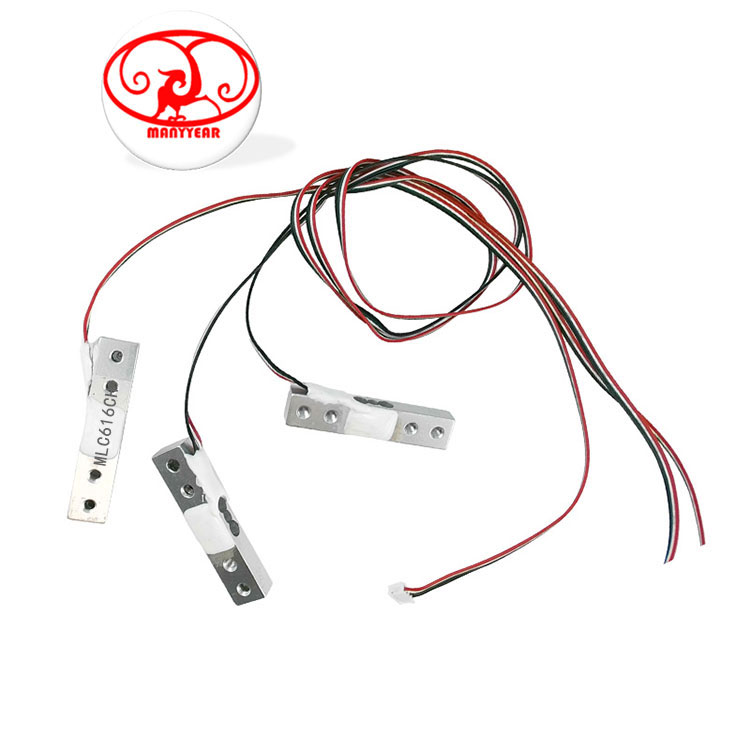

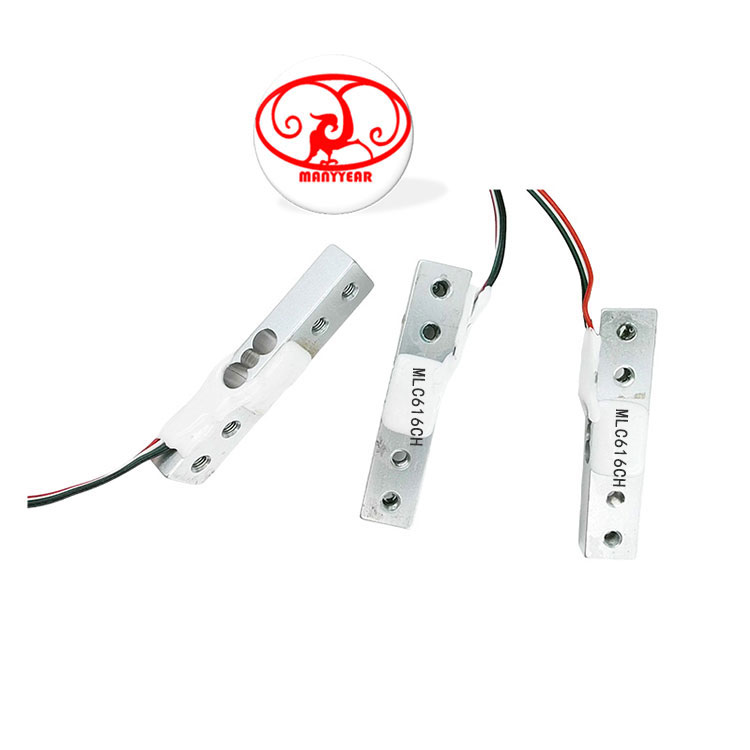

Product Picture Reference



MLC616C smart kitchen scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC616C smart kitchen scale load cell

Model: MLC616C

Catalog: Micro load cell

Rated load:100g,300g,500g,1kg,2kg,3kg,5kg

Dimension:45*9.3*6mm

Material: alloy aluminum

Characteristic: kitchen scale load cell,micro load cell,smart coffee machine load cell,smart rice cooker load cell

 Specification
Comprehensive error:0.05FSOutput resistance:1000±10Ω
Rated output:(0.7-1.0) ±0.15mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:5~10VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.05%FS/10MinTemp effect on zero:0.05%FS/10ºC
Zero balance:±0.1%FSTemp effect on span:0.05%FS/10ºC
Input resistance:1050±100ΩDefend grade:IP65

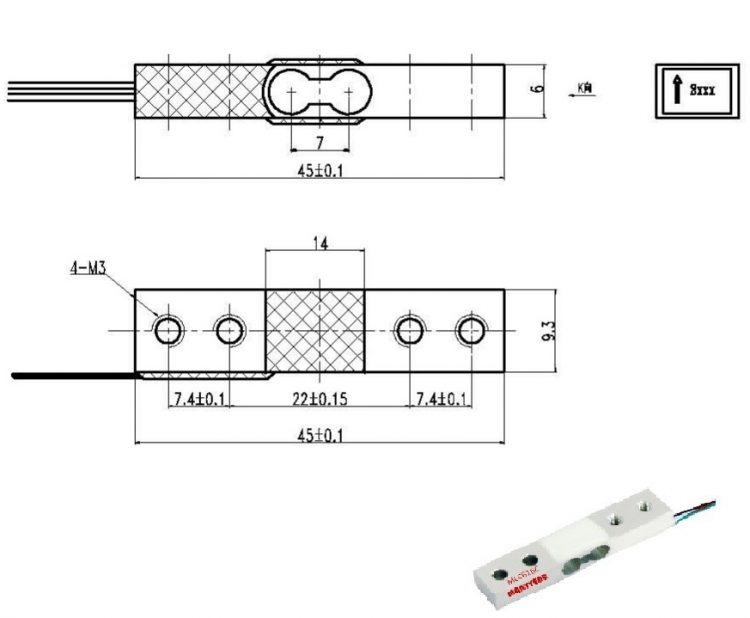

Product Dimension

MLC616C smart kitchen scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC616C smart kitchen scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC616C smart kitchen scale load cell-MANYYEAR TECHNOLOGYMLC616C smart kitchen scale load cell-MANYYEAR TECHNOLOGYMLC616C smart kitchen scale load cell-MANYYEAR TECHNOLOGY
