MLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g

Model: MLC608P
Product Category: Micro Load Cell
Range: 100g
Size: 60*6*5.2mm
Material: aluminum alloy
Safe overload: 150% FS
Scope of application: electronic balance scales , micro force measurement, jewelry scales , kitchen scales, smart weighing products




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

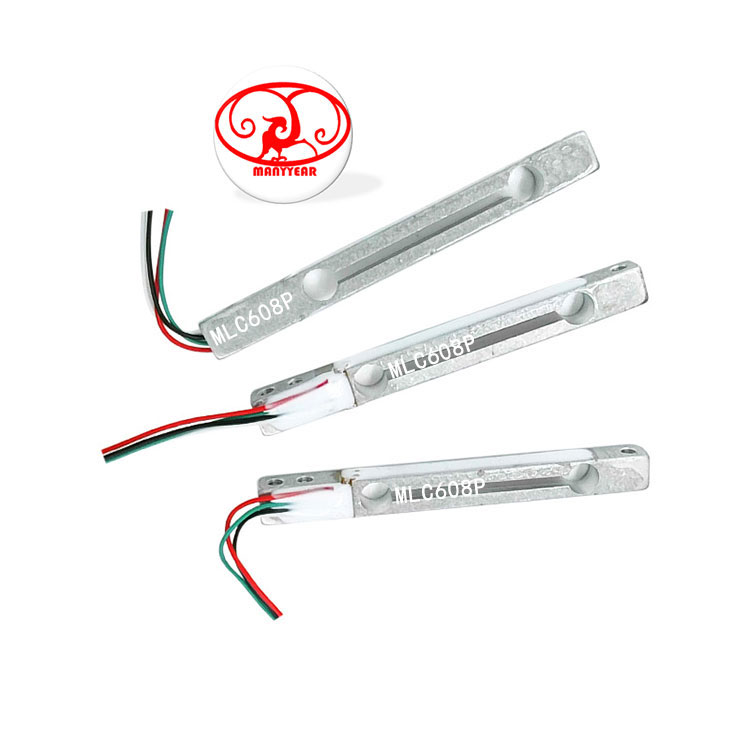

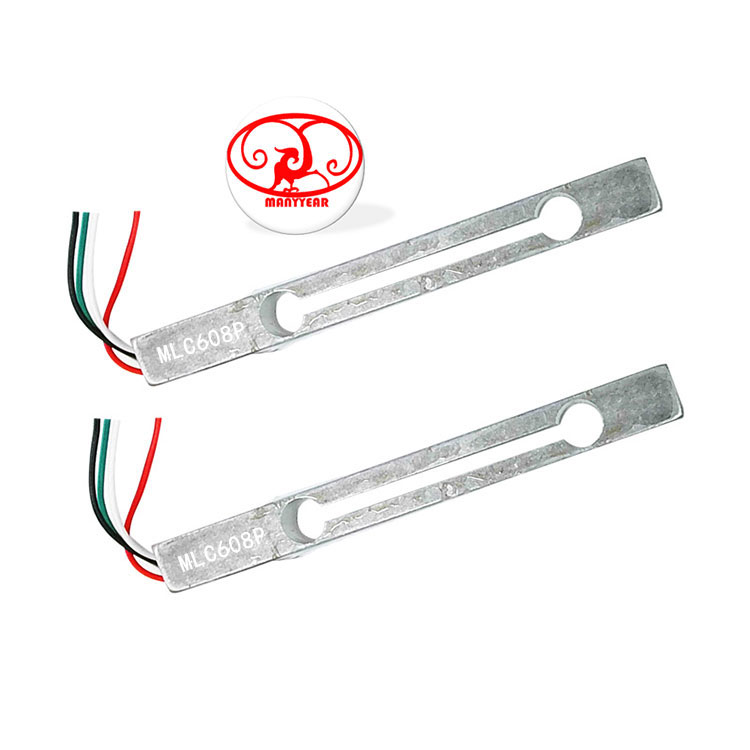

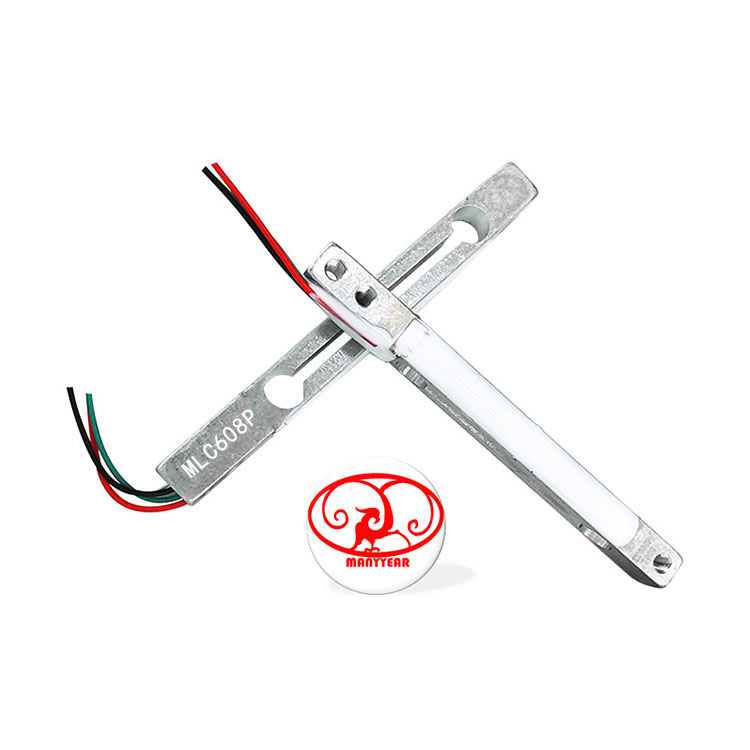

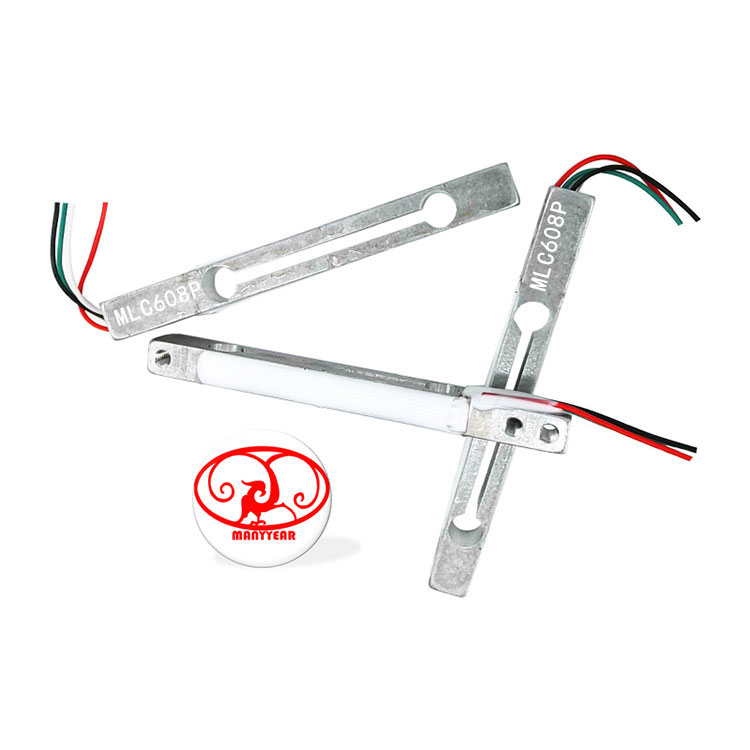

Product Picture Reference



MLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.


MLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g
Model: MLC608P
Product Category: Micro Load Cell
Range: 100g
Size: 60*6*5.2mm
Material: aluminum alloy
Safe overload: 150% FS
Scope of application: electronic balance scales , micro force measurement, jewelry scales , kitchen scales, smart weighing products

 Specification
Comprehensive error:0.05%FSOutput resistance:1000±10Ω
Rated output:0.5±0.15mV/VInsulation resistance:≥2000 MΩ/50V
Non-linearity:±0.05%F.S.Excitation voltage:5~10VDC
Hysteresis:±0.05%F.S.Compensated temp:-10~+40ºC
Repeatability:±0.05%F.S.Use temperature:-20~+55ºC
Creep:±0.05%F.S.5MinTemp effect on zero:±2.0%F.S./10ºC
Zero balance:±0.5mV/VTemp effect on span:±0.05%F.S./10ºC
Input resistance:1055±10ΩDefend grade:IP66



Product Dimension

MLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g-MANYYEAR TECHNOLOGY

Product Application

MLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g-MANYYEAR TECHNOLOGYMLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g-MANYYEAR TECHNOLOGYMLC608P Electronic Balance Jewelry Scale Micro Load Sensor 100g-MANYYEAR TECHNOLOGY
