MLC639M electronic balance load cell

kitchen scale load cell, electronic balance load cell, jewelry scale load cell, micro load cell, miniature load cell

Model: MLC639M
Category: Micro load cell
Rated load: 100~750g
Material: alloy aluminum
Dimension:47*12*6mm
Safe overload:150%; Ultimate overload: 200%
Characteristic: kitchen scale load cell,electronic balance load cell,jewelry scale load cell,micro load cell,miniature load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

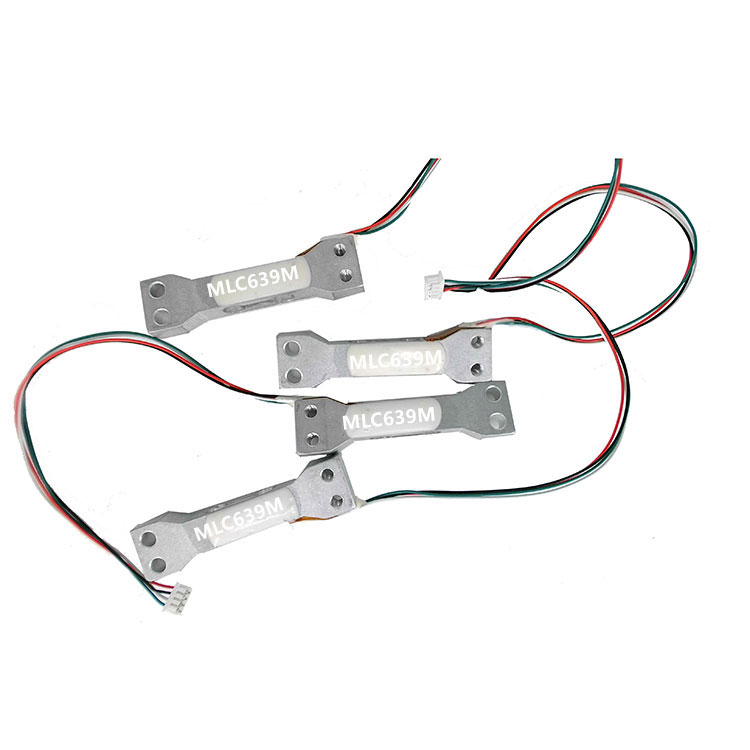

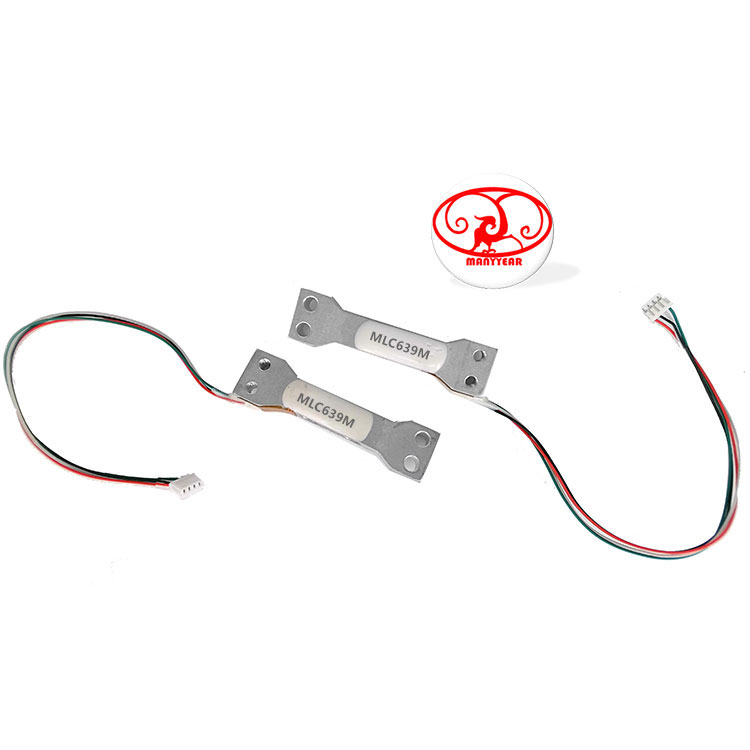

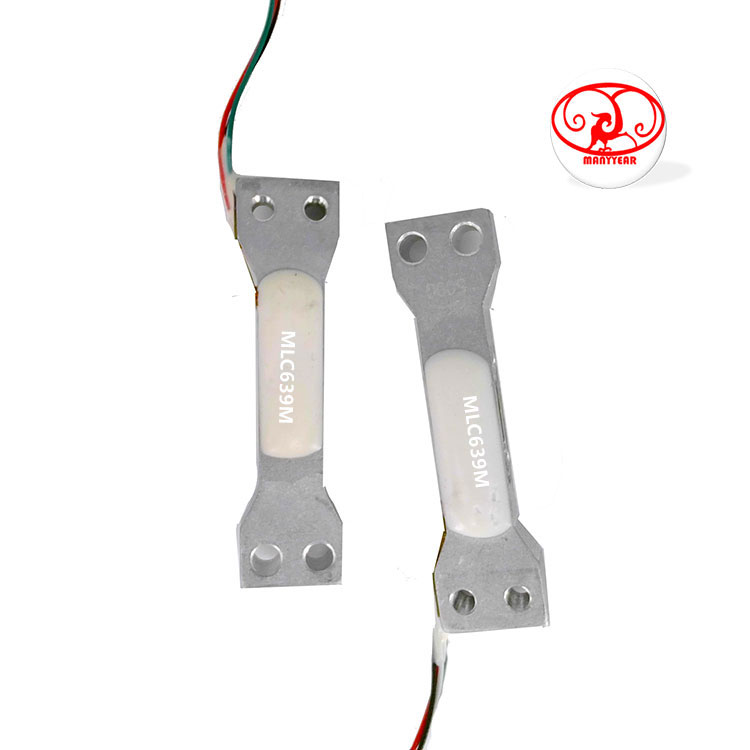

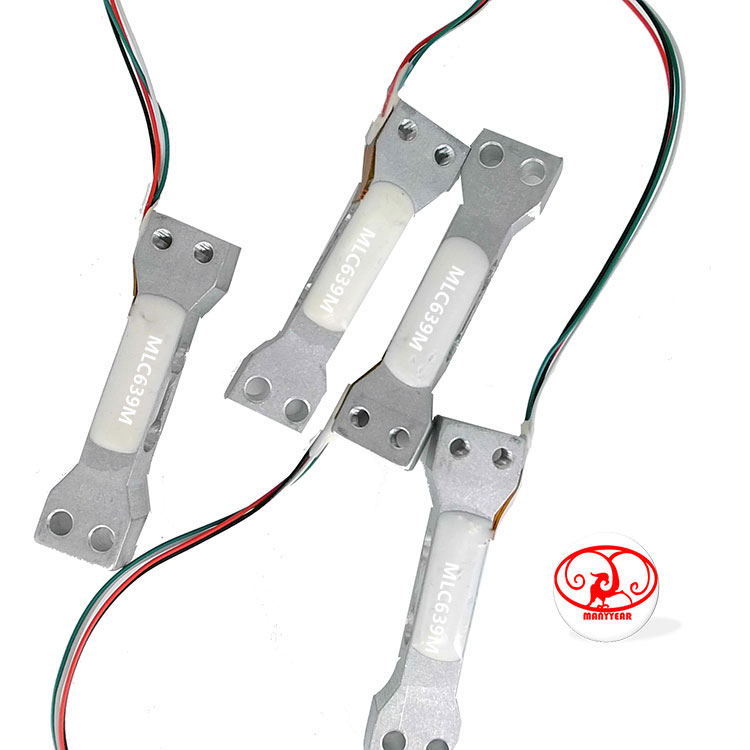

Product Picture Reference



MLC639M electronic balance load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC639M electronic balance load cell

Model: MLC639M

Category: Micro load cell

Rated load: 100~750g

Material: Alloy aluminum

Dimension:47*12*6mm

Safe overload:150% Ultimate overload: 200%

Characteristic: kitchen scale load cell,electronic balance load cell,jewelry scale load cell,micro load cell,miniature load cell

Specification
Comprehensive error:0.05FSOutput resistance:1000±10Ω
Rated output:0.8±0.1mV/VInsulation resistance:≥2000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:5~10VDC
Hysteresis:0.05%FSCompensated temp:-10~+40ºC
Repeatability:0.05%FSUse temperature:-20~+55ºC
Creep:0.05%FS/10MinTemp effect on zero:0.05%FS/10ºC
Zero balance:±0.1%FSTemp effect on span:0.05%FS/10ºC
Input resistance:1090±10ΩDefend grade:IP65

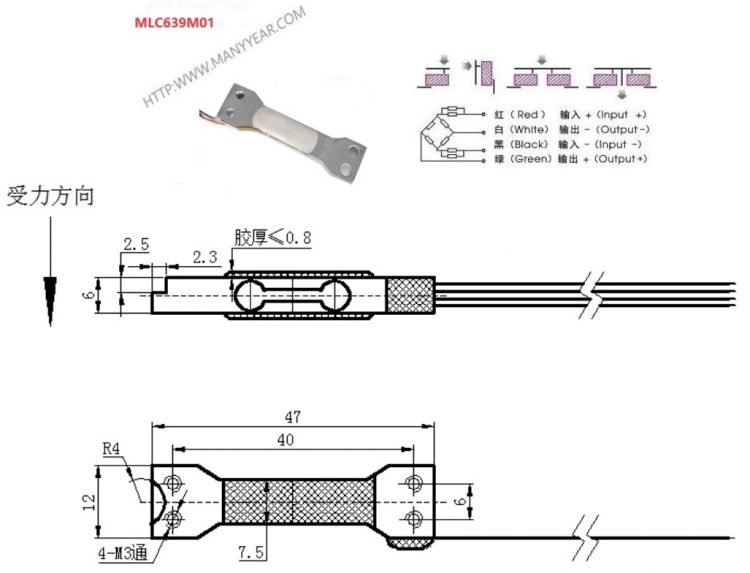

Product Dimension

MLC639M electronic balance load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC639M electronic balance load cell-MANYYEAR TECHNOLOGY

Product Application

MLC639M electronic balance load cell-MANYYEAR TECHNOLOGYMLC639M electronic balance load cell-MANYYEAR TECHNOLOGYMLC639M electronic balance load cell-MANYYEAR TECHNOLOGY
