MLC928NB kitchen scale weighing sensor

2021/11/24 MLC900 Micro Load Cell Weighing Load Cell 1463 0

kitchen scale weighing sensor,pet scale weighing sensor, rice cooker weighing sensor

Model: MLC928NB
Category: Micro load cell
Load range:3kg,5kg,7.5kg,10kg
Dimension:26*26*1mm/1.5mm
Material: alloy steel
Characteristic: kitchen scale weighing sensor,pet scale weighing sensor,rice cooker weighing sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Technical Documents

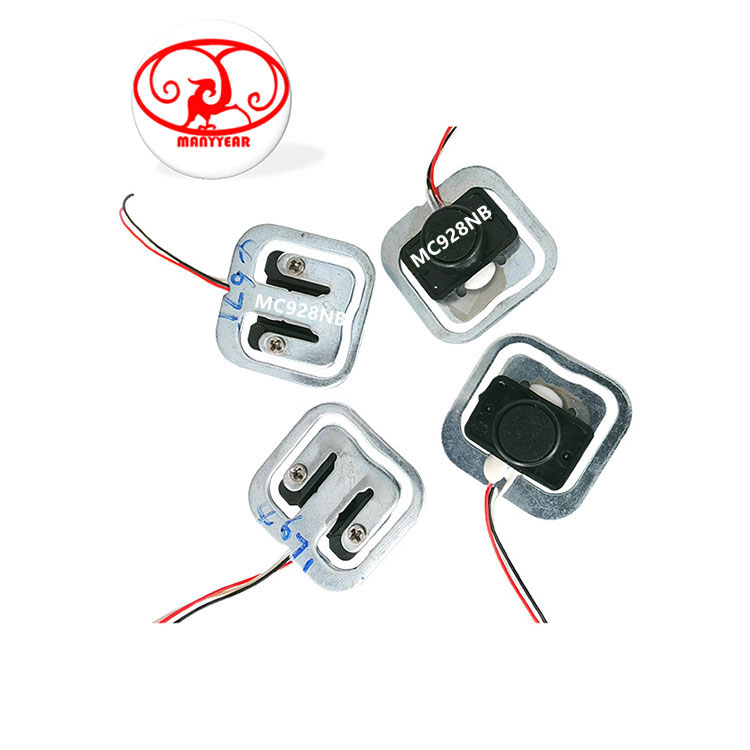

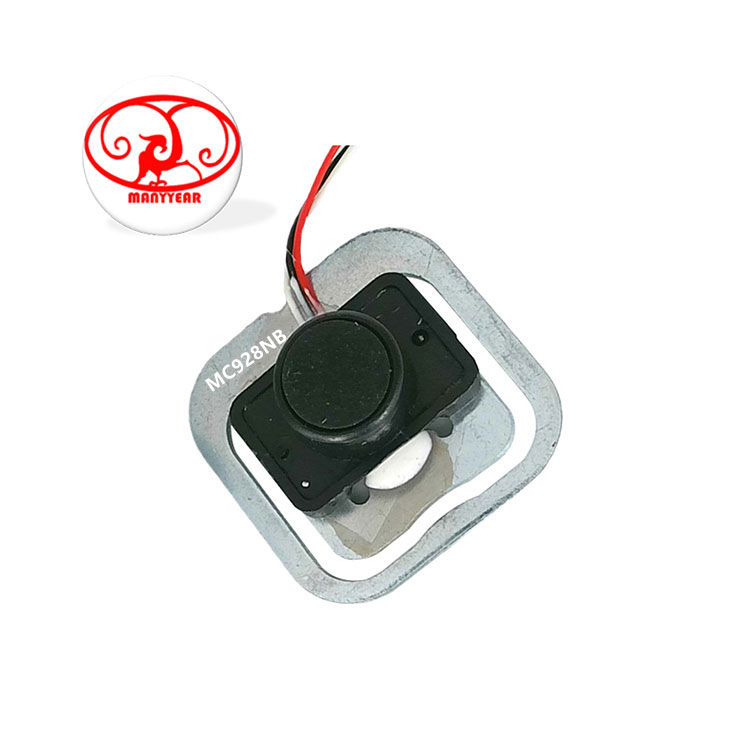

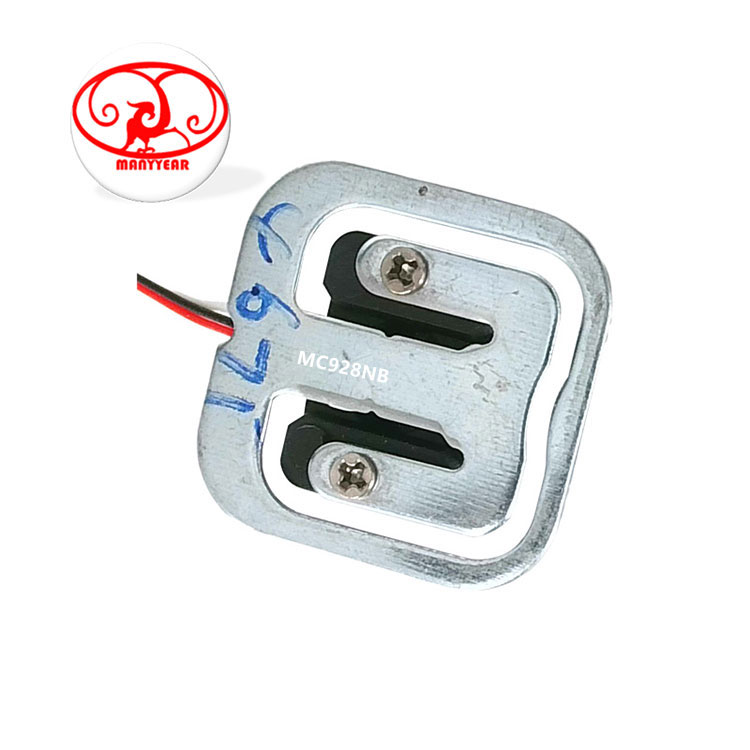

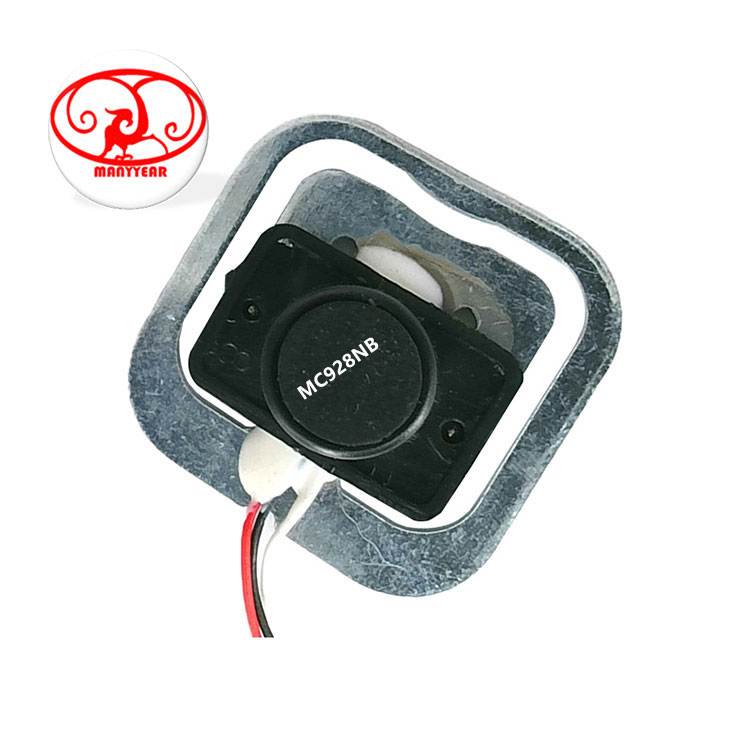

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC928NB kitchen scale weighing sensor

Model: MLC928NB Category: Micro load cell Load range:3kg,5kg,7.5kg,10kg Dimension:26261.0mm/1.5mm Material: alloy steel Characteristic: kitchen scale weighing sensor,pet scale weighing sensor,rice cooker weighing sensor

Specification
Comprehensive error:	0.1%FS	Output resistance:	500±10Ω
Rated output:	0.75±0.15mV/V (3kg) 1.0±0.15mV/V(5-7.5kg)	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	5~10VDC
Hysteresis:	0.1%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.05%FS	Use temperature:	-20~+55ºC
Creep:	0.1%FS/10Min	Temp effect on zero:	0.05%FS/10ºC
Zero balance:	±0.5mV	Temp effect on span:	0.05%FS/10ºC
Input resistance:	500±10Ω	Defend grade:	IP66

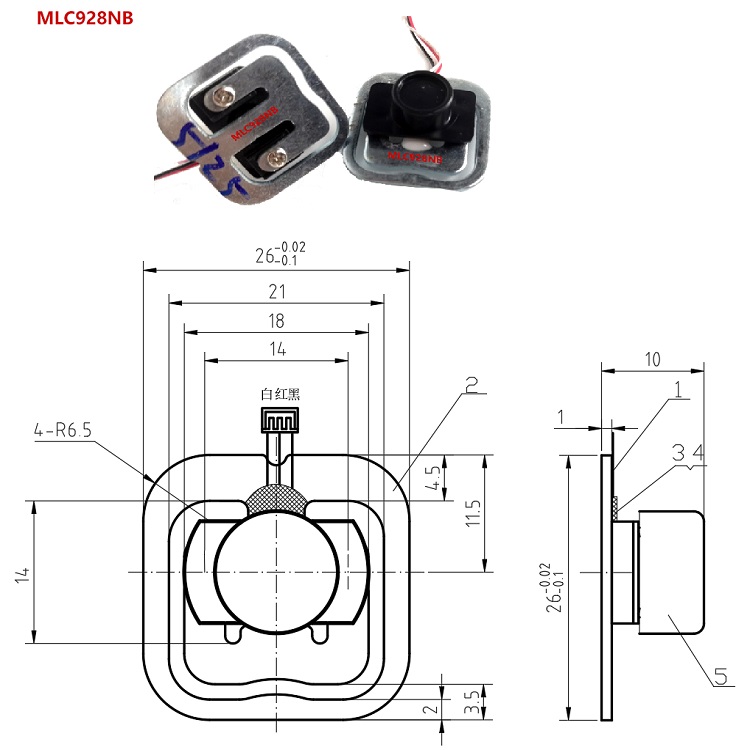

Product Dimension

MLC928NB kitchen scale weighing sensor

Force Structure & Assembly Reference
