MLC608L jewelry scale load cell

kitchen scale load cell, jewelry scale load cell, micro load cell,electronic balance load cell

Model: MLC608L
Category: Micro load cell
Rated load: 20g,30g,50g,100g
Dimension:84*12*5mm
Material: alloy aluminum
Safe overload:150%; Ultimate overload: 200%
Characteristics: kitchen scale load cell, jewelry scale load cell, micro load cell,electronic balance load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

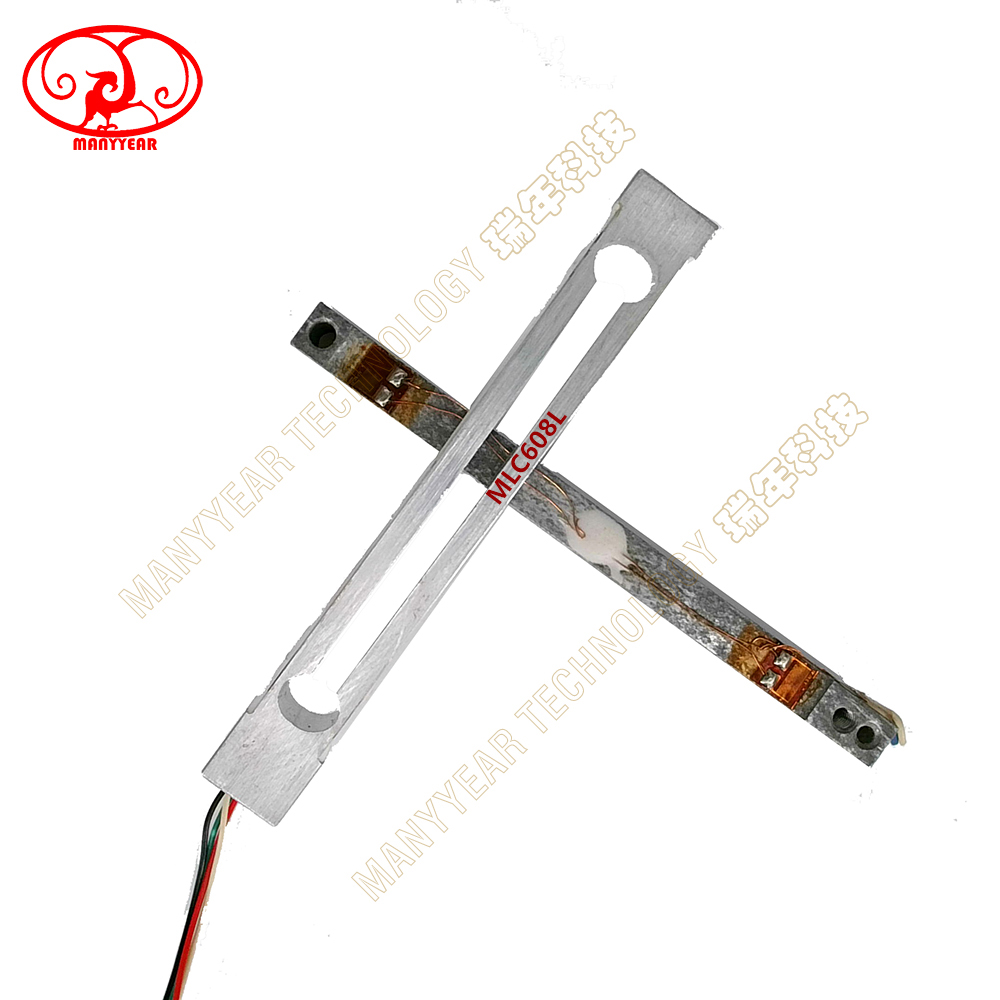

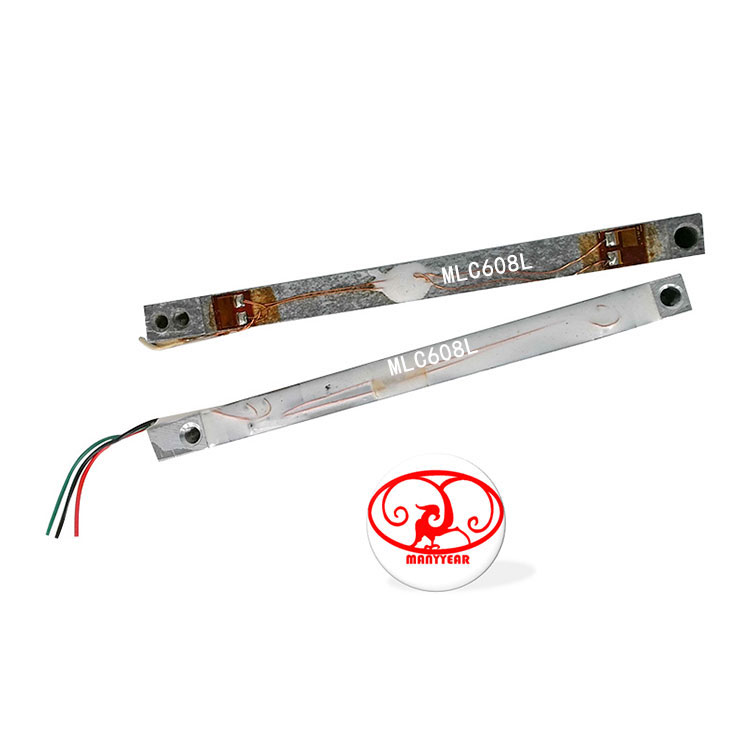

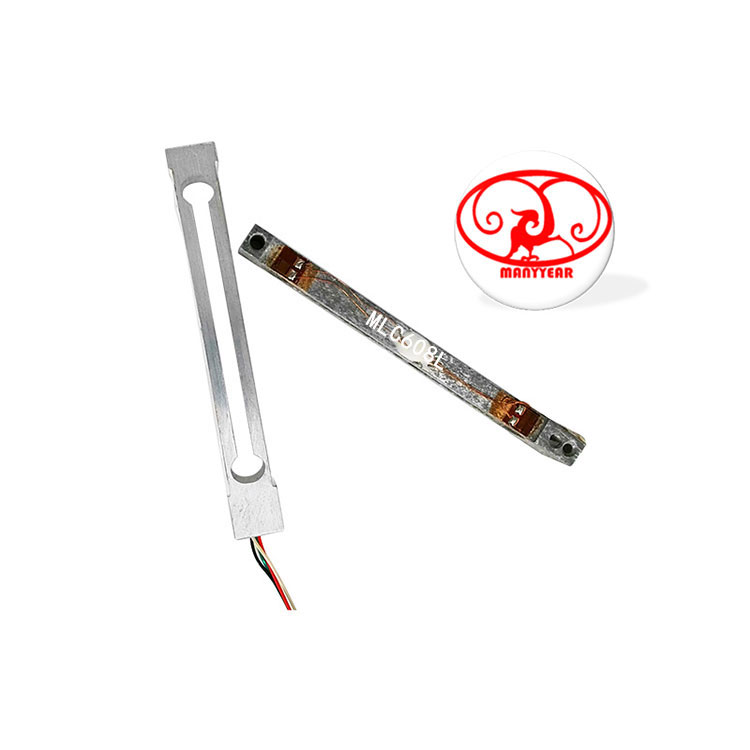

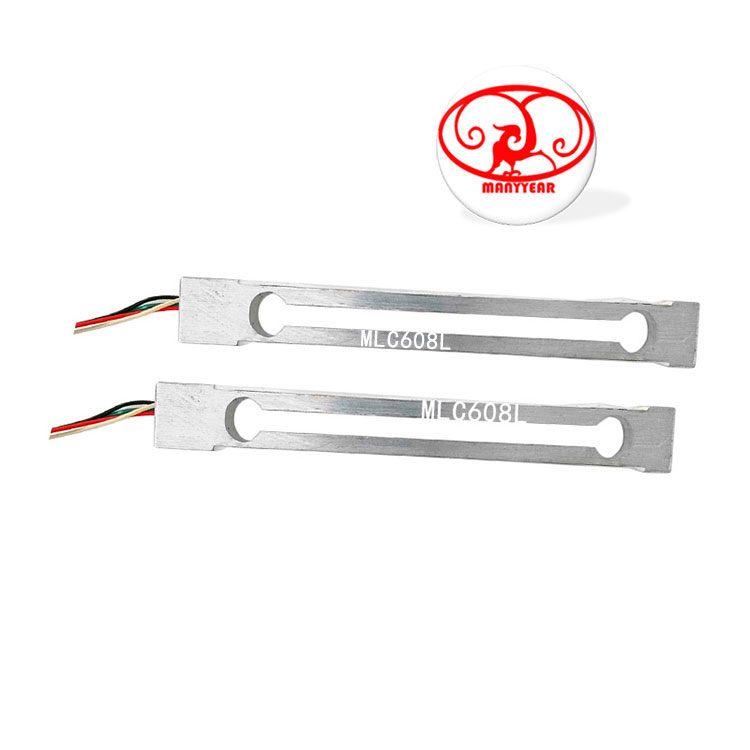

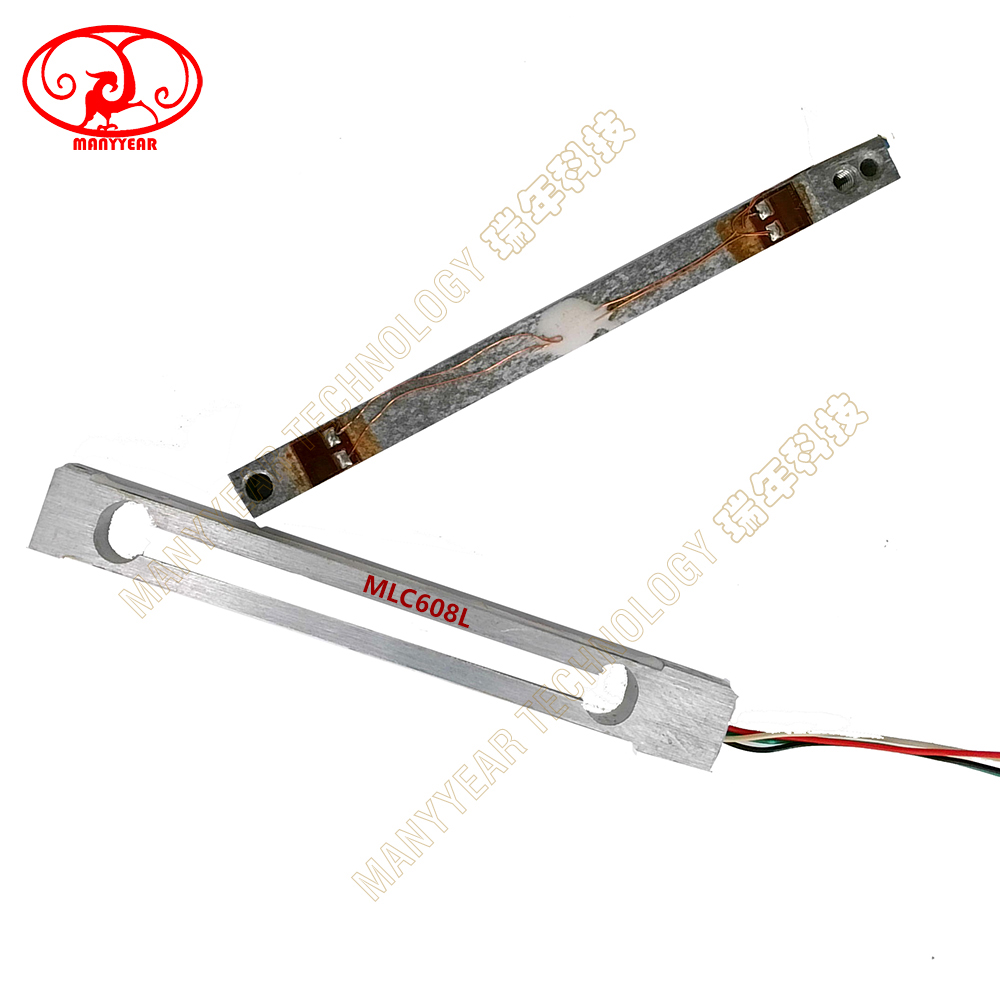

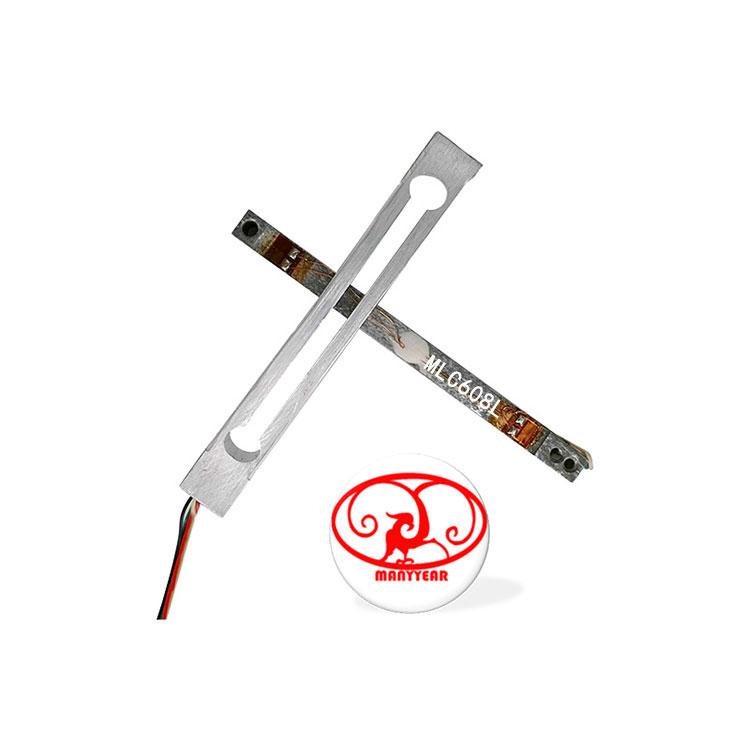

Product Picture Reference



MLC608L jewelry scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC608L jewelry scale load cell

Model: MLC608L

Category: Micro load cell

Rated load: 20g,30g,50g,100g

Dimension:84*12*5mm

Material: alloy aluminum

Safe overload:150%; Ultimate overload: 200%

Characteristics: kitchen scale load cell, jewelry scale load cell, micro load cell,electronic balance load cell

 Specification
Comprehensive error:0.05%FSOutput resistance:1000±10Ω
Rated output:0.5±0.15mV/VInsulation resistance:≥2000 MΩ/50V
Non-linearity:±0.05%F.S.Excitation voltage:5~10VDC
Hysteresis:±0.05%F.S.Compensated temp:-10~+40ºC
Repeatability:±0.05%F.S.Use temperature:-20~+55ºC
Creep:±0.05%F.S.5MinTemp effect on zero:±2.0%F.S./10ºC
Zero balance:±0.5mV/VTemp effect on span:±0.05%F.S./10ºC
Input resistance:1055±10ΩDefend grade:IP66

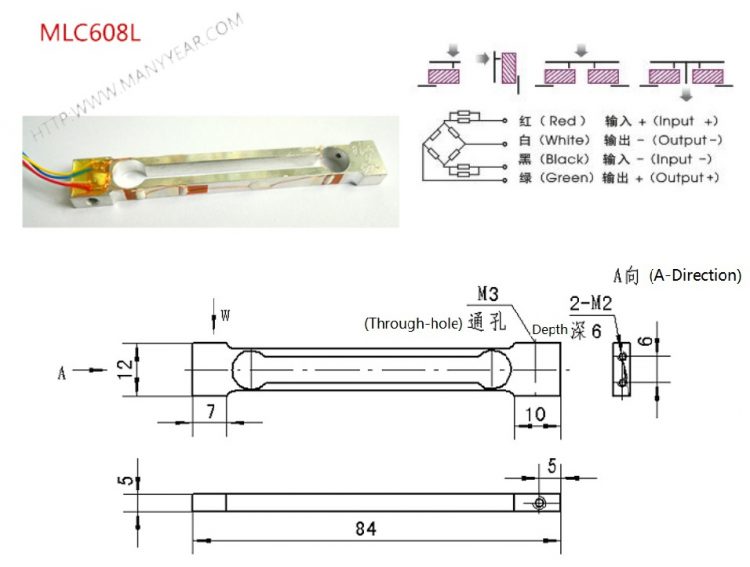

Product Dimension

MLC608L jewelry scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC608L jewelry scale load cell-MANYYEAR TECHNOLOGY

Product Application

MLC608L jewelry scale load cell-MANYYEAR TECHNOLOGYMLC608L jewelry scale load cell-MANYYEAR TECHNOLOGYMLC608L jewelry scale load cell-MANYYEAR TECHNOLOGY
