MLC204E25 button miniature force sensor

miniature button force load cell, miniature force sensor, micro force load cell

Model: MLC204E25
Category: button load cell
Range: 5kg,10kg,20kg,50kg,100kg,200kg
Dimension: 25*10/25*11mm
Material: alloy steel,stainless steel
Characteristic: miniature button force load cell, miniature force sensor, micro force load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

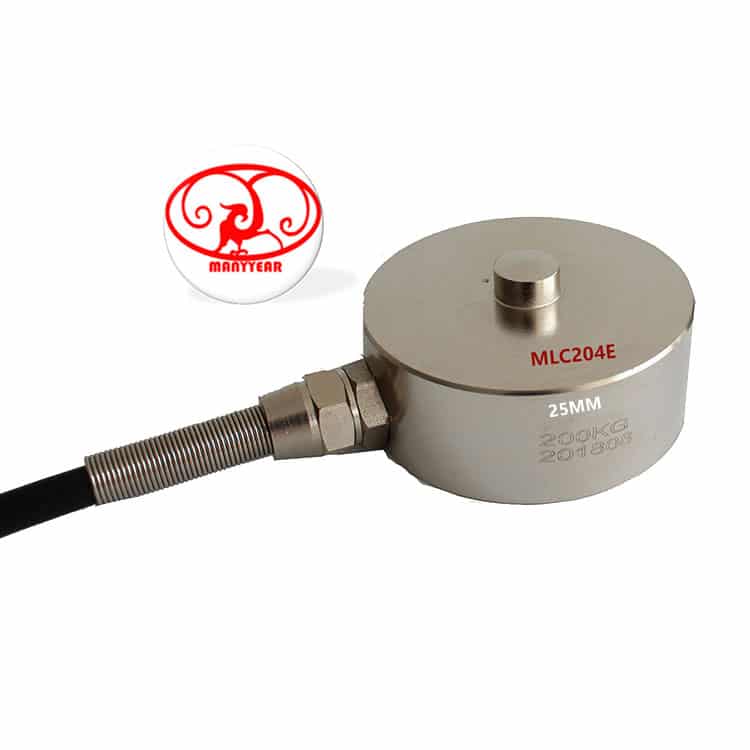

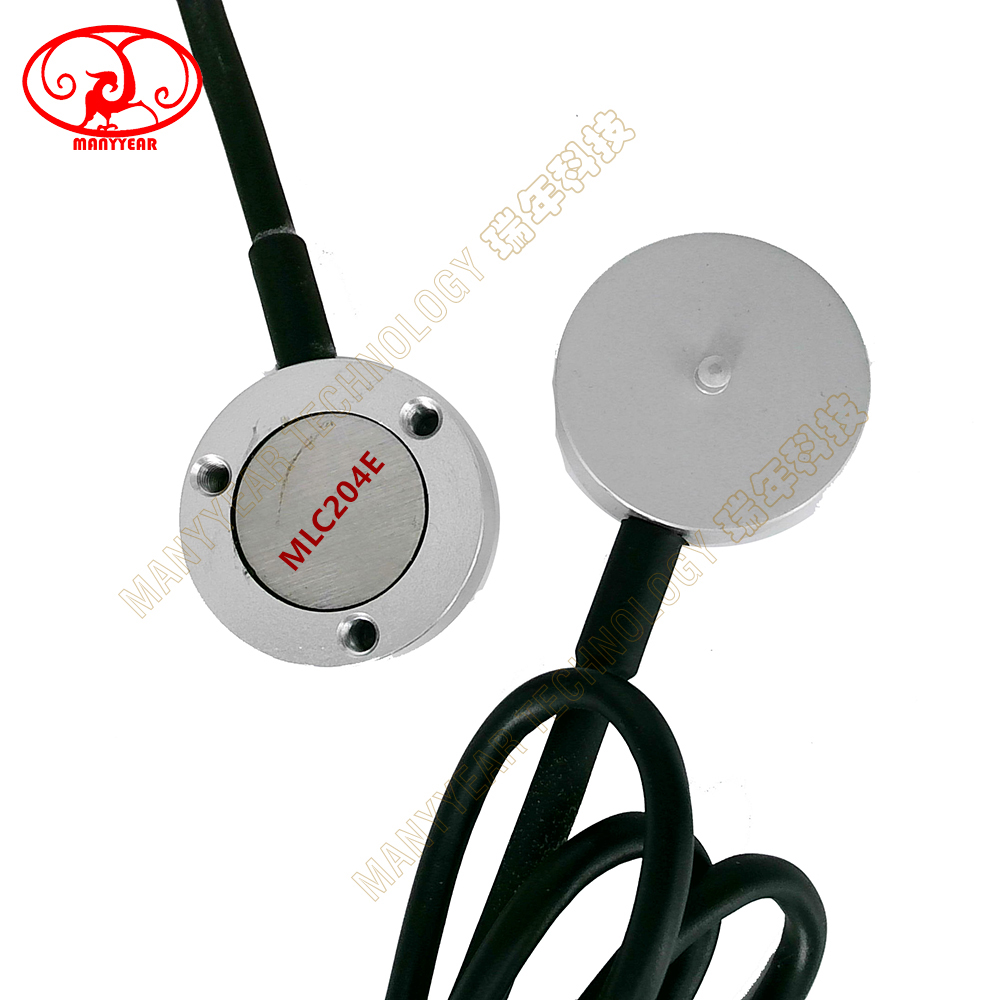

Product Picture Reference

MLC204E25 button miniature force sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC204E25 button miniature force sensor

Model: MLC204E25
Category: button load cell
Range: 5kg,10kg,20kg,50kg,100kg,200kg
Dimension: 25*10/25*11mm
Material: alloy steel,stainless steel
Characteristic: miniature button force load cell, miniature force sensor, micro force load cell

Other dimension(mm)

Load range5kg10kg20kg50kg100kg200kg
“A” size10mm11mm11mm11mm11mm11mm
“B” size8mm9mm9mm9mm9mm9mm
Precision0.2%FS0.2%FS0.2%FS0.2%FS0.2%FS0.2%FS
            Specification
Comprehensive error:0.2%FSOutput resistance:350±5Ω
Rated output:1±0.1mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.2%FSExcitation voltage:9~12VDC
Hysteresis:0.2%FSCompensated temp:-10~+40ºC
Repeatability:0.1%FSUse temperature:-35~+65ºC
Creep:0.03%FS/10minTemp effect on zero:0.05%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.05%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66

Product Dimension

MLC204E25 button miniature force sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC204E25 button miniature force sensor-MANYYEAR TECHNOLOGY

Product Application

MLC204E25 button miniature force sensor-MANYYEAR TECHNOLOGYMLC204E25 button miniature force sensor-MANYYEAR TECHNOLOGYMLC204E25 button miniature force sensor-MANYYEAR TECHNOLOGY
