MLC410 compression force load cell 330ton

MLC410 compression force load cell 330ton

2021/11/09 Force Load Cell MLC400 Column Load Cell 2610 0

silo scale load cell,tank scale load cell,big capacity load cell,compression force load cell

Model: MLC410
Category: Compression load cell
Load range: 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t, 220t, 330t
Dimension: 60*43mm/130*75mm/150*100mm
Material: alloy steel, stainless steel
Characteristic:silo scale load cell,tank scale load cell,big capacity load cell,compression force load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

Product Introduction Product Parameters

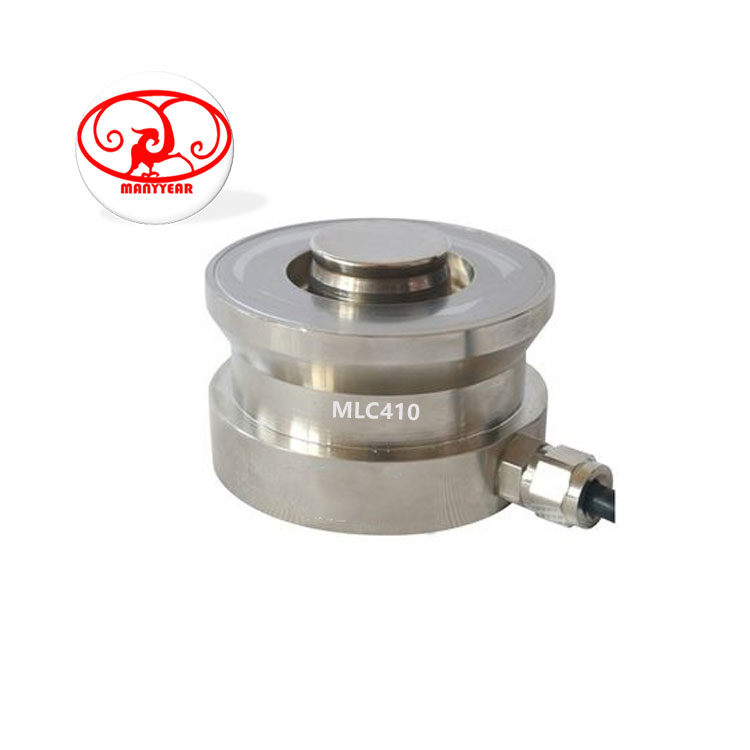

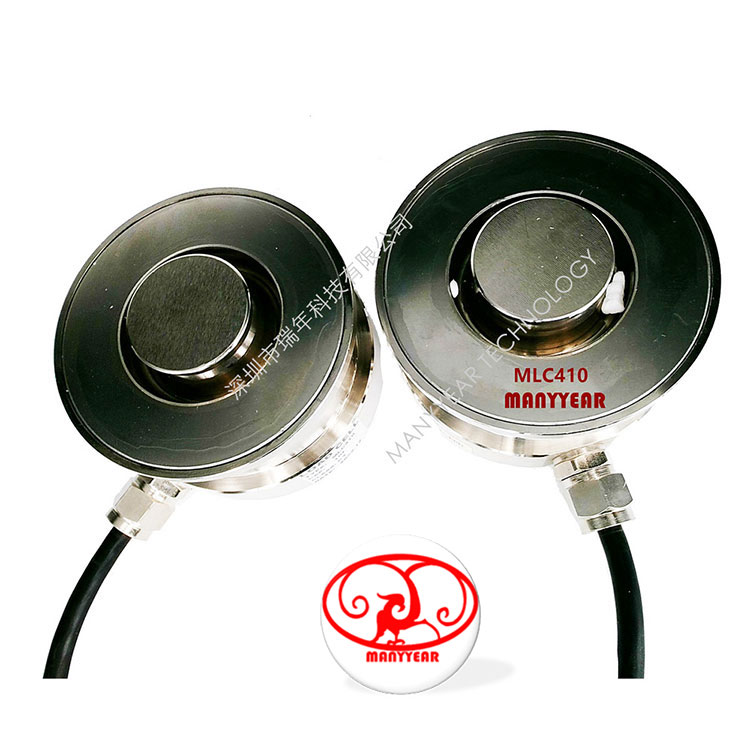

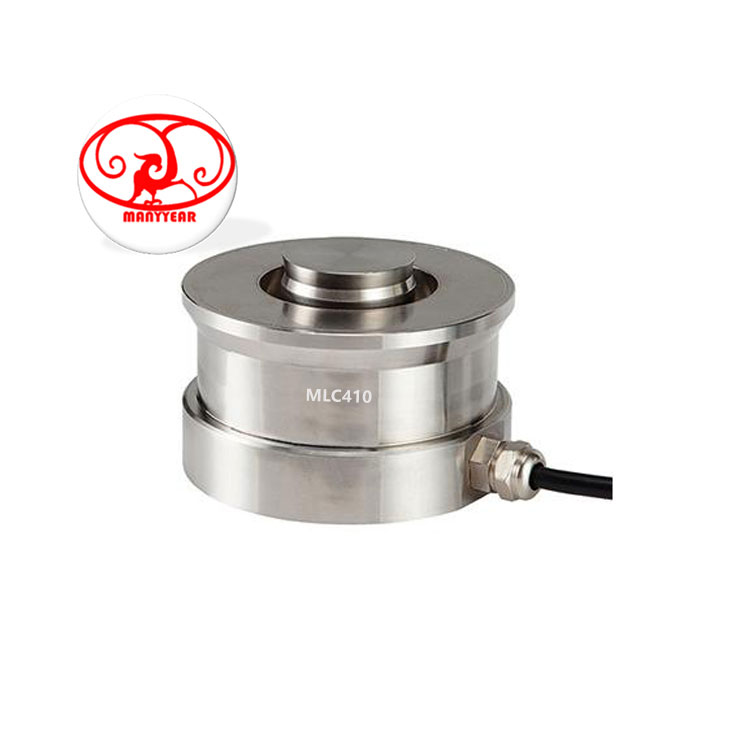

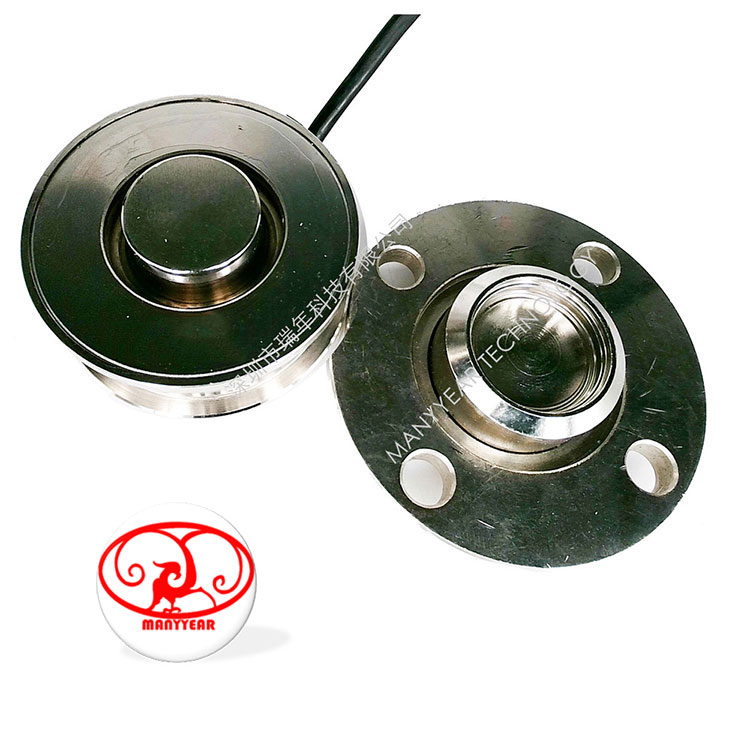

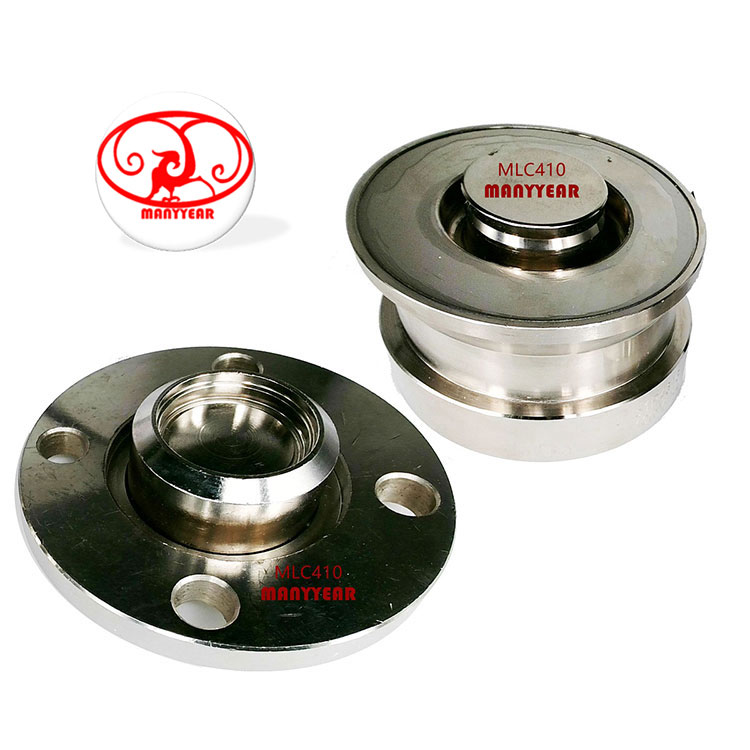

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC410 compression force load cell 330ton

Model: MLC410 Category: Compression load cell Load range: 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t, 220t, 330t Dimension: 6043mm/13075mm/150*100mm Material: alloy steel, stainless steel Characteristic:silo scale load cell,tank scale load cell,big capacity load cell,compression force load cell

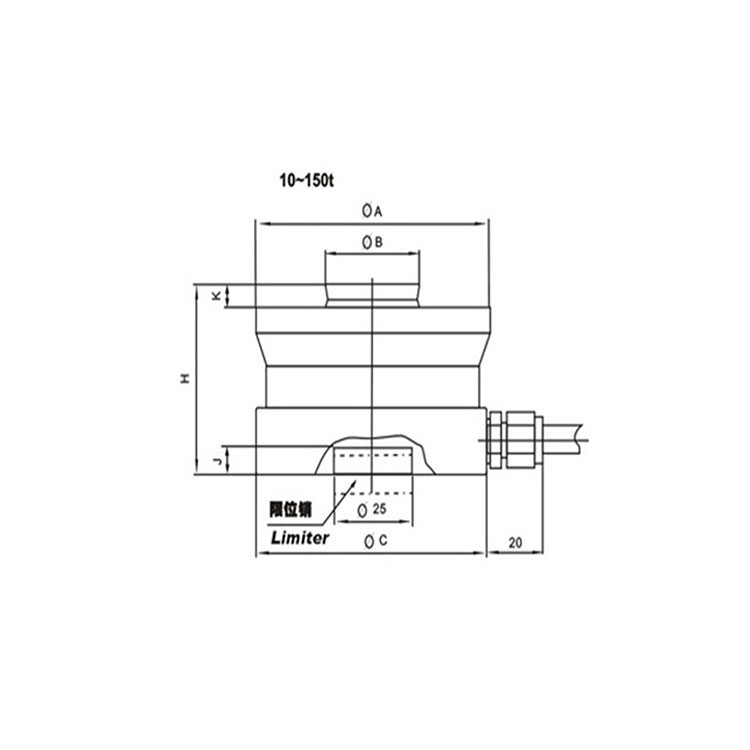

Load cell dimension (mm)
Load range	A	B		C	NA	NA		H	J			K		N
10-22t	75	30		75	NA	NA		50	7			6.5		10
33t	95	40		95	NA	NA		65	7			10		12
47t	130	60		130	NA	NA		75	7			14		20
68t	130	60		130	NA	NA		85	7			14		20
100t	130	70		150	NA	NA		90	7			16		22
150t	150	70		150	NA	NA		100	7			16		22
220t	225	100		225	NA	NA		130	13			24		NA
330t	225	100		225	NA	NA		145	13			24		NA

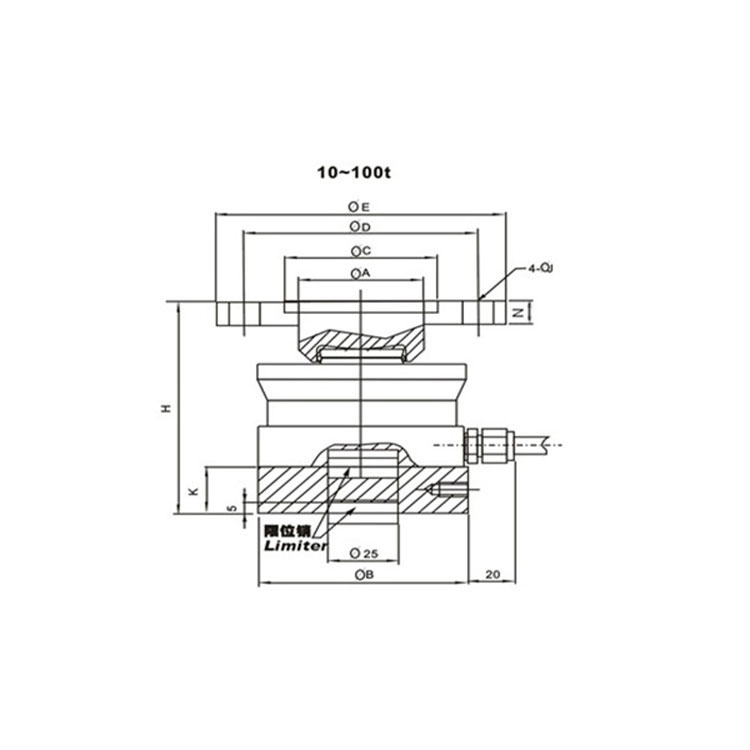

Load cell with force platform dimension (mm)
Load range	A	B		C	D	E		H	J		K		N
10-22t	45	75		55	80	100		95	11.5		20		10
33t	58	95		68	95	120		120	13		25		12
47t	80	130		92	130	170		140	17.5		30		20
68t	80	130		92	130	170		150	17.5		30		20
100t	100	150		110	150	200		177	25		40		22
150t	100	150		110	150	200		187	25		40		22
Specification
Comprehensive error:			0.05%FS				Output resistance:			1402±5Ω
Rated output:			2.85±0.005mV/V				Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:			0.05%FS				Excitation voltage:			9~12VDC
Hysteresis:			0.05%FS				Compensated temp:			-10~+40℃
Repeatability:			0.03%FS				Use temperature:			-20~+55℃
Creep:			0.03%FS/10min				Temp effect on zero:			0.05%FS/10℃
Zero balance:			±1%FS				Temp effect on span:			0.05%FS/10℃
Input resistance:			1450±10Ω				Defend grade:			IP66 & IP68

Product Dimension

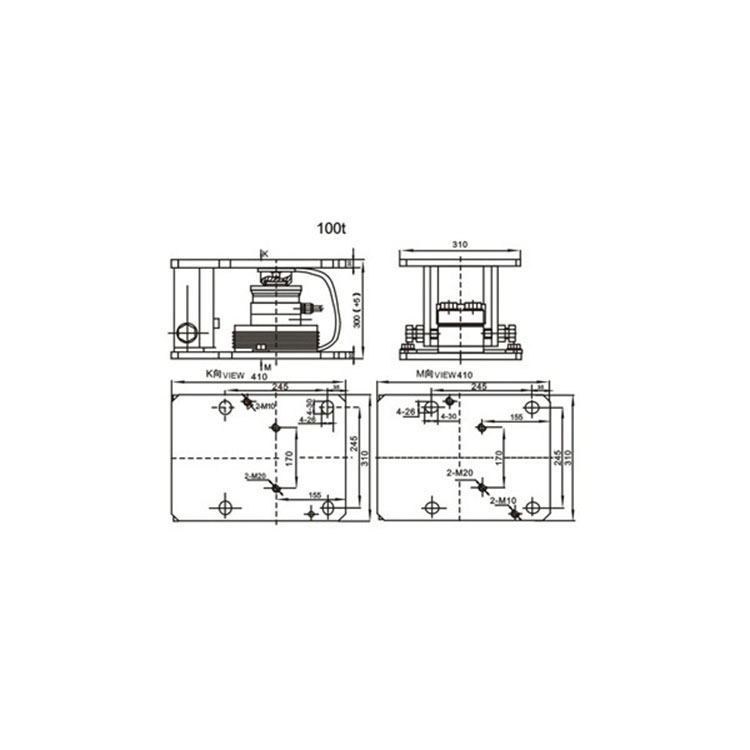

Force Structure & Assembly Reference
