MLC321 Safety overload force sensor

safety overload force sensor, safety force load cell, crane scale load cell

Model: MLC321
Category: Tension load cell
Range: 40t
Dimension: 440*108*75mm
Material: Alloy steel,stainless steel
Application: safety overload force sensor, safety force load cell, crane scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

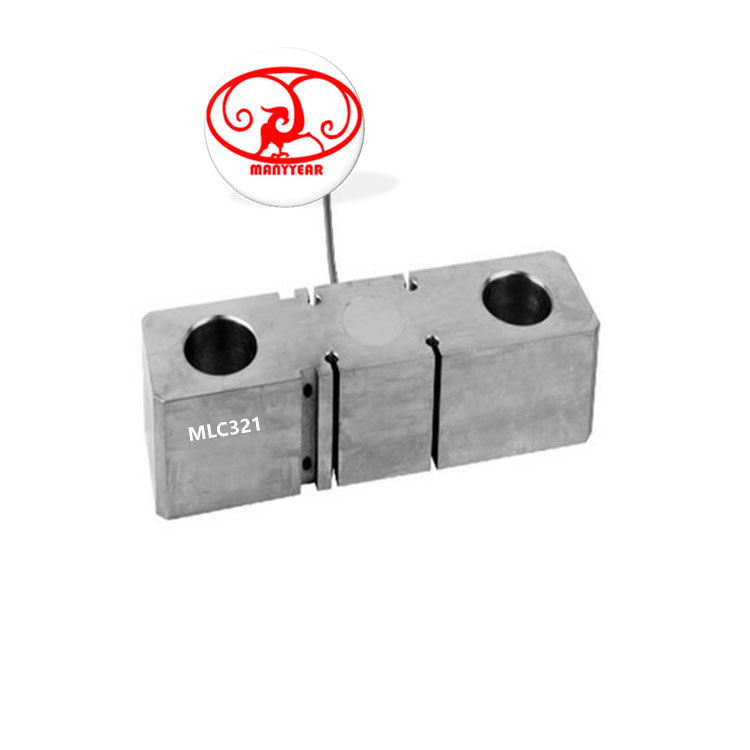

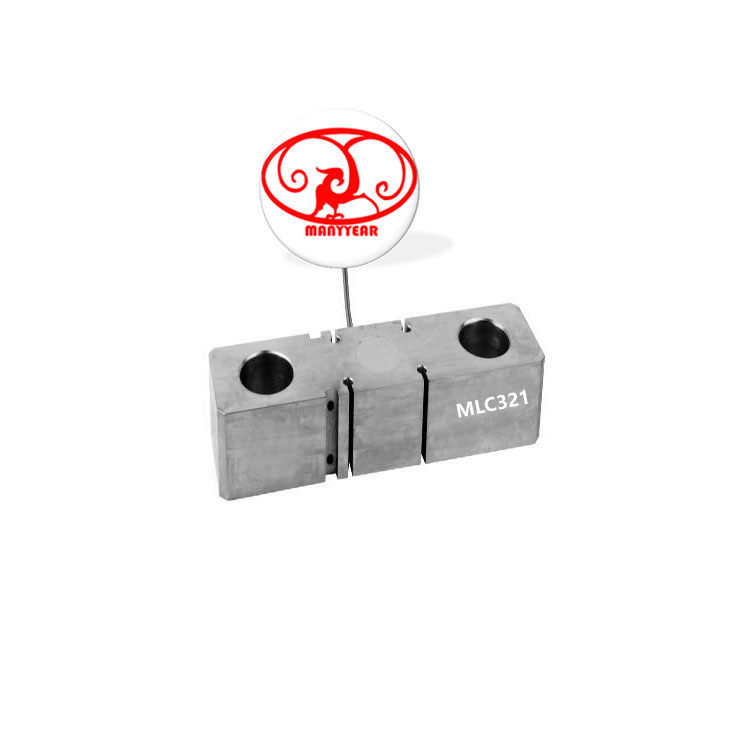

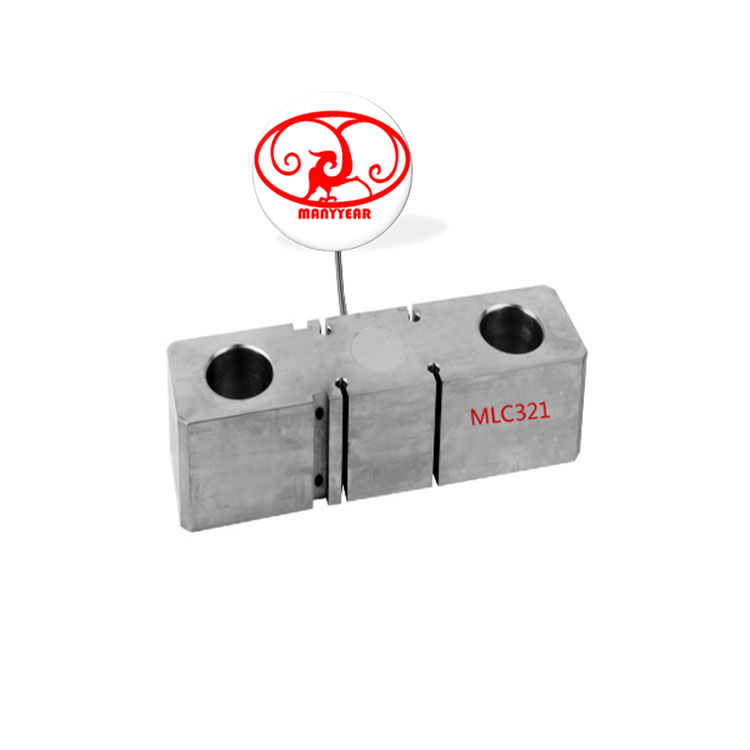

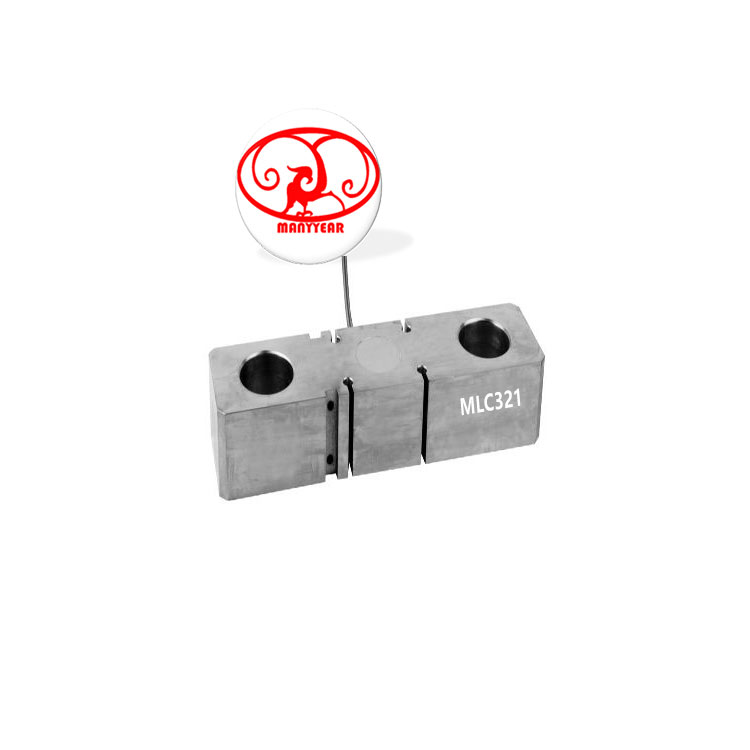

Product Picture Reference

MLC321 Safety overload force sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC321 Safety overload S-type weight sensor 40ton

Model:  MLC321

Category: Tension load cell

Range: 40ton

Dimension: 440*108*75mm

Material: alloy steel, stainless steel

Application: tension measurement, 40t crane scale load cell

Characteristic: 40t crane scale load cell, tension load cell

Specification
Comprehensive error:0.05%FSOutput resistance:352±5Ω
Rated output:2.0±0.005mv/vInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40℃
Repeatability:0.03%FSUse temperature:-20~+55℃
Creep:0.03%FS/10MINTemp effect on zero:0.05%FS/10℃
Zero balance:±1%FSTemp effect on span:0.05%FS/10℃
Input resistance:380±10ΩDefend grade:IP66 & IP68

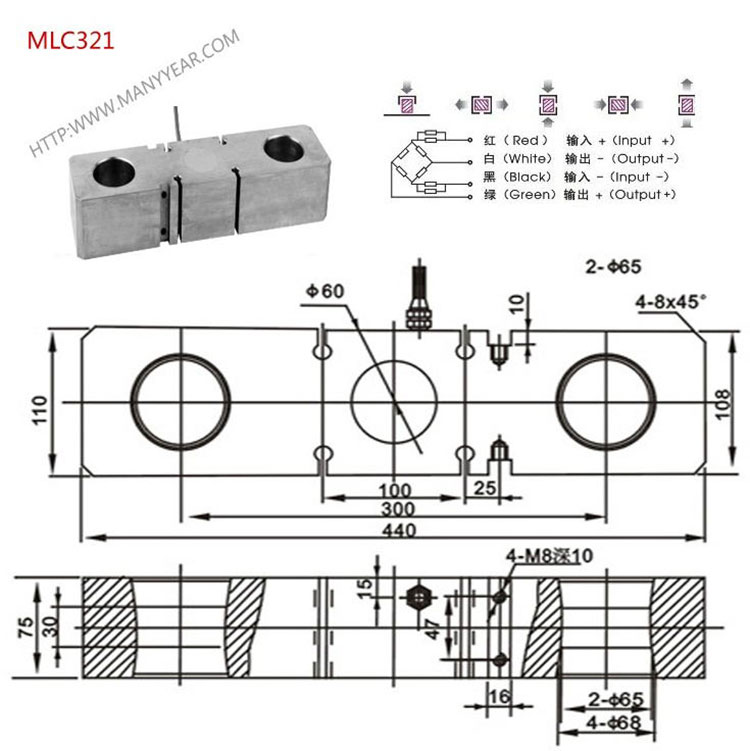

Product Dimension

MLC321 Safety overload force sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC321 Safety overload force sensor-MANYYEAR TECHNOLOGY

Product Application

MLC321 Safety overload force sensor-MANYYEAR TECHNOLOGYMLC321 Safety overload force sensor-MANYYEAR TECHNOLOGYMLC321 Safety overload force sensor-MANYYEAR TECHNOLOGY
