MLC326 crane hook scale packing scale tension load sensor 10ton

Model: MLC326
Category: Tension load cell
Measuring range: 10ton
Size: 252*104*45mm
Material: alloy steel, stainless steel
Applications: Crane scales, hopper scales, packaging scales, overload limiters


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

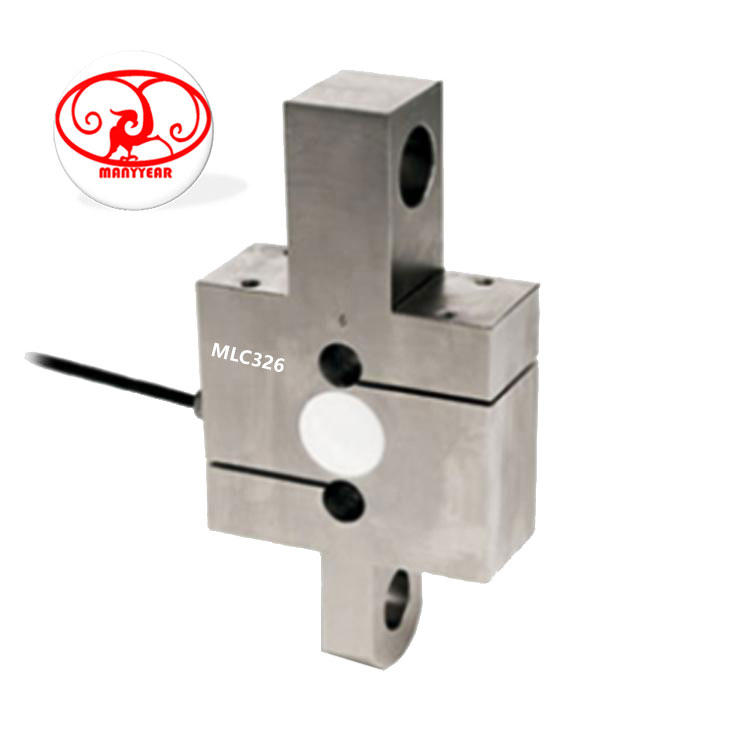

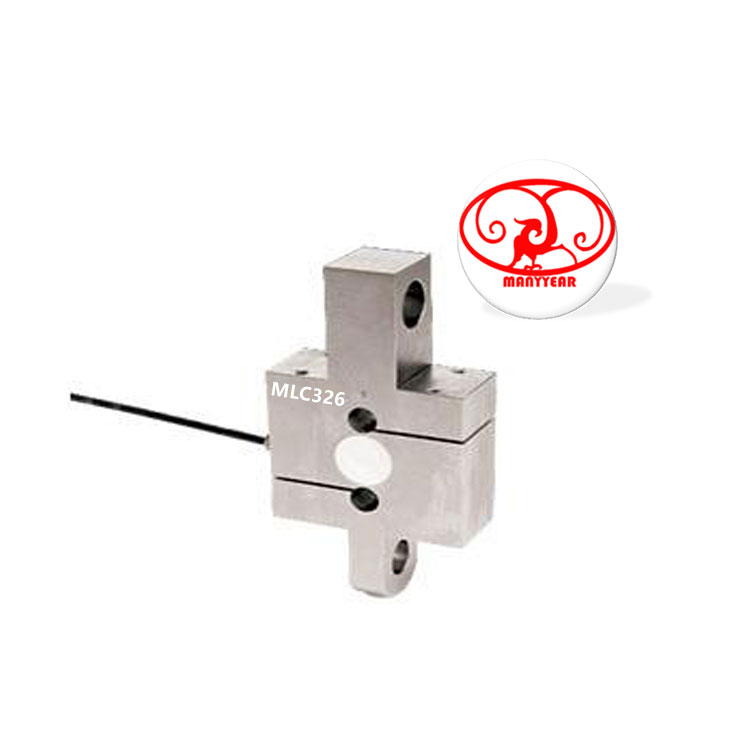

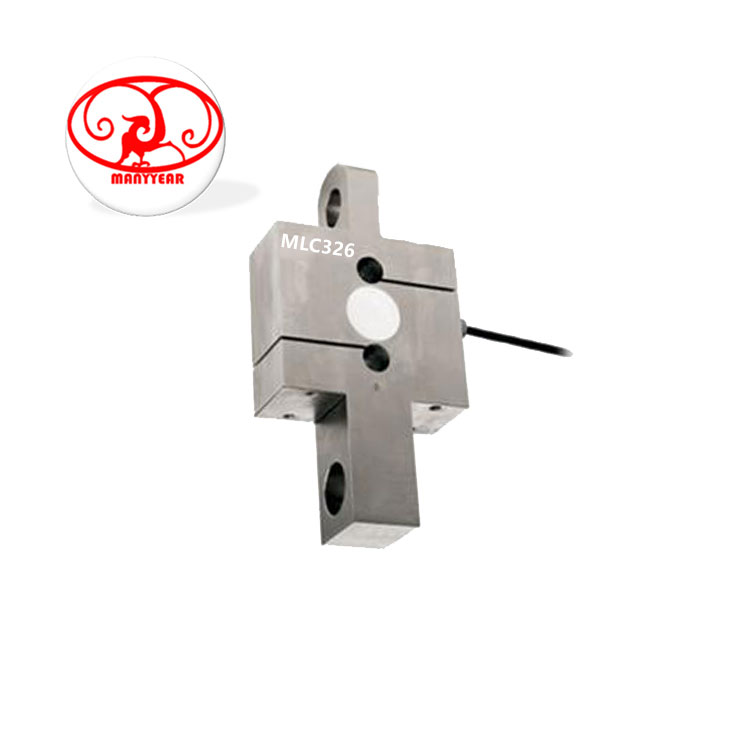

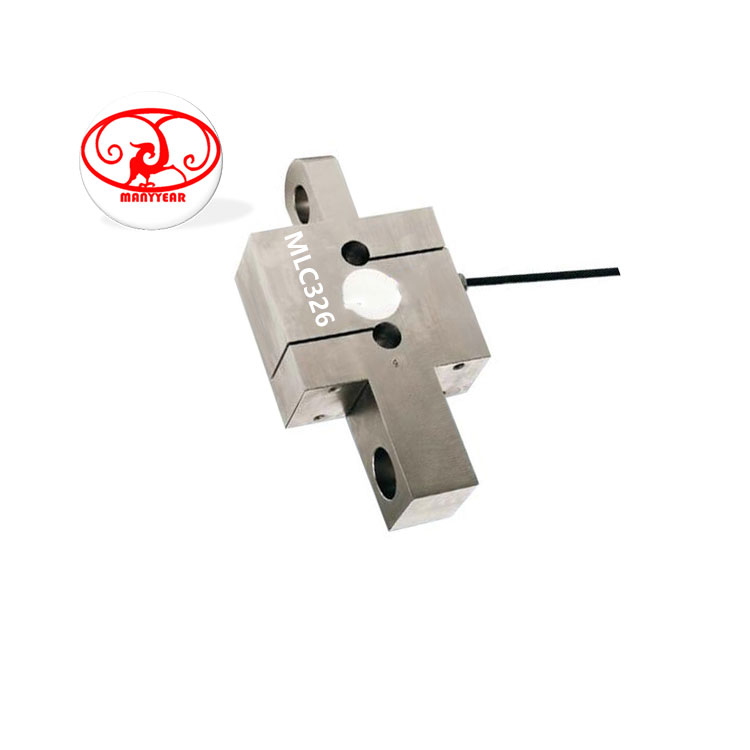

Product Picture Reference

MLC326 crane scale weight sensor 10ton-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

  MLC326-Crane scale S type weight sensor 10ton

Model: MLC326

Category: Tension load cell

Range: 10ton

Dimension: 252*104*45mm

Material: alloy steel, stainless steel

Application: crane scale, hopper scale, packing scale, overload limiter

Characteristic: crane scale weight sensor, overload limiter weight sensor

Specification
Comprehensive error:0.05%FSOutput resistance:352±5Ω
Rated output:2.0±0.005mv/vInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.05%FSExcitation voltage:9~12VDC
Hysteresis:0.05%FSCompensated temp:-10~+40℃
Repeatability:0.03%FSUse temperature:-20~+55℃
Creep:0.03%FS/10MINTemp effect on zero:0.05%FS/10℃
Zero balance:±1%FSTemp effect on span:0.05%FS/10℃
Input resistance:400±10ΩDefend grade:IP66 & IP68

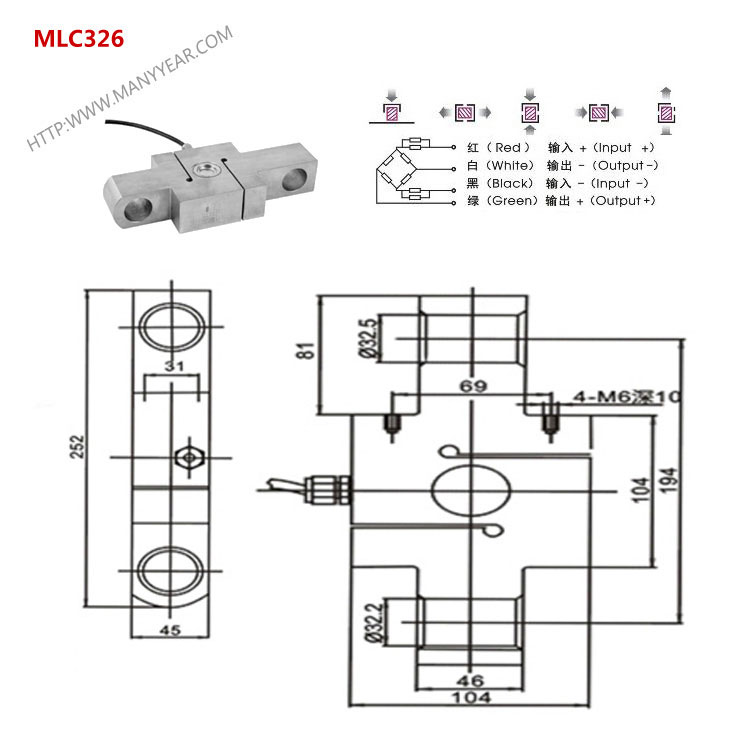

Product Dimension

MLC326 crane scale weight sensor 10ton-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC326 crane scale weight sensor 10ton-MANYYEAR TECHNOLOGY

Product Application

MLC326 crane scale weight sensor 10ton-MANYYEAR TECHNOLOGYMLC326 crane scale weight sensor 10ton-MANYYEAR TECHNOLOGYMLC326 crane scale weight sensor 10ton-MANYYEAR TECHNOLOGY
