MLC325-crane scale load cell

2021/11/08 Force Load Cell MLC300 Tension Load Cells 2180 0

crane scale load cell,hopper scale load cell,overload limiter load cell

Model: MLC325
Category: Tension load cell
Range: 1.5t
Dimension: 142*60*36mm
Material: Alloy steel,stainless steel
Application: crane scale load cell,hopper scale load cell,overload limiter load cell, tension load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

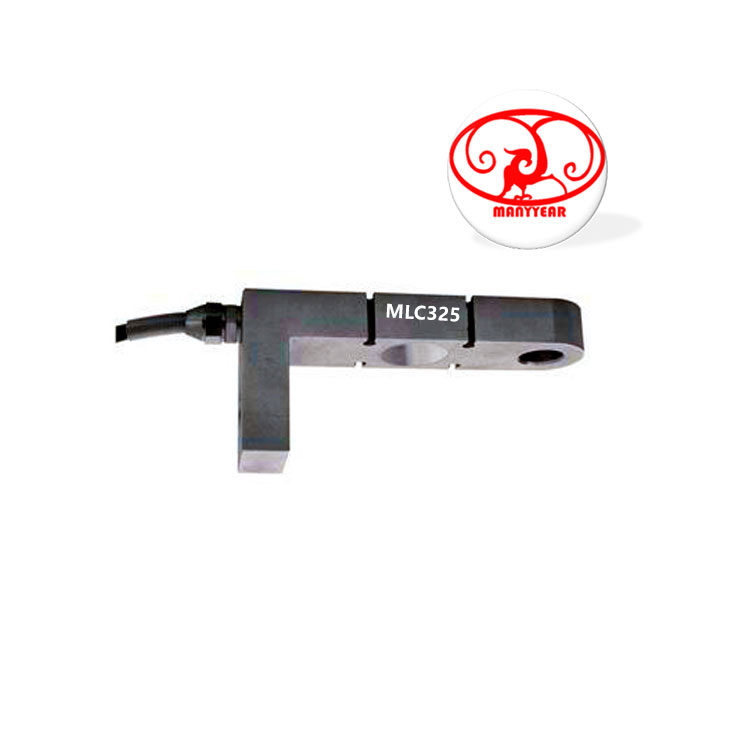

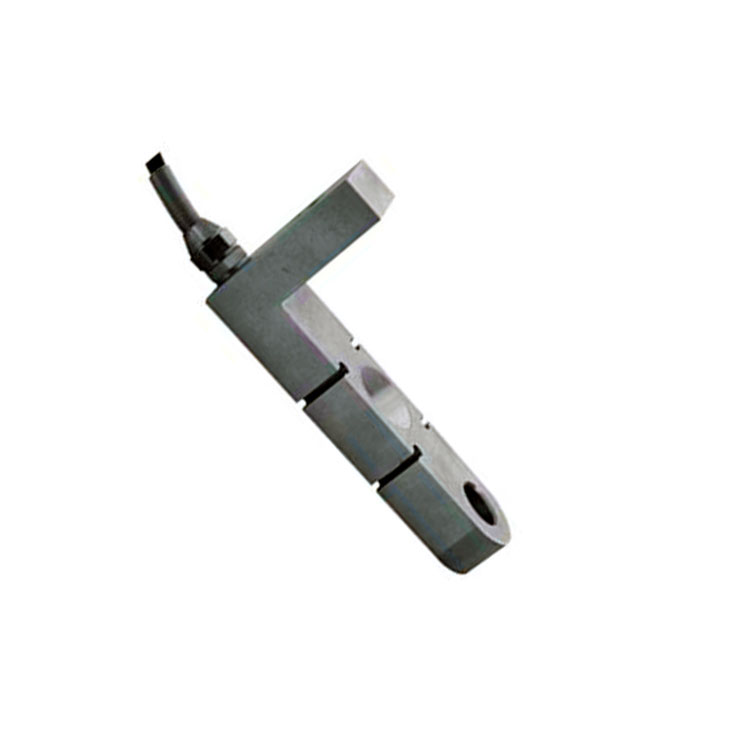

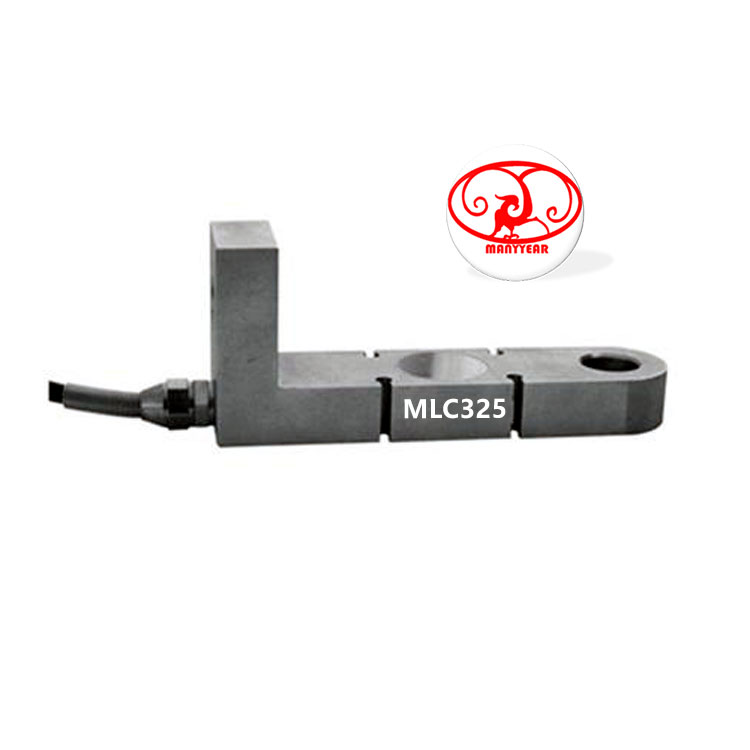

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC325-S type weight sensor for hook scale

Model: MLC325 Category: Tension load cell Range: 1.5ton Dimension: 1426036mm Material: alloy steel, stainless steel Application: crane scale, hopper scale, overload limiter Characteristic: hanging basket load cell, Hanging scale load cell

Specification
Comprehensive error:	0.3%FS	Output resistance:	352±3Ω
Rated output:	1.0±0.1MV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-30~+70℃
Creep:	0.05%FS/30Min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	400±20Ω	Defend grade:	IP67
Max safe overload:	150%FS	Ultimate overload:	180%FS

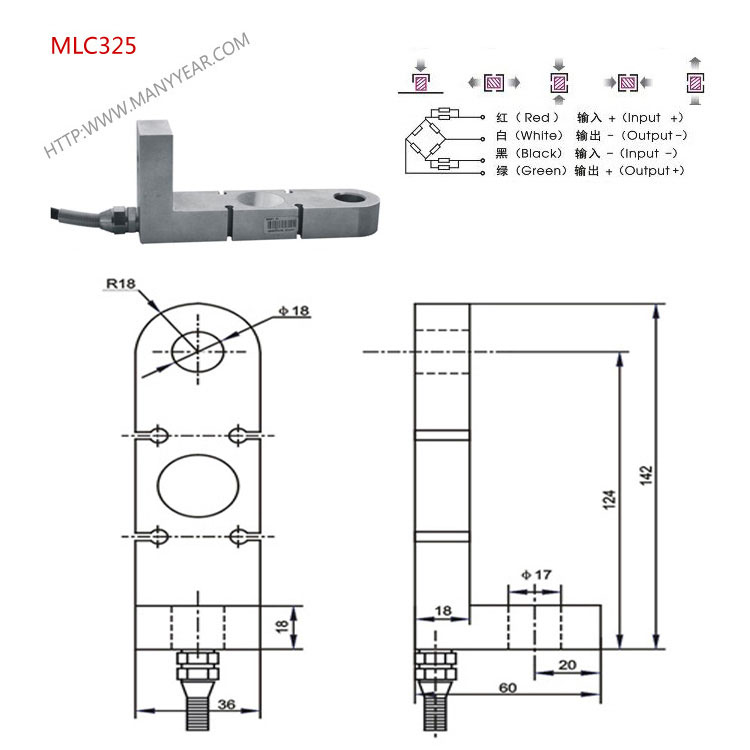

Product Dimension

Force Structure & Assembly Reference
