MLC312- S type floor scale weighing sensor

2021/11/04 Force Load Cell MLC300 Tension Load Cells 1535 0

Model: MLC312
Category: Tension load cell
Range: 15t, 20t,30t
Dimension: 124*70*243/124*80*243mm
Material: Alloy steel,stainless steel
Application: truck scale weight sensor, floor scale weighing sensor, S type load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Technical Documents

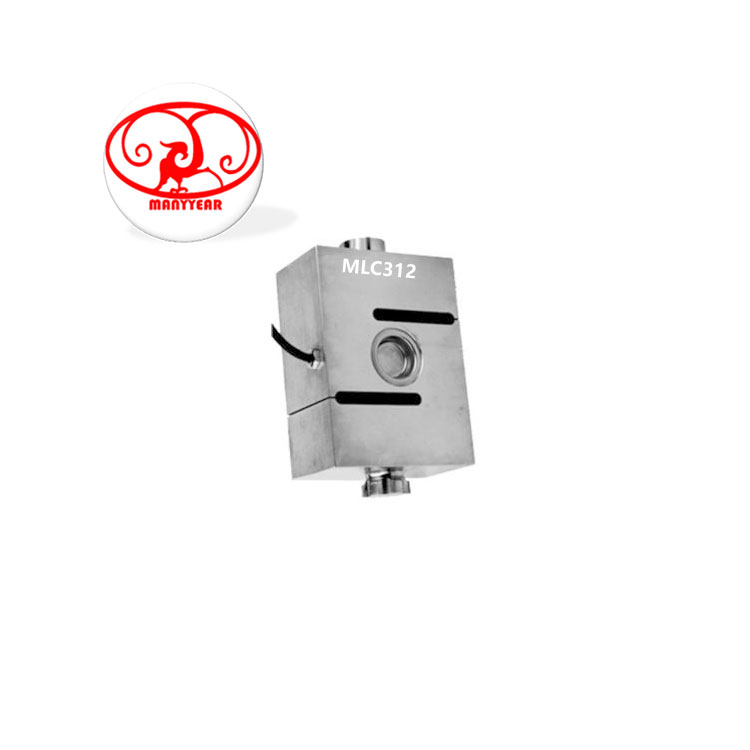

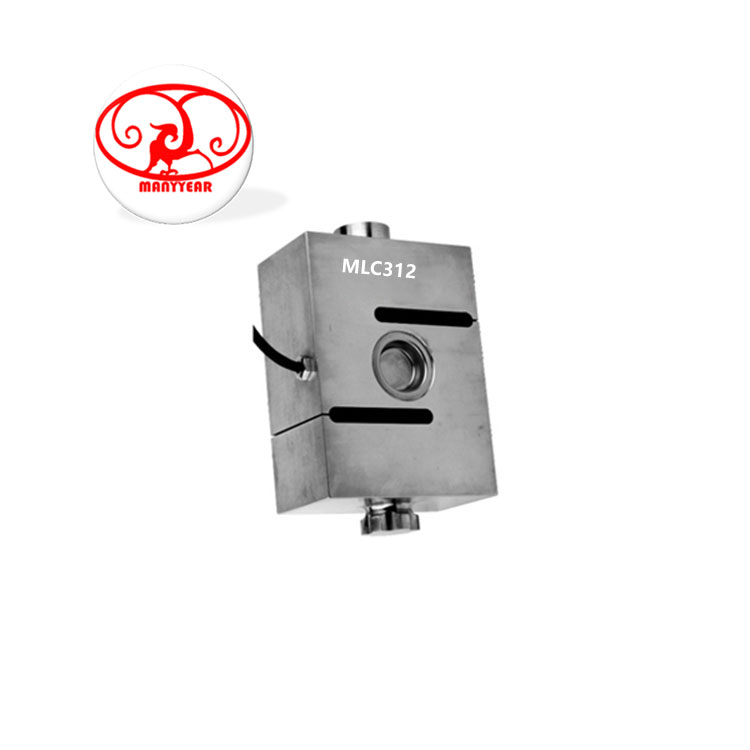

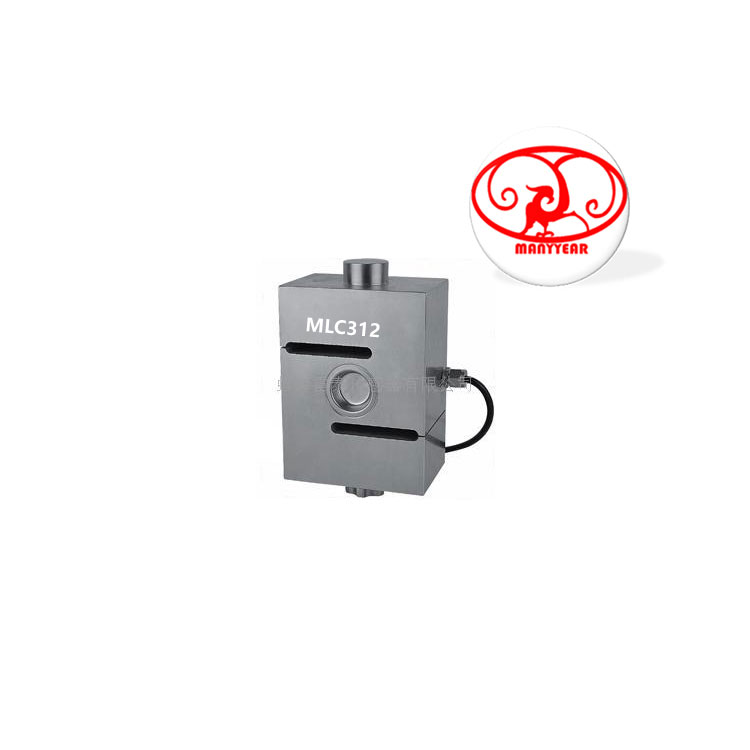

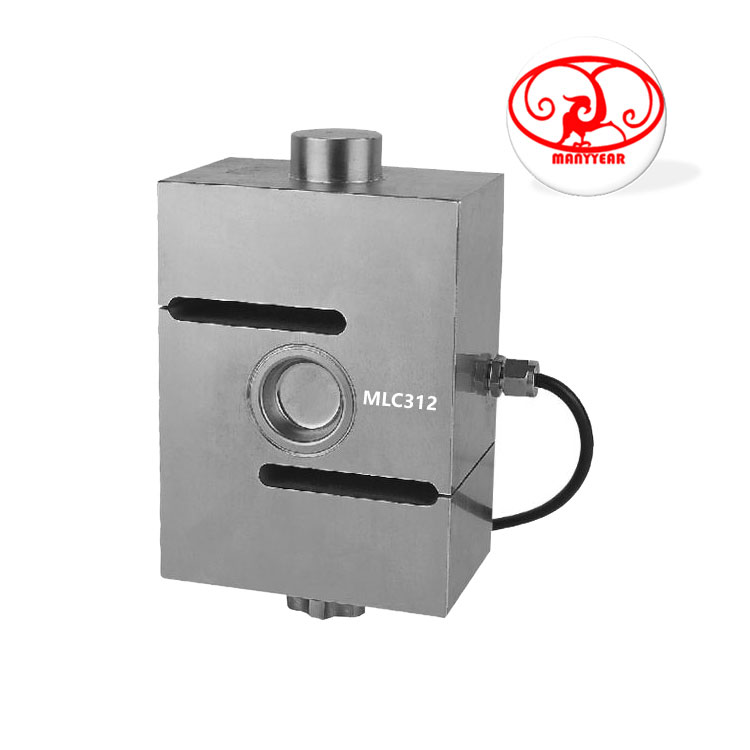

Product Picture Reference

MLC312- S type floor scale weighing sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC312- S type weight sensor for floor scale

Model: MLC312 Category: Tension load cell Range: 15t,20t,30t Dimension: 12470243/12480243mm Material: Alloy steel, stainless steel Application: truck scale, floor scale Characteristic: truck scale weighing sensor, floor scale sensor

Other Dimension
Load range(kg)		“A”
15t,20t		70mm
30t		80mm
Specification
Comprehensive error:	0.03%FS	Output resistance:	352±3Ω
Rated output:	2±0.002mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.03%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.03%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.02%FS	Use temperature:	-20~+65ºC
Creep:	0.02%FS/10Min	Temp effect on zero:	0.03%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	380±3Ω	Defend grade:	IP68

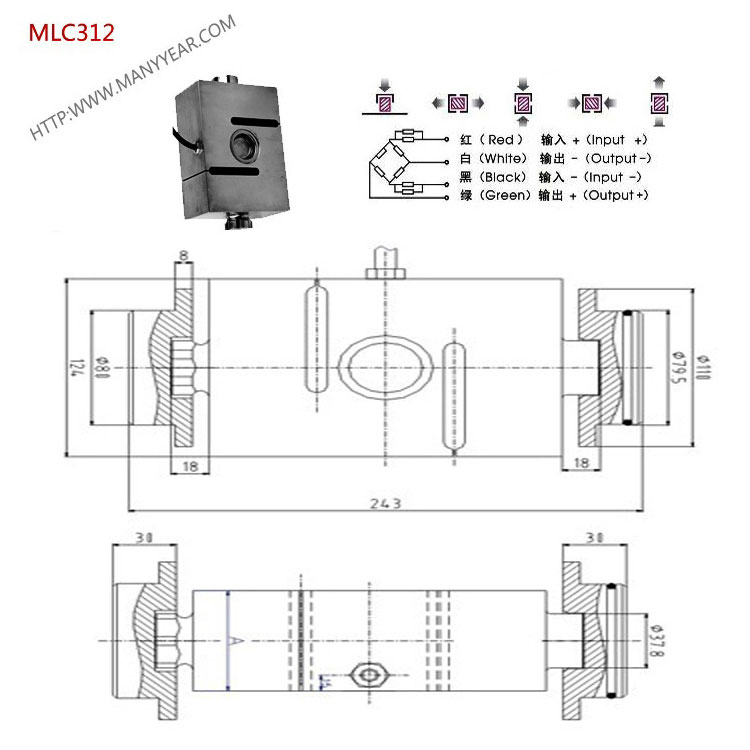

Product Dimension

Force Structure & Assembly Reference
