MLC405N-weighbridge weight sensor

2021/11/09 Force Load Cell MLC400 Column Load Cell 1894 0

truck scale weight sensor, railway scale weight sensor, floor scale weight sensor, weighbridge weight sensor

Model: MLC405N
Category: Compression Load Cell
Range: 10t,15t,20t,25t,30t,40t,50t
Dimension: 85*150mm
Material: alloy steel, stainless steel
Application: truck scale weight sensor, railway scale weight sensor, floor scale weight sensor, weighbridge weight sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

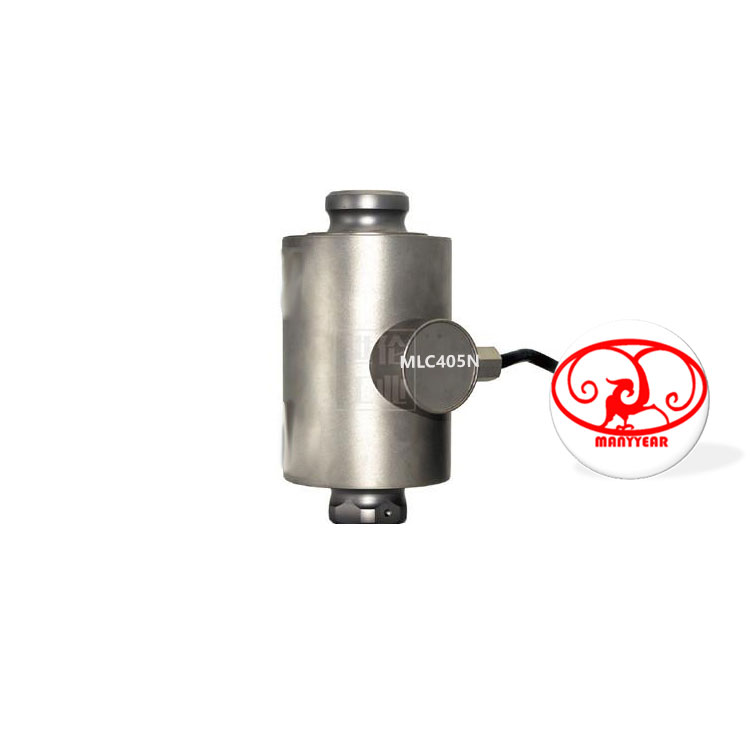

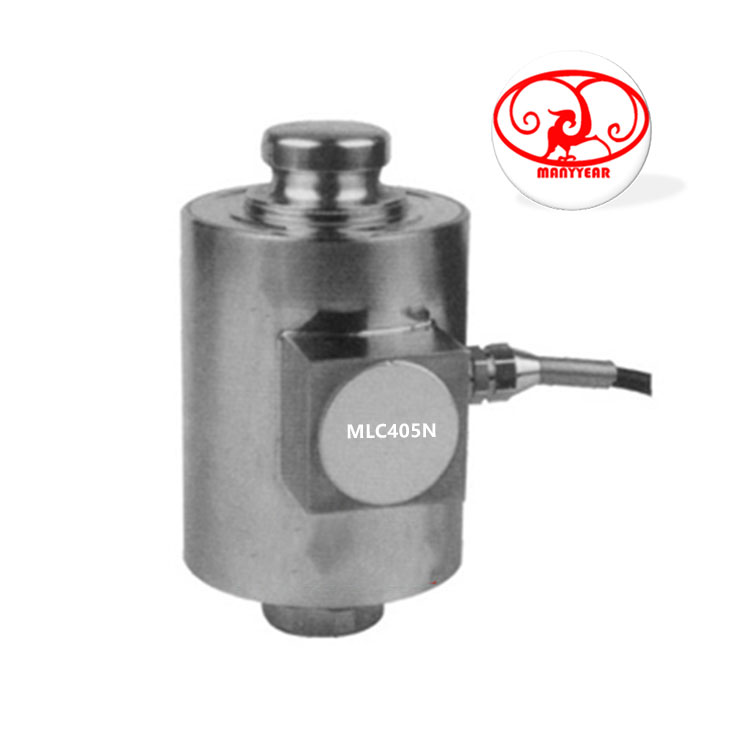

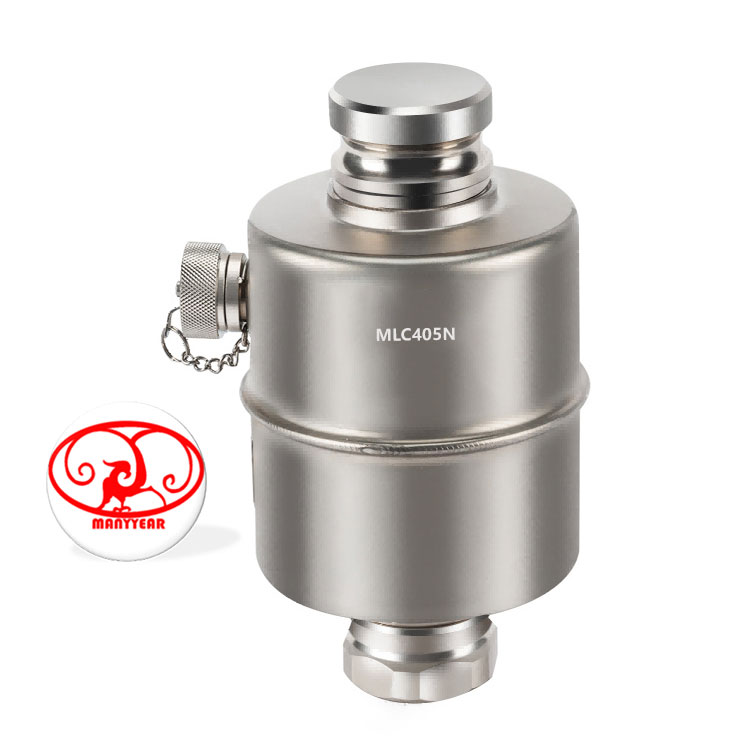

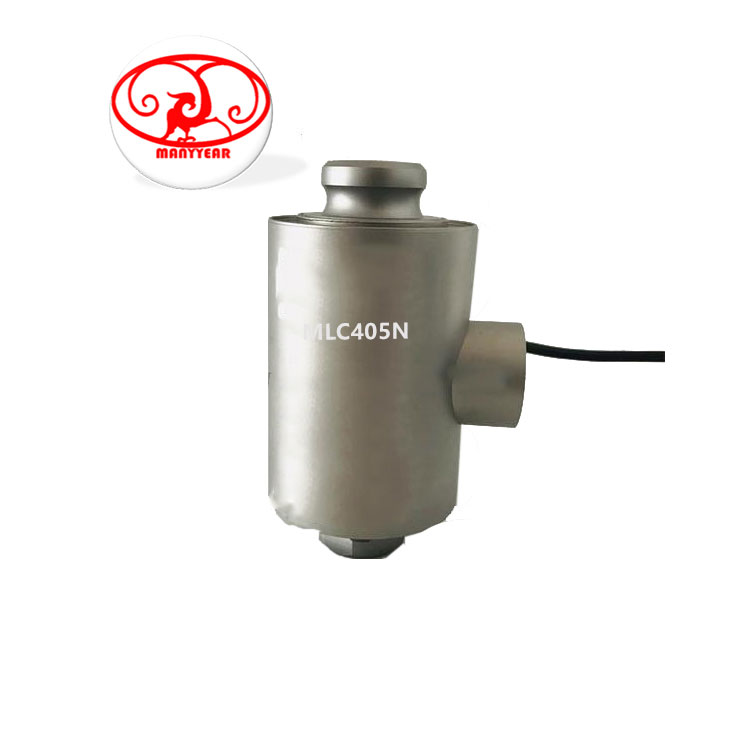

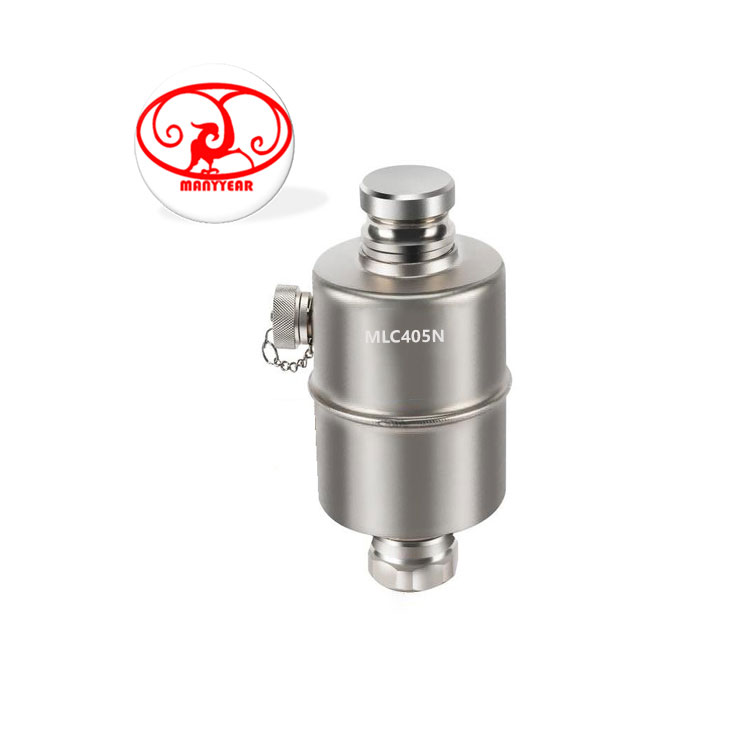

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC405N-Truck scale weighbridge load cell

Model: MLC405N Category: Compression load cell Range: 10t,20t,25t,30t,40t,50t Dimension: 85*150mm Material: alloy steel, stainless steel Application: truck scale, railway scale, floor scale, weighbridge

Specification
Comprehensive error:	0.02%FS	Output resistance:	1000±3Ω
Rated output:	2±0.002mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.03%FS	Excitation voltage:	5~12VDC
Hysteresis:	0.03%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.02%FS	Use temperature:	-30~+70ºC
Creep:	0.02%FS/10MIN	Temp effect on zero:	0.02%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.02%FS/10ºC
Input resistance:	1160±10Ω	Defend grade:	IP66&IP68

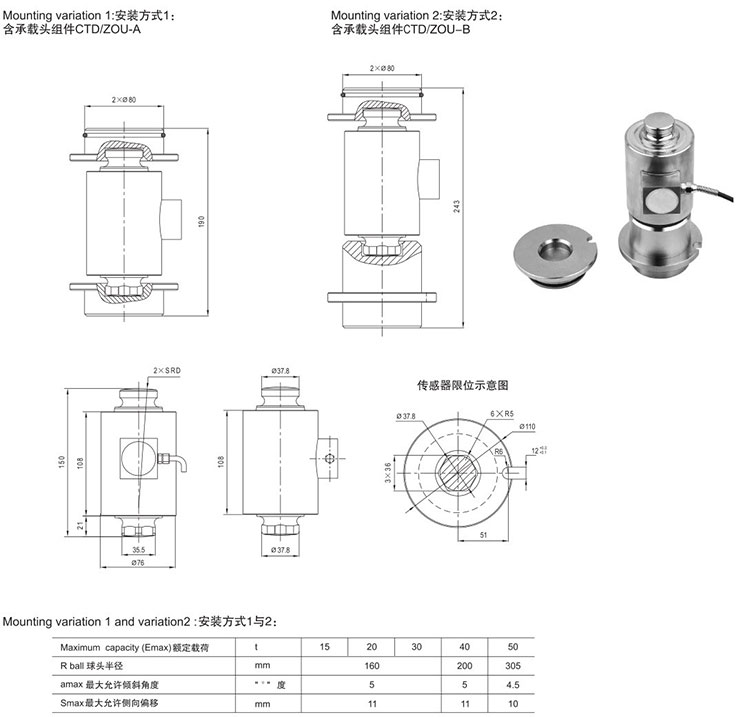

Product Dimension

Force Structure & Assembly Reference

Product Application
