Model: MLC504
Catalog: Ring Load Cells
Rated load: 300, 500, 1000, 2000, 3000, 5000kg
Accuracy: C2
Safe overload: 150%; ultimate overload: 200%
Material: alloy steel, stainless steel
Features: ring force sensor, gasket force sensor, axial force sensor, extrusion force sensor, preload force sensor




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

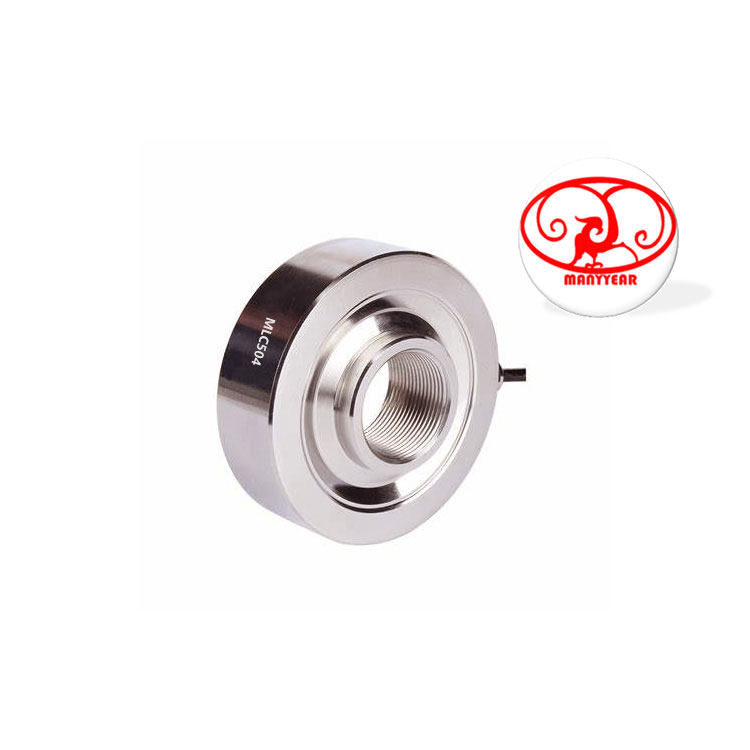

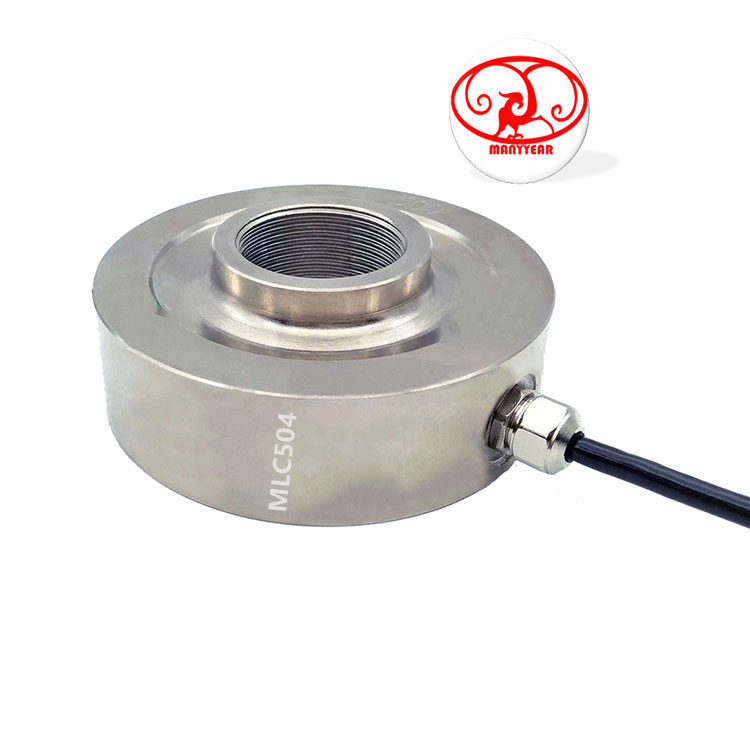

Product Picture Reference



MLC504 – through-shaft gasket type ring load cell 500kg-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

washer force sensor, Circle load cell, Ring gasket load cell, compression load cell, Axial force sensor.

MLC504 - through-shaft gasket type ring load cell 500kg
Model: MLC504
Catalog: Ring Load Cells
Rated load: 300, 500, 1000, 2000, 3000, 5000kg
Accuracy: C2
Safe overload: 150%; ultimate overload: 200%
Material: alloy steel, stainless steel
Features: ring force sensor, gasket force sensor, axial force sensor, extrusion force sensor, preload force sensor

              Specification
Comprehensive error:0.05%FSOutput resistance:352±5Ω
Rated output:1.0±0.002mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~15VDC
Hysteresis:0.02%FSCompensated temp:-10~+40℃
Repeatability:0.02%FSUse temperature:-40~+80℃
Creep:0.02%FS/10MinTemp effect on zero:0.03%FS/10℃
Zero balance:±1%FSTemp effect on span:0.02%FS/10℃
Input resistance:380±5ΩDefend grade:IP68

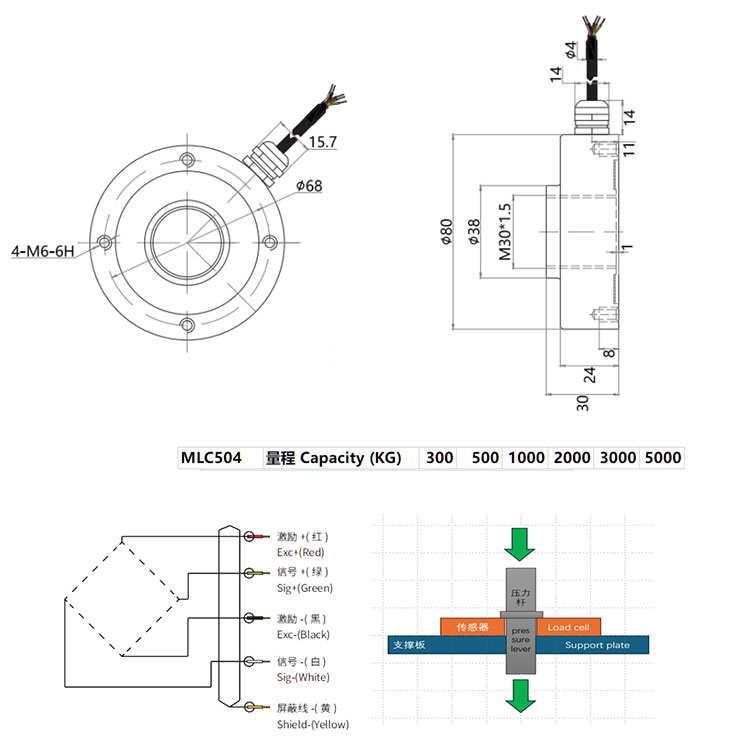

Product Dimension

MLC504 – through-shaft gasket type ring load cell 500kg-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

Product Application

MLC504 – through-shaft gasket type ring load cell 500kg-MANYYEAR TECHNOLOGYMLC504 – through-shaft gasket type ring load cell 500kg-MANYYEAR TECHNOLOGYMLC504 – through-shaft gasket type ring load cell 500kg-MANYYEAR TECHNOLOGY
