MLC215A roumd compression force sensor

2021/11/10 Force Load Cell MLC200 Button Load Cell 2119 0

tank scale load cell, compression force sensor, round force sensor, button load cell

Model: MLC215A
Category: Button load cell
Range: 1t,2t,3t,5t,7.5t
Dimension: 100*54mm
Material: alloy steel,stainless steel
Characteristic: tank scale load cell, compression load cell, round force sensor, button load cell

Product selection reference

Product Introduction Technical Documents

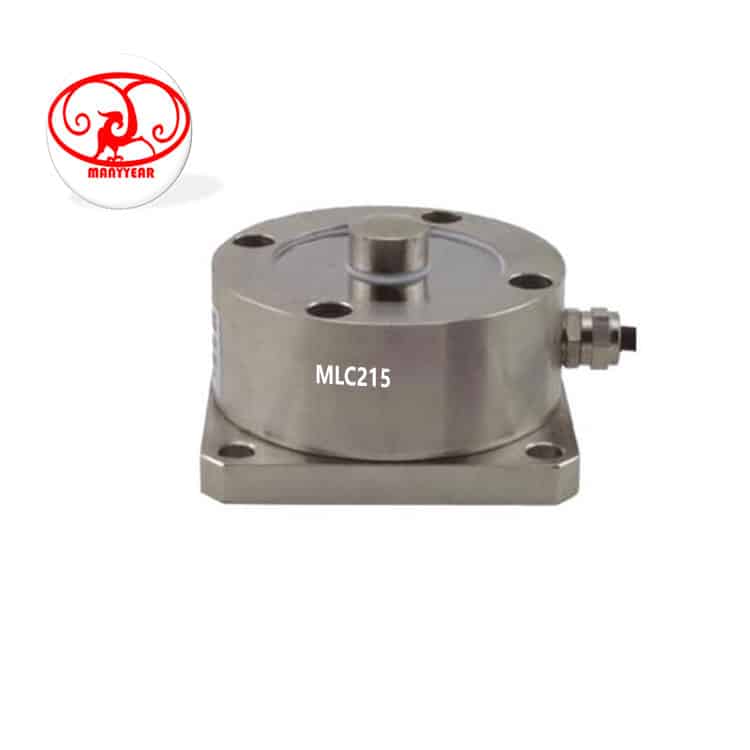

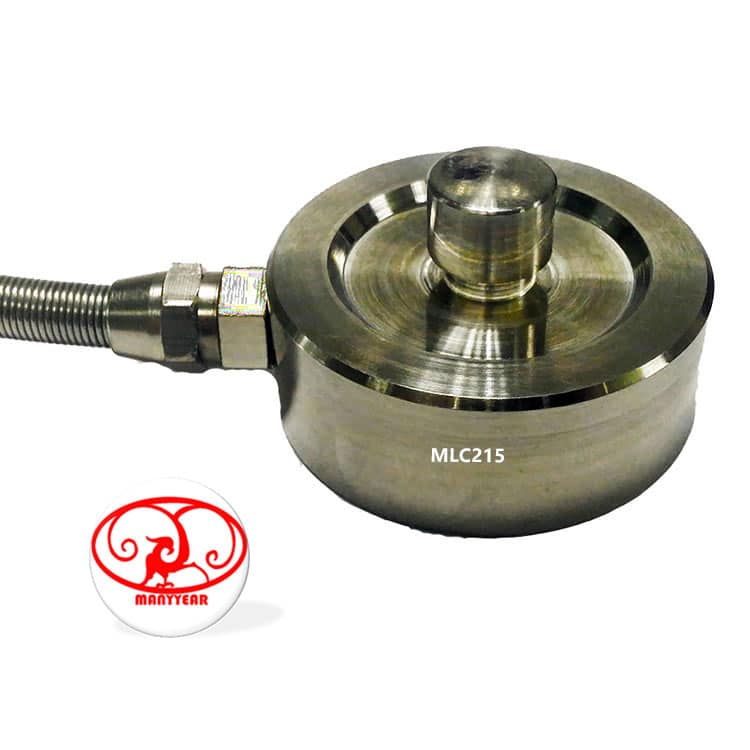

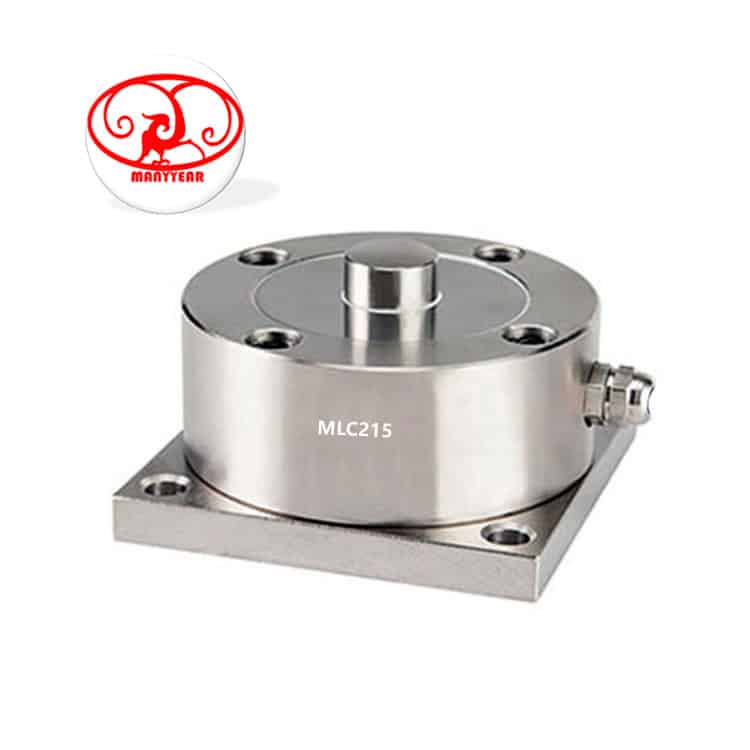

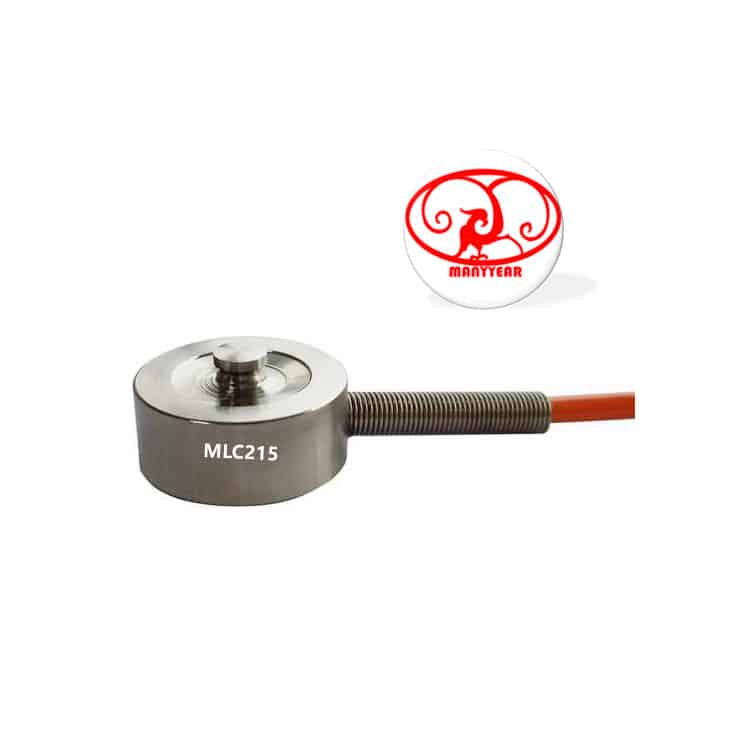

Product Picture Reference

MLC215A roumd compression force sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC215A roumd compression force sensor

Model: MLC215A Category: Button load cell Range: 1t,2t,3t,5t,7.5t Dimension: 100*54mm Material: alloy steel,stainless steel Characteristic: tank scale load cell, compression load cell, round force sensor, button load cell

Specification
Comprehensive error:	0.05%FS	Output resistance:	703±5Ω
Rated output:	2.0±0.005mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	750±10Ω	Defend grade:	IP66 & IP68

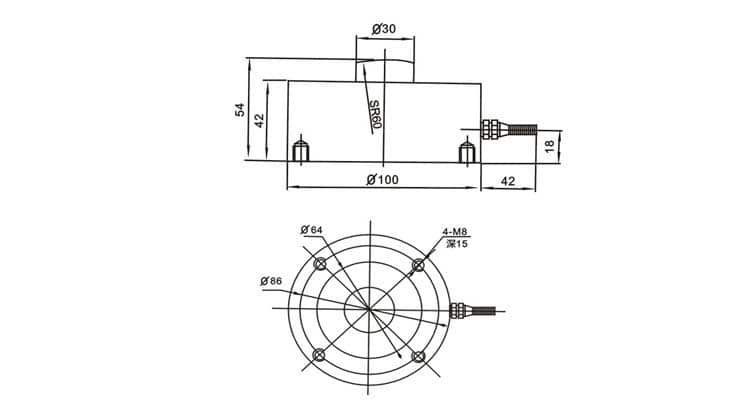

Product Dimension

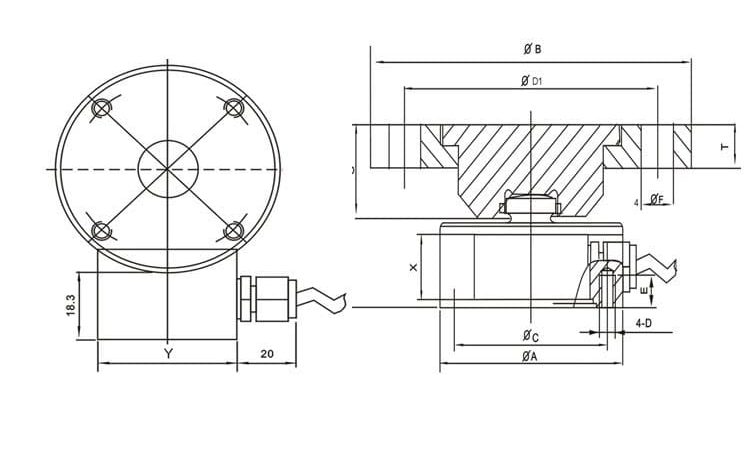

Force Structure & Assembly Reference
