MLC216 button compression force sensor

2021/11/10 Force Load Cell MLC200 Button Load Cell 2427 0

tank scale load cell, compression load cell, compression force load cell, round force load cell, button force sensor

Model: MLC216
Category:Button load cell
Range: 5t
Dimension: 90*60mm
Material: alloy steel,stainless steel
Characteristic: tank scale load cell, compression load cell, compression force load cell, round force load cell, button force sensor

Product selection reference

Product Introduction Technical Documents

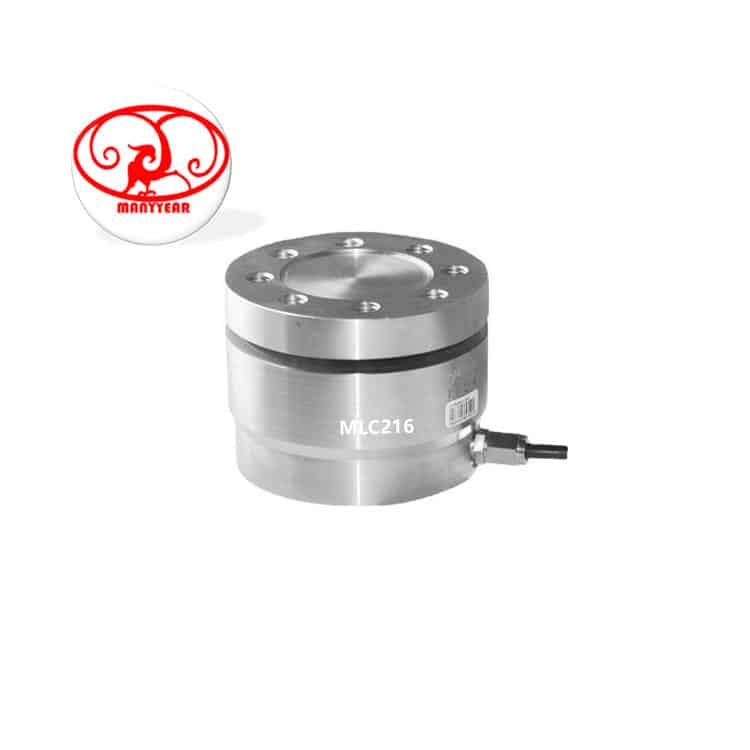

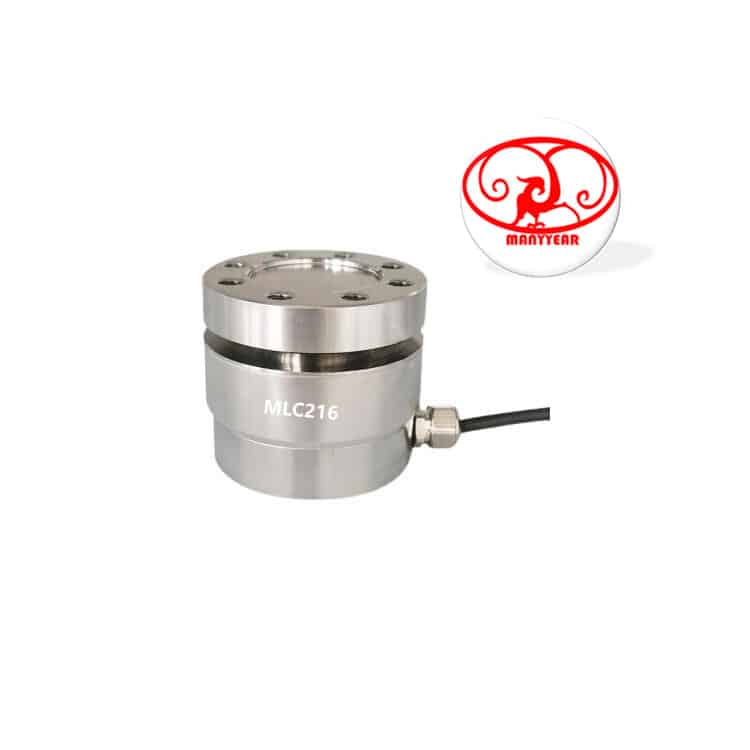

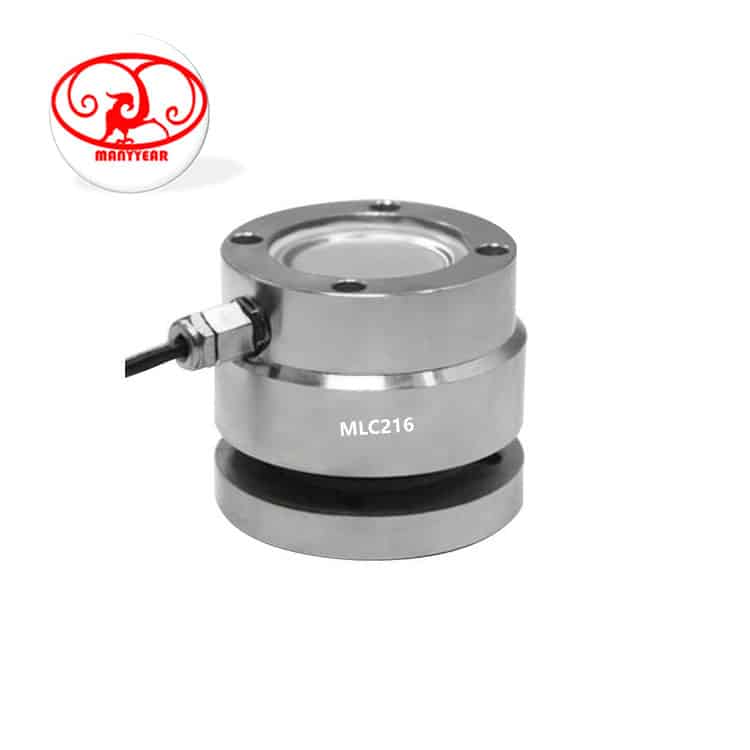

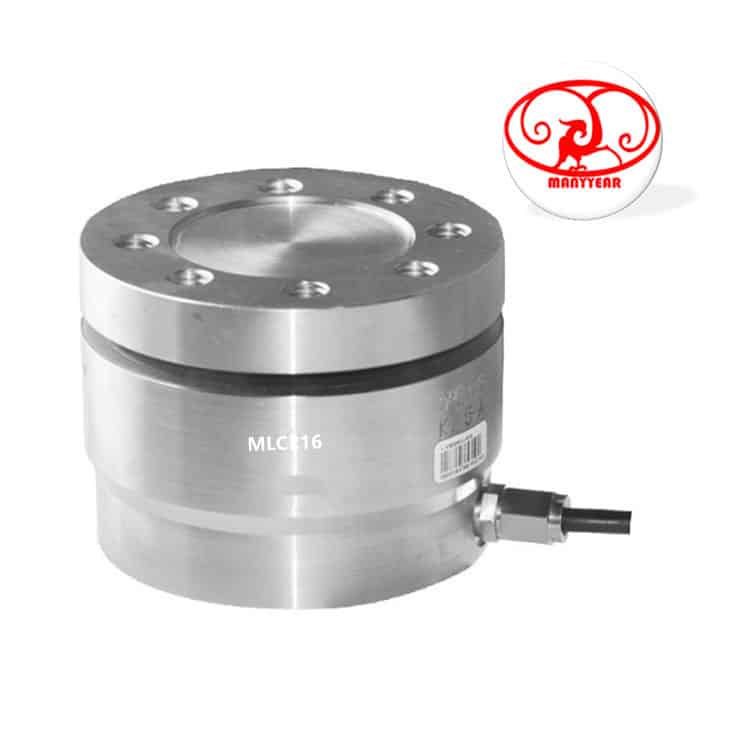

Product Picture Reference

MLC216 button compression force sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference, we can provide ODM product.

MLC216 button compression force sensor

Model: MLC216 Category:Button load cell Range: 5t Dimension: 90*60mm Material: alloy steel,stainless steel Characteristic: tank scale load cell, compression load cell, compression force load cell, round force load cell, button force sensor

Specification
Comprehensive error:	0.01%FS	Output resistance:	703±5Ω
Rated output:	2.0±0.005mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40℃
Repeatability:	0.03%FS	Use temperature:	-20~+55℃
Creep:	0.03%FS/10min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	700±10Ω	Defend grade:	IP66 & IP68

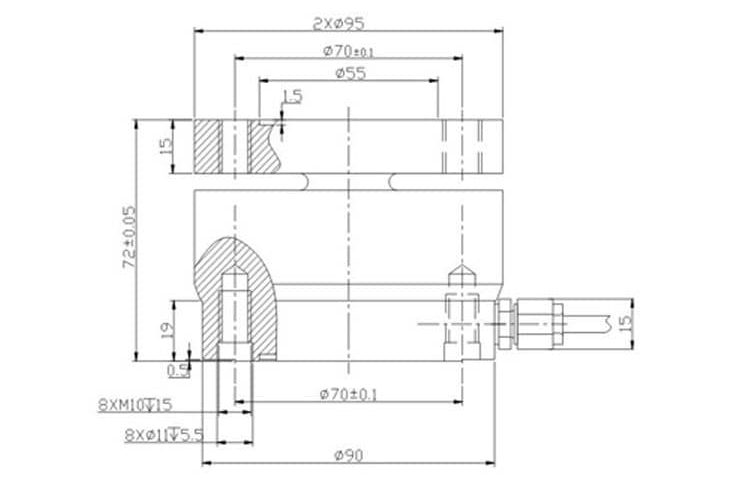

Product Dimension

Force Structure & Assembly Reference
